MS22 12103: Descriptioninrush current limiters 22mm 120ohms 3A inrsh curr limiter; CategoryCircuit protection; File Size25KB，1 Pages; ManufacturerAmetherm; Websitehttp://www.ametherm.com/; Environmental Compliance

Download Datasheet Parametric View All

MS22 12103 Overview

inrush current limiters 22mm 120ohms 3A inrsh curr limiter

MS22 12103 Parametric

Parameter Name	Attribute value
Manufacture	Ametherm
Product Category	Inrush Current Limiters
RoHS	Yes
Current Rating	3 A
Voltage	120 VAC, 240 VAC, 480 VAC, 680 VAC
Resistance	120 Ohms
Tolerance	25 %
Case Diamete	23 mm
Case Width	10 mm
Dimensions	23 mm Dia. x 10 mm W
Lead Diamete	1 mm
Lead Spacing	7.8 mm
Packaging	Bulk
Pitch Spacing	7.6 mm
Factory Pack Quantity	50
Type	Inrush Current Limiter Thermistors

Preview

Download Datasheet

View All

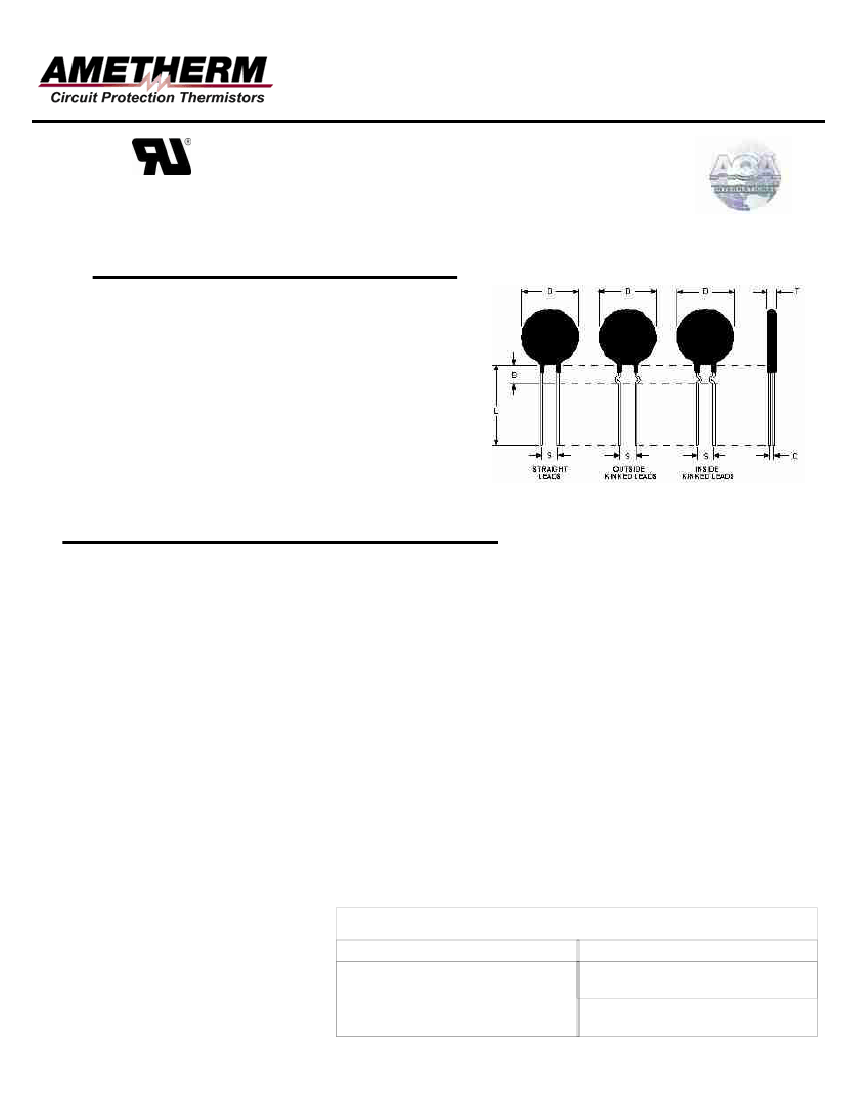

Data Sheet

MS22 12103

File: E209153

ISO9001:2008 Certified

Mechanical Specifications (mm)

D:

T:

Lead Diameter

S:

L:

Coating Lead Run Down

(straight Leads)

B:

C:

23.0

±

max

10.0 ± max

1.0

±

nom

7.8

38.0

4.0

9.20

7.60

±

nom

max

nom

±

Electrical Specifications

Resistance: 120.0Ω

Max Steady State Current upto 65°c:

Max Rec. Energy Rating:

Actual Failure Instantaneous Energy:

Maximum Capacitance @ 120 VAC:

Maximum Capacitance @ 240 VAC:

Maximum Capacitance @ 440 VAC:

Maximum Capacitance @ 680 VAC:

Resistance @ 100% Max Current:

Resistance @ 50% Max Current:

Body Temperature at 100% Max Current:

Dissipation Constant:

Thermal Time Constant:

Material Type (for Beta and Curve):

3.00

220

450

15,000

3,820

883

440

1.28

2.65

165.00

75.4

124

M

±

25 %

A

J

µf

Ω

°c

mw/°c

Sec.

MS22 12103

Date: 02/05/2009

Ametherm, Inc.

3111 N. Deer Run Road

Carson City, Nevada USA 89701

www.ametherm.com

Drawn by: Erin Landis

Approved By: Mehdi Samii

Revison: A
