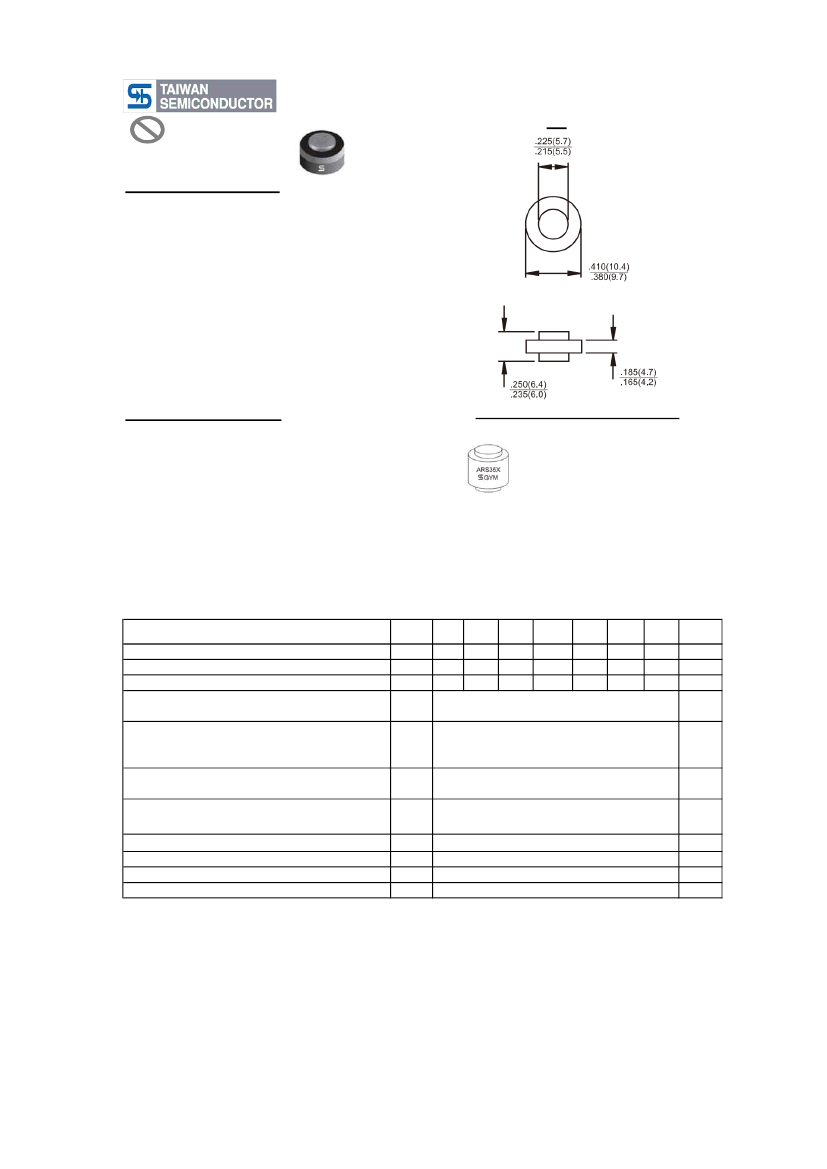

35.0 AMPS. High Current Button Rectifiers

AR35 SERIES

Features

Plastic material used carries Underwriters

Laboratory Classification 94V-0

Low cost construction utilizing void-free molded

plastic technique

Low cost

Diffused junction

Low leakage

High surge capability

High temperature soldering guaranteed:

260℃ for 10 seconds

Green compound with suffix "G" on packing

code & prefix "G" on datecode

Mechanical Data

Case: Molded plastic case

Terminals: Pure tin plated, lead free, solderable per

MIL-STD-202, Method 208

Polarity: Color ring denotes cathode

Weight: 1.8 grams

Mounting position: Any

Dimensions in inches and (millimeters)

Marking Diagram

AR35X = Specific Device Code

= Green Compound

= Year

= Work Month

Maximum Ratings and Electrical Characteristics

Rating at 25

℃

ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Type Number

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

=150

℃

Peak Forward Surge Current, 8.3 ms Single Half Sine-wave

Superimposed on Rated Load (JEDEC method)

=150℃

Maximum Instantaneous Forward Voltage (Note 1)

@ 35A

Maximum DC Reverse Current at

Rated DC Blocking Voltage

@ T

=25

℃

@ T

=125℃

Symbol

RRM

RMS

F(AV)

35A

35B

100

35D

200

140

200

35G

400

280

400

35J

600

420

600

35K

800

560

800

35M

1000

700

1000

Units

FSM

500

Trr

θJC

, T

STG

1.0

250

3.0

300

1.0

- 50 to + 175

C/W

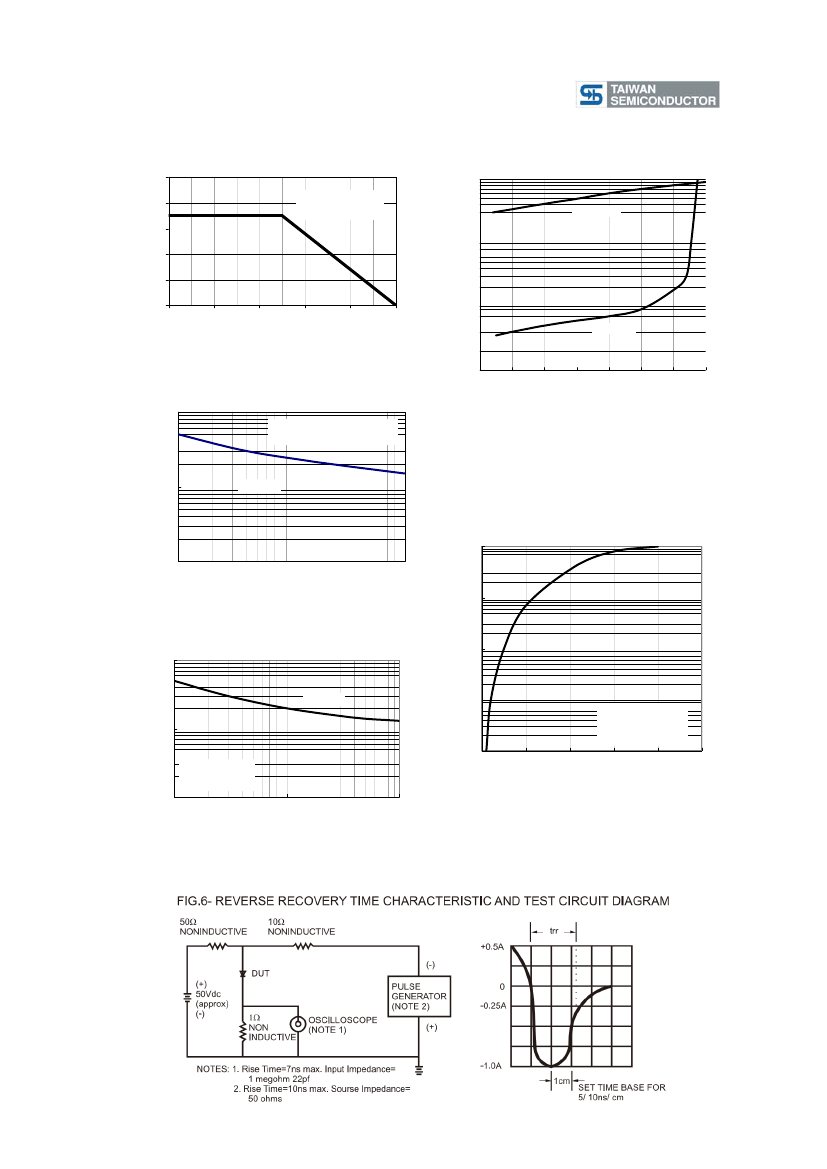

Typical Reverse Recovery Time (Note 2)

Typical Junction Capacitance (Note 3)

Typical Thermal Resistance (Note 4)

Operating and Storage Temperature Range

Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle

Note 2: Reverse Recovery Time Test Conditions: I

=0.5A, I

=1.0A, I

=0.25A

Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.

Note 4: Thermal Resistance from Junction to Case, Singe Side Cooled.
