RDH SERIES
INDUSTRIAL RELAYS
UL & CUL File #E223388

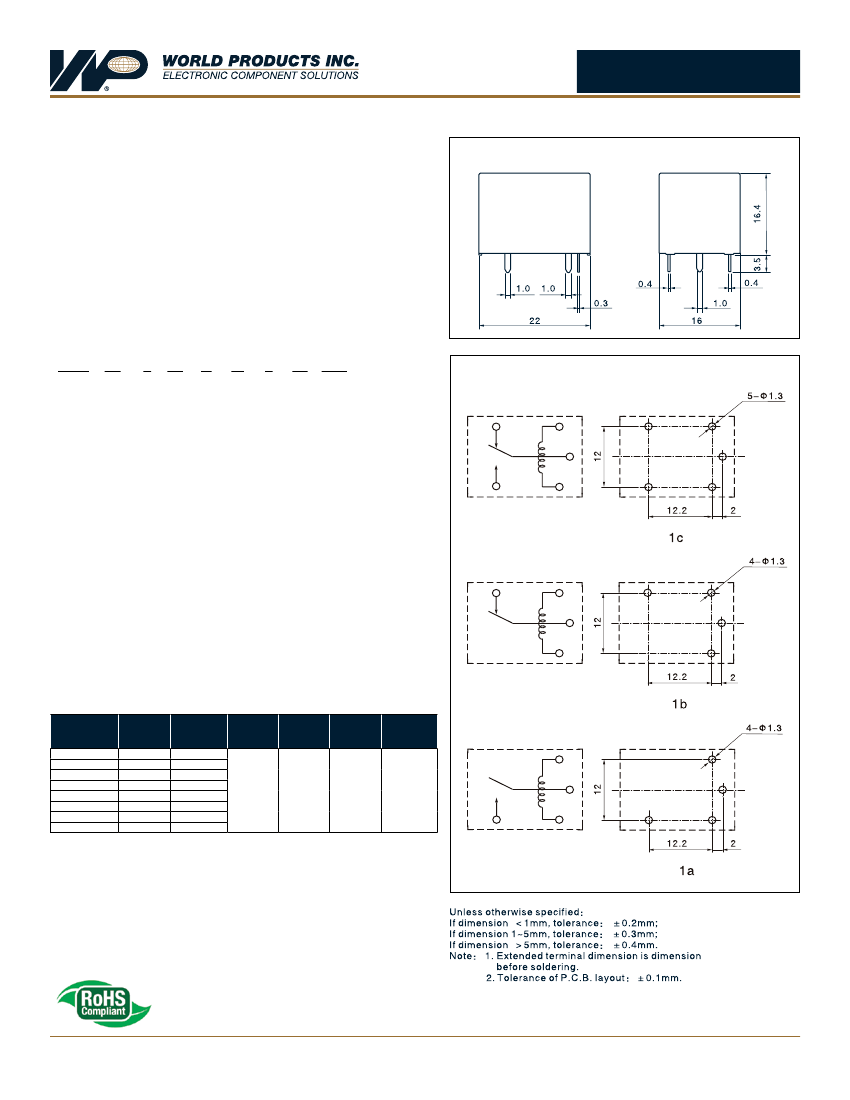

DIMENSIONS
Unit: mm
FEATURES
• Small size with 10A switching capability.
• Sealed types available.
• High dielectric strength.
TYPICAL APPLICATIONS
Home Appliances, Air Conditioner, Heater, Office Equipment, Coffee Pot
Automation and Instrument, Audio System, Office Equipment,
Automotive Control Device.
ORDERING INFORMATION
RDH
(1)
(1)
–S
(2)
–1
(3)
12
(4)
D
(5)
M
(6)
(6)
1
(7)
–F
(8)
–XX
(9)
WIRING DIAGRAM & PCB BOARD LAYOUT
Bottom view. Unit = mm
Type Designation
RDH
= RDH Series
Protective Construction
S
= Flux proofed
SH = Sealed type washable
Number of Poles
1
= 1 pole
Coil Voltage (VDC)
03, 05, 06, 09, 12, 18,
24, 48
Coil Power
D
= 0.36W
(2)
Contact Form
Nil
= Form C
B
= Form B
M
= Form A
Contact Material
Nil = AgSnO2
1 = AgCdO
Insulation System
Nil
= Standard
B
= Class B
(1)
F
= Class F
(2)
Special Parameter
Nil = Standard type
Letter or Number
= Special
Requirement
(7)
(3)
(8)
(4)
(5)
(9)
Note 1: Heat resistivity = -40ºC to +130ºC.
Note 2: Heat resistivity = -40ºC to +155ºC.
COIL DATA (AT 20ºC)
Nominal
Voltage (VDC)
3
5
6
9
12
18
24
48
Nominal
Coil
Max.
Current Resistance Allowable
(mA)
± 10% (Ω)
Voltage
120.00
25
71.43
70
60.00
100
130% of
40.00
225
Nominal
30.00
400
Voltage
20.00
900
15.00
1600
7.50
6400
Pick–up
Voltage
(Max.)
Drop–Out Nominal
Voltage Operating
(VDC)
Power
75% of
Nominal
Voltage
5% of
Nominal
Voltage
Approx.
0.36W
WORLD PRODUCTS INC.
19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com
24
| Industrial Relays Catalog
Rev. 1.2 - 03.04.13
RDH SERIES
CHARACTERISTIC DATA
Contact Material
Initial contact resistance
(@ 6VDC 1A)
Operate time
(@ nominal voltage)
Release Time
(@ nominal voltage)
Initial insulation resistance
Initial dielectric strength
Vibration Resistance
Shock Resistance
Endurance
(operations)
Ambient Temperature
Unit Weight
Silver Alloy
50mΩ Max.
10msec. Max.
5msec. Max.
100M Ω Min. (DC500V)
Between open contacts: AC1000V, 50/60Hz 1 Min.
Between coil and contact: AC2000V, 50/60Hz 1Min.
Functional
10 ~ 55Hz @ double amplitude of 1.5mm
Destructive
10 ~ 55Hz @ double amplitude of 1.5mm
Functional
10G Min.
Destructive
100G Min.
Mechanical (@10,800 ops./h)
10,000,000
Electrical (@1,800 ops./h)
100,000
–40ºC to +105ºC (no condensation)
Approximately 11.0g
CONTACT CAPACITY
Model
RDH
Nominal Switching Capacity
(res. load)
10A/5A 250VAC
10A 250VAC
5A 250VAC
Max. Switching
Current
10A
Max. Switching
Voltage
250VAC
Max. Switching
Power
2500VA
SAFETY APPROVAL RATINGS
UL/CUL
E223388
10A 240VAC, Resistive
10A 120VAC, Resistive
10A 28VDC, Resistive
3A 125VAC, General Use

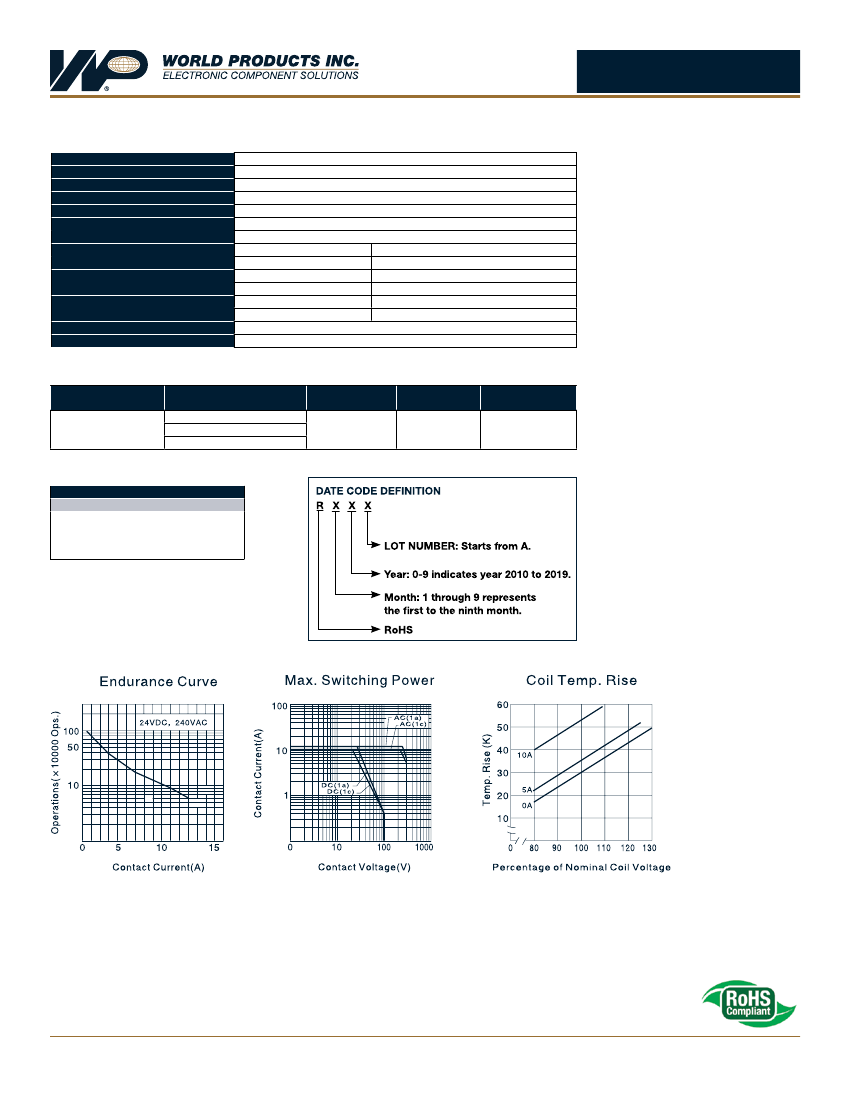

CHARACTERISTIC CURVES
