27FHX-RSM1-G-S-TB datasheet, PDF

Datasheet> All Categories > The connector> The connector> 27FHX-RSM1-G-S-TB

27FHX-RSM1-G-S-TB: DescriptionCard Edge Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size68KB，3 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

27FHX-RSM1-G-S-TB Overview

Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

27FHX-RSM1-G-S-TB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW PROFILE, ZIF
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	27
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

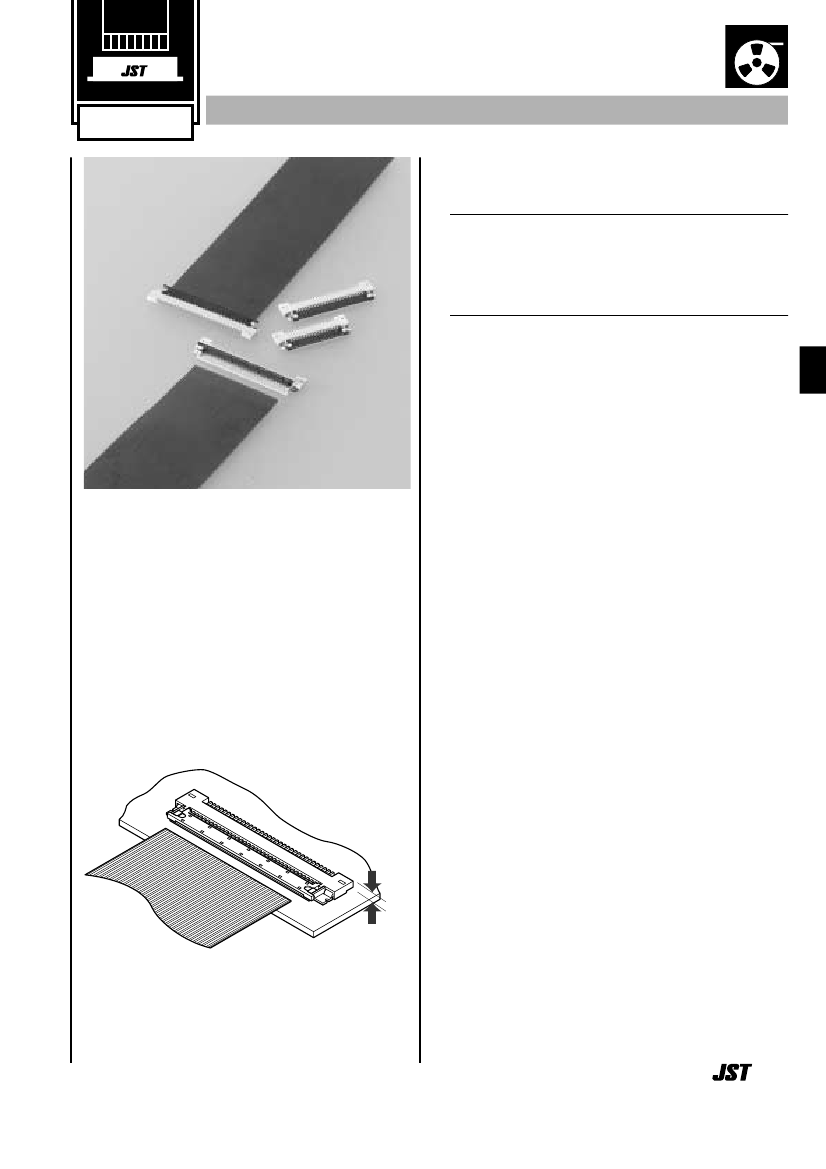

0.5mm

(.020") pitch

FHX

CONNECTOR

Connectors for FPC

• Ultra low-profile

miniaturisation within mobile equipment.

Emboss Tape

Features––––––––––––––––––––––––

Only 0.9mm (.035") height. This ultra low-profile connector

has been developed to meet the continuing trend towards

• Heat resistant design suitable for surface

mounting

The housing is made of heat resistant plastic to allow reflow

soldering.

ZIF (zero insertion force) flip lock type

connectors.

Specifications –––––––––––––––––––

• Current rating: 0.5A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/60m

Ω

max.

After environmental testing/60m

Ω

max.

(Variance from the initial)

• Insulation resistance:

800M

Ω

min.

• Withstanding voltage: 200V AC/minute

• Applicable FPC: Lead pitch/0.5mm(.020")

Lead width/0.35mm(.014")

Mating part thickness/

0.12±0.03mm (.005"±.001")

Note

FPC to be actually used should be checked for applicability.

0.9mm(.035)

Ultra low profile

* Contact JST for details.

377

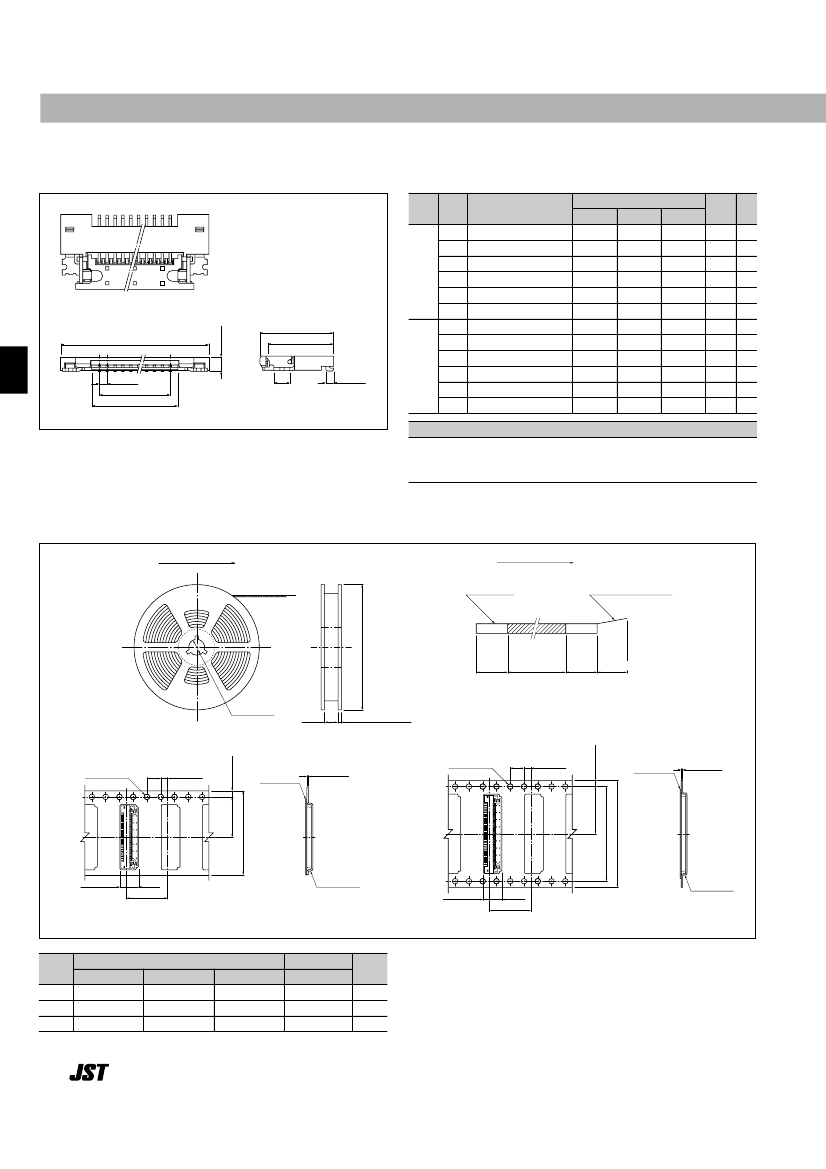

27FHX-RSM1-G-S-TB Related Products

	27FHX-RSM1-G-S-TB	19FHX-RSM1-G-S-TB(LF)(SN)	19FHX-RSM1-G-S-TB	20FHX-RSM1-G-S-TB	24FHX-RSM1-G-S-TB	34FHX-RSM1-G-S-TB	40FHX-RSM1-G-S-TB
Description	Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 34 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 40 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknown	unknown
Other features	LOW PROFILE, ZIF	LOW PROFILE	LOW PROFILE, ZIF	LOW PROFILE, ZIF	LOW PROFILE, ZIF	LOW PROFILE, ZIF	LOW PROFILE, ZIF
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	27	19	19	20	24	34	40
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
Is it lead-free?	Contains lead	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
