GKN240/12: Descriptionrectifiers standard recovery - 1200 V - 320 A - DO-9; CategoryDiscrete semiconductor diode; File Size397KB，2 Pages; ManufacturerGeneSiC; Websitehttp://www.genesicsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

GKN240/12 Overview

rectifiers standard recovery - 1200 V - 320 A - DO-9

GKN240/12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	GeneSiC
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
Maximum non-repetitive peak forward current	6000 A
Number of components	1
Maximum operating temperature	150 °C
Maximum output current	320 A
Maximum repetitive peak reverse voltage	1200 V

Preview

Download Datasheet

View All

GKN240/04 thru GKN240/18

Silicon Standard

Recovery Diode

Features

• High Surge Capability

• Types up to 1800 V V

RRM

• Equivalent to SKN240 Series

DO-9 Package

RRM

= 400 V - 1800 V

=320 A

GKN

Maximum ratings, at T

= 25 °C, unless otherwise specified (GKR has leads reversed)

Parameter

Repetitive peak reverse voltage

DC blocking voltage

Continuous forward current

Surge non-repetitive forward

current, Half Sine Wave

Operating temperature

Storage temperature

Symbol

RRM

≤

100 °C

F,SM

= 25 °C, t

= 10 ms

stg

Conditions

GKN240/04 GKN240/08 GKN240/12 GKN240/14 GKN240/16GKN240/18 Unit

400

320

6000

-40 to 180

-55 to 180

800

320

6000

-40 to 180

-55 to 180

1200

320

6000

-40 to 180

-55 to 180

1400

320

6000

1600

320

6000

1800

320

6000

-40 to 180 -40 to 180 -40 to 180 °C

-55 to 180 -55 to 180 -55 to 180 °C

Electrical characteristics, at Tj = 25 °C, unless otherwise specified

Parameter

Diode forward voltage

Reverse current

Symbol

Conditions

= 60 A, T

= 25 °C

= V

RRM

, T

= 180 °C

GKN240/04 GKN240/08 GKN240/12 GKN240/14 GKN240/16GKN240/18 Unit

1.4

Thermal characteristics

Thermal resistance, junction -

case

thJC

0.20

K/W

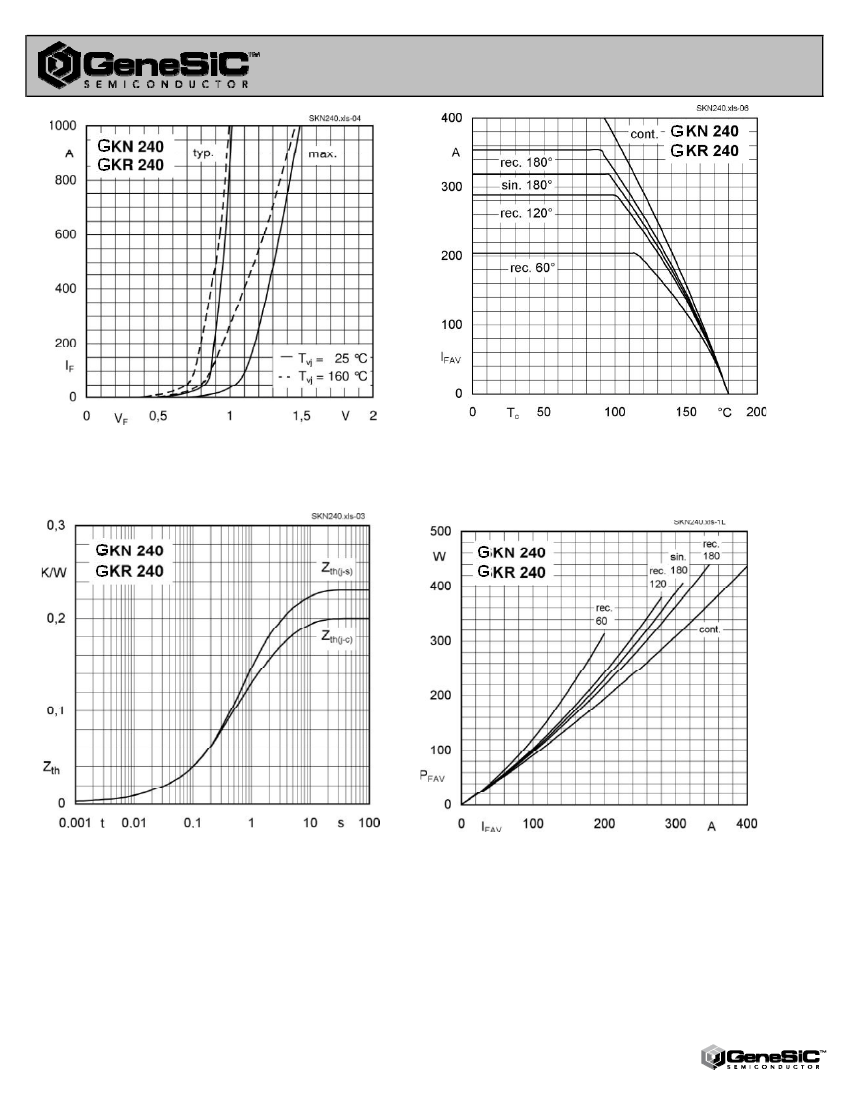

www.genesicsemi.com/index.php/silicon-products/standard-rec

GKN240/12 Related Products

	GKN240/12	GKN240/14	GKN240/16	GKN240/08	GKN240/04
Description	rectifiers standard recovery - 1200 V - 320 A - DO-9	rectifiers standard recovery - 1400 V - 320 A - DO-9	rectifiers standard recovery - 1600 V - 320 A - DO-9	rectifiers standard recovery - 800 V - 320 A - DO-9	rectifiers standard recovery - 400 V - 320 A - DO-9
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	GeneSiC	GeneSiC	GeneSiC	GeneSiC	GeneSiC
Reach Compliance Code	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V
Maximum non-repetitive peak forward current	6000 A	6000 A	6000 A	6000 A	6000 A
Number of components	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	320 A	320 A	320 A	320 A	320 A
Maximum repetitive peak reverse voltage	1200 V	1400 V	1600 V	800 V	400 V
