SMD Multilayer Chip Varistor
AMCV-0603LC
FEATURES:
• SMD type, small size suitable for high density mounting
• Excellent clamping ratio and strong capability of voltage surge suppression
• Excellent solderability (Ni, Sn plating)
RoHS
Compliant
1.6 x 0.8 x 0.8 mm
.
STANDARD SPECIFICATIONS:
APPLICATIONS:
• Transient voltage protection and voltage surge suppression for
LED lighting
• Suitable for LCD-TV, STB, Switch, Router, PLC, Security
System, smart meters, mobile phones
• Suppressing Induced / switching over-voltage caused by
lightning and power
• Protecting DC-DC Module, I/O ports, IC driver
Operating Temperature:
-55˚C ~ +125˚C
Storage Temperature:
-10˚C ~ +40˚C and RH 70% (Max.)
Part
Number
Test Condition
Units
Symbol
AMCV-0603LC-140-C100
AMCV-0603LC-140-C120
AMCV-0603LC-180-C050
AMCV-0603LC-180-C100
AMCV-0603LC-180-C120
AMCV-0603LC-260-C030
AMCV-0603LC-260-C100
Max. Working
Voltage
<20μA
AC
DC
RMS
Volts Volts
V
WDC
V
WAC
14.0
10.0
14.0
18.0
18.0
18.0
26.0
26.0
10.0
12.7
12.7
12.7
18.4
18.4
Varistor
Voltage
@1mA
DC
Volts
V
B
16.0-22.0
16.0-22.0
22.0-28.0
22.0-28.0
22.0-28.0
31.0-38.0
31.0-38.0
Max. Clamping
Voltage
8/20μs
Volts
V
C*1
30
30
40
40
40
58
58
ESD
Volts
V
C*2
39
39
48
48
48
70
70
Rated Single
Pulse
Transient
Energy
10/1000μs
Joules
E
T
0.005
0.005
0.003
0.005
0.005
0.003
0.005
Peak
Current
8/20μs
Amps
I
P
2
2
1
2
2
1
2
Typical
Capacitance
@0.5V
rms
,
1MHz
pF
C
10
12
5
10
12
3
10
AMCV-0603LC-260-C120
26.0
18.4
31.0-38.0
58
70
0.005
2
12
*1: Vc, Maximum peak
voltage
across the
varistor
measured at a specified pulse current and waveform.
Energy Rating
Pulse
& Waveform
0.00- 0.05 Joule
1A, 8/20μs
0.10 Joule
2A, 8/20μs
0.20-0.50 Joule
5A, 8/20μs
*2: Vc, Maximum peak
voltage
across the
varistor
measured at 30ns after initiation of pulse on IEC61000-4-2 30A/8KV.
Test Conditions
Unless otherwise specified, the standard atmospheric conditions for measurement/test as:
a. Ambient Temperature: 20±15˚C
b. Relative
Humidity:
65±20%
c. Air
Pressure:
86 kPa to 106 kPa
Items
Varistor Voltage at 1mA DC
(V
B
)
Capacitance
(C)
Leakage Current
(I
L
)
Clamping Voltage
(V
C
)
Test Methods and Remarks
Measuring current: 1mA DC
Duration: 0.2 to 2 sec
Measure source: 0.5 V
RMS
Test frequency: 1MHz.
Measuring
voltage:
Maximum DC working
voltage
Measuring source: 8/20us waveform, ESD waveform
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California 92688
Visit
www.abracon.com
for Terms & Conditions of Sale
Revised: 11.30.12
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
SMD Multilayer Chip Varistor
AMCV-0603LC

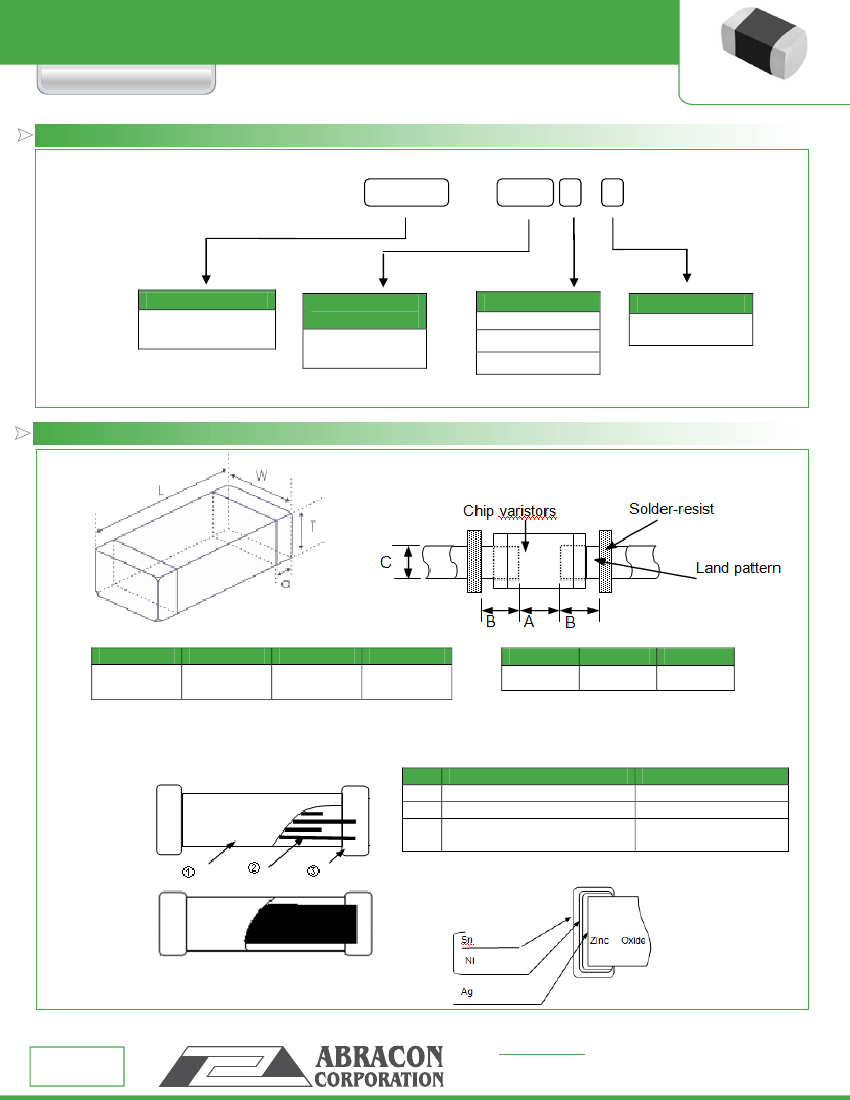

OPTIONS AND PART IDENTIFICATION:
RoHS
Compliant
1.6 x 0.8 x 0.8 mm
.
AMCV-0603LC-
-C
-
Voltage Code
Please
refer to the
table above
Capacitance
Code
Please
refer to
the table above
Tolerance
N=±30%
Y=+100%, -50%
G=+0%, -60%
T: Tape and Reel
(4kpcs
/ reel)
Packaging
OUTLINE DIMENSION:
Recommended Land Pattern
L
1.6±0.15
[0.063±0.006]
W
0.8±0.15
[0.031±0.006]
T
0.8±0.15
[0.031±0.006]
a
0.3±0.2
[0.012±0.008]
A
0.60∼0.80
B
0.60∼0.80
C
0.60∼0.80
Materials
1
2
3
Part Name
Base Material
Internal Conductor
Terminal Electrode
Dimension: mm [inch]
Material
Side View
ZnO
Ag-Pd
Ag (Inner layer)
Ni-Sn (Outer layer)
Top View
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California 92688
Visit
www.abracon.com
for Terms & Conditions of Sale
Revised: 11.30.12
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
SMD Multilayer Chip Varistor
AMCV-0603LC

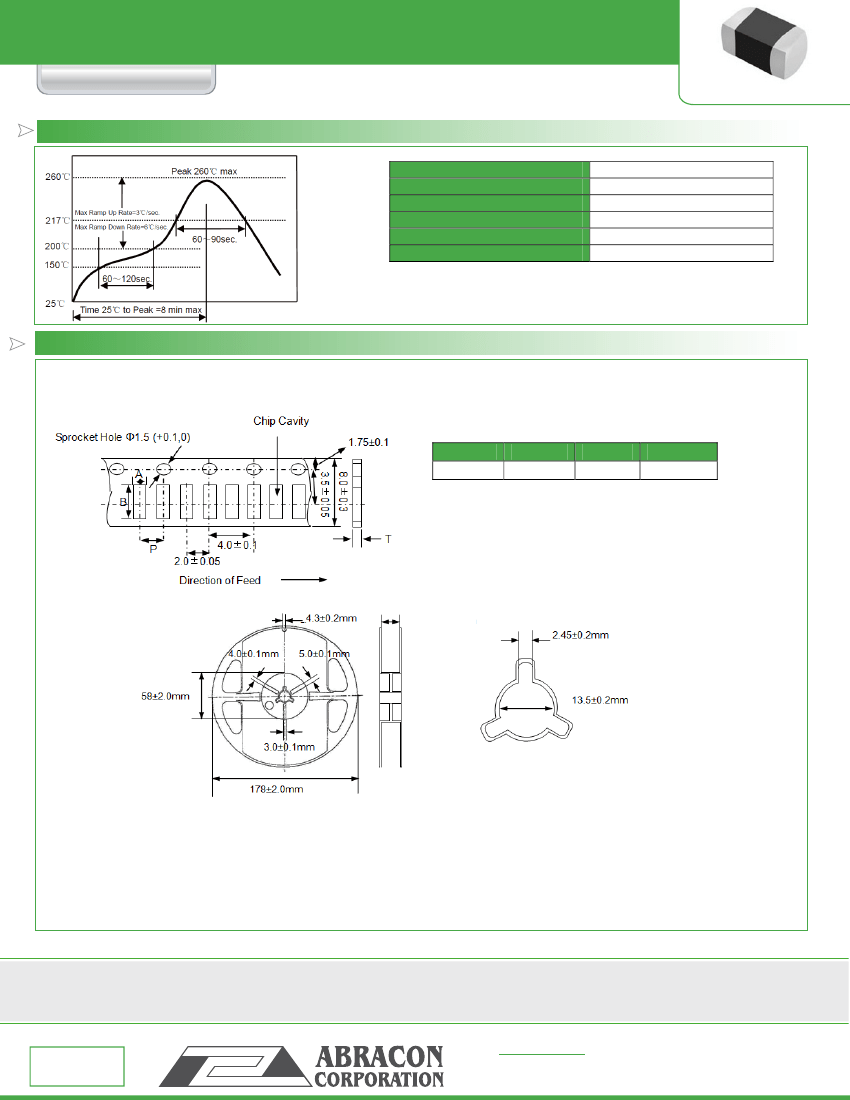

REFLOW PROFILE:
Preheat Condition
Allowed time above 217
˚C
Max temperature
Max time at max temperature
Solder paste
Allowed Reflow time
150 to 200
˚C;
60 to 120 sec.
60 to 90 sec.
260
˚C
10 sec.
Sn/3.0Ag/0.5Cu
2x max.
RoHS
Compliant
1.6 x 0.8 x 0.8 mm
.
TAPE & REEL:
Packing
T: 4,000pcs / reel
A
1.0±0.2
B
1.8±0.2
P
4.0±0.1
T (max)
1.1
9.0±1.5mm
Storage Conditions
a. The solderability of the external electrode may be deteriorated if packages are stored where they are exposed to high
humidit y
Package must
be stored at 40
o
C or less and
70%
RH or less.
b. The solderability of the external electrode may be deteriorated if packages are stored where they are exposed to dust of
harmful gas
(e.g. HCI,
sulfurous gas of
H
2
S).
c.
Packaging
material may be deformed if package are stored where they are exposed to heat of direct sunlight.
d. Solderability shall be
guaranteed
for 6 months from the date of delivery on condition that they are stored at the environment
specified in
1.3.
The parts that are stored more than 6 months shall be checked solderability before
use.
Dimension:
mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products;
suitable
for Commercial,
Industrial
and, where designated,
Automotive
Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component
failure
could
result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating
environment,
written consent and
authorization
from
Abracon Corporation is required.
Please
contact Abracon Corporation for more information.
Visit
www.abracon.com
for Terms & Conditions of Sale
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California 92688
Revised: 11.30.12
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
