CMHSH5-4
SURFACE MOUNT SILICON
SCHOTTKY RECTIFIER
500mA, 40 VOLT
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMHSH5-4
type is a silicon Schottky rectifier, epoxy molded
in a surface mount package, designed for high current
applications requiring a low forward voltage drop.
MARKING CODE: C54

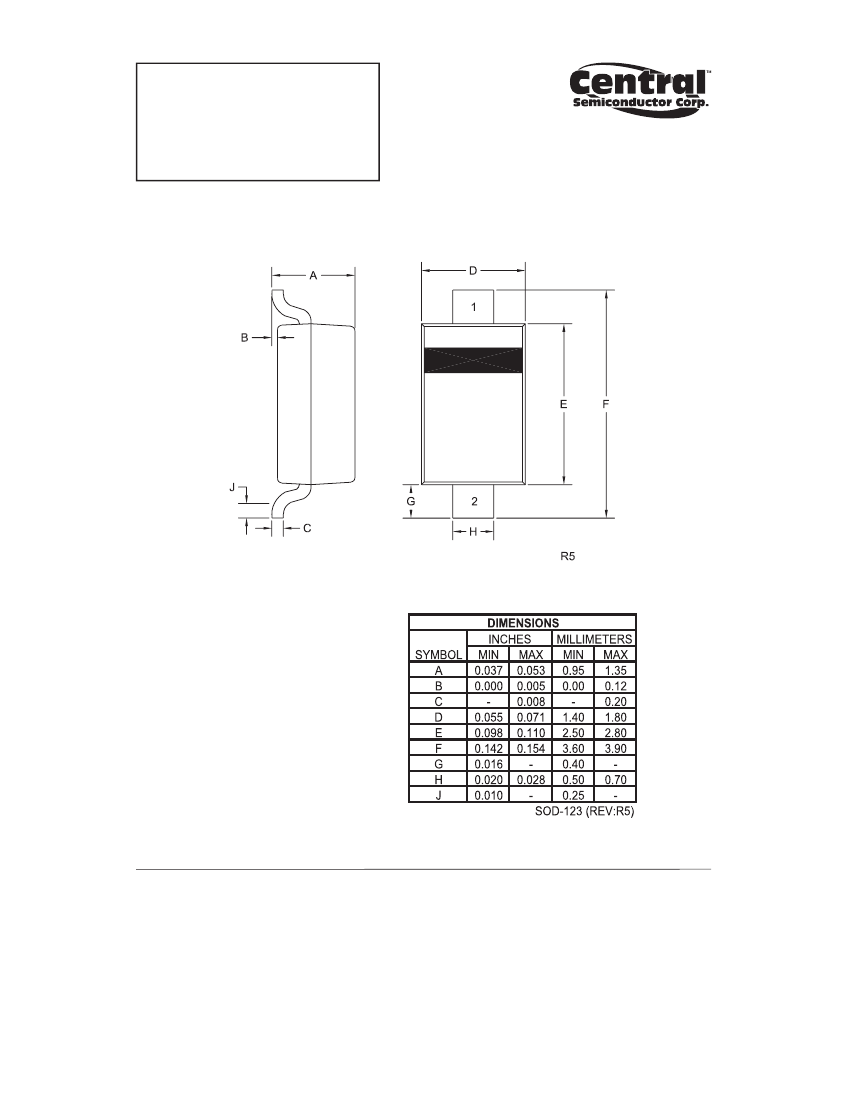

SOD-123 CASE
MAXIMUM RATINGS:
(TA=25°C)
Peak Repetitive Reverse Voltage
Peak Working Reverse Voltage
DC Blocking Voltage
Average Rectified Current
Peak Repetitive Forward Current
(@ rated VR, square wave, 20kHz, TC=115°C)
Peak Forward Surge Current
(@ rated load, halfwave, single phase, 60Hz)
Power Dissipation
Operating Junction Temperature
Storage Temperature
Thermal Resistance
Thermal Resistance
ELECTRICAL
SYMBOL
IR
IR
IR
IR
BVR
VF
VF
VF
VF
CJ
CJ
SYMBOL
VRRM
VRWM
VR
IO
IFRM
IFSM
PD
TJ
Tstg
Θ
JL
Θ
JA
40
40
40
500
1.0
5.5
400
-65 to +125
-65 to +150
118
250
UNITS
V
V
V
mA
A
A
mW
°C
°C
°C/W
°C/W
CHARACTERISTICS:
(TA=25°C unless otherwise noted)
TEST CONDITIONS
MIN
TYP
VR=20V
0.7
VR=20V, TA=100°C
VR=40V
VR=40V, TA=100°C
IR=10μA
IF=500mA
IF=500mA, TA=100°C
IF=1.0A
IF=1.0A, TA=100°C
VR=0, f=1.0MHz
VR=4.0V, f=1.0MHz
40
460
411
567
541
147
50
0.2
1.7
0.38
MAX
10
5.0
20
13
510
460
620
610
UNITS
μA
mA
μA
mA
V
mV
mV
mV
mV
pF
pF

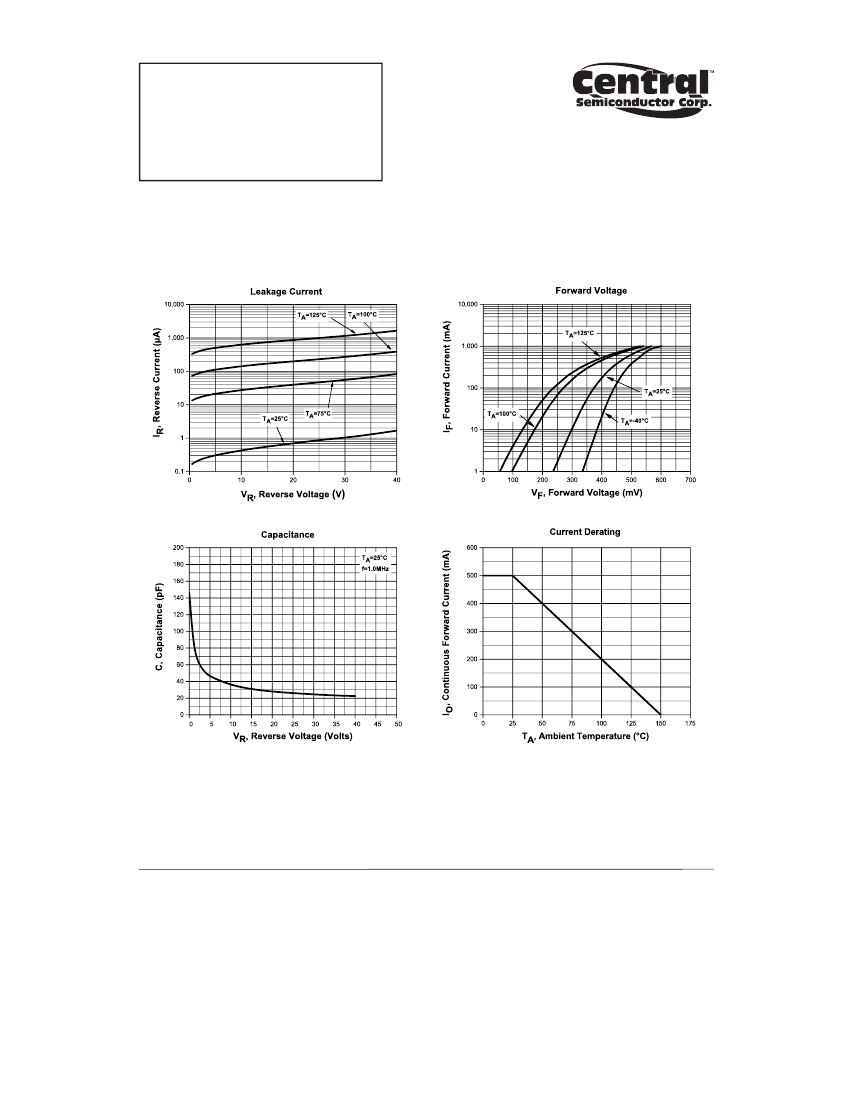

R6 (20-October 2015)
