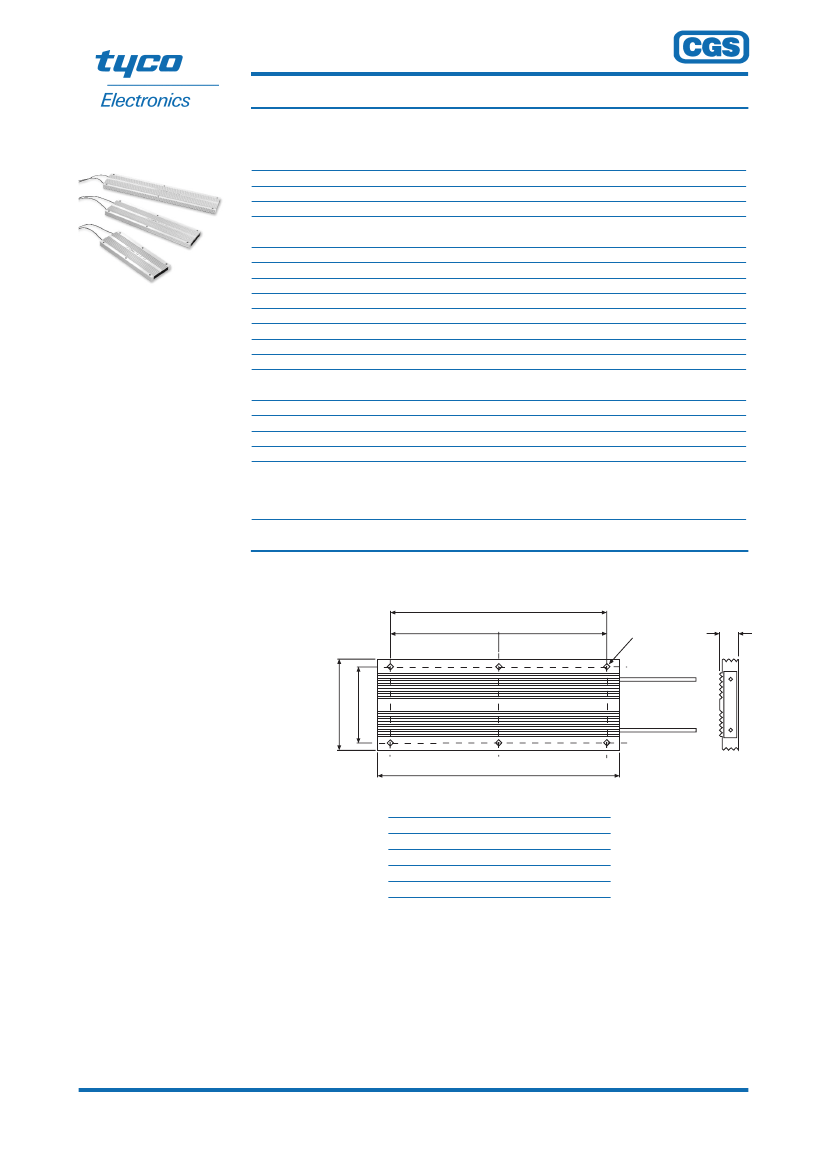

Low Profile Power Resistor
Type CJR Series
Type CJR Series
Characteristics -
Electrical
CJR250
CJR500
CJR750
CJR1000
Power Dissipation Free Air (W):
100
150
200
250
Power Dissipation Mounted on Heatsink (W):
250
500
750
1000
Ohmic Value Min (Ohms):
1Ω
1Ω
2Ω
2Ω
Max:
30Ω
60Ω
100Ω
130Ω
Resistance Tolerance (%):
5%, 10%
5%, 10%
5%, 10%
5%, 10%
Maximum Case Temperature (°C):
270
270
270
270
Stability at Rated Power - 1000hr’s (%):
±6.5%
±6.5%
±6.5%
±6.5%
Insulation Resistance @500V (GΩ):
>1.0
>1.0
>1.0
>1.0
Isolation Voltage - 1min AC rms (kV):
2.5kV
2.5kV
2.5kV
2.5kV
Series Inductance @ 10kHz (mH):
<2.5
<4.5
<5.0
<13.0
Capacitance terminal to case @ 10kHz (pF)
<200
<300
<400
<500
Operating Temperature Range (°C):
-40 to 75
-40 to 75
-40 to 75
-40 to 75
Overload Ratings:
20 x Rated power for 1 second every minute
4 x Rated power for 5 seconds every minute
Terminations:
PTFE / ETFE coated flying leads (to BS6360)
Storage Temperature Range (°C):
-40 to 270
IP Rating:
IP64
Case Finish:
Natural Anodised
Heat Dissipation:
Although the use of proprietary heat sinks with lower thermal
resistance is acceptable, up rating is not recommended. The use
of proprietary heat sink compound to improve
thermal conductivity is essential.
The CJR range of power resistors
are aluminium housed and wire
wound, designed to withstand high
adiabatic pulses in a compact
package. These devices offer a
high power dissipation capacity
with the appropriate heat sink and
superior environmental protection
(IP64). The product is silicone free
for specific use on assembly cells
within the automotive assembly
industry.
Key Features
I
High Power Dissipation
•
1000W in a 15mm
package
Low Profile
•
Fits where other
resistors cannot
IP64 Environmental
Protection
•
World-wide use in any
industry
High Pulse Capability
•
Fits today’s dynamic
breaking requirements
Overload 20 Times
Rated Power
•
A compact and cost
effective solution
Silicone-Free
•
Designed for automotive
assembly lines
I
Dimensions
L2
L3
L3
ø4.8
15
I
I
72.0
I
60.0
L1
I
Type
CJR250
CJR500
CJR750
CJR1000
L1
110
190
270
350
L2
90
170
250
330
L3
-
85
125
165
Applications
I
I
I
I
I
I
I
Braking
Capacitor Charging &
Discharging
Crowbar
Filter
Power Supplies
Electrical Machinery
Robotics
Literature No. 9-1773441-8
Issued: 11-05
Dimensions are shown for
reference purposes only.
Dimensions are in millimetres
unless otherwise specified.
Specifications subject to
change.
www.tycoelectronics.com
passives.tycoelectronics.com
Low Profile Power Resistor
Type CJR Series
Derating Curve
1100
1000
900
800
700
Power (W)
600
500
400
300
CJR250
CJR500
CJR750
CJR1000
200
100
0
0
50
100
150
200
250
300
Heatsink Temp. (degC)
Pulse Energy
Adiabatic Pulse Power (Duration <0.2sec)
12000
CJR1000
10000
8000
CJR750
Energy (J)
6000
4000
CJR500
2000
CJR250
0
0
50
Resistance (Ohms)
100
150
How to Order
CJR
Common Part
500
Power Rating
250
CJR - Low Profile
Power Resistor
500
1ohm (1Ω) 1R0
750
1000
K - 10%
J - 5%
1RO
Resistance Value
J
Tolerance
Literature No. 9-1773441-8
Issued: 11-05
Dimensions are shown for
reference purposes only.
Dimensions are in millimetres
unless otherwise specified.
Specifications subject to
change.
www.tycoelectronics.com
passives.tycoelectronics.com
