BAT 18-05 E6327 datasheet, PDF

Datasheet> All Categories > semiconductor> Discrete semiconductor> BAT 18-05 E6327

BAT 18-05 E6327: Descriptionpin diodes silicon RF switching diode; Categorysemiconductor Discrete semiconductor; File Size806KB，5 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BAT 18-05 E6327 Overview

pin diodes silicon RF switching diode

BAT 18-05 E6327 Parametric

Parameter Name	Attribute value
Manufacture	Infine
Product Category	PIN Diodes
RoHS	Yes
Reverse Voltage	35 V
Forward Voltage	1.2 V
Forward Curre	100 mA
Maximum Diode Capacitance	1 pF
Maximum Series Resistance @ Maximum IF	0.7 Ohms
Minimum Operating Temperature	- 55 C
Mounting Style	SMD/SMT
Package / Case	SOT-23
Carrier Life	0.12 us
Configurati	Dual Common Cathode
Frequency Range	VHF, UHF
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Reverse Current IR	200 nA
Factory Pack Quantity	3000
Type	Switch

Preview

Download Datasheet

View All

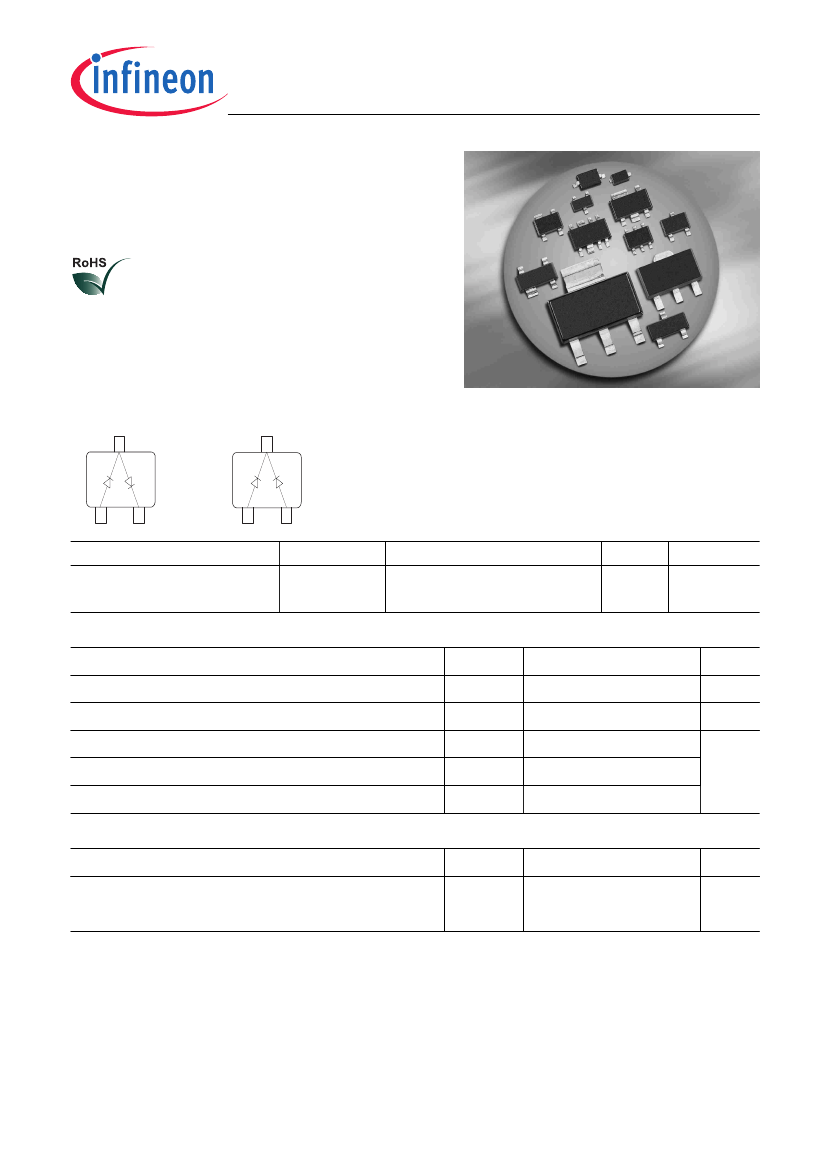

BAT18...

Silicon RF Switching Diode

•

Low-loss VHF / UHF switch above 10 MHz

•

PIN diode with low forward resistance

•

Pb-free (RoHS compliant) package

BAT18-04

BAT18-05

Type

BAT18-04

BAT18-05

Package

SOT23

Configuration

series

common cathode

(nH)

1.8

Marking

AUs

ASs

Maximum Ratings

= 25°C, unless otherwise specified

Parameter

Diode reverse voltage

Forward current

Junction temperature

Operating temperature range

Storage temperature

Thermal Resistance

Parameter

Symbol

thJS

Value

≤

290

Unit

Symbol

stg

Value

100

150

-55 ... 125

-55 ... 150

Unit

°C

Junction - soldering point

BAT18-04, BAT18-05

For

K/W

calculation of

thJA

please refer to Application Note Thermal Resistance

2011-06-14

BAT 18-05 E6327 Related Products

	BAT 18-05 E6327	BAT1804E6327HTSA1	BAT1805E6327NTSA1	BAT1805E6327XT	BAT1805E6327HTSA1
Description	pin diodes silicon RF switching diode	Schottky Diodes & Rectifiers RF DIODES	DIODE ARRAY GP 35V 100MA SOT23	Pin Diode, 35V V(BR), Silicon, ROHS COMPLIANT PACKAGE-3	Pin Diode, 35V V(BR), Silicon, ROHS COMPLIANT PACKAGE-3
package instruction	-	R-PDSO-G3	-	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	-	compliant	-	compliant	unknown
ECCN code	-	EAR99	-	EAR99	EAR99
application	-	SWITCHING	-	SWITCHING	SWITCHING
Minimum breakdown voltage	-	35 V	-	35 V	35 V
Configuration	-	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	-	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Maximum diode capacitance	-	1 pF	-	1 pF	1 pF
Diode component materials	-	SILICON	-	SILICON	SILICON
Maximum diode forward resistance	-	0.7 Ω	-	0.7 Ω	0.7 Ω
Diode type	-	PIN DIODE	standard	PIN DIODE	PIN DIODE
frequency band	-	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	-	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JESD-30 code	-	R-PDSO-G3	-	R-PDSO-G3	R-PDSO-G3
Minority carrier nominal lifetime	-	0.12 µs	-	0.12 µs	0.12 µs
Number of components	-	2	-	2	2
Number of terminals	-	3	-	3	3
Maximum operating temperature	-	150 °C	-	150 °C	150 °C
Package body material	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE
surface mount	-	YES	-	YES	YES
technology	-	POSITIVE-INTRINSIC-NEGATIVE	-	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE
Terminal form	-	GULL WING	-	GULL WING	GULL WING
Terminal location	-	DUAL	-	DUAL	DUAL
