2544-1X-29ETK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2544-1X-29ETK

2544-1X-29ETK: DescriptionBoard Connector, 29 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size167KB，2 Pages; ManufacturerHo Chien Electronics Group Inc; Environmental Compliance

Download Datasheet Parametric View All

2544-1X-29ETK Overview

Board Connector, 29 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

2544-1X-29ETK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8075895120
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (150) OVER NICKEL (100)
Contact completed and terminated	TIN (150) OVER NICKEL (100)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	2544
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	29
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

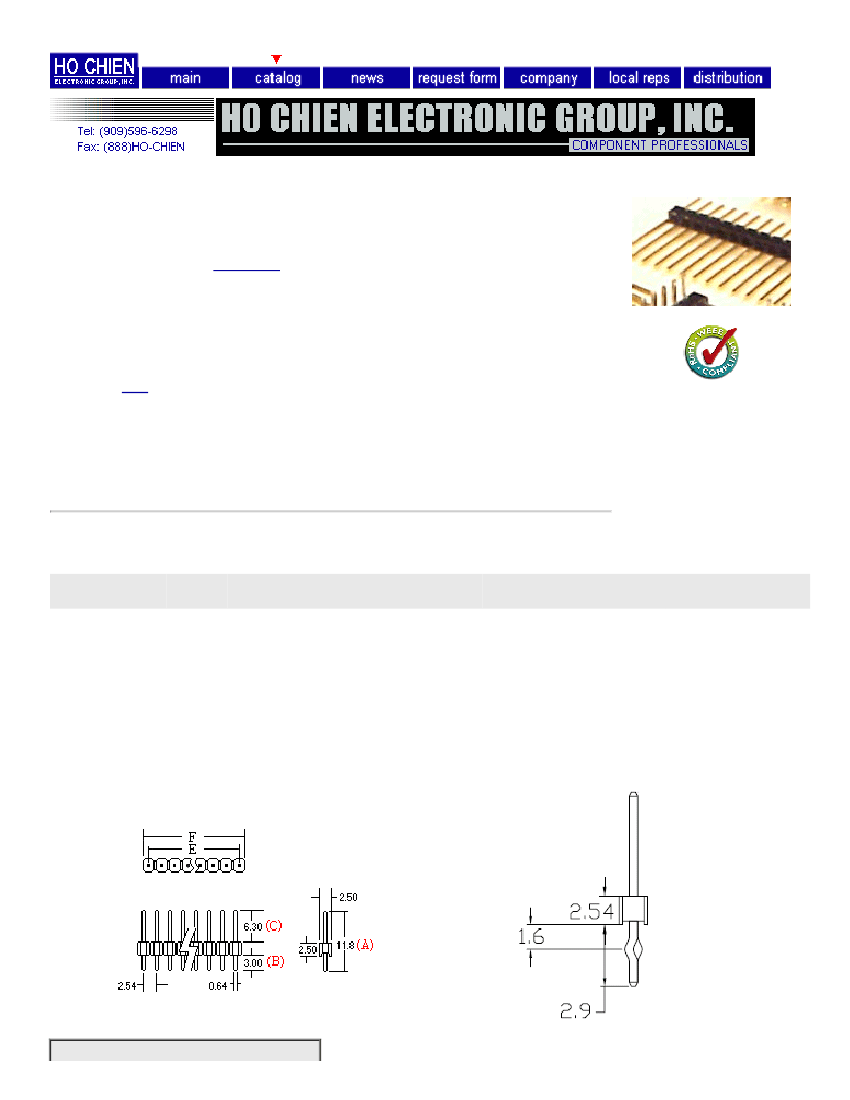

04/05/2015

Ho Chien Headers www.hochien.com

2544 Series

0.100" / 2.54mm Ctr Unshrouded Header Strip; Single Row

Surface Mount available : 2544SMT

Material:

Contact: Phosphor Bronze

Contact Plating: Gold or Tin over 0.000100" Nickel Underplating

Insulator:

Version I: PBT & 30% glass fiber reinforced thermo plastic; rated UL94VO

Version II: PA9T High Temperature HB grade 257C

Insulator Color: Black

Mini Jumper: 2546 Series

Electrical:

Current Rating: 3 Amp Max.

Contact Resistance: 20 Milliohms. Max.

Insulation Resistance: 5000 Megohms Min. DC 500V

Dielectric Strength: 1000V AC

Operation Temperature: 55

C to +140 C

Ordering Part Number

2544

Series Number

1 X

Number

of Rows

[][]

Number of

Positions

[

thru

pins ]

[]

Contact Plating

[]

[][]

Blanket:

Straight Lead

Kinked Lead

(Kink on both end only)

Min. qty requested.

Specify A, B, C

If length is not same to

standard.

13.6: A:13.6, B:3.0,

C:8.10mm

2544:

Version I

2544H:

Version II

General 1 row outline.

150u" Tin

Gold Flash

10u" Gold

FT:

10u" Selected Gold

15u" Gold

ET:

15u" Selected Gold

30u" Gold

DT:

30u" Selected Gold

Kink Lead

Dimensions (mm) +/ 0.4mm

http://www.hochien.com/2544.htm

1/2
