8901-030-177S-D

Description
Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size246KB,2 Pages
ManufacturerKEL Corporation
Download Datasheet Parametric View All

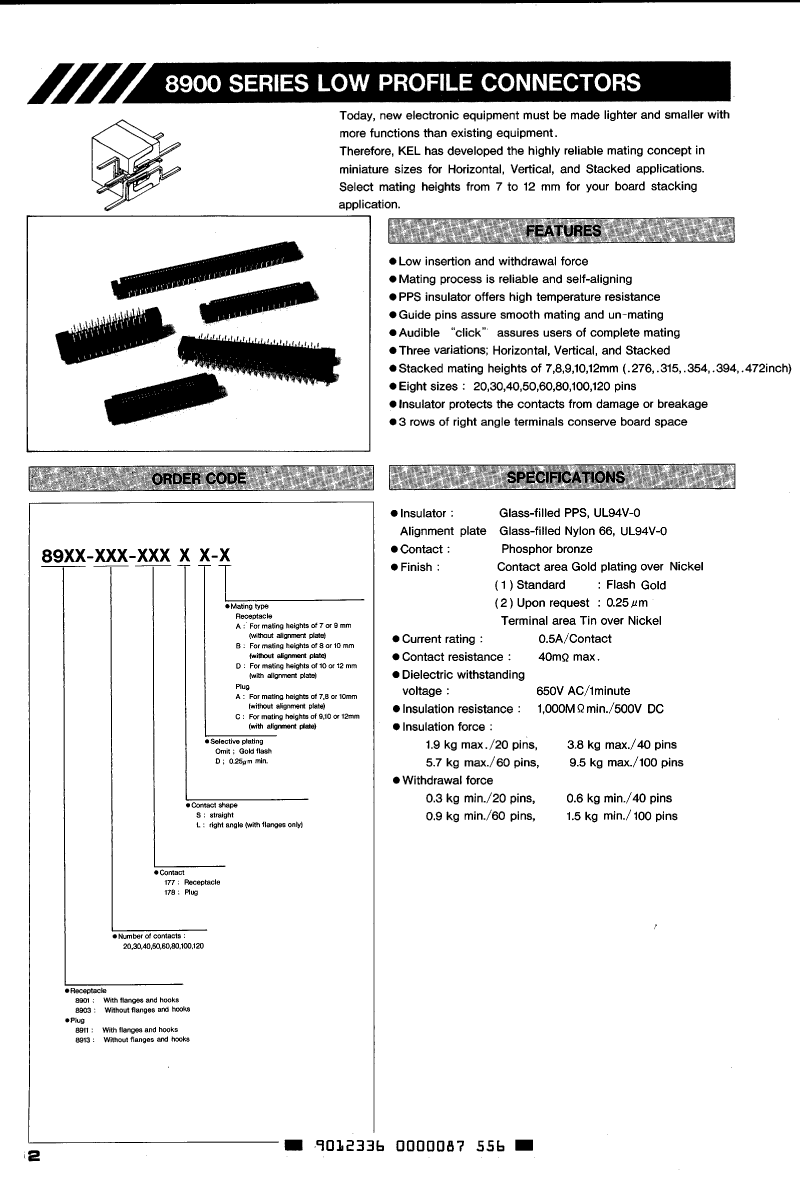

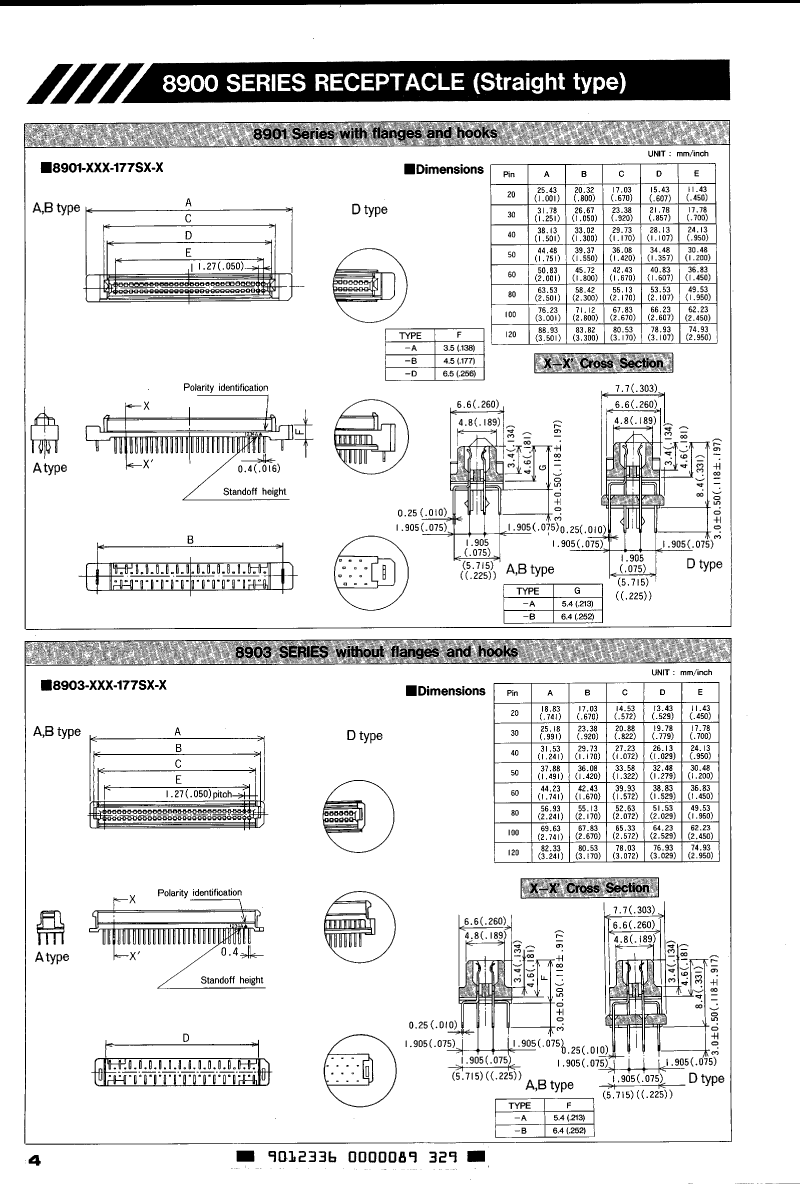

8901-030-177S-D Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug

8901-030-177S-D Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid300530005
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresWITH FLANGES
Board mount optionsSPLIT BOARD LOCK
body width0.303 inch
body length1.251 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance40 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage650VAC V
maximum insertion force.9452 N
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number8900
Plug contact pitch0.05 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded2
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
Plating thicknessFLASH inch
polarization keyENDS
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts30
Evacuation force-minimum value.139 N
