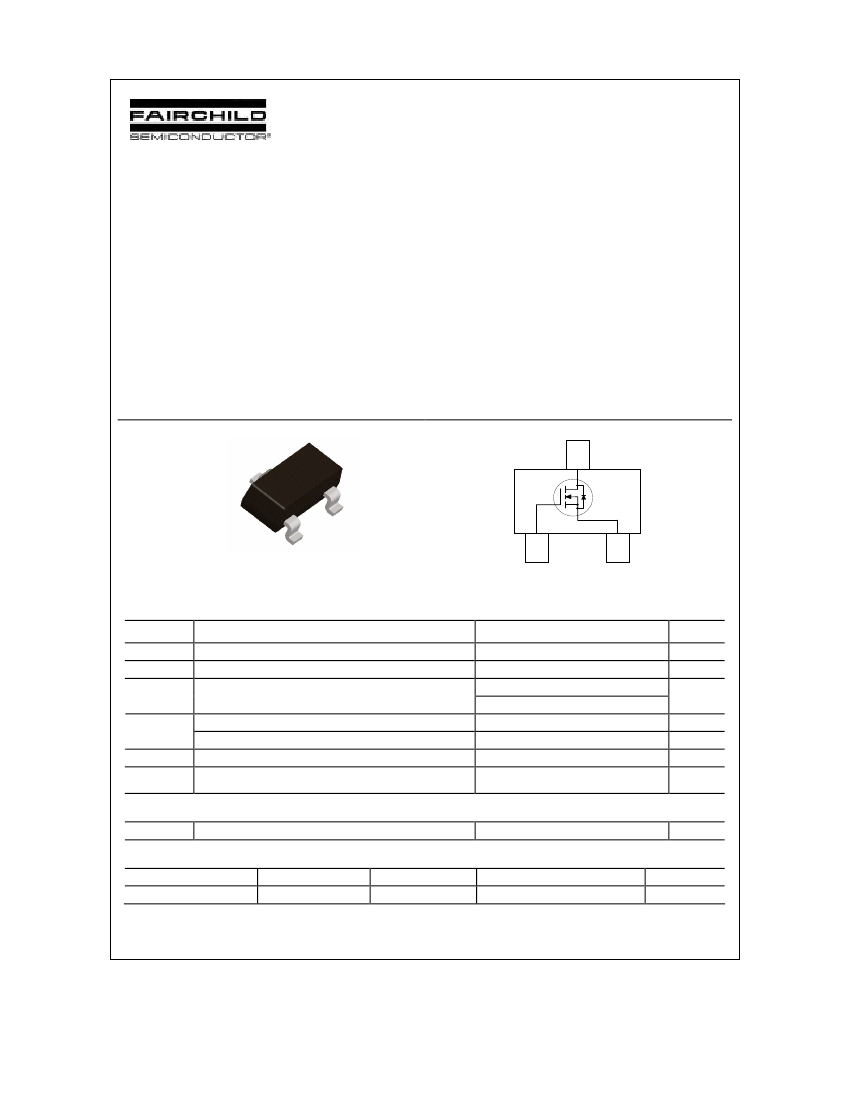

N-Channel Logic Level Enhancement Mode Field Effect Transistor
General Description
These N-Channel enhancement mode field effect
transistors are produced using Fairchild’s proprietary,
high cell density, DMOS technology. These products
have been designed to minimize on-state resistance
while provide rugged, reliable, and fast switching
performance.These products are particularly suited for
low voltage, low current applications such as small
servo motor control, power MOSFET gate drivers, and
other switching applications.
Features
•
0.22 A, 50 V. R
DS(ON)
= 3.5Ω @ V
GS
= 10 V
R
DS(ON)
= 6.0Ω @ V
GS
= 4.5 V
•
High density cell design for extremely low R
DS(ON)
•
Rugged and Reliable
•
Compact industry standard SOT-23 surface mount
package
D
D
S
G
S
SOT-23
G
T
A
=25
o
C unless otherwise noted
Absolute Maximum Ratings
Symbol
V
DSS
V
GSS
I
D
P
D
T
J
, T
STG
T
L
Drain-Source Voltage
Gate-Source Voltage
Drain Current
– Continuous
– Pulsed
Maximum Power Dissipation
Derate Above 25°C
Parameter
Ratings
50
±20
(Note 1)
Units
V
V
A
W
mW/°C
°C
°C
0.22
0.88
0.36
2.8
−55
to +150
300
(Note 1)
Operating and Storage Junction Temperature Range
Maximum Lead Temperature for Soldering
Purposes, 1/16” from Case for 10 Seconds
Thermal Characteristics
R
θJA
Thermal Resistance, Junction-to-Ambient
(Note 1)
350
°C/W
Package Marking and Ordering Information
Device Marking
SS
Device
BSS138
Reel Size
7’’
Tape width
8mm
Quantity
3000 units
2005
Fairchild Semiconductor Corporation
BSS138 Rev C(W)
BSS138
Electrical Characteristics
Symbol
BV
DSS
∆BV
DSS
∆T
J
I
DSS
T
A
= 25°C unless otherwise noted
Parameter
Drain–Source Breakdown Voltage
Breakdown Voltage Temperature
Coefficient
Zero Gate Voltage Drain Current
Test Conditions
I
D
= 250
µA
V
GS
= 0 V,
I
D
= 250
µA,Referenced
to 25°C
V
DS
= 50 V,
V
DS
= 30 V,
V
GS
= 0 V
V
GS
= 0 V
V
DS
= 0 V
Min Typ Max
50
72
0.5
5
100
±100
Units
V
mV/°C
µA
µA
nA
nA
Off Characteristics
V
DS
= 50 V, V
GS
= 0 V T
J
= 125°C
I
GSS
Gate–Body Leakage.
(Note 2)
V
GS
=
±20
V,
On Characteristics
V
GS(th)
∆V
GS(th)
∆T
J
R
DS(on)
Gate Threshold Voltage
Gate Threshold Voltage
Temperature Coefficient
Static Drain–Source
On–Resistance
On–State Drain Current
Forward Transconductance
V
DS
= V
GS
,
I
D
= 1 mA
0.8
I
D
= 1 mA,Referenced to 25°C
I
D
= 0.22 A
V
GS
= 10 V,
I
D
= 0.22 A
V
GS
= 4.5 V,
V
GS
= 10 V, I
D
= 0.22 A, T
J
= 125°C
V
GS
= 10 V,
V
DS
= 5 V
V
DS
= 10V,
I
D
= 0.22 A
1.3
–2
0.7
1.0
1.1
1.5
V
mV/°C
3.5
6.0
5.8
Ω
I
D(on)
g
FS
0.2
0.12
0.5
A
S
Dynamic Characteristics
C
iss
C
oss
C
rss
R
G
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Gate Resistance
(Note 2)
V
DS
= 25 V,
f = 1.0 MHz
V
GS
= 0 V,
27
13
6
9
pF
pF
pF
Ω
V
GS
= 15 mV, f = 1.0 MHz
Switching Characteristics
t
d(on)
t
r
t
d(off)
t
f
Q
g
Q
gs
Q
gd
Turn–On Delay Time
Turn–On Rise Time
Turn–Off Delay Time
Turn–Off Fall Time
Total Gate Charge
Gate–Source Charge
Gate–Drain Charge
V
DD
= 30 V,
V
GS
= 10 V,
I
D
= 0.29 A,
R
GEN
= 6
Ω
2.5
9
20
7
5
18
36
14
2.4
ns
ns
ns
ns
nC
nC
nC
V
DS
= 25 V,
V
GS
= 10 V
I
D
= 0.22 A,
1.7
0.1
0.4
Drain–Source Diode Characteristics and Maximum Ratings
I
S
V
SD
Maximum Continuous Drain–Source Diode Forward Current
Drain–Source Diode Forward
Voltage
V
GS
= 0 V,
I
S
= 0.44 A
(Note 2)
0.8
0.22
1.4
A
V
Notes:
1.
R
θJA
is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of
the drain pins. R
θJC
is guaranteed by design while R
θCA
is determined by the user's board design.
a) 350°C/W when mounted on a
minimum pad..
Scale 1 : 1 on letter size paper
2.
Pulse Test: Pulse Width
≤
300
µs,
Duty Cycle
≤
2.0%
BSS138 Rev C(W)
BSS138

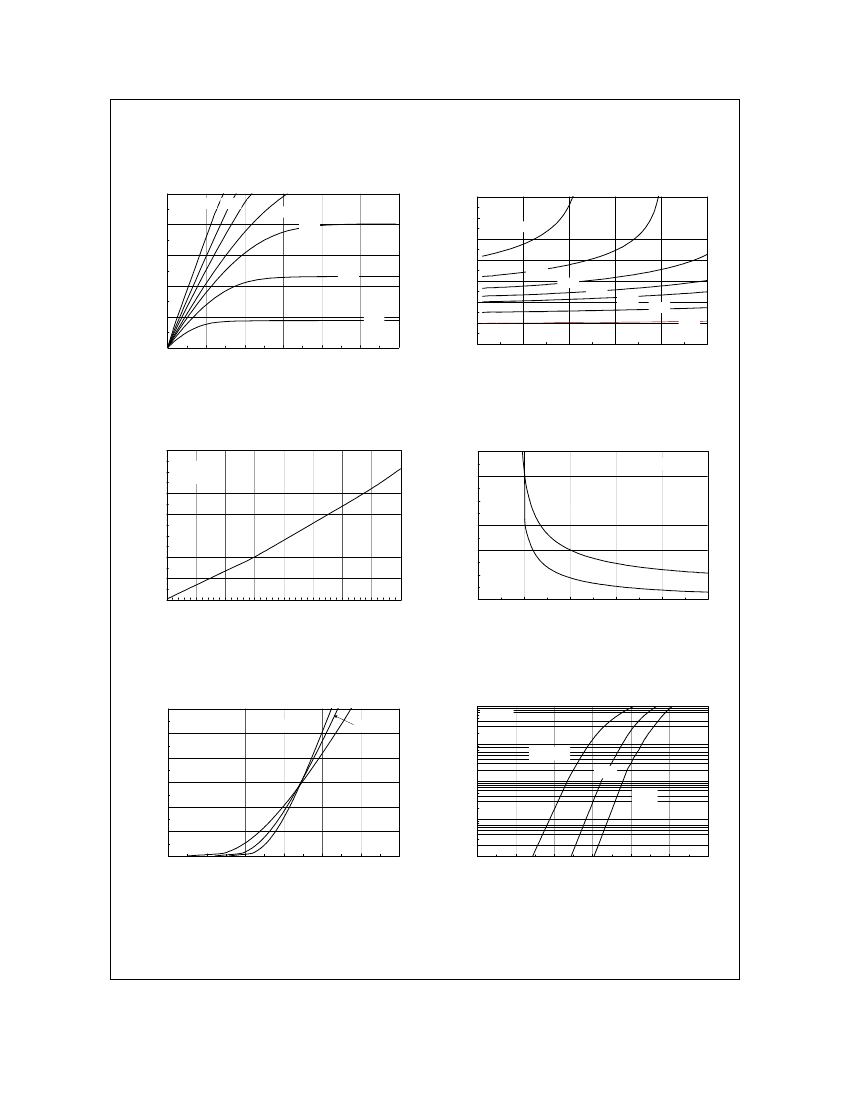

Typical Characteristics
1
V
GS
= 10V
0.8
I
D
, DRAIN CURRENT (A)
6.0V
3.4
4.5V
R
DS(ON)
, NORMALIZED
DRAIN-SOURCE ON-RESISTANCE
3.5V
3.0V
3
V
GS
= 2.5V
2.6
2.2
0.6
3.0V
1.8
1.4
1
0.6
2.5V
0.4
3.5V
4.0V
4.5V
6.0V
10V
0.2
2.0V
0
0
0.5
1
1.5
2
2.5
3
V
DS
, DRAIN TO SOURCE VOLTAGE (V)
0
0.2
0.4
0.6
0.8
1
I
D
, DRAIN CURRENT (A)
Figure 1. On-Region Characteristics.
Figure 2. On-Resistance Variation with
Drain Current and Gate Voltage.
4.1
R
DS(ON)
, ON-RESISTANCE (OHM)
2
R
DS(ON)
, NORMALIZED
DRAIN-SOURCE ON-RESISTANCE
1.8
1.6
1.4
1.2
1
0.8
0.6
-50
-25
0
25
50
75
100
o
I
D
= 220mA
V
GS
= 10V
I
D
= 110mA
3.5
2.9
T
A
= 125
o
C
2.3
1.7
T
A
= 25
o
C
1.1
0.5
125
150
0
2
4
6
8
10
T
J
, JUNCTION TEMPERATURE ( C)
V
GS
, GATE TO SOURCE VOLTAGE (V)
Figure 3. On-Resistance Variation with
Temperature.
0.6
0.5
I
D
, DRAIN CURRENT (A)
0.4
0.3
0.2
0.1
0
0.5
1
1.5
2
2.5
3
3.5
V
GS
, GATE TO SOURCE VOLTAGE (V)
T
A
= -55
o
C
25
o
C
125
o
C
I
S
, REVERSE DRAIN CURRENT (A)
V
DS
= 10V
Figure 4. On-Resistance Variation with
Gate-to-Source Voltage.
1
V
GS
= 0V
0.1
T
A
= 125
o
C
25
o
C
0.01
-55
o
C
0.001
0.0001
0
0.2
0.4
0.6
0.8
1
1.2
V
SD
, BODY DIODE FORWARD VOLTAGE (V)
Figure 5. Transfer Characteristics.
Figure 6. Body Diode Forward Voltage Variation
with Source Current and Temperature.
BSS138 Rev C(W)
BSS138

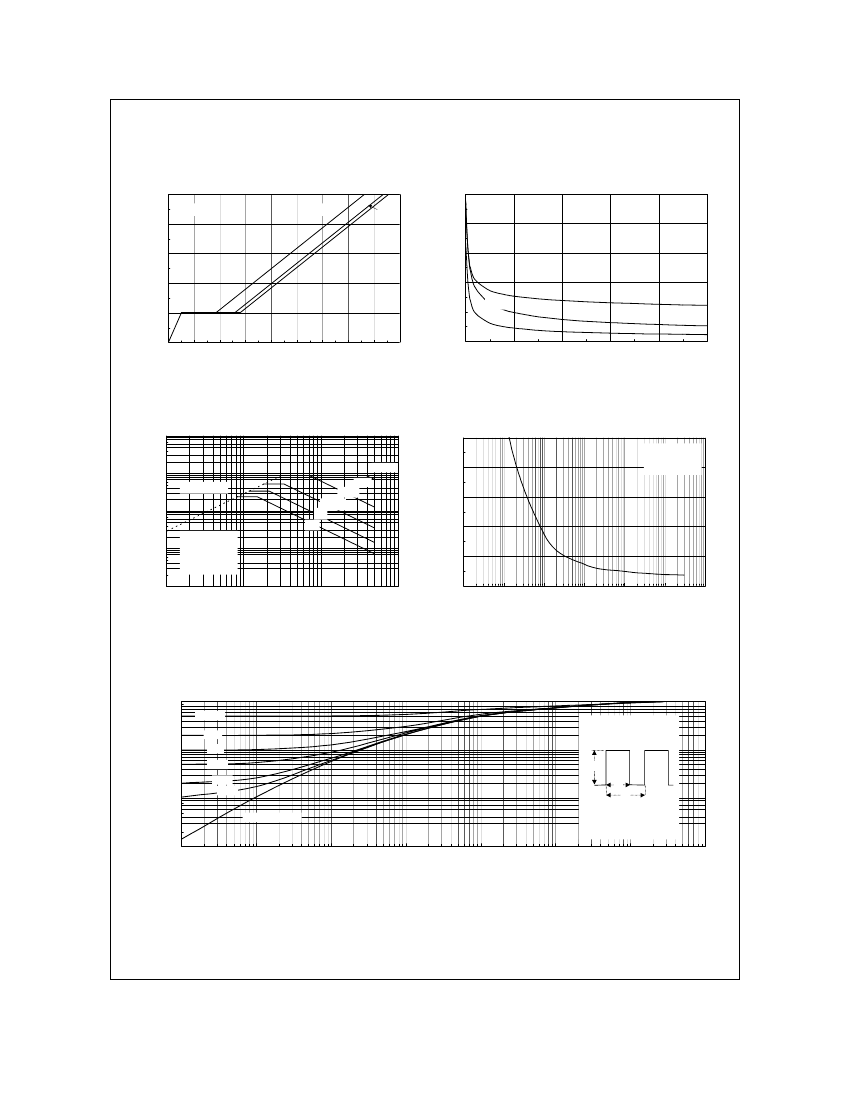

Typical Characteristics
10
V
GS
, GATE-SOURCE VOLTAGE (V)
I
D
= 220mA
8
CAPACITANCE (pF)
100
V
DS
= 8V
30V
25V
80
f = 1 MHz
V
GS
= 0 V
6
60
C
ISS
40
4
C
OSS
20
2
C
RSS
0
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
Q
g
, GATE CHARGE (nC)
0
0
10
20
30
40
50
V
DS
, DRAIN TO SOURCE VOLTAGE (V)
Figure 7. Gate Charge Characteristics.
10
Figure 8. Capacitance Characteristics.
5
P(pk), PEAK TRANSIENT POWER (W)
SINGLE PULSE
R
θJA
= 350°C/W
T
A
= 25°C
I
D
, DRAIN CURRENT (A)
1
100
µ
s
R
DS(ON)
LIMIT
1ms
10ms
100ms
1s
DC
4
3
0.1
2
0.01
V
GS
= 10V
SINGLE PULSE
R
θJA
= 350
o
C/W
T
A
= 25
o
C
1
0.001
0.1
1
10
100
V
DS
, DRAIN-SOURCE VOLTAGE (V)
0
0.001
0.01
0.1
1
t
1
, TIME (sec)
10
100
1000
Figure 9. Maximum Safe Operating Area.
Figure 10. Single Pulse Maximum
Power Dissipation.
r(t), NORMALIZED EFFECTIVE TRANSIENT
THERMAL RESISTANCE
1
D = 0.5
0.2
R
θJA
(t) = r(t) * R
θJA
R
θJA
= 350 C/W
P(pk)
t
1
t
2
T
J
- T
A
= P * R
θJA
(t)
Duty Cycle, D = t
1
/ t
2
o
0.1
0.1
0.05
0.02
0.01
0.01
SINGLE PULSE
0.001
0.0001
0.001
0.01
0.1
t
1
, TIME (sec)
1
10
100
1000
Figure 11. Transient Thermal Response Curve.
Thermal characterization performed using the conditions described in Note 1a.
Transient thermal response will change depending on the circuit board design.
BSS138 Rev C(W)
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
ACEx™
FAST
®
ActiveArray™
FASTr™
Bottomless™
FPS™
Build it Now™
FRFET™
CoolFET™
GlobalOptoisolator™
CROSSVOLT™
GTO™
DOME™
HiSeC™
EcoSPARK™
I
2
C™
E
2
CMOS™
i-Lo™
EnSigna™
ImpliedDisconnect™
FACT™
IntelliMAX™
FACT Quiet Series™
Across the board. Around the world.™
The Power Franchise
®
Programmable Active Droop™
DISCLAIMER
ISOPLANAR™
LittleFET™
MICROCOUPLER™
MicroFET™
MicroPak™
MICROWIRE™
MSX™
MSXPro™
OCX™
OCXPro™
OPTOLOGIC
®
OPTOPLANAR™
PACMAN™
POP™
Power247™
PowerEdge™
PowerSaver™
PowerTrench
®
QFET
®
QS™
QT Optoelectronics™
Quiet Series™
RapidConfigure™
RapidConnect™
μSerDes™
ScalarPump™
SILENT SWITCHER
®
SMART START™
SPM™
Stealth™
SuperFET™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
SyncFET™
TinyLogic
®
TINYOPTO™
TruTranslation™
UHC™
UltraFET
®
UniFET™
VCX™
Wire™
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY
PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY
ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT
CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
2. A critical component is any component of a life
1. Life support devices or systems are devices or
support device or system whose failure to perform can
systems which, (a) are intended for surgical implant into
be reasonably expected to cause the failure of the life
the body, or (b) support or sustain life, or (c) whose
support device or system, or to affect its safety or
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
effectiveness.
reasonably expected to result in significant injury to the
user.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification
Advance Information
Product Status
Formative or
In Design
Definition
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
Preliminary
First Production
No Identification Needed
Full Production
Obsolete
Not In Production
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
void Timer0Interrupt(void) interrupt 1 {TH0 =0x63;TL0 =0x18; //Will it start timing after the value is assigned heretimer++; } / Or will it start timing after exiting...
[i=s]This post was last edited by jameswangsynnex on 2015-3-3 19:57[/i] There are many ways to control the changing lights. This circuit is one of them. It can selectively turn on the decorative light...
[table=98%] [tr][td][color=#000]Is downloading firmware for CC2511 the same as downloading programs for CC2530? I bought a few CC2511s and made a new cc debugger. I used another cc The debugger and Sm...
[b] [/b][p=24, null, left][color=rgb(0, 0, 0)][font=宋体][size=16px]1. Frequency response of amplifier circuit The frequency response of amplifier circuit can be directly described by the relationship b...
Scatter/gather I/O is a method of inputting and outputting data from multiple buffers in a single system call. Data from multiple buffers can be written to a single data stream, or a single data strea...
The core of a machine vision system is image acquisition and processing. All information comes from images, and image quality is crucial to the entire vision system. A good image can improve the st...[Details]
To enable real-time monitoring of home security and automatically dial a number for voice prompts or send text messages when an alarm occurs, a GPRS-based embedded telephone alarm system was design...[Details]
The structure of an LCD TV primarily consists of the LCD display module, power module, driver module (primarily including the main driver board and tuner board), and keypad module. LCD display modu...[Details]
Recently, AstroBo Robot, a subsidiary of Chenxing Automation, launched a new mobile collaborative palletizing product. Leveraging an omnidirectional mobile chassis, an intelligent scheduling system...[Details]
Smartphones have become essential digital devices, and the growing number of smartphone-centric applications is enriching people's lives. As users, they desire a better app experience and a wider r...[Details]
Electric vehicles are now widespread, but they've brought with them a host of problems, the most prominent of which is charging. Small electric vehicles (EVs) are a new form of transportation in a ...[Details]
There are basically three causes of spontaneous combustion of electric vehicles: The first is that the battery components are punctured or suffer fatal damage due to a collision accident, and part ...[Details]
Permanent magnets are essential components in a wide range of household and industrial devices. They are particularly crucial in the renewable energy sector, including electric vehicle motors. Curr...[Details]
Industrial computers with GPUs leverage powerful parallel processing to build deep learning models to analyze and respond to optical inputs. The systems develop an understanding of visual data to i...[Details]
On August 22, the Wall Street Journal reported on the 21st local time that the new US government does not plan to acquire equity in semiconductor wafer foundry giant TSMC and Micron, one of the thr...[Details]
My career has been closely tied to the semiconductor industry. From product management to content marketing, I've provided countless forecasts and predictions across a variety of roles. Whethe...[Details]
In the field of intelligent driving, regulations are becoming increasingly stringent, and the technical threshold continues to rise. Especially after the traffic accident in March 2025, the Ministr...[Details]
In daily life, when we purchase a transformer, we are faced with the installation and wiring procedures. Generally speaking, large transformers such as power transformers are equipped with speciali...[Details]
From time to time, I see some audiophiles spending a lot of money or a lot of time to DIY speakers, but the results are not what they want. Below I list some of the small experiences I summarized b...[Details]
introduction
Inverter air conditioners are a trend in the current era and have gradually become commonplace in countless households. Beyond their basic cooling and heating functions, air condi...[Details]
51mcu
京公网安备 11010802033920号
EEWORLD
