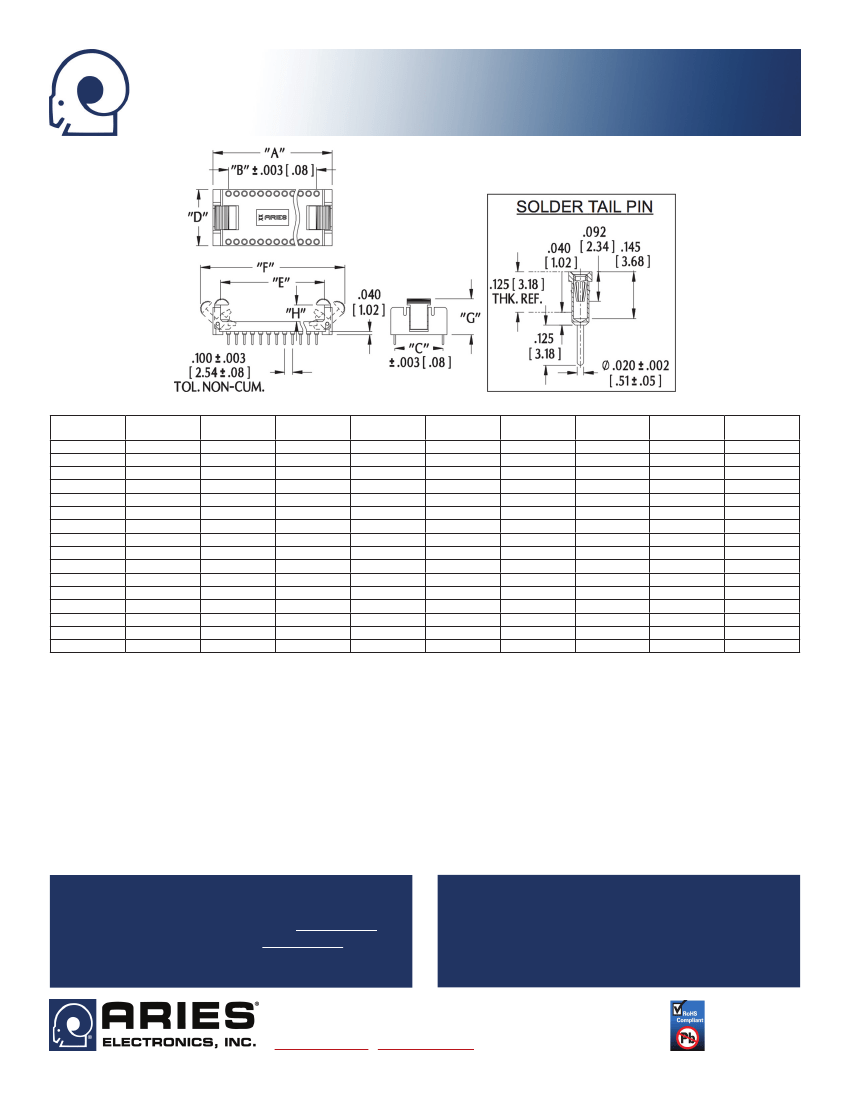

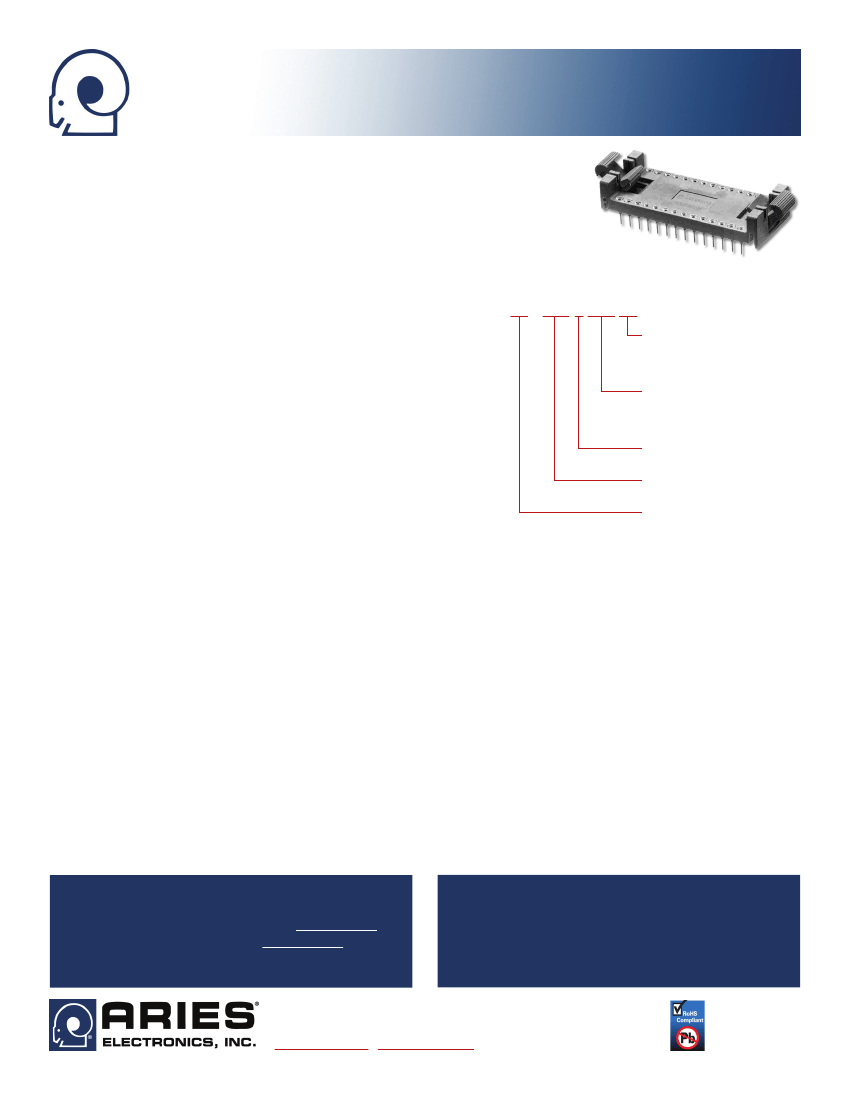

EJECT-A-DIP Lock/Eject DIP Socket
w/Collet Contacts & Solder Pin Tails
™
FEATURES
• Rugged, Solderable Socket with a Unique Ejector/Latch for Fast In-field Board Maintenance
• Latch Locks-in Connector or Device for High-vibration Environments
• Ejector/Latch removes DIP Packages without Damage
GENERAL SPECIFICATIONS
•
LATCH & BODY: Black UL-94V-0 Glass-filled 4/6 Nylon
•
PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
ORDERING INFORMATION
•
PIN BODY PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 –OR–
200µ [5.08µ]
min. 93/7 Sn/Pb per ASTM B545 –OR– 200µ [5.08µ] min. Sn per ASTM B545
XX-CXXX-X XXX XX
Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B
Optional Plating
•
6-FINGER COLLECT CONTACTS: BeCu per UNS C17200 ASTM B194-08
H = Heavy Au Collet
•
CONTACT PLATING: 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545 –OR–
200µ
T = Sn Collet & Shell
[5.08µ] min. Sn per ASTM B545 Type 1 –OR– 10µ [0.25µ] min. Au per MIL-
TL = Sn/Pb Collet & Shell
G-45204 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B. Heavy 30µ [0.76µ]
Plating
Au plating on contacts also available.
0 = Au Collet, Sn Shell
•
CONTACT CURRENT RATING: 3 amps
0TL = Au Collet, Sn/Pb Shell
•
INSULATION RESISTANCE:
10,000 MΩ at 500VDC
1 = Au Collet & Shell
•
WITHSTANDING VOLTAGE: 1000Vrms
Termination
•
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] for Sn plating;
1 = Solder Pin Tail
-67°F to 257°F [-55°C to 125°C] for Au plating
Dim. “H”
•
INSERTION FORCE: 67g/pin, based on 0.018 [0.46] dia. test lead
(See Table)
•
WITHDRAWAL FORCE: 30g/pin, based on 0.018 [0.46] dia. test lead
No. of Pins
•
NORMAL FORCE: 45g/pin, based on 0.018 [0.46] dia. test lead
(See Table)
•
SUGGESTED PCB HOLE SIZE:
0.030 ±0.002 [0.76 ±0.05] dia.
MOUNTING CONSIDERATIONS
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR COLLECT SOCKETS w/SURFACE MOUNT PINS, SEE DATA SHEET 12023
FOR COLLET SOCKET w/WIRE WRAP PINS, SEE DATA SHEET 12025
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12024
Rev. 7.2
1 of 2
EJECT-A-DIP Lock/Eject DIP Socket
w/Collet Contacts & Solder Pin Tails
™
No. of pins
14
14
16
16
24
24
24
28
28
28
32
32
32
40
40
40
Catalog No.
14-C280-XX
14-C195-XX
16-C280-XX
16-C195-XX
24-C300-XX
24-C212-XX
24-C182-XX
28-C300-XX
28-C212-XX
28-C182-XX
32-C300-XX
32-C212-XX
32-C182-XX
40-C300-XX
40-C212-XX
40-C182-XX
Dim. "A"
0.950 [24.10]
0.950 [24.10]
1.050 [26.70]
1.050 [26.70]
1.490 [37.85]
1.490 [37.85]
1.490 [37.85]
1.690 [42.90]
1.690 [42.90]
1.690 [42.90]
1.890 [48.00]
1.890 [48.00]
1.890 [48.00]
2.290 [58.20]
2.290 [58.20]
2.290 [58.20]
Dim."B"
0.600 [15.24]
0.600 [15.24]
0.700 [17.78]
0.700 [17.78]
1.100 [27.94]
1.100 [27.94]
1.100 [27.94]
1.300 [33.02]
1.300 [33.02]
1.300 [33.02]
1.500 [38.10]
1.500 [38.10]
1.500 [38.10]
1.900 [48.26]
1.900 [48.26]
1.900 [48.26]
Centers
"C"
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
Dim. "D"
0.400 [10.16]
0.400 [10.16]
0.400 [10.16]
0.400 [10.16]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
Dim. "E"
0.770 [19.56]
0.770 [19.56]
0.870 [22.10]
0.870 [22.10]
1.300 [33.02]
1.300 [33.02]
1.300 [33.02]
1.500 [38.10]
1.500 [38.10]
1.500 [38.10]
1.700 [43.18]
1.700 [43.18]
1.700 [43.18]
2.100 [53.34]
2.100 [53.34]
2.100 [53.34]
Dim. "F"
1.300 [33.02]
1.300 [33.02]
1.540 [39.12]
1.390 [35.31]
1.970 [50.04]
1.850 [47.00]
1.800 [45.72]
2.170 [55.12]
2.050 [52.07]
2.000 [50.80]
2.540 [64.52]
2.070 [52.58]
2.200 [55.88]
2.780 [70.61]
2.650 [67.31]
2.600 [66.04]
Dim "G"
0.490 [12.45]
0.450 [11.43]
0.490 [12.45]
0.450 [11.43]
0.570 [14.48]
0.490 [12.45]
0.460 [11.68]
0.570 [14.48]
0.490 [12.45]
0.460 [11.68]
0.570 [14.48]
0.490 [12.45]
0.460 [11.68]
0.570 [14.48]
0.490 [12.45]
0.460 [11.68]
Dim "H"
0.280 [7.11]
0.195 [4.95]
0.280 [7.11]
0.195 [4.95]
0.300 [7.62]
0.212 [5.39]
0.182 [4.62]
0.300 [7.62]
0.212 [5.39]
0.182 [4.62]
0.300 [7.62]
0.212 [5.39]
0.182 [4.62]
0.300 [7.62]
0.212 [5.39]
0.182 [4.62]
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR COLLECT SOCKETS w/SURFACE MOUNT PINS, SEE DATA SHEET 12023
FOR COLLET SOCKET w/WIRE WRAP PINS, SEE DATA SHEET 12025
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12024
Rev. 7.2
2 of 2
