Power line chokes
Current-compensated ring core double chokes
250 V AC, 1 … 82 mH, 0.5 … 6 A,
+40 °C / +45 °C / +50 °C / +60 °C / +70 °C
Series/Type:
Date:
B82724A/J
March 2018
a~í~=pÜÉÉí
EPCOS AG 2018. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.

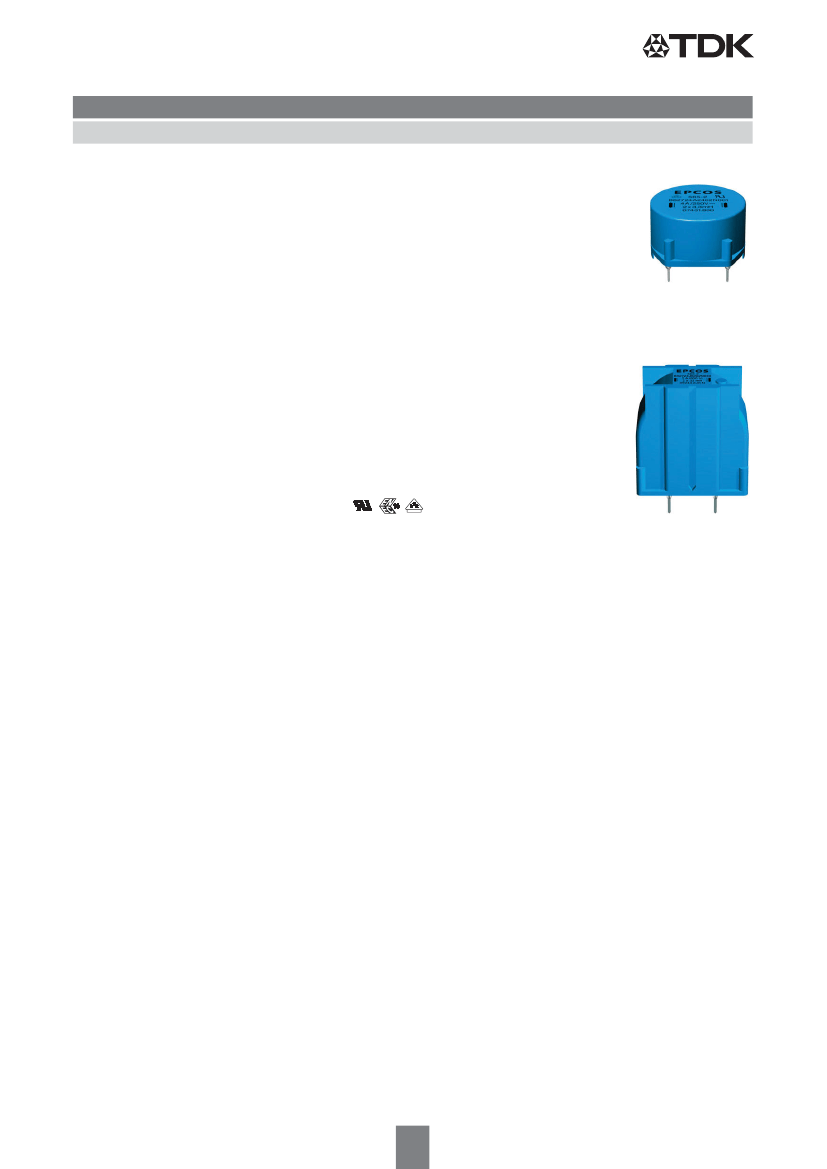

Power line chokes
Current-compensated ring core double chokes
Rated voltage 250 V AC
Rated inductance 1 ... 82 mH
Rated current 0.5 ... 6 A / +40 °C, +45 °C, +50 °C, +60 °C, +70 °C
Construction
■
■
■
■
■
B82724A/J
Current-compensated ring core double choke
Ferrite core wih epoxy coating (UL 94 V-0)
Plastic case with in-molded pins (UL 94 V-0)
1)
Potting (UL 94 V-0)
Sector winding
B82724A
Features
■
■
■
■
■
■
High resonance frequency due to special winding technique
Approx. 1% stray inductance for symmetrical interference suppression
Suitable for wave soldering
Design complies with EN 60938-2 (VDE 0565-2) and UL 1283
UL
2)
and/or ENEC (VDE) approvals
RoHS-compatible
B82724J
Applications
■
■
■
■
Suppression of common-mode interferences
Switch-mode power applications
Electronic ballasts in lamps
Power inverters
Terminals
■
■
■
■
■
Base material CuNi18Zn20
Layer composition Ni, Sn
Hot-dipped
Pins 0.7 0.7 (mm)
Lead spacing 15 12.5 (mm) or 30
20 (mm)
Marking
■
Product brand, approval signs and VDE standard number, ordering code, graphic symbol, rated
current, rated voltage, rated inductance, date of manufacture (YYWWD.internal ID code)
Delivery mode
■
Blister tray in cardboard box
1) Additionally certified values:
Glow wire flammability index (GWFI to IEC 60695-2-12):
Glow wire ignition temperature (GWIT to IEC 60695-2-13):
Comparative tracking index (CTI to IEC 60112):
Ball pressure test (BP to IEC 60695-10-2):
2) UL approval with 300 V AC
+850 °C
+775 °C
175 V
+125 °C
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
03/18
Power line chokes
Current-compensated ring core double chokes

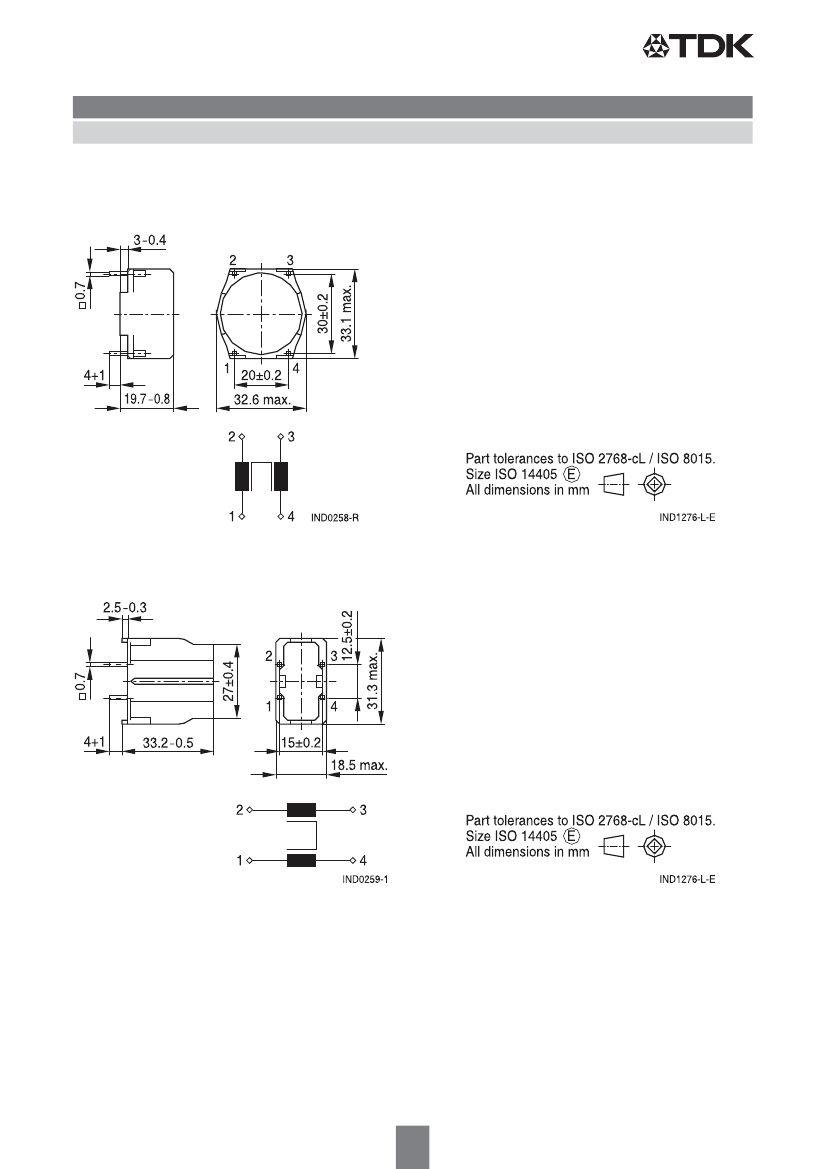

Dimensional drawings and pin configuration
Horizontal version (B82724A)
B82724A/J
Vertical version (B82724J)
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
03/18
Power line chokes
Current-compensated ring core double chokes
Technical data and measuring conditions
Rated voltage V
R
Test voltage V
test
Rated temperature T
R
Rated current I
R
Rated inductance L
R
250 V AC (50/60 Hz)
1500 V AC, 2 s (line/line)
B82724A/J
+40 °C / +45 °C / +50 °C / +60 °C / +70 °C
Referred to 50 Hz and rated temperature
Measured with Agilent 4284A at 0.1 mA, +20 °C
Measuring frequency: L
R
1 mH = 100 kHz
L
R
> 1 mH = 10 kHz
Inductance is specified per winding.
30% at +20 °C
< 10% at DC magnetic bias with I
R
, +20 °C
Measured with Agilent 4284A at 5 mA, +20 °C, typical
values
Measuring frequency: L
R
1 mH = 100 kHz
L
R
> 1 mH = 10 kHz
Measured at +20 °C, typical values, specified per win-
ding
Sn96.5Ag3.0Cu0.5: +(245 3) °C, (3 0.3) s
Wetting of soldering area 95%
(to IEC 60068-2-20, test Ta)
+(260 5) °C, (10 1) s
(to IEC 60068-2-20, test Tb)
40/125/56 (to IEC 60068-1)
–25 °C … +40 °C,
75% RH
Approx. 27 g … 32 g
IEC/EN 60938-2, UL 1283 (E70122)
Inductance tolerance
Inductance decrease L/L
0
Stray inductance L
stray,typ
DC resistance R
typ
Solderability (lead-free)
Resistance to soldering heat
(wave soldering)
Climatic category
Storage conditions (packaged)
Weight
Approvals
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
03/18
Power line chokes
Current-compensated ring core double chokes
Characteristics and ordering codes
I
R
A
0.5
0.5
0.8
1.0
1.0
1.4
1.4
1.6
1.8
2.0
2.2
2.2
2.5
2.5
2.7
3.0
3.3
4.0
4.0
4.8
5.0
5.1
6.0
6.0
6.0
L
R
mH
82.0
68.0
49.0
39.0
33.0
37.0
27.0
10.0
33.0
6.8
20.0
15.0
10.0
5.6
6.6
12.0
5.6
4.7
3.3
3.3
2.5
4.1
3.3
1.8
1.0
L
stray,typ
R
typ
H
1000
700
500
350
400
320
260
120
300
80
180
140
90
55
60
110
45
40
35
35
25
30
17
20
12
m
2300
2000
1950
750
750
420
460
350
400
170
250
210
140
125
110
125
95
65
65
46
38
46
25
31
23
T
R
°C
+60
+70
+50
+60
+60
+60
+50
+60
+40
+60
+40
+45
+40
+60
+60
+40
+40
+60
+60
+70
+60
+60
+60
+40
+60
Ordering code
Horizontal version
B82724A/J
Approvals
Vertical version
B82724A2501N001 B82724J2501N001
B82724A2501N020 B82724J2501N020
B82724A2801N002 B82724J2801N002
B82724A2102N021 B82724J2102N021
B82724A2102N001 B82724J2102N001
B82724A2142N021 B82724J2142N021
B82724A2142N001 B82724J2142N001
B82724A2162N001 B82724J2162N001
B82724A2182N021 B82724J2182N021
B82724A2202N001 B82724J2202N001
B82724A2222N021 B82724J2222N021
B82724A2222N020 B82724J2222N020
B82724A2252N020 B82724J2252N020
B82724A2252N001 B82724J2252N001
B82724A2272N020 B82724J2272N020
B82724A2302N021 B82724J2302N021
B82724A2332N001 B82724J2332N001
B82724A2402N020 B82724J2402N020
B82724A2402N001 B82724J2402N001
B82724A2482N020 B82724J2482N020
B82724A2502N001 B82724J2502N001
B82724A2512N020 B82724J2512N020
B82724A2602N041 B82724J2602N041
B82724A2602N020 B82724J2602N020
B82724A2602N001 B82724J2602N001
= approval granted
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
03/18
