C1210X124F5HACAUTO datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> C1210X124F5HACAUTO

C1210X124F5HACAUTO: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, X8R, -/+15ppm/Cel TC, 0.12uF, 1310; CategoryPassive components capacitor; File Size759KB，17 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

C1210X124F5HACAUTO Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, X8R, -/+15ppm/Cel TC, 0.12uF, 1310

C1210X124F5HACAUTO Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	, 1210
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.12 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.55 mm
JESD-609 code	e3
length	3.3 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	1%
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
positive tolerance	1%
Rated (DC) voltage (URdc)	50 V
Guideline	AEC-Q200
size code	1210
surface mount	YES
Temperature characteristic code	X8R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	2.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

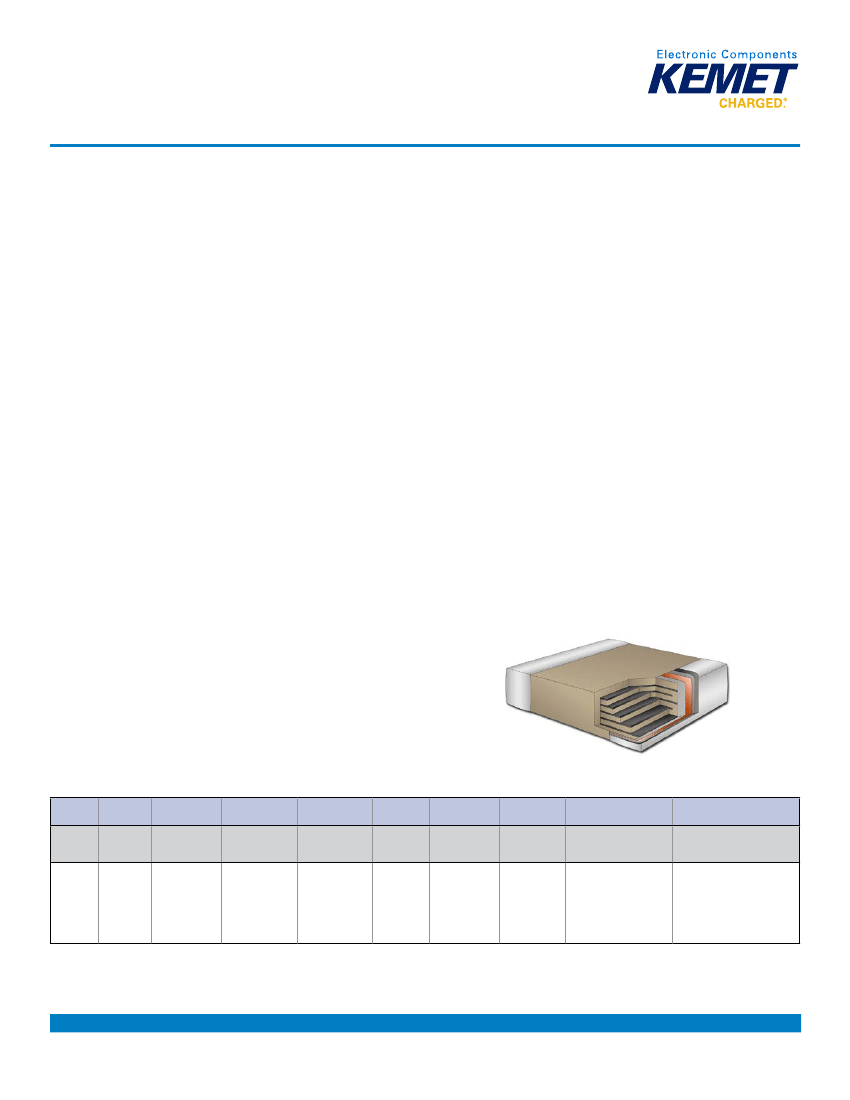

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Flexible Termination System (FT-CAP), Ultra-Stable X8R

Dielectric, 25 – 100 VDC (Commercial & Automotive Grade)

Overview

KEMET’s Flexible Termination (FT-CAP) Multilayer Ceramic

Capacitor in Ultra-Stable X8R dielectric incorporates a unique,

flexible termination system that is integrated with KEMET’s

standard termination materials. A conductive silver epoxy is

utilized between the base metal and nickel barrier layers of

KEMET’s standard termination system in order to establish

pliability while maintaining terminal strength, solderability and

electrical performance. This technology was developed in order

to address the primary failure mode of MLCCs– flex cracks,

which are typically the result of excessive tensile and shear

stresses produced during board flexure and thermal cycling.

Flexible termination technology inhibits the transfer of board

stress to the rigid ceramic body, therefore mitigating flex cracks

which can result in low IR or short circuit failures.

Although this technology does not eliminate the potential

for mechanical damage that may propagate during extreme

environmental and handling conditions, it does provide superior

flex performance over standard termination systems.FT-CAP

complements KEMET’s Open Mode, Floating Electrode (FE-

CAP), Floating Electrode with Flexible Termination (FF-CAP),

and KEMET Power Solutions (KPS) product lines by providing a

complete portfolio of flex mitigation solutions.

Combined with the stability of KEMET’s Ultra-Stable high

temperature dielectric technology, these flex-robust devices

are RoHS Compliant, offer up to 5 mm of flex-bend capability

and feature a 150°C maximum operating temperature. Ultra-

Stable X8R dielectric offers the same temperature capability as

conventional X8R but without the capacitance loss due to applied

DC voltage. These devices exhibit no change in capacitance with

respect to voltage and boast a minimal change in capacitance

with reference to ambient temperature. They are also suitable

replacements for higher capacitance and larger footprint devices

that fail to offer capacitance stability. Capacitance change with

respect to temperature is limited to ±15% from -55°C to +150°C.

In addition to Commercial Grade, Automotive Grade devices

are available which meet the demanding Automotive Electronics

Council's AEC-Q200 qualification requirements.

Ordering Information

Ceramic

1206

104

Capacitance

Code (pF)

2 significant

digits +

number of

zeros.

Capacitance

Tolerance

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

Voltage

Dielectric

Failure Rate/

Design

A = N/A

Termination Finish

C = 100% Matte Sn

L = SnPb (5%

minimum)

AUTO

Packaging/Grade

(C-Spec)

Blank = Bulk

TU = 7" Reel Unmarked

AUTO = Automotive

Grade 7" Reel Unmarked

Case Size Specification/

(L" x W")

Series

0603

0805

1206

1210

1812

X = Flexible

Termination

3 = 25 V H = Ultra-

5 = 50 V Stable X8R

1 = 100 V

Additional termination finish options may be available. Contact KEMET for details.

SnPb termination finish option is not available on Automotive Grade product.

Additional reeling or packaging options may be available. Contact KEMET for details.

1,2

One world. One KEMET

C1063_X8R_FT-CAP_SMD • 5/30/2013
