24Q2320-2R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 24Q2320-2R

24Q2320-2R: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 100W, Hybrid, METAL, CASE Q01, MODULE; CategoryPower/power management The power supply circuit; File Size344KB，5 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric Compare View All

24Q2320-2R Overview

DC-DC Regulated Power Supply Module, 2 Output, 100W, Hybrid, METAL, CASE Q01, MODULE

24Q2320-2R Parametric

Parameter Name	Attribute value
Brand Name	Power-One
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	16 V
Nominal input voltage	24 V
JESD-30 code	R-MXMA-X
Number of functions	1
Output times	2
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
Maximum output voltage	13.2 V
Minimum output voltage	5.5 V
Nominal output voltage	12 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum total power output	100 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

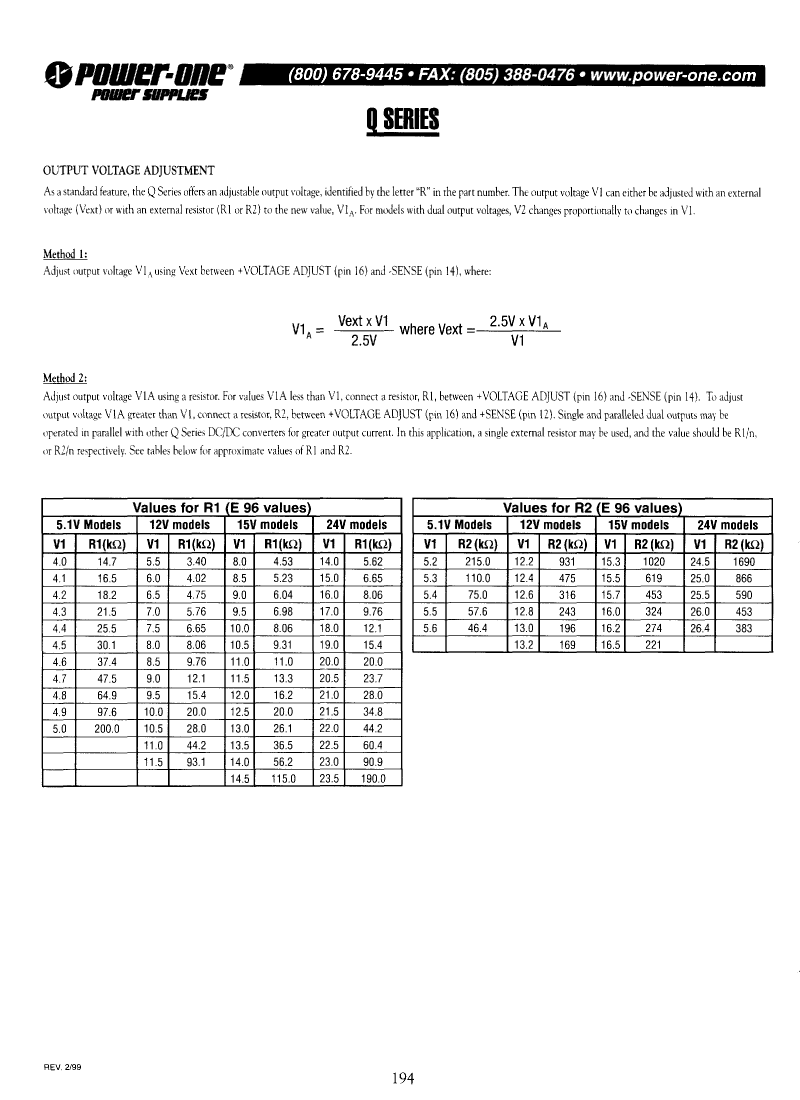

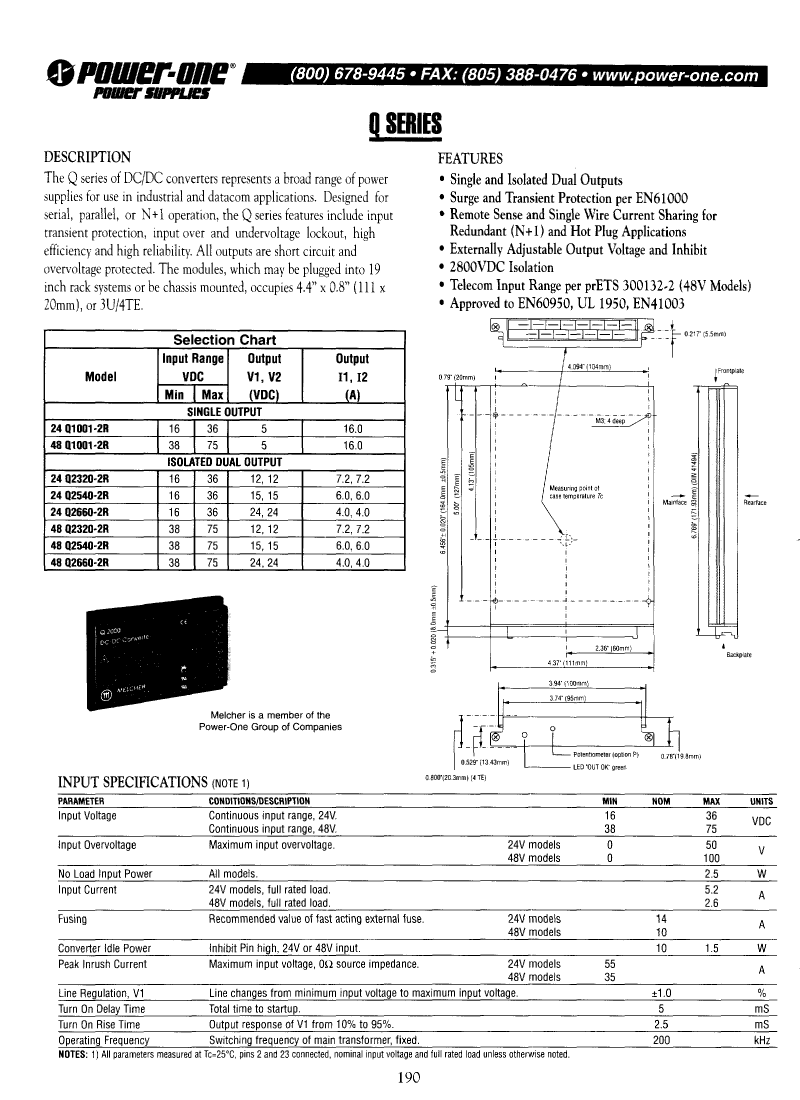

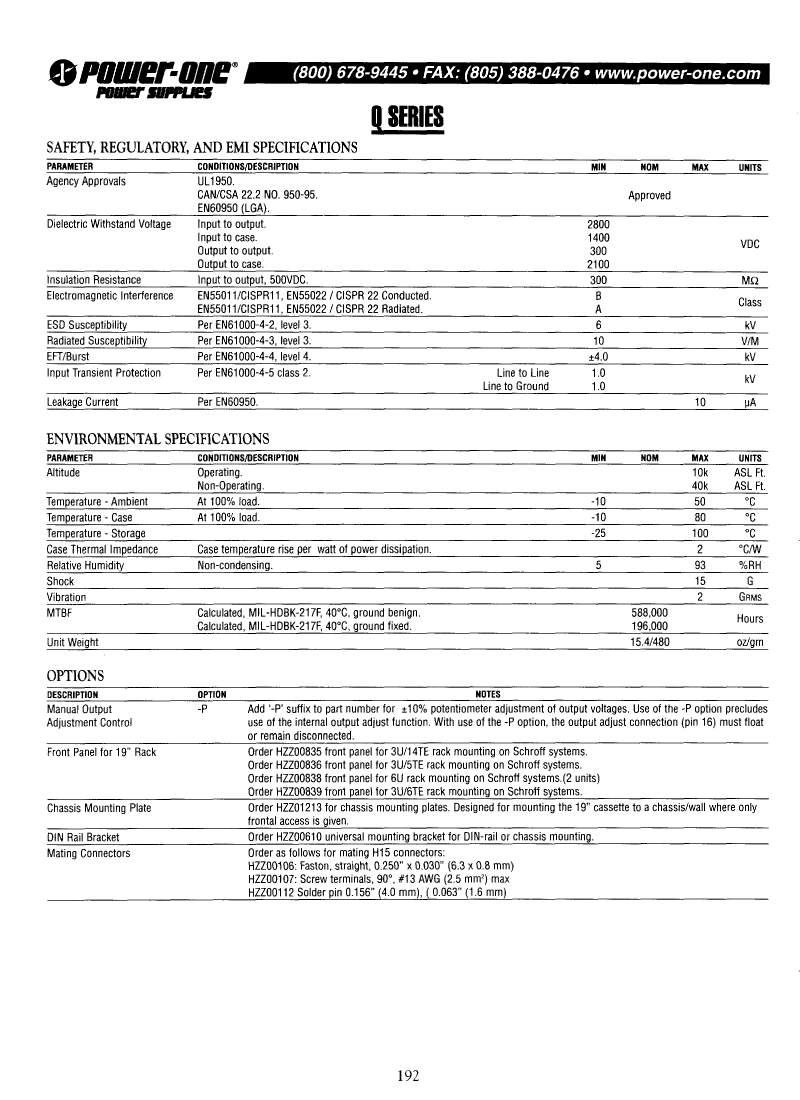

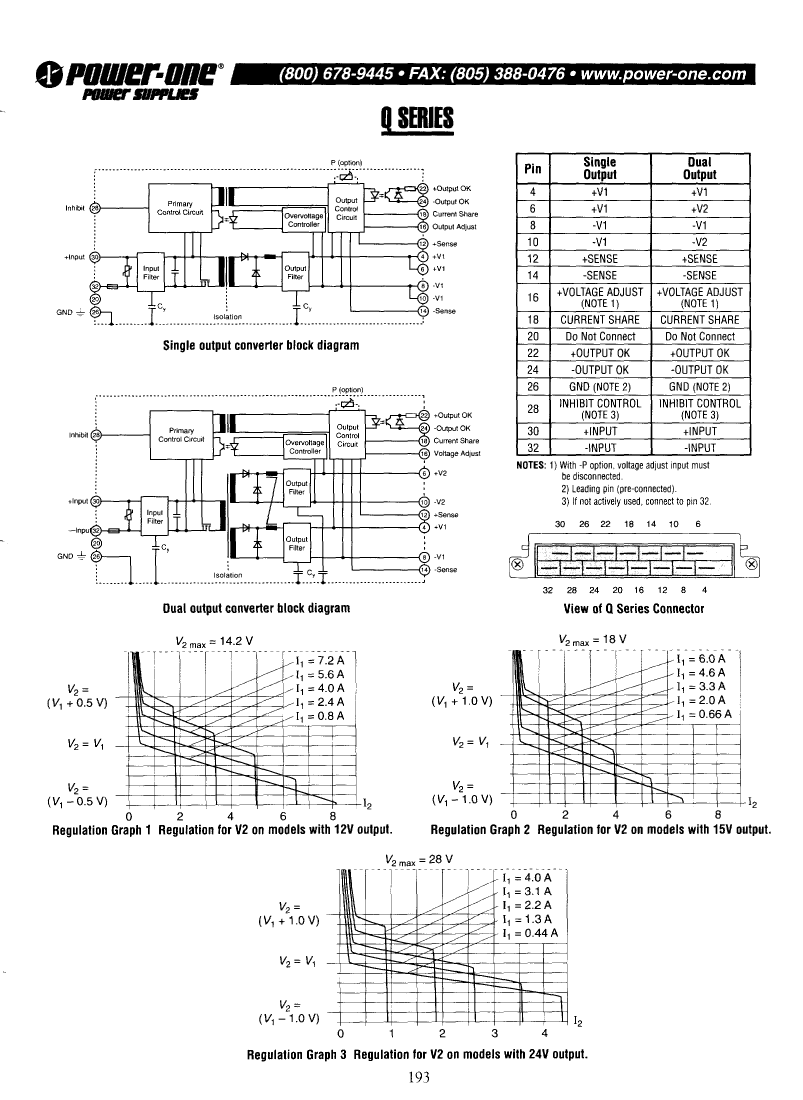

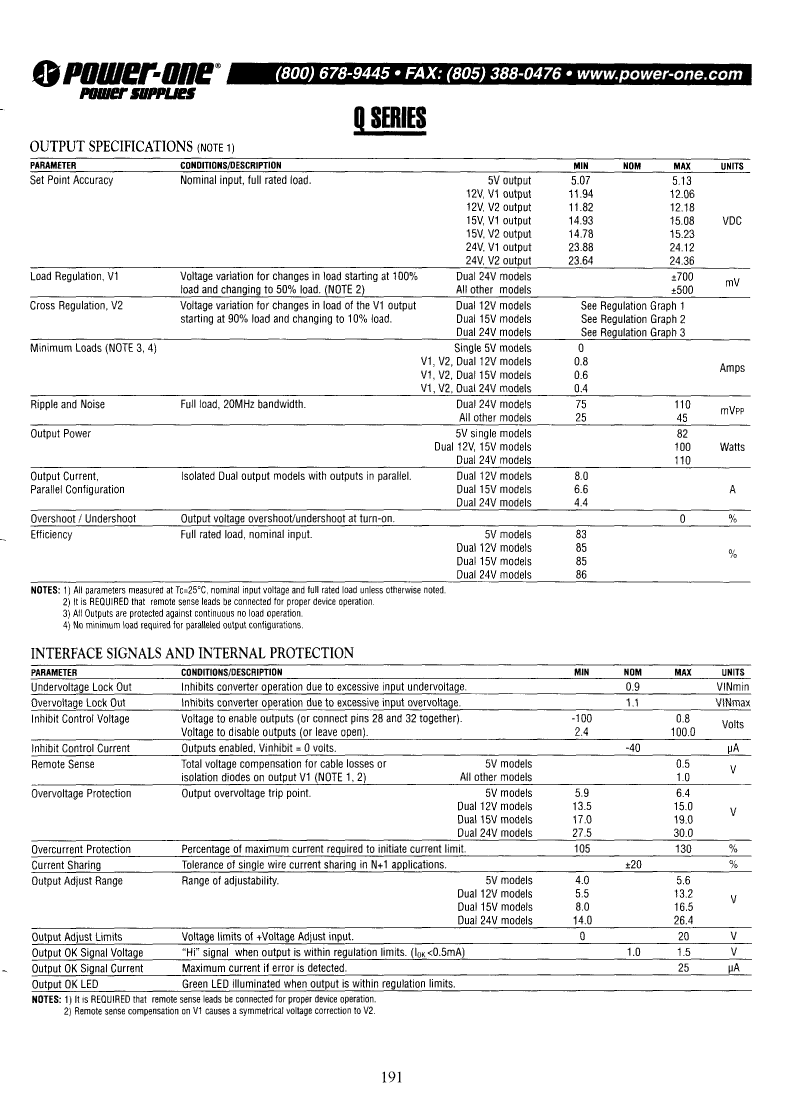

Preview

Download Datasheet

View All

24Q2320-2R Related Products

	24Q2320-2R	24Q2540-2R	24Q2540-2P	24Q2660-2P	48Q2660-2P
Description	DC-DC Regulated Power Supply Module, 2 Output, 100W, Hybrid, METAL, CASE Q01, MODULE	DC-DC Regulated Power Supply Module, 2 Output, 100W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 100W, Hybrid, METAL, CASE Q01, MODULE	DC-DC Regulated Power Supply Module, 2 Output, 110W, Hybrid, METAL, CASE Q01, MODULE	DC-DC Regulated Power Supply Module, 2 Output, 110W, Hybrid
Brand Name	Power-One	Power-One	Power-One	Power-One	Power-One
Reach Compliance Code	unknow	compli	unknow	unknow	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V	36 V	36 V	36 V	75 V
Minimum input voltage	16 V	16 V	16 V	16 V	38 V
Nominal input voltage	24 V	24 V	24 V	24 V	48 V
JESD-30 code	R-MXMA-X	R-XXMA-X	R-MXMA-X	R-MXMA-X	R-XXMA-X
Number of functions	1	1	1	1	1
Output times	2	2	2	2	2
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C	50 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Maximum output voltage	13.2 V	16.5 V	15.08 V	24.14 V	24.12 V
Minimum output voltage	5.5 V	8 V	14.93 V	23.85 V	23.88 V
Nominal output voltage	12 V	15 V	15 V	24 V	24 V
Package body material	METAL	UNSPECIFIED	METAL	METAL	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Maximum total power output	100 W	100 W	100 W	110 W	110 W
Fine-tuning/adjustable output	YES	YES	NO	NO	NO
Base Number Matches	1	1	1	1	1
