BLW77

Description
transistors RF bipolar RF transistor
Categorysemiconductor    Discrete semiconductor
File Size34KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

BLW77 Online Shopping

Suppliers Part Number Price MOQ In stock
BLW77 - - View Buy Now

BLW77 Overview

transistors RF bipolar RF transistor

BLW77 Parametric

Parameter NameAttribute value
ManufactureAdvanced Semiconductor, Inc.
Product CategoryTransistors RF Bipol
RoHSYes
TypeRF Bipolar Powe
Transistor PolarityNPN
DC Collector/Base Gain hfe Mi15
Maximum Operating Frequency28 MHz
Collector- Emitter Voltage VCEO Max35 V
Emitter- Base Voltage VEBO3 V
Continuous Collector Curre12 A
Maximum Operating Temperature+ 200 C
Power Dissipati245 W
Mounting StyleScrew
Package / CaseSOT-123
PackagingTray
Maximum DC Collector Curre30 A
Minimum Operating Temperature- 65 C

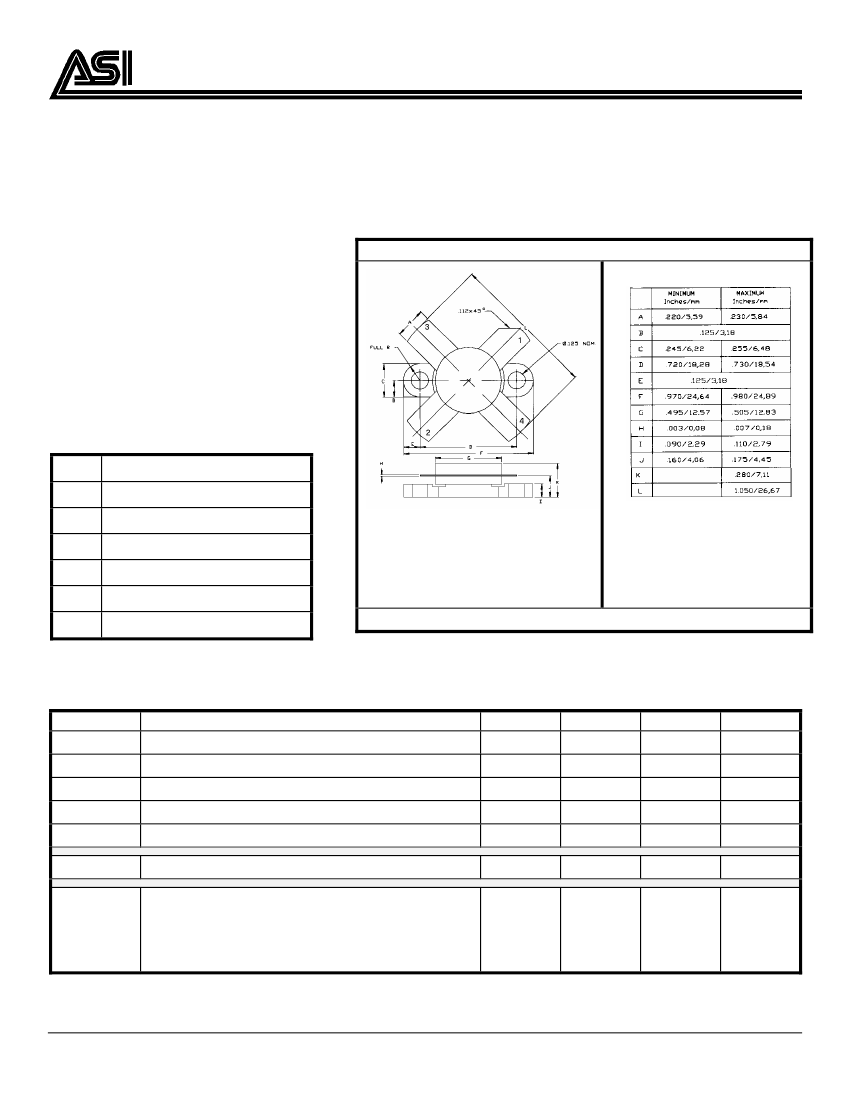

BLW77
NPN SILICON RF POWER TRANSISTOR
DESCRIPTION:
The
ASI BLW77
is Designed for use in
class-AB or class-B operated high power
transmitters in the H.F. and V.H.F bands
and, as a Linear amplifier in the H.F.
band.
PACKAGE STYLE .500 4L FLG
FEATURES:
P
G
= 12 dB min. at 15-30 W/1.6-28 MHz
Common Emitter
Omnigold™
Metalization System
MAXIMUM RATINGS
I
C
V
CB
V
CE
P
DISS
T
J
T
STG
θ
JC
12 A
70 V
35 V
245 W @ T
C
= 25 °C
-65 °C to +200 °C
-65 °C to +150 °C
0.71 °C/W
1 = COLLECTOR
2 = BASE
3 & 4 = EMITTER
CHARACTERISTICS
SYMBOL
BV
CEO
BV
CES
BV
EBO
I
CES
h
FE
C
c
G
P
d
3
η
I
C
= 50 mA
I
E
= 20 mA
V
E
= 35 V
T
C
= 25 °C
NONETEST
CONDITIONS
I
C
= 100 mA
MINIMUM TYPICAL MAXIMUM
35
70
3.0
20
UNITS
V
V
V
mA
---
pF
dB
V
CE
= 5.0 V
V
CB
= 28 V
I
C
= 7.0 A
f = 1.0 MHz
15
225
12
80
V
CE
= 28 V
I
C(ZS)
= 0.1 A
f = 1.6-28 MHz
P
L
= 15-130 W (PEP)
-30
37.5
dB
%
A D V A N C E D S E M I C O N D U C T O R, I N C.
7525 ETHEL AVENUE
NORTH HOLLYWOOD, CA 91605
(818) 982-1200
FAX (818) 765-3004
Specifications are subject to change without notice.
REV. B
1/1
