28HSR57-D-T-FREQ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 28HSR57-D-T-FREQ

28HSR57-D-T-FREQ: DescriptionSine Output Oscillator, 10MHz Min, 30MHz Max, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size162KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

28HSR57-D-T-FREQ Overview

Sine Output Oscillator, 10MHz Min, 30MHz Max, ROHS COMPLIANT, SMD, 4 PIN

28HSR57-D-T-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	ENABLE/DISABLE FUNCTION
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Maximum operating frequency	30 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	1 V
physical size	7.0mm x 5.0mm x 1.8mm
Nominal supply voltage	2.8 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

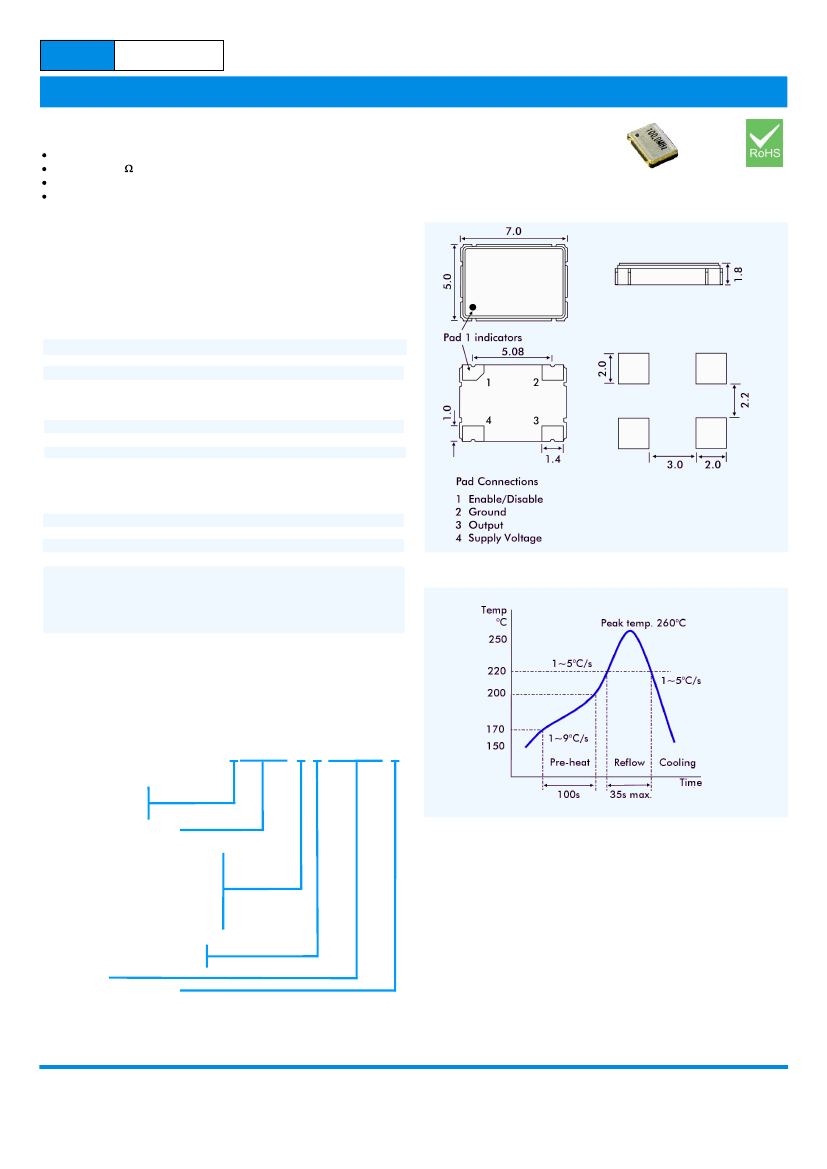

7 x 5 x 1.8mm SMD

FEATURES

Sine Wave output in small SMD package

Output 10k //10pF load, level 1.0V peak to peak

Harmonics -25dBc maximum

Very low current consumption <1.0mA at 2.8V supply

HSR57 Sine Wave Oscillators

10.0MHz to 30.0MHz

OUTLINE & DIMENSIONS

DESCRIPTION

HSR57 sine wave clock oscillators provide a true sine wave out output

while being packaged in the industry-standard, 7 x 5mm SMD outline

package. The oscillator is capable of being produced with close

tolerances and exhibits low current consumption.

SPECIFICATION

Frequency Range:

Input Voltage:

Output Wave Form:

Frequency Stability

Commercial 0~70°C:

Industrial -40 ~+85°C:

Output Level:

Harmonics:

Phase Noise:

Current Consumption

Supply 2.8 VDC:

Supply 3.3 VDC:

Supply 5.0 VDC:

Start-up Time:

Storage Temperature:

Sub-Harmonics:

Ageing:

Enable/Disable Option:

Disable time:

10.0MHz to 30.0MHz

+2.8 VDC, +3.3 VDC or +5.0 VDC

True sine wave

±25ppm, ±50ppm or ±100ppm*

10kW//10pF load, level 1.0V p-p

-25dBc maximum

-130 dBC/Hz at 1kHz offset

1.0mA

1.1mA

1.2mA

2.0ms typical

-55° to +125°C

None

±5ppm/year

Output is high impedance when pad 1

is taken LOW.

150ns maximum

(Add 'T' to the part number code for

this option.)

Fully compliant

SOLDER TEMPERATURE PROFILE

RoHS Status:

Non-standard frequency stability is available, check with sales.

PART NUMBERING

Example:

Supply Voltage

28 = 2.8 Volts

3 = 3.3 Volts

5 = 5.0 Volts

Series Designation HSR57

Stability

A = ±25ppm 0° to +70°C

B = ±50ppm 0° to +70°C

C = ±100ppm 0° to +70°C

D = ±25ppm -40° to +85°C

E = ±50ppm -40° to +85°C

F = ±100ppm -40° to +85°C

Enable/Disable Option

Blank = Not implemented

T = Option implemented

Frequency

Customer-Specific Code

(Included

if specified by

engineering department.)

3HSR57-B-T-25.000-X

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
