23_SMA-50-0-4/111_NE

Description
RF SMA Connector, Panel Mount, Jack, ROHS COMPLIANT
CategoryThe connector    The connector
File Size48KB,1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

23_SMA-50-0-4/111_NE Overview

RF SMA Connector, Panel Mount, Jack, ROHS COMPLIANT

23_SMA-50-0-4/111_NE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompli
Other featuresSTANDARDS: IEC 60169-15; MIL-STD-348A/310
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL complianceYES
Installation methodSTRAIGHT
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Base Number Matches1
HUBER+SUHNER
®
DATA SHEET

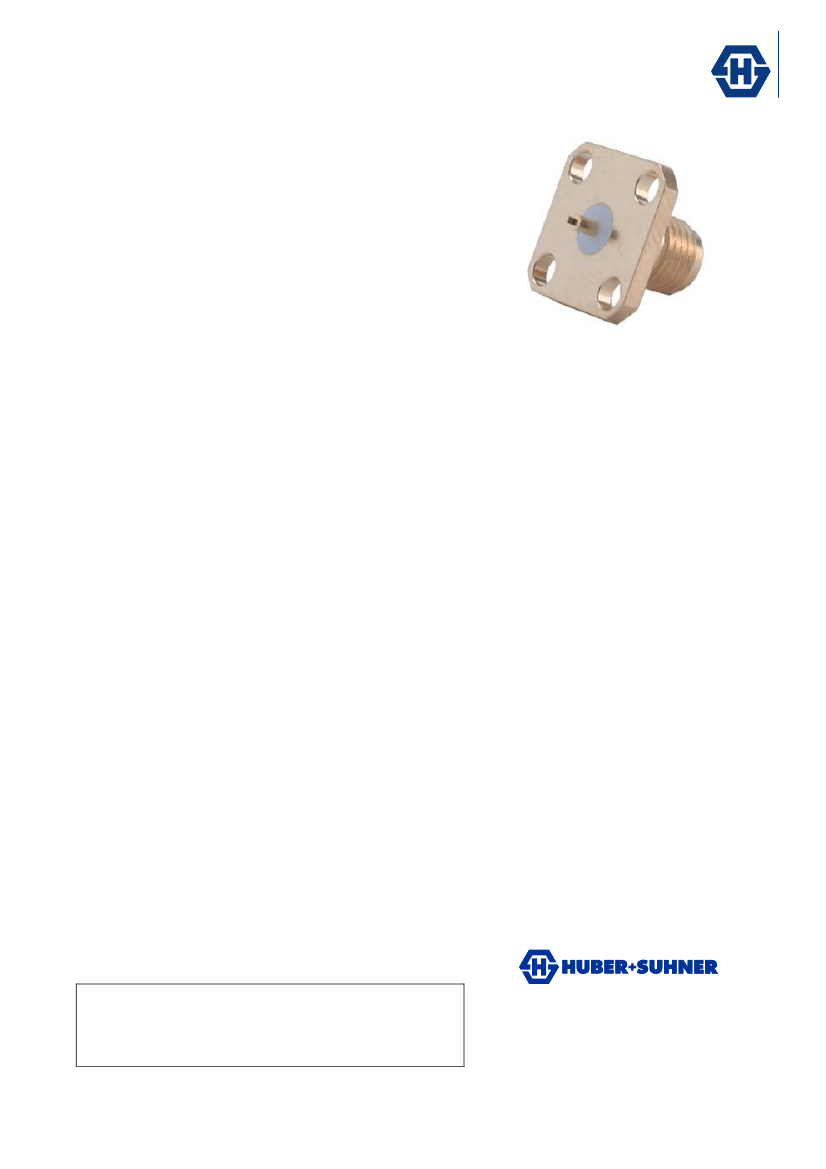

Coaxial Panel Connector: 23_SMA-50-0-4/111_N
Description
Rev.: C
Straight panel receptacle jack, flange mount
Interface standards
IEC 60169-15_MIL-STD-348A/310_CECC 22110
Technical Data
Electrical Data
Impedance
Interface frequency max.
50
18 GHz
0.0028 kg
-65 °C to 125 °C
compliant
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Copper Beryllium Alloy
PFA / PTFE
DCA-00011336
23_SMA-50-0-4/111_NE
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Mechanical Data
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material Data
Related Documents
Catalogue drawing
Single package
Ordering Information
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
Uncontrolled Copy
Page 1/1
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000189207 J
Issued: 21.10.10
