RH25499R0FS03

Description
RESISTOR, WIRE WOUND, 9 W, 1 %, 15 ppm, 499 ohm, CHASSIS MOUNT, ROHS COMPLIANT
CategoryPassive components    The resistor
File Size120KB,5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

RH25499R0FS03 Overview

RESISTOR, WIRE WOUND, 9 W, 1 %, 15 ppm, 499 ohm, CHASSIS MOUNT, ROHS COMPLIANT

RH25499R0FS03 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1808287597
package instructionChassis Mount,
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresRATED AC VOLTAGE: 550V, FREE AIR POWER: 9W
structureRectangular
JESD-609 codee1
Installation featuresCHASSIS MOUNT
Number of terminals2
Maximum operating temperature275 °C
Minimum operating temperature-55 °C
Package height15 mm
Package length28 mm
Package shapeRECTANGULAR PACKAGE
Package formChassis Mount
Package width27.5 mm
method of packingBulk
Rated power dissipation(P)25 W
Rated temperature25 °C
resistance499 Ω
Resistor typeFIXED RESISTOR
surface mountNO
technologyWIRE WOUND
Temperature Coefficient25 ppm/°C
Terminal surfaceTin/Silver/Copper (Sn/Ag/Cu)
Terminal shapeLUG
Tolerance1%

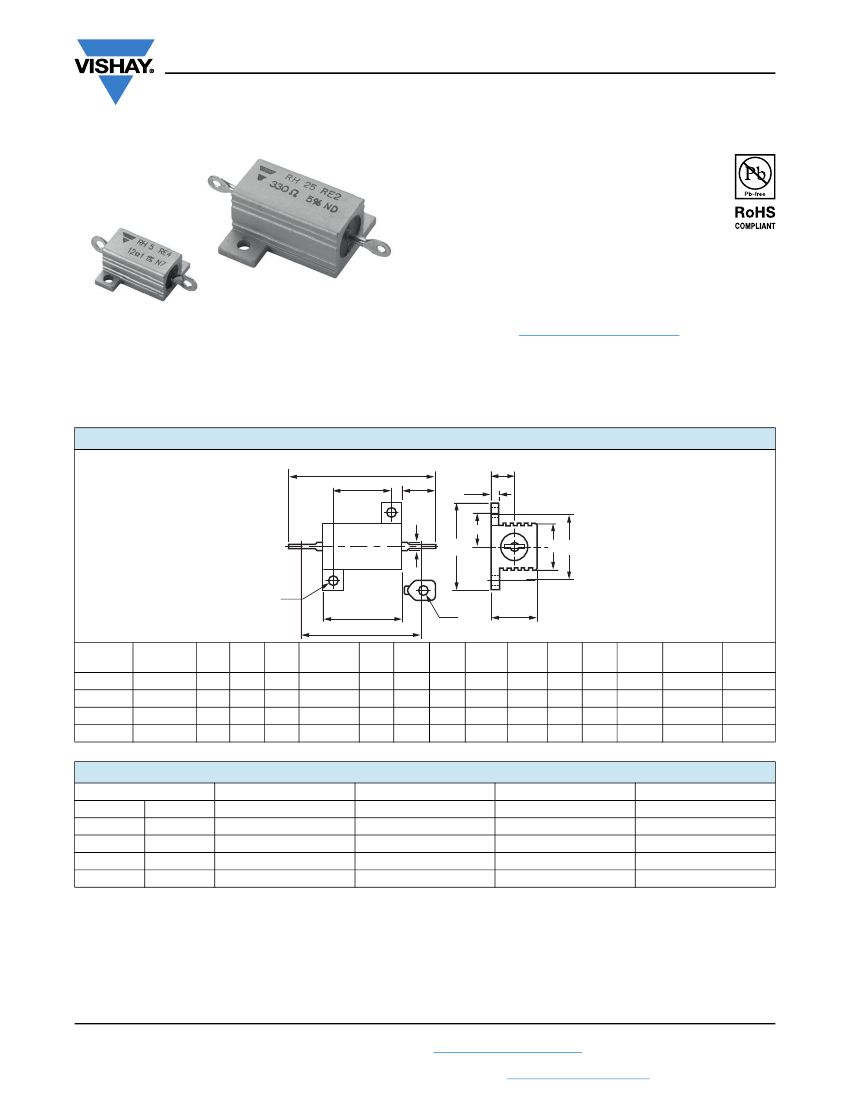

RH
www.vishay.com
Vishay Sfernice
Heatsink Encased Wirewound Power Resistors
FEATURES
• 5 W to 50 W at 25 °C
• NF C 83-210
• According to CECC 40 203
• High stability < 0.05 % year
• Low temperature coefficient typically ± 15 ppm/°C
• Wide range of values from 0.006
Ω
to 130 kΩ
• Termination = Sn/Ag/Cu
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Encased in a compact and light heatsink offering complete environmental protection, great mechanical strength and easy
mounting. Non inductive versions can be supplied under the RHNI designation (please indicate required specifications and
frequency range upon ordering).
NF F 16101, 10/1988 and 16102, 04/1992: Not applicable (our parts contain less than 10 g of combustible materials).
DIMENSIONS
in millimeters
RH
A
D
F
N
M
Ø2
H
J
G
B
ØK
E
Q
ØP
L
SERIES
RH5
RH10
RH25
RH50
A
28.5 ± 1.5
35.5 ± 1.5
49 ± 1.3
70.2 ± 1.4
0.2
12.5
15.9
19.8
21.4
0.2
11.3
14
18.3
39.7
0.5
16.3
19
28
50
F
6.8 ± 1.5
7.9 ± 1.5
11.1 ± 1.5
11 ± 1.2
G±1
8.5
11
14
14
0.7
6.2
7.9
9.9
10.7
0.5
16.4
20.6
27.5
29.4
ØK±
0.1
2.4
2.4
3.2
3.2
L
MAX.
8.9
11
15
15
0.5
4.3
5.6
8
8
0.3
1.6
2
2.4
2.4
ØP
MIN.
2.1
2.1
2.1
2.1
Q
25.3 ± 1.5
30.6 ± 1.5
44.6 ± 1.3
66.5 ± 1.4
WEIGHT
g
4
6.4
16.1
28.6
OHMIC RANGE IN RELATION TO TOLERANCE
RH5
10 %
5%
2%
1%
0.5 %
E24
E24
E48
E96
E96
0.01
Ω
to 12 kΩ
0.01
Ω
to 12 kΩ
0.01
Ω
to 12 kΩ
0.1
Ω
to 12 kΩ
0.1
Ω
to 12 kΩ
RH10
0.006
Ω
to 20 kΩ
0.01
Ω
to 20 kΩ
0.01
Ω
to 20 kΩ
0.1
Ω
to 20 kΩ
0.1
Ω
to 20 kΩ
RH25
0.006
Ω
to 62 kΩ
0.01
Ω
to 62 kΩ
0.01
Ω
to 62 kΩ
0.05
Ω
to 62 kΩ
0.1
Ω
to 62 kΩ
RH50
0.006
Ω
to 130 kΩ
0.01
Ω
to 130 kΩ
0.01
Ω
to 130 kΩ
0.05
Ω
to 130 kΩ
0.1
Ω
to 130 kΩ
Revision: 07-Dec-15
Document Number: 50013
1
For technical questions, contact:
sferfixedresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
