CZM1-50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> CZM1-50

CZM1-50: DescriptionVoltage Controlled Oscillator, 45MHz Min, 105MHz Max; CategoryPassive components oscillator; File Size115KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

CZM1-50 Overview

Voltage Controlled Oscillator, 45MHz Min, 105MHz Max

CZM1-50 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Maximum control voltage	20 V
Minimum control voltage
JESD-609 code	e0
Modulation sensitivity	3.3 MHz/V
Installation features	SURFACE MOUNT
offset frequency	10 kHz
Maximum operating frequency	105 MHz
Minimum operating frequency	45 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	12 dBm
phase noise	-106 dBc/Hz
physical size	12.7mm x 12.7mm x 2.54mm
Maximum slew rate	50 mA
Nominal supply voltage	12 V
surface mount	YES
Terminal surface	TIN LEAD
Base Number Matches	1

Preview

Download Datasheet

View All

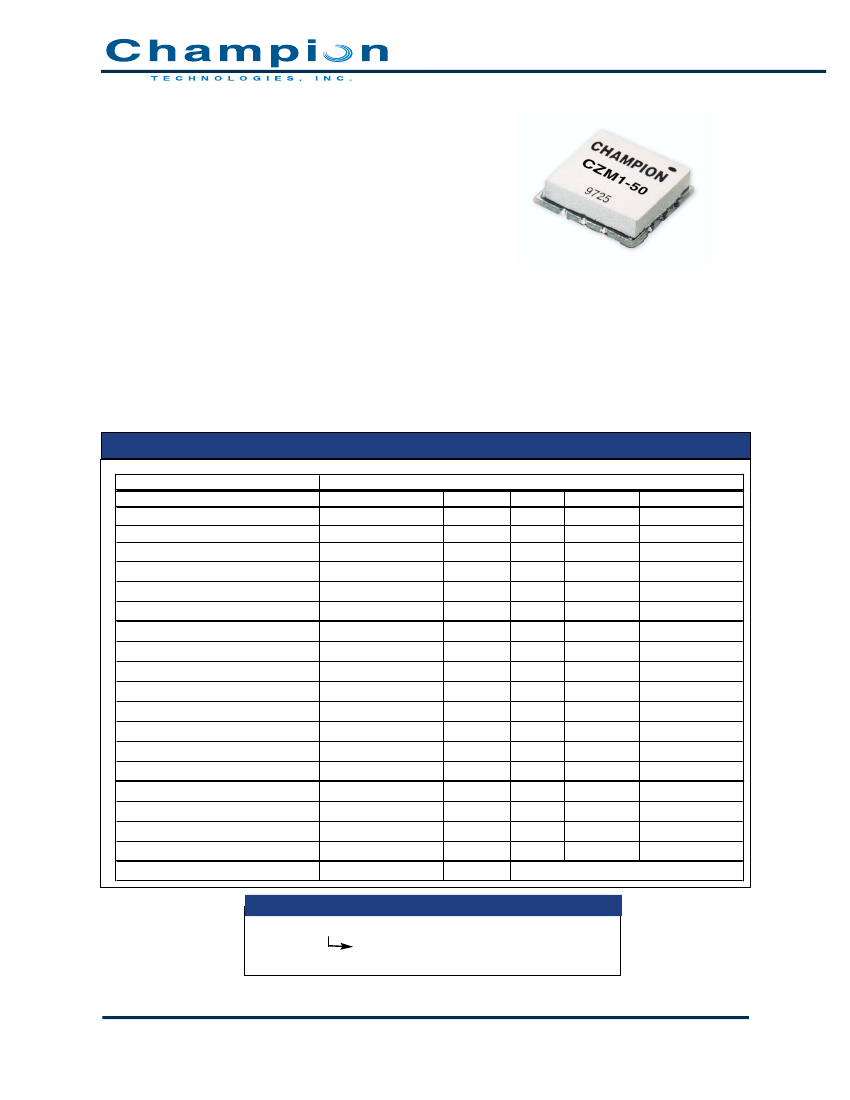

CZM1-50 Series

Surface Mount Voltage Controlled Oscillators

FEATURES:

Surface Mount/Tape & Reel

Small .5” x .5” x .1” Size

Linear Wideband Tuning Range

Low Cost

Standard Pad Locations

-40°C to 85°C Operating Temperature

3.3V & 5V parts also available -

Please

Contact Champion

The

CZM1-50

is a fundamental mode reflection oscillator that utilizes a silicon bipolar transistor

and hyper-abrupt silicon varactor diodes to create a highly linear VCO with wideband tuning

characteristics. The device is useful for many wireless applications where high frequency and

linear modulation is required.

The process is very repeatable from unit to unit and assembled in ISO 9001 approved manu-

facturing facility with the latest surface mount equipment. Every unit is DC and RF tested with

our fully automated computerized test stations to provide the highest reliabile product.

E L E C T R I C A L S P E C I F I C AT I O N S

Model

Parameter

Frequency Range

Tuning Voltage

RF Output Power

Supply Voltage

Supply Current

Phase Noise

Modulation Sensitivity

Tuning Linearity

Modulation Bandwidth

Harmonics

Frequency Pushing

Frequency Pulling

Frequency Drift

Tuning Input Capacitance

Absolute Maximum Ratings

Supply Voltage

Tuning Voltage

Storage Temperature

Solder Assembly Temperature

-45

230oC for 10 secs.

+15

+22

3dB BW

2nd

VCC = 7.75 to 8.25

1.5:1 VSWR

-40o to 85oC

Test Condition

VC = 0V to 20V

45 - 105MHz

VCC

ICC

ssb @ 10KHz

Vt = 1-12V

Units

MHz

dBm

dBc/Hz

MHz/V

ratio

MHz

dBC

MHz/V

MHz

CZM1-50

Min

+10

+12

-106

3.3

2.0

-15

3.0

Typical

Max

105

+20

+15

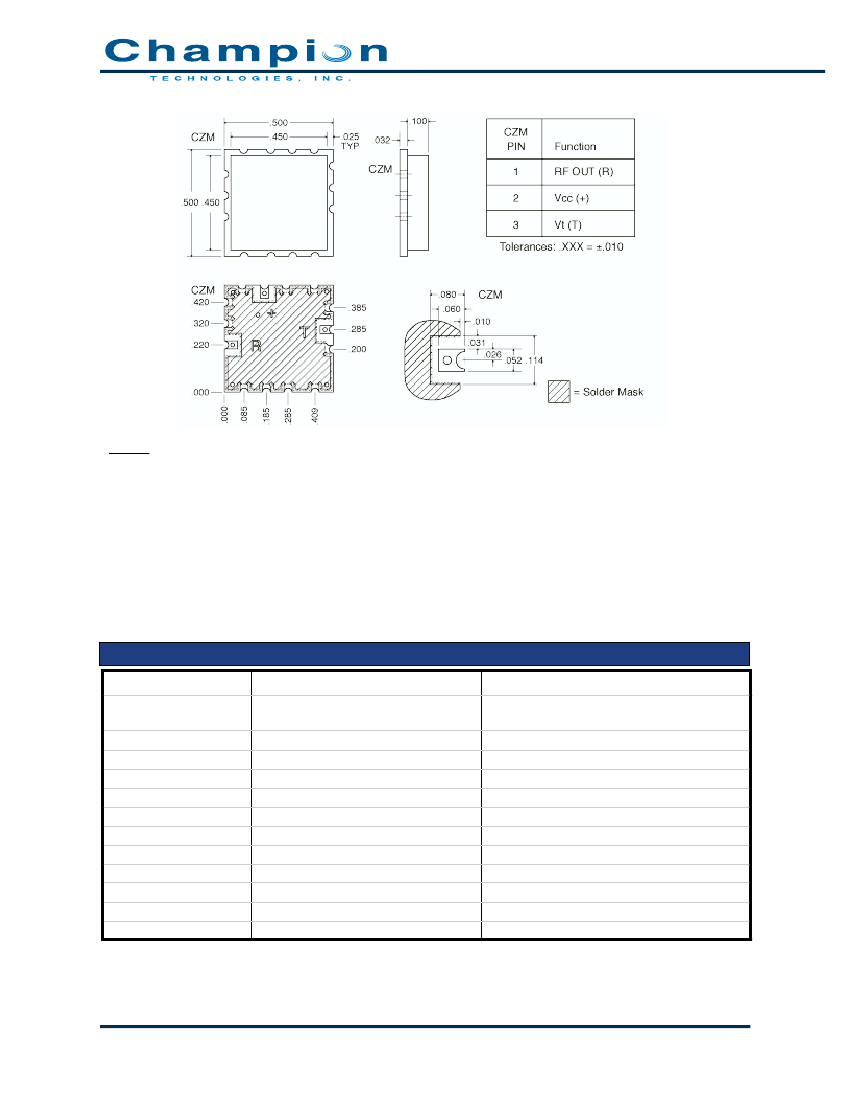

PA R T N U M B E R I N G G U I D E

CZM1-50-xxx

Part Number Assigned by Champion; Based

on Customer Requirements

2553 N. Edgington Street, Franklin Park, IL 60131

Phone: 847.451.1000

Fax: 847.451.7585

800-888-1499 or www.champtech.com
