BL4-040-S630/0-55/2

Description
Board Connector, 40 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug
CategoryThe connector    The connector
File Size542KB,1 Pages
ManufacturerE-tec Interconnect Ltd.
Environmental Compliance
Download Datasheet Parametric View All

BL4-040-S630/0-55/2 Overview

Board Connector, 40 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug

BL4-040-S630/0-55/2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304754956
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.315 inch
subject depth0.25 inch
body length0.799 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance1000000000 Ω
insulator materialNYLON
JESD-609 codee4
Manufacturer's serial numberBL4
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.094 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts40

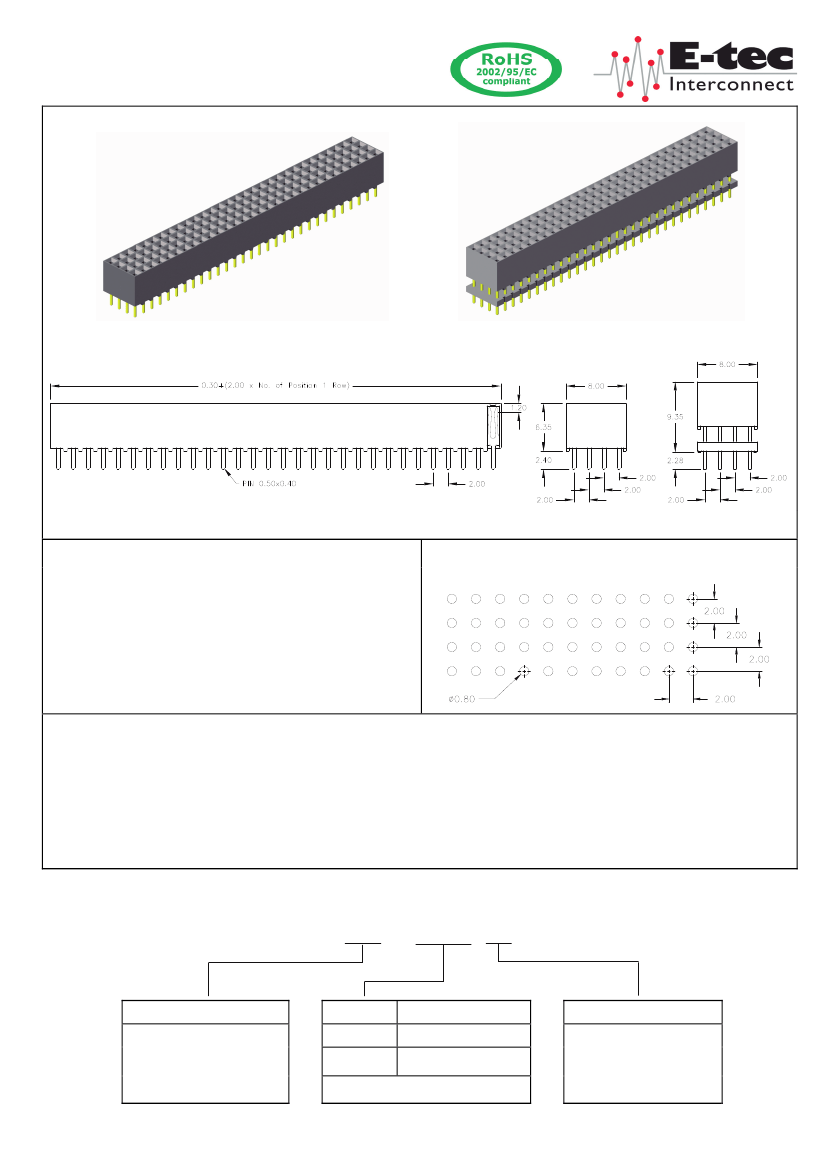

2.00mm pitch
Female Header - THT -
Quad Row, 120 contacts max.
“PC 104
+
Type”
S630/0
SPECIFICATIONS
Current rating
Insulator resistance
Contact resistance
Withstanding voltage
Operating temperature
Contact material
(RoHS compliant)
Insulator material
(RoHS compliant)
1A
1000 MΩ min.
20 mΩ max.
500 V AC
- 40°C to +105°C
Phosphor Bronze
Nylon UL 94 V-0
APPLICATION AND FEATURES
PCB Hole Layout
S630/1
Low and high Profile
PC/104-Plus Type
Designed for “board to board” small spacing interconnection
With standoff’s for post solder cleaning
Mate with pin header
SL4 – xxx – S830/x – xx/2
How to order
BL4 - xxx - S xxx/x -
55
/2
Nbr of contacts
012
to
120
Version
630/0
630/1
Dimension above PCB
6.35 mm
9.35 mm
Plating
55
=
gold
Other dimensions on request
Other platings on request
51
consult
