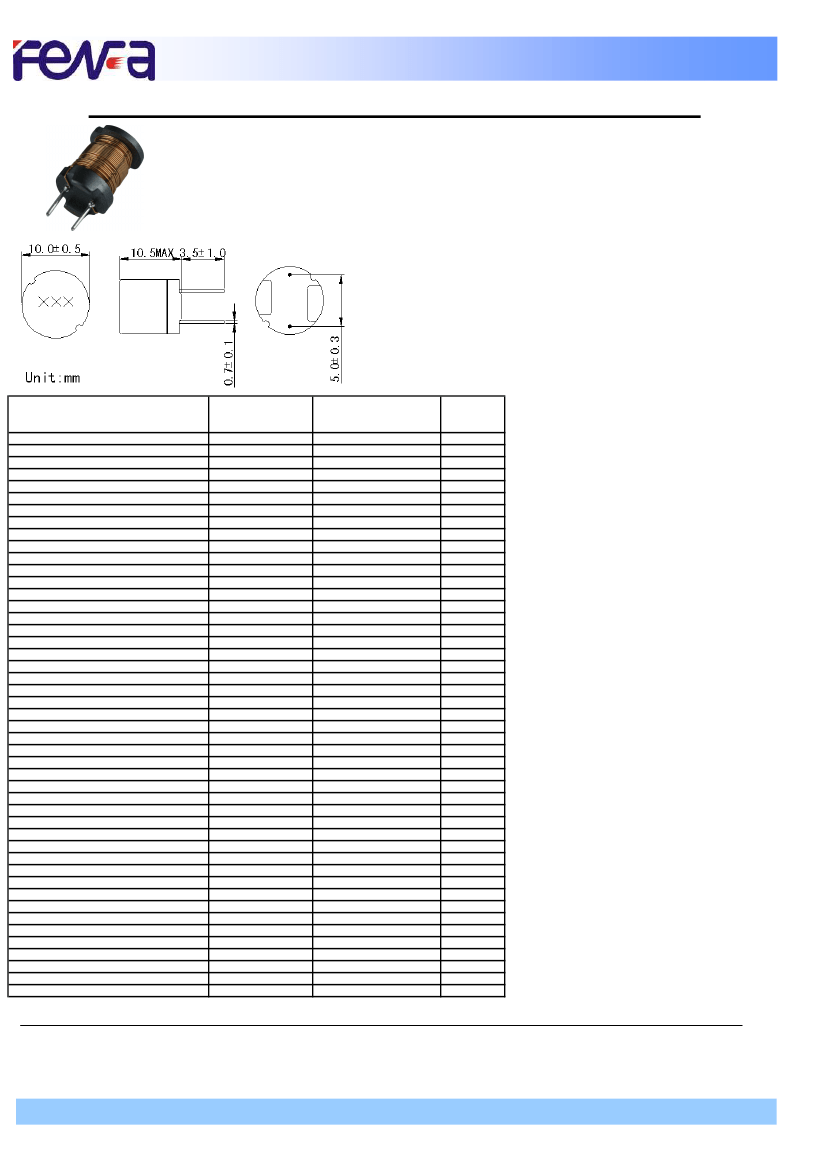

PIN TYPE Power Inductors PP2W1014 Series
PP2W1014 Series ,Entrie winding core is encapsulated in heat
shriked ul tube or magnetically shielded. to provide mechanical and
environmental protection. Rugged reliability and performance. For
switchingpower supply with high reliability. Efficiency and
saturation. OA equipment choke. High current low impedance.
P/N
PP2W1014-6R3M
PP2W1014-7R5M
PP2W1014-8R8M
PP2W1014-100K
PP2W1014-120K
PP2W1014-150K
PP2W1014-180K
PP2W1014-220K
PP2W1014-270K
PP2W1014-330K
PP2W1014-390K
PP2W1014-470K
PP2W1014-560K
PP2W1014-680K
PP2W1014-820K
PP2W1014-101K
PP2W1014-121K
PP2W1014-151K
PP2W1014-181K
PP2W1014-221K
PP2W1014-271K
PP2W1014-331K
PP2W1014-391K
PP2W1014-471K
PP2W1014-561K
PP2W1014-681K
PP2W1014-821K
PP2W1014-102K
PP2W1014-122K
PP2W1014-152K
PP2W1014-182K
PP2W1014-222K
PP2W1014-272K
PP2W1014-332K
PP2W1014-392K
PP2W1014-472K
PP2W1014-562K
PP2W1014-682K
PP2W1014-822K
PP2W1014-103K
PP2W1014-123K
PP2W1014-153K
PP2W1014-183K
PP2W1014-223K
PP2W1014-273K
PP2W1014-333K
PP2W1014-393K
L (uH)
6.3
7.5
8.8
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
22000
27000
33000
39000
DCR(mohm)
MAX
26.0
29.0
30.0
33.0
35.0
39.0
47.0
51.0
57.0
64.0
74.0
83.0
104.0
117.0
130.0
143.0
195.0
221.0
260.0
350.0
390.0
520.0
570.0
650.0
790.0
960.0
1220.0
1600.0
2200.0
2500.0
2900.0
3200.0
3700.0
5000.0
5600.0
7400.0
8200.0
11900.0
14000.0
16000.0
21000.0
24000.0
27000.0
34000.0
39000.0
51000.0
58000.0
Isat
(A)
4.30
4.20
4.10
4.00
3.90
3.70
3.50
3.30
3.10
2.90
2.70
2.50
2.30
2.10
1.90
1.70
1.50
1.40
1.30
1.20
1.10
1.00
0.92
0.84
0.75
0.69
0.62
0.52
0.46
0.51
0.36
0.32
0.29
0.27
0.25
0.23
0.21
0.19
0.17
0.17
0.15
0.14
0.13
0.12
0.11
0.10
0.09
1.Inductance tested at 1KHz,0.1V;
2.SRF>13MHz measured using
Agilent / HP8753D network
Analyzer;
3.Inductance drop = 10% typ.
at rated Isat;
4.△T=40℃ rise typ. at Irms;
5.Operating temperature range
-40℃ to +125℃;
6. Electrical specifitions at +25℃;
In Bulk Packing
Special inquiries besides the above common used types can be met on your requirement.
