20.000MHZX42-W-10PF datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 20.000MHZX42-W-10PF

20.000MHZX42-W-10PF: DescriptionParallel - Fundamental Quartz Crystal, 20MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size129KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

20.000MHZX42-W-10PF Overview

Parallel - Fundamental Quartz Crystal, 20MHz Nom, SMD, 4 PIN

20.000MHZX42-W-10PF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145137371234
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT-CUT; OTHER TEMPERATURE AND STABILITY VALUES ALSO AVAILABLE
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	10 ppm
load capacitance	10 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
physical size	4.0mm x 2.5mm x 0.6mm
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

EURO

QUARTZ

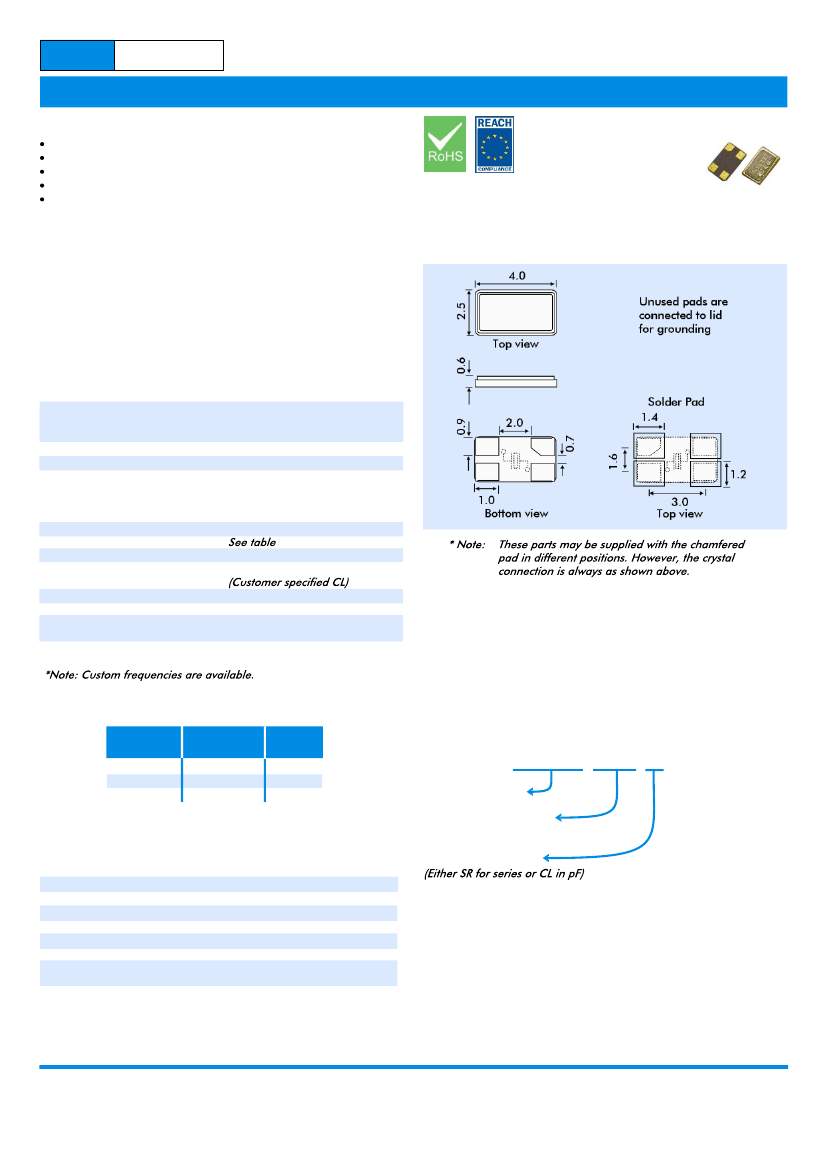

4 x 2.5 x 0.6mm SMD

FEATURES

Miniature package: 4.0 x 2.5 x 0.6mm

Gold-plated ceramic base with metal seam-welded package

Very low ageing

Optimized for Wi-Fi applications

High shock and vibration resistance

X42-W CRYSTALS

WI-FI APPLICATIONS

DESCRIPTION

X42 crystals are micro-miniature surface-mount mount crystals. The

crystals have a gold plated ceramic base with a seam welded metal lid

providing a stable crystal with very low ageing. The rugged construction

ensures that this crystal has high shock and vibration resistance. The

crystal has been optimized for WI-Fi applications: Bluetooth/ Bluetooth

Low Energy (BLE), Bluetooth Smart, Zigbee, ISM, Wi-FI / WLAN, LPWAN

and others.

OUTLINE & DIMENSIONS

SPECIFICATION

Standard Frequencies*:

Operating Mode:

Calibration Tolerance at 25ºC:

Frequency stability

-20° to +70°C

-40° to +85°C

-40° to +105°C

Storage Temperature:

Equivalent Series Resistance:

Shunt Capacitance (C0):

Load Capacitance (CL):

Ageing:

Drive level:

Reflow Soldering:

Packaging:

16.0, 19.2, 20.0, 24.0, 25.0,

26.0, 27.120, 30.0, 32.0, 37.40,

38.40, 40.0, 48.0, 52.0MHz

AT-Cut Fundamental:

±10ppm

±15ppm

±30ppm

-50°~+105°C

2pF to 4pF typical, 5pF maximum

Series or from 10pF to 32pF

<±ppm per first year at +25°C

100 µW maximum

10s maximum at 260°C twice

or 180s at 230°C, once.

12mm EIA tape and reel

EQUIVALENT SERIES RESISTANCE (ESR)

Frequency

Range MHz

12.0 ~ 14.9

15.0 ~ 29.9

30.0 ~ 54.0

Crystal Cut/

Mode

AT Fund.

ESR

Ω Max.

PART NUMBER GENERATION

Part numbers for X42-W crystals are generated as follows:

Example:

16.000MHz X42-W-18pF

Nominal Frequency

Package size and

WiFi optimisation

ENVIRONMENTAL PERFORMANCE

RoHS Status:

Storage Temperature Range:

Humidity:

Hermetic Seal:

Solderability:

Reflow:

Vibration:

Shock:

Compliant

-55° to +105°C

85% RH, 85°C for 48 hours

Leak rate 2x10

-8

ATM -cm

/s max.

MIL-STD-202F Method 208E

260°C for 10 sec (see diagram)

MIL-STD-202F Method 204,

35±5 mins, 50 to 2000Hz

MIL-STD-202F Method 213B, test

Condition E, 50g 11ms.

Load Capacitance

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
