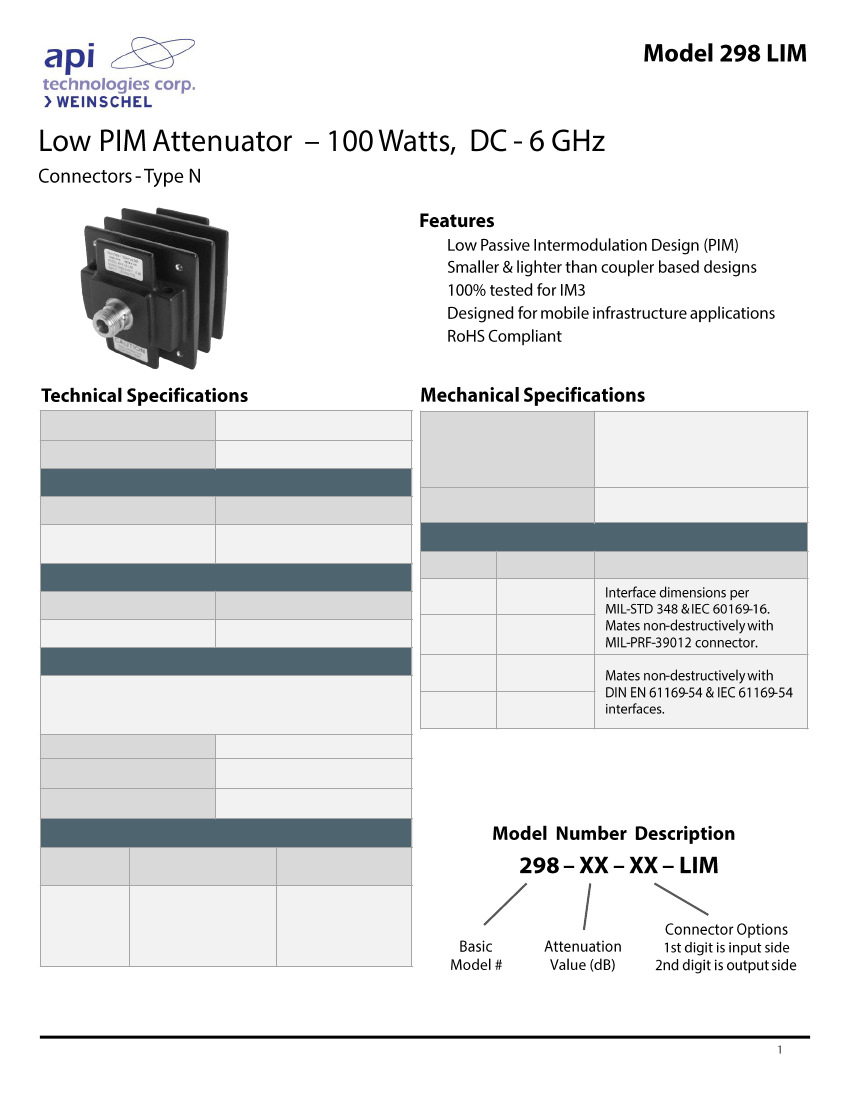

Nominal Impedance
Frequency Range
50 Ω
DC to 6.0 GHz
Construction
Black finned, aluminum alloy body;
Low PIM connector construction
580 grams (20.5 oz) maximum
Maximum Deviation Over Frequency
Nominal ATTN (dB)
3,6,10,20,30
40
Deviation (dB)
+/- 1.25
+/- 2.50
Weight
Connectors
Options
3
4
7
8
Typical SWR
Frequency
DC - 6 GHz
SWR
1.25
Type
N Female
N Male
4.3-10 Female
4.3-10 Male
Description
Power Rating
-
-
-
100 W average
,
unidirectional
at
25°C ambient.
Derated to 10 Watts at 125°C
10 KW peak @ 5 µs pulse width & 0.05 % duty cycle.
< 0.00015 dB/dB/watt
< 0.0004 dB/dB/°C
-55°C to 125°C
Power Coefficient
Temperature Coefficient
Temperature Range
Swept data plots of attenuation and SWR from 50 MHz to 6 GHz
are available upon request.
Typical Passive Intermodulation (PIM) Levels
Nominal ATTN
(dB)
3,6,10
20
30, 40
Reverse IM3
Forward IM3
-140 dBc
-150 dBc
-155 dBc
-130 dBc
IM3 levels tested with two input signals @ 869 MHz and 891
MHz with average carrier power levels of +43 dBm each.
Rev Date: 12/21/2018
© API Weinschel, Inc. Proprietary Information
|
www.apitech.com | weinschel.apitech.com | 301-846-9222, 800-638-2048
Page #
| weinschel-sales@apitech.com
WMOD298 LIM
•
Datasheet
•
02-18
•
API Technologies Corp
• ©
Copyright 2018
Input SWR
2.00
Output SWR
Attenuation
Spec Limits
-1.00
1.80
1.60
1.40
1.20
1.00
0
1
2
3
4
5
6
-2.00
-3.00
-4.00
-5.00
-6.00

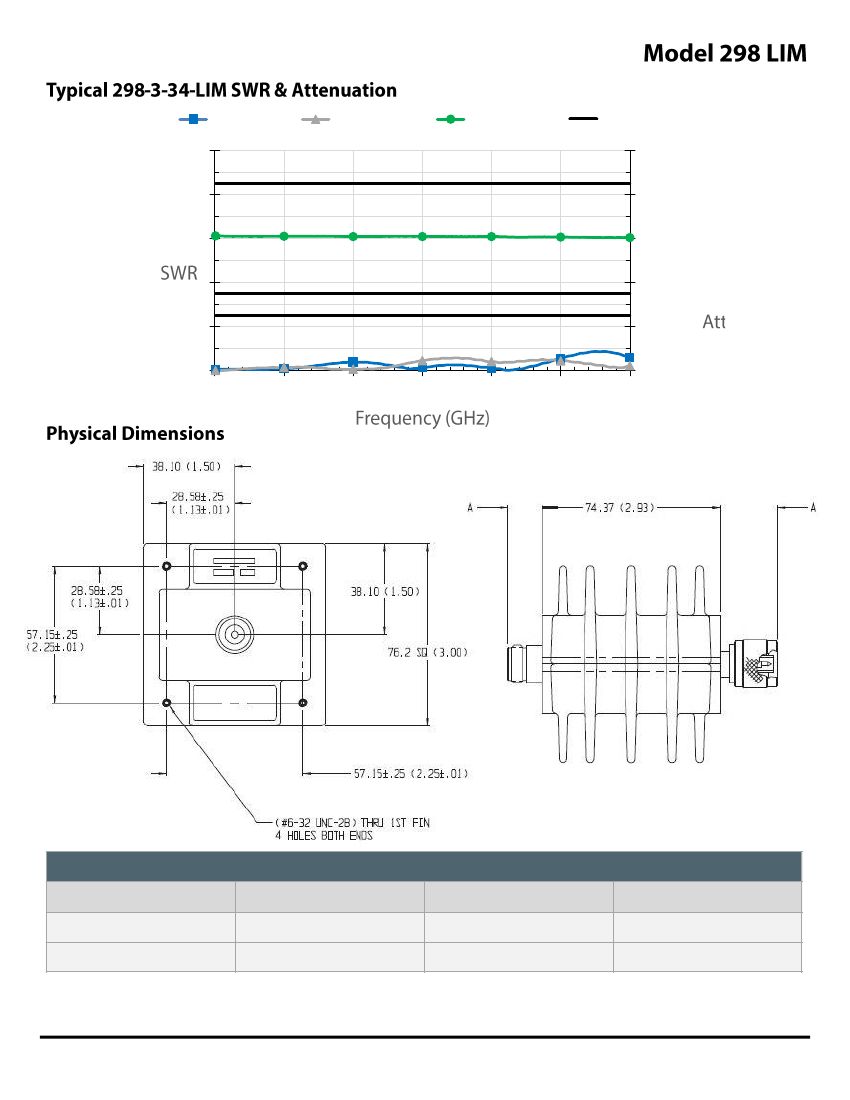

Connector Dimensions
Connector Option
N Male
4.3-10 Male
Dim A mm (in)
23 (0.90)
23 (0.91)
Connector Option
N Female
4.3-10 Female
Dim A mm (in)
14 (0.60)
21 (0.83)
NOTE: All dimensions are given in mm (inches) and are maximum, unless otherwise specified.
Rev Date: 12/21/2018
© API Weinschel, Inc. Proprietary Information
|
www.apitech.com | weinschel.apitech.com | 301-846-9222, 800-638-2048
Page # 2
| weinschel-sales@apitech.com
