CR25C-160K-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CR25C-160K-G

CR25C-160K-G: DescriptionFixed Resistor, Carbon Film, 0.25W, 160000ohm, 250V, 2% +/-Tol,; CategoryPassive components The resistor; File Size61KB，1 Pages; ManufacturerRFE International, Inc; Websitehttp://www.rfeinc.com/; Environmental Compliance

Download Datasheet Parametric View All

CR25C-160K-G Overview

Fixed Resistor, Carbon Film, 0.25W, 160000ohm, 250V, 2% +/-Tol,

CR25C-160K-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	955837993
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Epoxy Coating
Lead diameter	0.6 mm
Lead length	20 mm
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	2.5 mm
Package length	6.5 mm
Package form	Axial
Rated power dissipation(P)	0.25 W
resistance	160000 Ω
Resistor type	FIXED RESISTOR
series	CR
technology	CARBON FILM
Tolerance	2%
Operating Voltage	250 V

Preview

Download Datasheet

View All

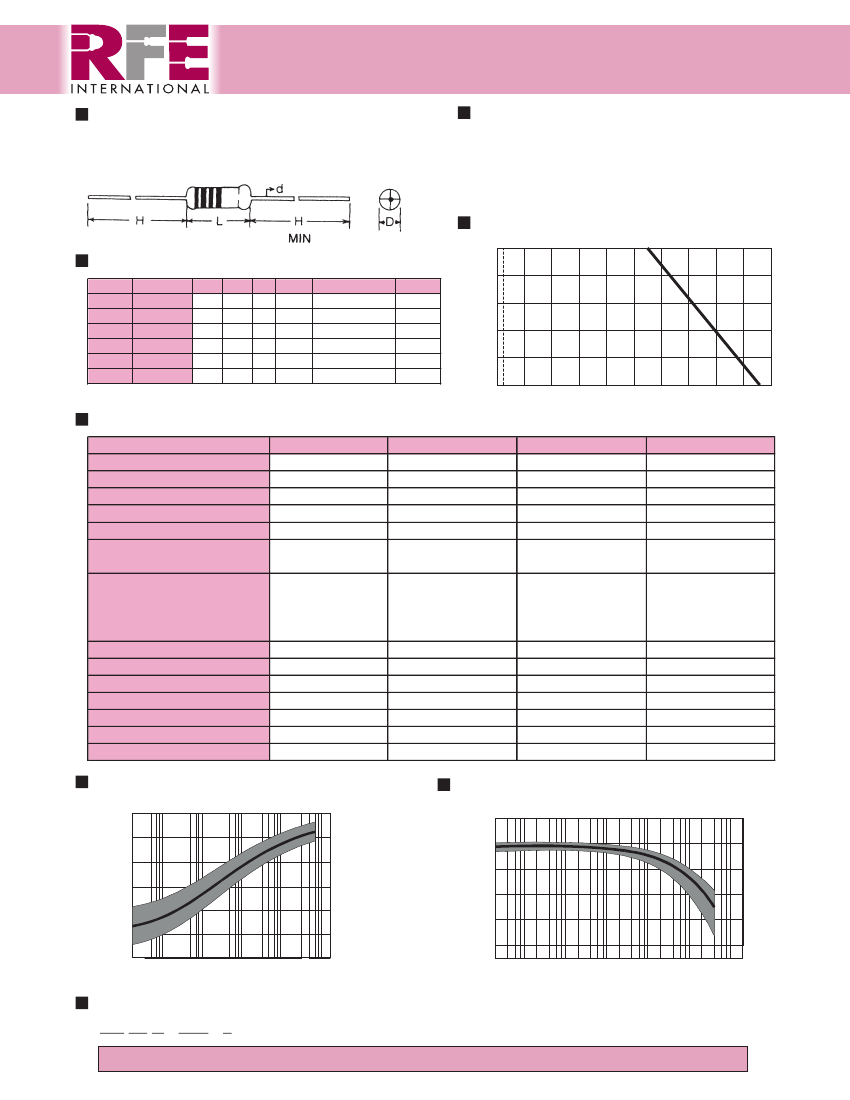

FILM RESISTORS

CR Series: Carbon Film

INTRODUCTION

High quality thermally conductive ceramic core with

carbon film and conformally protected by multiple

epoxy coatings.

FEATURES

•Exceptional Long Term Stability

•Flameproof Coating Available

•Special Values May Be Requested

DERATING CURVE

100

70°C

DIMENSIONS (mm)

Type

Small Type L±.5 D±.5 H d±.05 Standard Tape Packing

T52

5000

CR12

CR25M

3.7 1.6 20

0.5

5000

CR25

CR50M

6.5 2.5 20

0.6

T52

CR50S

8.5 2.8 20

0.6

5000

T52

2500

CR100S

3.7 20

0.7

T52

CR100

0.8

2000

4.5 26

T73

1000

T73

CR200

5 26

0.8

•Special tape to tape size by request

Rated Load (%)

-55

-30

100

125

140

160

150°C

Ambient Temperature (°C)

SPECIFICATIONS

TYPE

Rated Wattage at 70°C

Max. Working Voltage

Max. Overload Voltage

Resistance Tolerance

Ambient Temperature Range.

Life

Resistance Temp.

Characteristics

(At 25°C ~ 105°C)

Temperature Cycle

Short-time Overload

Moisture Resistance

Terminal Strength

Soldering Heat

Shock and Vibration

Resistance Range ±5%

CR12

0.125W/0.16W

200V

400V

J(±5%) G(±2%)

-55°C ~ +155°C

±3% MAX

±2% AVG

<100K ohm ±4%

<1M ohm ±4%

<1.5M ohm ±4%

<3.3M ohm ±4%

±1%

±3% MAX

±0.5%

±1%

1 ohm ~ 10M ohm

CR25M/25

0.25W

250V

500V

J(±5%) G(±2%)

-55°C ~ +155°C

±3% MAX

±2% AVG

<100K ohm ±4%

<1M ohm ±10%

<1.5M ohm ±14%

±1%

±3% MAX

±0.5%

±1%

0.5 ohm ~ 22M ohm

CR50M/50S

0.50W

350V

750V

J(±5%) G(±2%)

-55°C ~ +155°C

±3% MAX

±2% AVG

<100K ohm ±4%

<1M ohm ±6%

<1.5M ohm ±8%

<3.3M ohm ±12%

±1%

±3% MAX

±0.5%

±1%

0.5 ohm ~ 22M ohm

CR100S/100/200

1W/2W

500V/750V

1000V

J(±5%) G(±2%)

-55°C ~ +155°C

±3% MAX

±2% AVG

<100K ohm ±4%

<1M ohm ±6%

<1.5M ohm ±12%

±1%

±3% MAX

±0.5%

±1%

0.5 ohm ~ 22M ohm

CURRENT NOISE

3.2

1.0

.32

.10

.032

.01

.003

100

10K

100K

SURFACE TEMPERATURE RISE

-200

-400

Noise Voltage (uV/V)

(ppm)

-600

-800

-1000

100

10K

100K

Nominal Resistance (ohms)

PART NUMBER EXAMPLE

CR 25 R - 10K - J

RFE International

• Tel:(949) 833-1988 • Fax:(949) 833-1788 • E-Mail Sales@rfeinc.com

C2CB02

REV 2004.5.7
