CX1VSM CRYSTAL
10 kHz to 600 kHz
Miniature Surface Mount
Quartz Crystal for Pierce Oscillators
DESCRIPTION
Actual size
Side view
Glass Lid Shown
PACKAGE DIMENSIONS
The CX1VSM quartz crystal is a high quality tuning fork
resonator for use in Pierce (single inverter) oscillators. The
CX1VSM is hermetically sealed in a rugged, miniature
ceramic package. The CX1VSM crystal is manufactured
using the STATEK-developed photolithographic process,
and was designed utilizing the experience acquired by
producing millions of crystals for industrial, commercial,
military and medical applications. Maximum process
temperature should not exceed 260
O
C.
FEATURES
Miniature tuning fork design
High shock resistance
Designed for low power applications
Compatible with hybrid or PC board packaging
Low aging
Full military testing available
Ideal for battery operated applications
Designed and manufactured in the USA
DIM
A
B
C
D

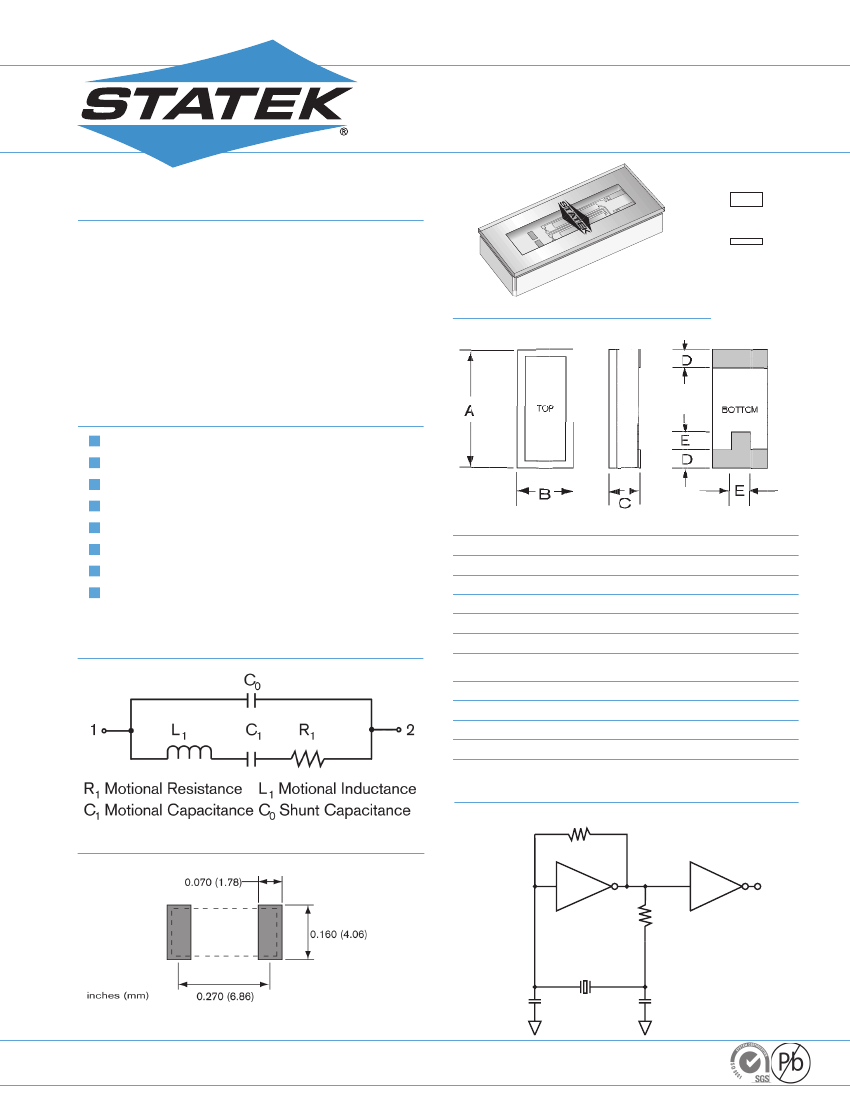

EQUIVALENT CIRCUIT
TYP.
inches
0.315
0.140
-
0.045
0.060
mm
8.00
3.56
-
1.14
1.52
inches
0.330
0.155
0.055
0.070
MAX.
mm
8.38
3.94
1.40
1.78
see below
E
DIM “C”
MAX
SM1
SM2/SM4
SM3/SM5
GLASS LID
inches
0.065
0.067
0.070
mm
1.65
1.70
1.78
CERAMIC LID
inches
0.070
0.072
0.075
mm
1.78
1.83
1.90
CONVENTIONAL CMOS
PIERCE OSCILLATOR CIRCUIT
R
f
SUGGESTED LAND PATTERN
BUFFER
OSC
Freq (f
O
)
AMPLIFIER
R
A
C
G
CX1
XTAL
C
D
10121 - Rev C
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
SPECIFICATIONS
FIGURE 1

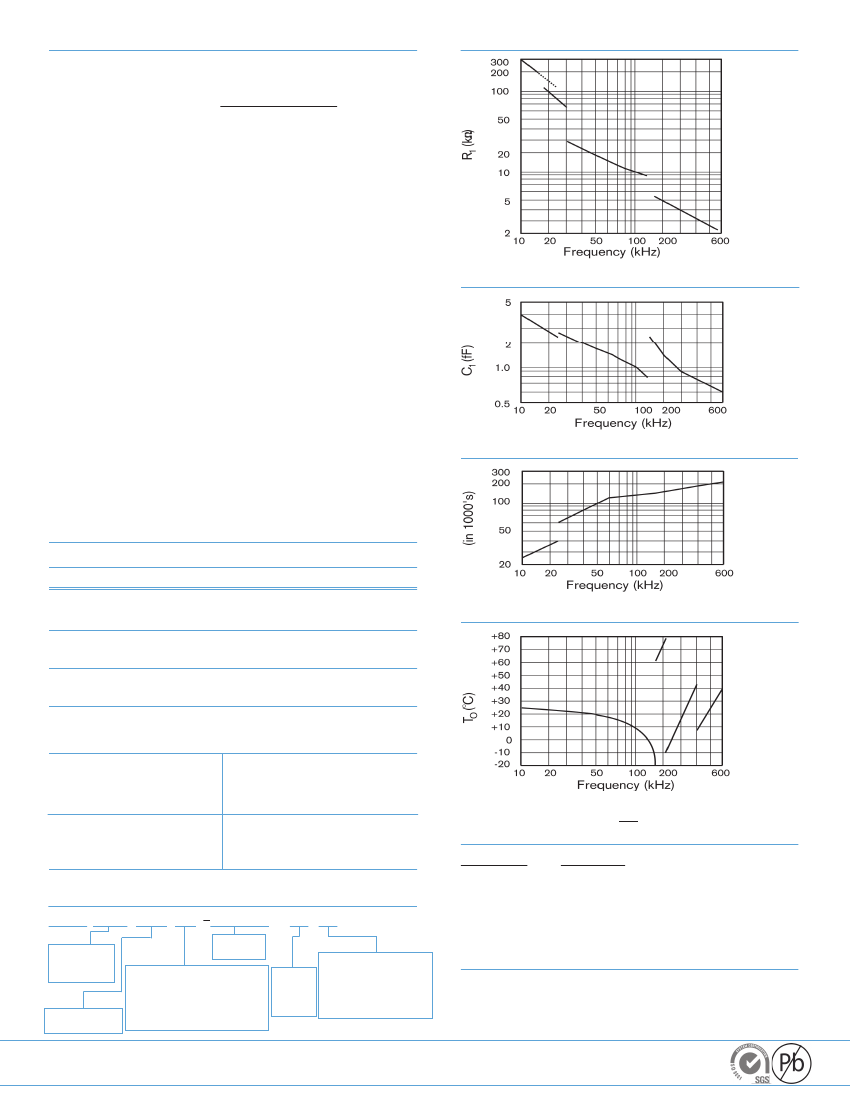

CX1V TYPICAL MOTIONAL RESISTANCE (R
1
)
Specifications are typical at 25
O
C unless otherwise noted.
Specifications are subject to change without notice.
Frequency Range
10 kHz to 600 kHz
Standard Calibration Tolerance
1
(see table below)
Motional Resistance (R
1
)
Figure 1
MAX: 10-169.9 kHz, 2x Typ.
170-600 kHz, 2.5x Typ.
Motional Capacitance (C
1
) Figure 2
Quality Factor (Q)
Figure 3
Min. is 0.25x Typ.
Shunt Capacitance (C
0
)
2.0 pF MAX.
Drive Level
10-24.9 kHz 0.5
µW
MAX.
25-600 kHz 1.0
µW
MAX.
2
Figure 4
Turning Point (T )
0
Temperature Coefficient (k) -0.035 ppm/
O
C
2
Aging, first year
5 ppm MAX.
3
Shock, survival
1,000 g, 1ms,
1
/
2
sine
Vibration, survival
3
20 g RMS, 10-2,000 Hz
Operating Temp. Range
-10
O
C to +70
O
C (Commercial)
-40
O
C to +85
O
C (Industrial)
-55
O
C to +125
O
C (Military)
Storage Temp. Range
-55
O
C to +125
O
C
Max Process Temperature 260
O
C for 20 sec.
1. Tighter frequency calibration available.
2. Other turning point available.
3. Higher shock and vibration available.
FIGURE 2
CX1V TYPICAL MOTIONAL CAPACITANCE (C
1
)
FIGURE 3
CX1V TYPICAL QUALITY FACTOR (Q)
CX1VSM Standard Calibration T
olerance at 25
o
C
Frequency Range (kHz)
10-74.9
30 ppm
(0.003%)
+
_
+
_
75-169.9
50 ppm
(0.005%)
+
_
+
_
170-249.9
+
_
250-600
+
_
100 ppm
(0.01%)
200 ppm
(0.02%)
200 ppm
(0.02%)
500 ppm
(0.05%)
FIGURE 4
CX1V TYPICAL TURNING POINT TEMP (T
0
)
.
100 ppm
(0.01%)
100 ppm
(0.01%)
+
_
+
_
+
_
1000 ppm
(0.1%)
+
_
1000 ppm
(0.1%)
+
_
2000 ppm
(0.2%)
+
_
5000 ppm
(0.5%)
Load Capacitance (C
L
), Used to Calibrate CX1VSM
(other C
L
available)
Frequency Load
Range
Capacitance
(kHz)
(pF)
10-15.9
16-24.9
25-54.9
11
10
9
Frequency
Range
(kHz)
55-99.9
100-179.9
180-600
Load
Capacitance
(pF)
8
5
4
Note: Frequency f at temperature T is related to frequency f
0
at
turning point temperature T
0
by:
f-f
0
2
=
k(T-T
0
)
f
0
TERMINATIONS
HOW TO ORDER CX1VSM CRYSTALS
CX1V
S
C
SM1
32.768K
Frequency
K = kHz
,
30 /
I
Operating Temp. Range:
O
O
SM1 = Gold Plated (Lead Free)
Calibration C = -10 C to +70 C
O
SM2 = Solder Plated
Tolerance
I
= -40 C to +85
O
C
@ 25
O
C M = -55
O
C to +125
O
C
SM3 = Solder Dipped
SM4 = Solder Plated (Lead Free) (in ppm) S = Customer Specified
Blank = Glass Lid
C = Ceramic Lid SM5 = Solder Dipped (Lead Free)
“S” if special or
custom design.
Blank if Std.
Designation
SM1
SM2
SM3
SM4
SM5
CX1VSM
Termination
Gold Plated (Lead Free)
Solder Plated
Solder Dipped
Solder Plated (Lead Free)
Solder Dipped (Lead Free)
- Tray Pack
- 16mm tape, 7” or 13” reels
(Reference tape and reel data sheet 10109)
10121 - Rev C
PACKAGING OPTIONS
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
