LHGAT3AT05320.0K,20/15/-/C datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LHGAT3AT05320.0K,20/15/-/C

LHGAT3AT05320.0K,20/15/-/C: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size209KB，2 Pages; ManufacturerSTATEK CORPORATION; Websitehttp://www.statek.com/; Environmental Compliance

Download Datasheet Parametric View All

LHGAT3AT05320.0K,20/15/-/C Overview

CMOS Output Clock Oscillator,

LHGAT3AT05320.0K,20/15/-/C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1947797434
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TUBE
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
frequency stability	15%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	0.032 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.14mm x 5.13mm x 1.78mm
longest rise time	8 ns
Nominal supply voltage	3 V
surface mount	NO
maximum symmetry	60/40 %

LHGAT3AT05320.0K,20/15/-/C Preview

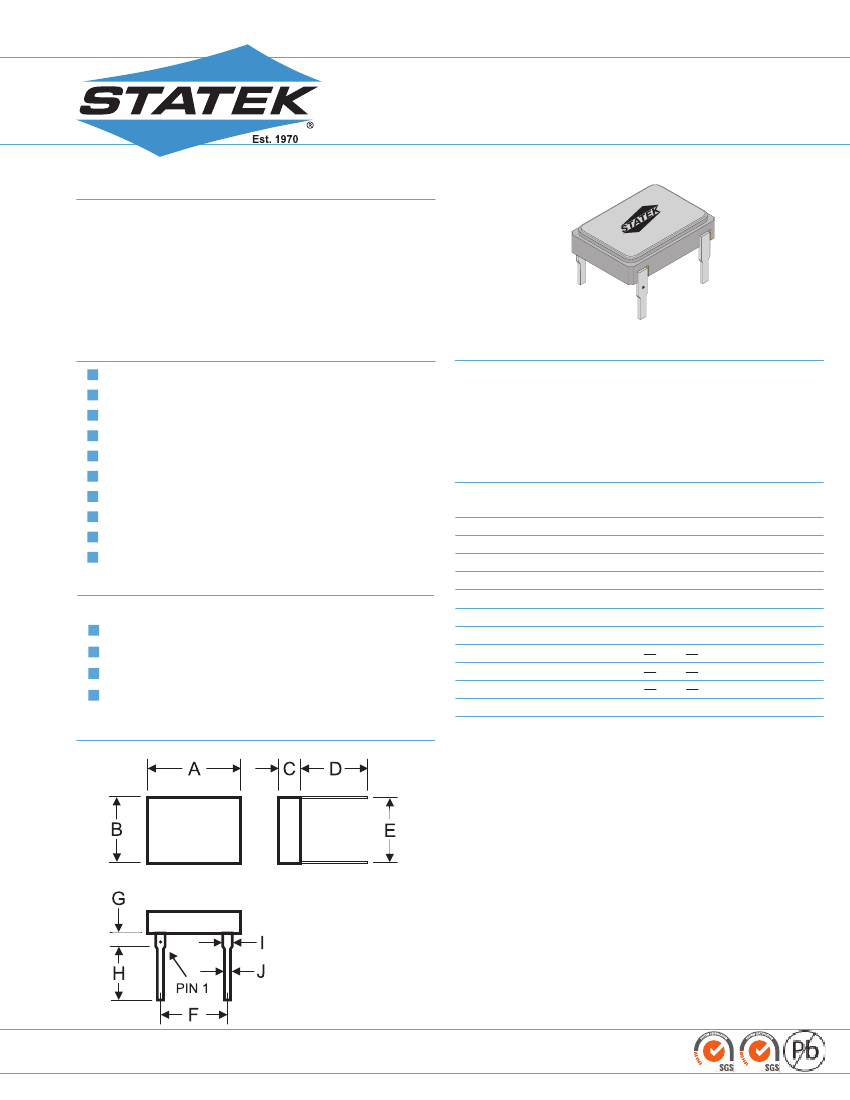

LHGAT OSCILLATOR

Leaded Military Grade/High Shock

320 kHz - 50 MHz

DESCRIPTION

An increasing number of military applications require the use

of leaded (through hole) ceramic packaged oscillators. For

these applications, Statek offers the LHGAT 5x7mm

oscillator. This oscillator is designed to operate over a

temperature range of -55ºC to 125ºC with high shock

survivability.

FEATURES

PIN CONNECTIONS

Full military testing available

Excellent stability over temperature

High shock resistance

CMOS output / output enable/disable

Double hermetically sealed package option

Hermetically sealed ceramic package - 5x7mm

Through-hole leaded package

Reduces mechanical and thermal mounting stresses

Robust lead-attach eutectic brazing process

Gold Plated Kovar Leads

APPLICATIONS

Enable/Disable (E) or No Connection (N)

Ground

Output

DIMENSIONS

TYPICAL

DIM

inches

0.276

0.197

0.065

0.200

0.195

0.200

0.040

0.160

0.028

0.018

7.00

5.00

1.65

5.08

4.90

5.08

1.02

4.06

0.71

0.46

MAX

inches

.281

.202

.070

.205

7.14

5.13

1.78

5.20

Military and Aerospace

Navigation / Communications

Avionics applications

Flight recorder

Engine control

PACKAGE DIMENSIONS LHGAT

0.021

0.53

Lead Thickness: 0.008 ±0.001 (0.20mm ±0.03)

Lead Plating: Gold/Nickel over Kovar

10211 Rev B

STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256

www.statek.com

SPECIFICATIONS

ABSOLUTE MAXIMUM RATINGS

Specifications are typical at 25 C unless otherwise noted.

Specifications are subject to change without notice. Tighter

specifications available. Please contact factory.

Supply Voltages

Calibration Tolerance

Frequency Stability

Over Temperature

Total Frequency

Tolerance

Supply Current (Typical)

1.8 V to 5.0 V

± 20 ppm and up

± 100 ppm to ±40 ppm (Military)

± 100 ppm to ±30 ppm (Industrial)

± 50 ppm to ±15 ppm (Commercial)

± 100 ppm for Military

± 50 ppm for Industrial

± 30 ppm for Commercial

5.0 V

3.3 V

24 MHz

3.0 mA

8.0 mA

32 MHz

5.0 mA

10 mA

40 MHz

5.5 mA

12 mA

50 MHz

6.0 mA

13 mA

Supply Voltage V

Storage Temperature

Maximum Process Temperature

-0.5 V to 7.0 V*

-55

C to +125

260

C for 20 seconds

*The supply voltage range is -0.5 V to +4.0 V for some products. Contact Factory.

ENABLE/DISABLE OPTIONS (E/N)

Statek offers three enable/disable options: E, T, and N.

Both the E-version and T-version have Tri-State outputs and

differ in whether the oscillator continues to run internally

when the output is put into the high Z state: it stops in the

E-version and continues to run in the T-version. So, the E-

version offers very low current consumption when the

oscillator is disabled and the T-version offers very fast output

recovery when the oscillator is re-enabled. The N-version

does not have PIN 1 connected internally and so has no

enable/disable capability. The following table summarizes

the three options.

COMPARISON OF

ENABLE/DISABLE OPTIONS E AND T

Output Load (CMOS)

Start-up Time

Rise/Fall Time

Duty Cycle

Aging, first year

Shock, survival

15 pF

5 ms MAX

4 ns TYP, 8 ns MAX

40% MIN, 60% MAX

5 ppm

Std: 5,000 g, 0.5 ms,

sine

HG: up to 30,000 g, 0.5 ms,

sine

Vibration, survival

20 g, 10-2,000 Hz swept sine

Operating Temp Ranges

-55

C to +125

C (Military)

-40

C to +85

C (Industrial)

-10

C to + 70

C (Commercial)

1. Not all frequencies are available in certain voltages. Contact factory for details.

2. Does not include calibration tolerance.

3. Tighter tolerances available; Does not include aging.

4. Tighter Duty Cycles available. Contact factory.

5. Contact factory for requirements above 30,000 g.

When enabled (PIN 1 is high*)

Output

Oscillator

Current consumption

Freq. output

Oscillates

Normal

Freq. output

Oscillates

Normal

When disabled (PIN 1 is low)

Output

Oscillator

Current consumption

High Z state

Stops

Very low

High Z state

Oscillates

Lower than normal

6. Higher temp available (up to 200

C). Contact factory.

Note: All parameters are measured at ambient temperature with a 10 MΩ, 15 pF load.

When re-enabled (PIN 1 changes from low to high)

Output recovery

Delayed

Immediate

PACKAGING OPTIONS

7. The T-version is not available for all frequencies. Contact factory.

LHGAT - Tube Pack (Standard)

HOW TO ORDER LHGAT OSCILLATORS

LHGAT

Supply Voltage

1 = 1.8 V

2 = 2.5 V

3 = 3.0 V

4 = 3.3 V

5 = 5.0 V

When PIN 1 is allowed to float, it is held high by an internal pull-up resistor.

“S” if special or

custom design.

Blank if Std.

Shock Level

A = 5,000 g

B = 10,000 g

C = 20,000 g

D = 30,000 g

Enable/Disable

Option

E, T or N

Terminations

Blank = Gold Plated

= Solder Dipped

(Lead Free)

20.0M

Frequency

M = MHz

K = kHz

Calibration

Tolerance

@ 25

(in ppm)

Frequency

Stability over

Temp. Range

(in ppm)

Temperature Range:

C = -10

C to +70

= -40

C to +85

M = -55

C to +125

S = Customer Specified

Note: The LHGAT oscillator with gold plated or 05

termination is Pb free. The LHGAT oscillator with 03

termination contains Pb.

100

Total

Frequency

Tolerance

(in ppm)

Temperature Range:

C = -10

C to +70

= -40

C to +85

M = -55

C to +125

S = Customer Specified

10211 Rev B

STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256

www.statek.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
