WM8945ECS/R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Other integrated circuit (IC)> WM8945ECS/R

WM8945ECS/R: Descriptioninterface - codecs mono low power codec w/video buffer; Categorysemiconductor Other integrated circuit (IC); File Size2MB，170 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

WM8945ECS/R Overview

interface - codecs mono low power codec w/video buffer

WM8945ECS/R Parametric

Parameter Name	Attribute value
Manufacture	Wolfson Microelectronics
Product Category	Interface - CODECs
RoHS	Yes
Type	Audio CODEC, Mono Low Powe
Resoluti	24 bi
Conversion Rate	48 kHz
Interface Type	Serial 2-Wire (I2C), 3-Wire (SPI), 4-Wire (SPI)
Number of ADCs	1
Number of DACs	1
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WCSP-36
Packaging	Reel
Minimum Operating Temperature	- 40 C
SNR	94 dB ADC/96 dB DAC

Preview

Download Datasheet

View All

DESCRIPTION

The WM8945 is a highly integrated low power hi-fi CODEC

designed for portable devices such as digital still cameras.

Up to 4 analogue inputs may be connected; a digital microphone

interface is also provided. Flexible output mixing options support

single-ended and differential configurations, with outputs derived

from the digital audio paths or from analogue bypass paths.

Mono line output and mono BTL headphone/speaker drive is

supported.

Flexible digital mixing and powerful DSP functions are available.

Programmable filters and other processes may be applied to the

ADC or DAC signal paths. The DSP functions include 5 notch

filters, 5-band EQ, dynamic range control and the Wolfson

ReTune™ feature.

The ReTune™ feature is a sophisticated digital filter that can

compensate for imperfect characteristics of the housing,

loudspeaker or microphone components in an application. The

ReTune™ algorithm can provide acoustic equalisation and

selective phase (delay) control of specific frequency bands.

The WM8945 is controlled via an I2C or SPI interface. Additional

functions include 4-wire Touch Panel controller, Auxiliary ADC,

Digital beep generator, Video buffer, programmable GPIO

functions, Frequency Locked Loop (FLL) for flexible clocking

support and integrated LDO for low noise supply regulation.

The WM8945 is supplied in 36-ball W-CSP package, ideal for

portable systems.

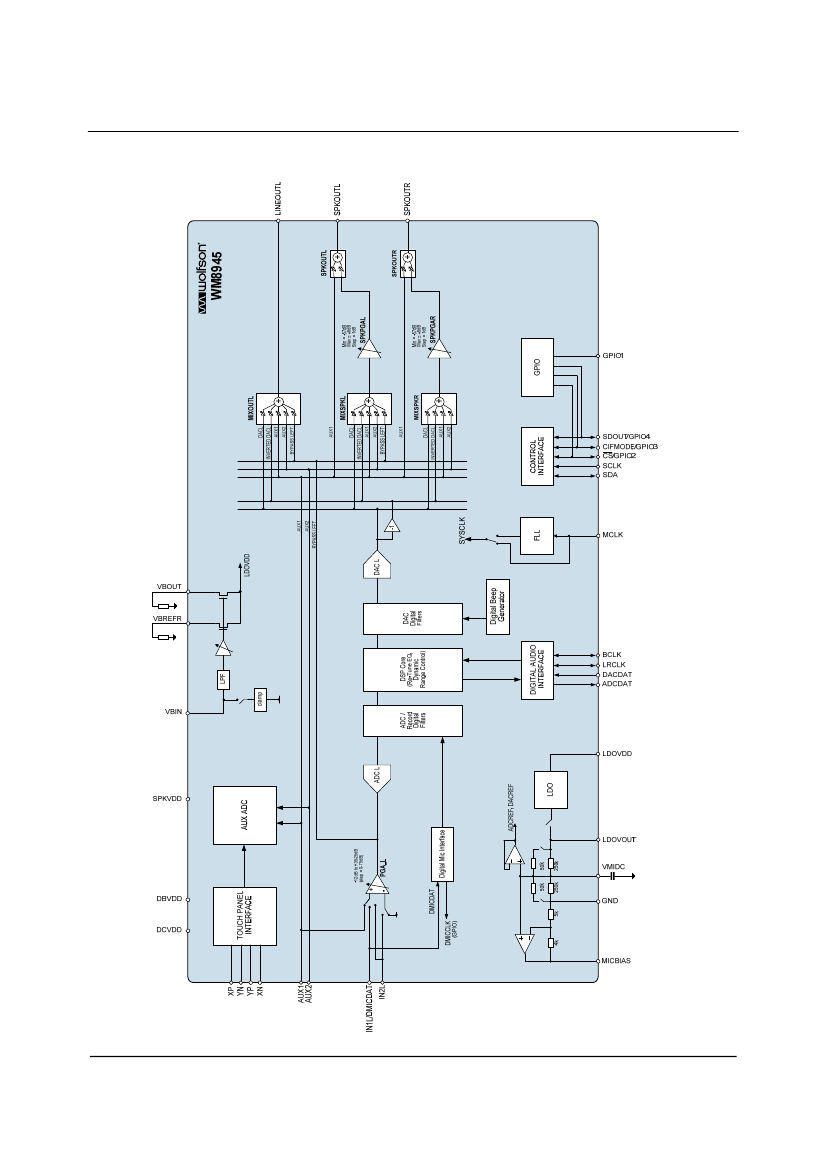

DCVDD

DBVDD

SPKVDD

VBIN

WM8945

Mono Low-Power CODEC with

Video Buffer and Touch Panel Controller

FEATURES



Hi-fi audio CODEC

- 94dB SNR during ADC recording (‘A’ weighted)

- 96dB SNR during DAC playback (‘A’ weighted)

4 analogue audio inputs

Integrated bias reference for electret microphones

Digital microphone interface

Powerful digital mixing / DSP functions:

- 5-notch filters

- 5-band equalizer (EQ)

- ReTune™ parametric filter

- Dynamic range control and noise gate

- Low-pass/High-pass filters

- Direct Form 1 (DF1) programmable digital filter

Digital beep generator

Mono line output

Mono BTL headphone/speaker output driver

I2S digital audio interface - sample rates 8kHz to 48kHz

Frequency Locked Loop (FLL) frequency conversion / filter

Video buffer function

4-wire Touch Panel interface controller

Auxiliary ADC for DC measurement or battery monitoring

Integrated LDO low-noise voltage regulator

36-ball W-CSP package (2.96 x 3.06 x 0.7mm, 0.5mm pitch)



APPLICATIONS



Digital Still Cameras (DSC)

Multimedia phones

VBREFR

VBOUT

AUX1

AUX2

TOUCH PANEL

INTERFACE

AUX ADC

CURRENT MODE

VIDEO BUFFER

WM8945

LINEOUTL

IN1L/DMICDAT

IN2L

Analogue Mic

Mux / PGA

ADC L

ADC /

Record

Digital

Filters

DSP Core

(Re-Tune EQ,

Dynamic Range

Control)

DAC L

-1

DAC

Digital

Filters

OUTPUT

MIXERS

SPKOUTL

DMICDAT

DMICCLK

(GPIO)

Digital Mic

Interface

SPKOUTR

Digital Beep

Generator

DIGITAL AUDIO

INTERFACE

MICBIAS

Reference

LDO

FLL

CONTROL

INTERFACE

GPIO

LDOVOUT

LDOVDD

VMIDC

ADCDAT

DACDAT

LRCLK

BCLK

WOLFSON MICROELECTRONICS plc

To receive regular email updates, sign up

http://www.wolfsonmicro.com/enews

SDA

SCLK

CS/GPIO2

CIFMODE/GPIO3

SDOUT/GPIO4

Production Data, May 2011, Rev 4.1

2011

Wolfson Microelectronics plc

GPIO1

MCLK

GND

WM8945
