RS603 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> RS603

RS603: Description6 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size53KB，2 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RS603 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RS603	-	-	View	Buy Now

RS603 Overview

6 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE

RS603 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rectron Semiconductor
package instruction	ROHS COMPLIANT, PLASTIC, RS-6, 4 PIN
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	UL RECOGNIZED
Minimum breakdown voltage	200 V
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PSFM-W4
JESD-609 code	e3
Maximum non-repetitive peak forward current	150 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	6 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	265
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	0.00001 µA
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

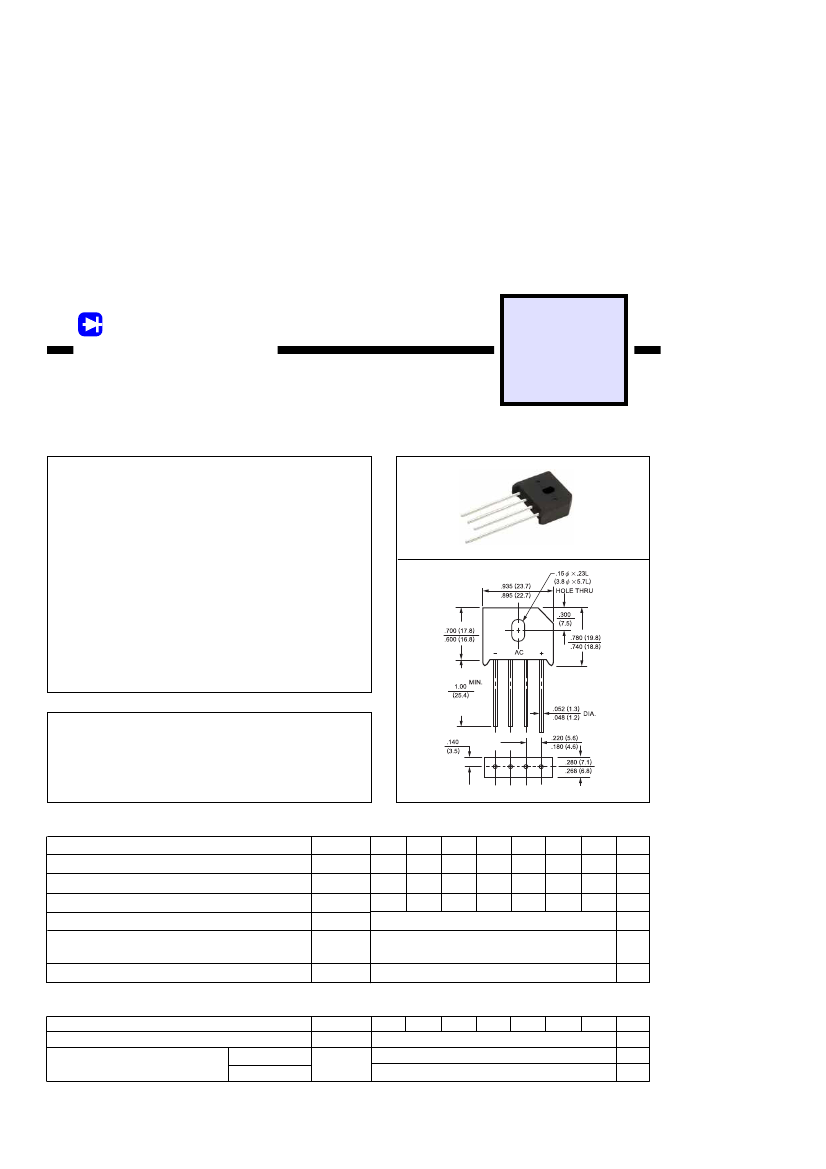

RECTRON

SEMICONDUCTOR

TECHNICAL SPECIFICATION

RS601

THRU

RS607

SINGLE-PHASE SILICON BRIDGE RECTIFIER

VOLTAGE RANGE 50 to 1000 Volts CURRENT 6.0 Amperes

FEATURES

Low leakage

Low forward voltage

Mounting position: Any

Surge overload rating: 250 amperes peak

Silver-plated copper leads

RS-6

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Dimensions in inches and (millimeters)

MAXIMUM RATINGS

(At T

= 25

C unless otherwise noted)

RATINGS

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Bridge Input Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Output Current at Tc = 75 C

Peak Forward Surge Current 8.3 ms single half sine-wave

superimposed on rated load

Operating and Storage Temperature Range

STG

-55 to + 150

SYMBOL

RRM

RMS

FSM

RS601

RS602

100

RS603

200

140

200

RS604

400

280

400

6.0

250

RS605

600

420

600

RS606

800

560

800

RS607

1000

700

1000

UNITS

Volts

Amps

ELECTRICAL CHARACTERISTICS

(At T

= 25 C unless otherwise noted)

CHARACTERISTICS

Maximum Forward Voltage Drop per element at 6.0A DC

Maximum Reverse Current at Rated

DC Blocking Voltage per element

= 25

= 100

SYMBOL

0.2

mAmps

1998-8

RS601

RS602

RS603

RS604

1.0

RS605

RS606

RS607

UNITS

Volts

uAmps

RS603 Related Products

	RS603	RS605	RS604
Description	6 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE	6 A, SILICON, BRIDGE RECTIFIER DIODE	6 A, 400 V, SILICON, BRIDGE RECTIFIER DIODE
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	Rectron Semiconductor	Rectron Semiconductor	Rectron Semiconductor
package instruction	ROHS COMPLIANT, PLASTIC, RS-6, 4 PIN	R-PSFM-W4	R-PSFM-W4
Contacts	4	4	4
Reach Compliance Code	compliant	_compli	_compli
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Minimum breakdown voltage	200 V	600 V	400 V
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V
JESD-30 code	R-PSFM-W4	R-PSFM-W4	R-PSFM-W4
JESD-609 code	e3	e3	e3
Maximum non-repetitive peak forward current	150 A	150 A	150 A
Number of components	4	4	4
Phase	1	1	1
Number of terminals	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	6 A	6 A	6 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	265	265	265
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	600 V	400 V
Maximum reverse current	0.00001 µA	0.00001 µA	0.00001 µA
surface mount	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
