Product name
Model Name
Silicone monolithic integrated circuit
Audio sound processor for TV
BD3884FS
●Features
1. Built-in AGC circuit adjusting the sound difference among input sources
2. I
2
C BUS control with the control voltage of 3.3V-5.0V
3. Use the Bi-CMOS process
●Absolute
Maximum Ratings (Ta=25°C)
Parameter
Applied Voltage
Input Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Symbol
VCC
VIN
Pd
Topr
Tastg
Limits
10.0
VCC+0.3½GND-0.3
1000 *1
-40½+85 *2
-55½+150
Unit
V
V
mW
°C
°C
*1 At Ta＝25°C or higher, this value is decreaced to 8.0mW/°C.
When Rohm standard board is mounted. Thermal resistance
ja
= 125 (°C/W).
Rohm standard board:
size: 70×70×1.6 (mm
3
)
material: FR4 glass-epoxy substrate (copper foil area: not more than 3%).
*2 As long as voltage stays within operating voltage range, certain circuit operation is guaranteed in the
operating temperature range.
Allowable loss conditions are related to temperature, to which care must be taken.
In addition though the standard value of its electrical characteristics cannot be guaranteed under the
conditions other than those specified, original functions are maintained.
●Operating
Voltage Range
Parameter
Power supply voltage *3
Symbol
VCC
Min.
7.0
Typ.
9.0
Max.
9.5
Unit
V
Basic operation shall be available at Ta=25°C.
*3 As long as temperature components must be set in accordance with the operating voltage and temperature
ranges before using this IC.
In addition, though the standard value of its electrical characteristics cannot be guaranteed under the
conditions other than those specified, original functions are maintained.
REV. C
2/4
●Function
Function
AGC
Front volume
Surround
Bass
Treble
Rear volume
4 step level variable
0dB to –87dB (1dB step), -∞dB
Stereo Surround
14dB
(2dB step)
14dB
(2dB step)
0dB
½-20dB
(2dB step), -25dB, -30dB,
（With
the independent control）
-45dB,
-60dB,
MUTE
Specifications
●Electrical
characteristics
Unless specified: Ta=25C, VCC=9V, f=1kHz, VIN=1Vrms, Rg=600Ω, RL=10kΩ, Front Volume 0dB,
Rear Volume =0dB, Bass=0dB, Treble=0dB, AGC=OFF, SURROUND=OFF.
Limits
Parameter
Symbol
Min.
Current upon no signal
Maximum input voltage
Maximum output voltage
Voltage gain
Channel balance
Total harmonic distortion
Output noise voltage
IQ
V
IM1
V
OM1
G
V1
CB
THD1
V
NO1
－
2.6
2.2
-2
-1.5
－
－
Typ.
8
2.8
2.5
0
0
0.008
6
Max.
20
－
－
2
1.5
0.1
18
mA
Vrms
Vrms
dB
dB
％
Vrms
Vin=0Vrms
Front Volume = -6dB
THD(Vout)=1％
BPF=400-30KHz
THD=1％
BPF=400-30KHz
G
V
=20log(Vout/Vin)
CB = GV1-GV2
Vout=500mVrms
BPF=400-30KHz
BPF = IHF-A, Rg=0Ω
Front Volume = -87dB
Rear Volume = -∞dB
BPF = IHF-A, Rg=0Ω
CT = 20log(Vin/Vout)
BPF = IHF-A
Unit
Conditions
Residual noise voltage
Cross talk 1ch→2ch
V
MNO1
CT
12
－
1.5
80
10
－
Vrms
dB
70
REV. C
3/4

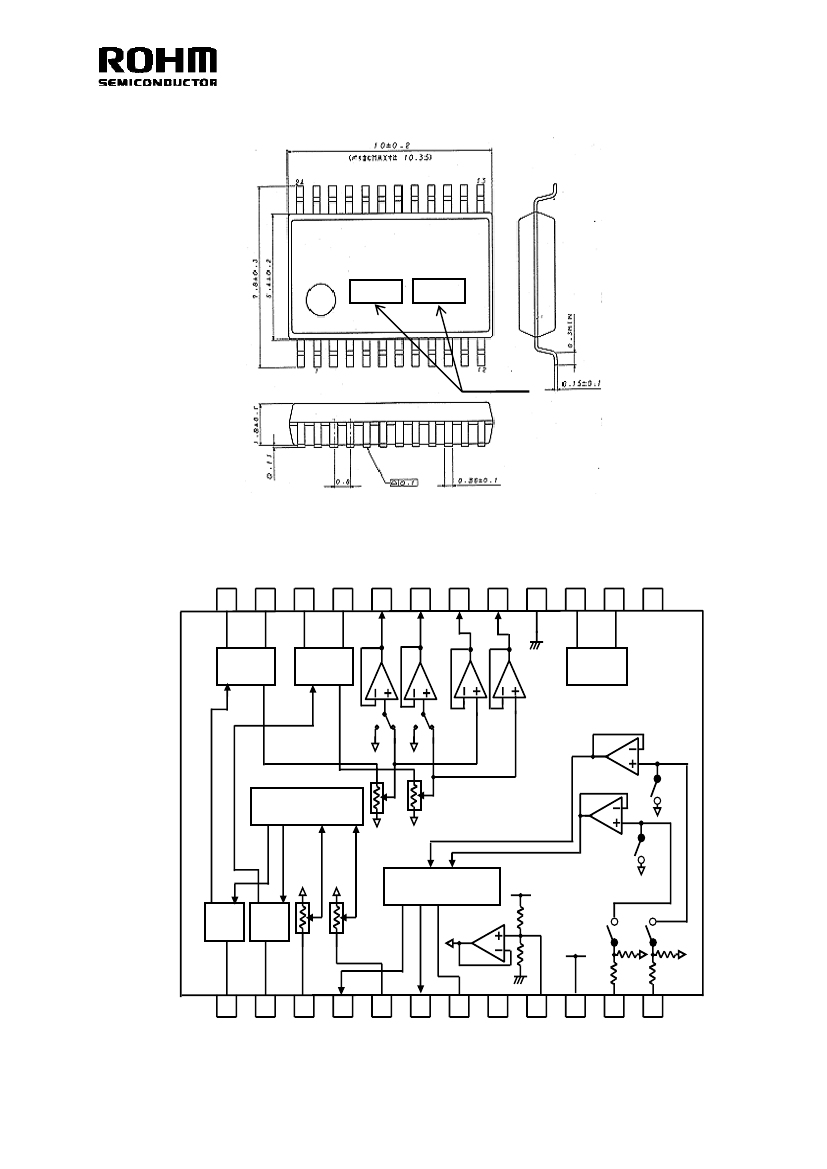

●Dimensional
outline drawing
BD3884FS
LOT No
.
SSOP-A24 (Unit : mm)
●Block
diagram
24
BNF1
23
BOUT1
22
BNF2
21
BOUT2
20
OUT1
19
OUT2
18
LINE1
17
LINE2
16
GND
15
SDA
14
SCL
13
CAP2
BASS
CH1
Bass
-14½14dB
2dB step
BASS
CH2
IIC BUS
Logic
0dB
0dB
SURROUND
(Fixed Effect Amount)
Treble
-14½14dB
2dB step
Rear Vol
0½-20dB 2dB step
-25, -30, -45, -60, -∞dB
With soft switch
AGC
(4 Level variable)
TREBLE
CH1
TREBLE
CH2
Front Vol
0½-87dB
1dB step
VCC/2
VCC
50k
89k
50k
11k
IN1
89k
11k
IN2
TNF1
TNF2
VIN2
SEL2
VIN1
SEL1
LS
CAP1
FIL
VCC
1
2
3
4
5
6
7
8
9
10
11
12
REV. C
4/4
●Cautions
on use
(1) Numbers and data in entries are representative design values and are not guaranteed values of the items.
(2) Although we are confident in recommending the sample application circuits, carefully check their
characteristics further when using them. When modifying externally attached component constants before
use, determine them so that they have sufficient margins by taking into account variations in externally
attached components and the Rohm LSI, not only for static characteristics but also including transient
characteristics.
(3) Absolute maximum ratings
If applied voltage, operating temperature range, or other absolute maximum ratings are exceeded, the LSI
may be damaged. Do not apply voltages or temperatures that exceed the absolute maximum ratings. If
you think of a case in which absolute maximum ratings are exceeded, enforce fuses or other physical safety
measures and investigate how not to apply the conditions under which absolute maximum ratings are
exceeded to the LSI.
(4) GND potential
Make the GND pin voltage such that it is the lowest voltage even when operating below it. Actually confirm
that the voltage of each pin does not become a lower voltage than the GND pin, including transient
phenomena.
(5) Thermal design
Perform thermal design in which there are adequate margins by taking into account the allowable power
dissipation in actual states of use.
(6) Shorts between pins and misinstallation
When mounting the LSI on a board, pay adequate attention to orientation and placement discrepancies of the
LSI. If it is misinstalled and the power is turned on, the LSI may be damaged. It also may be damaged if it
is shorted by a foreign substance coming between pins of the LSI or between a pin and a power supply or a
pin and a GND.
(7) Operation in strong magnetic fields
Adequately evaluate use in a strong magnetic field, since there is a possibility of malfunction.
REV. C
