500-14-CLR-B datasheet, PDF - EEWORLD Datasheet

500-14-CLR-B: DescriptionIC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,; CategoryThe connector socket; File Size234KB，3 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

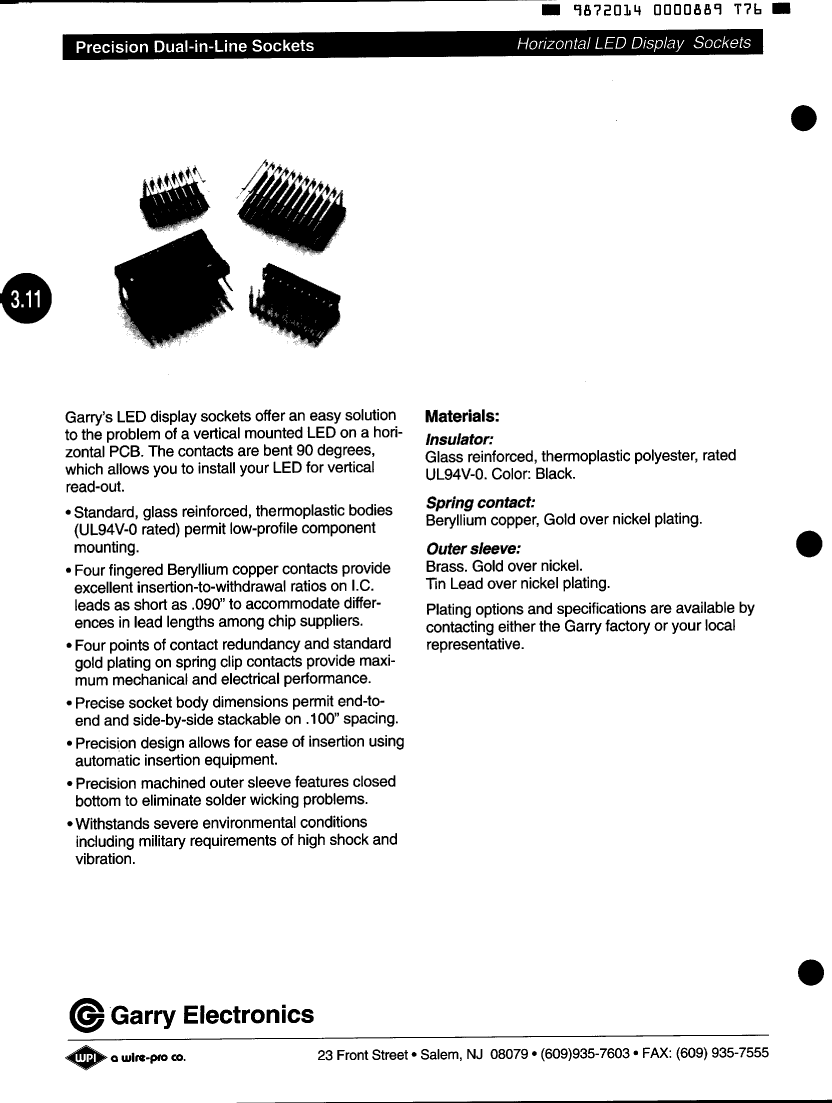

500-14-CLR-B Overview

IC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,

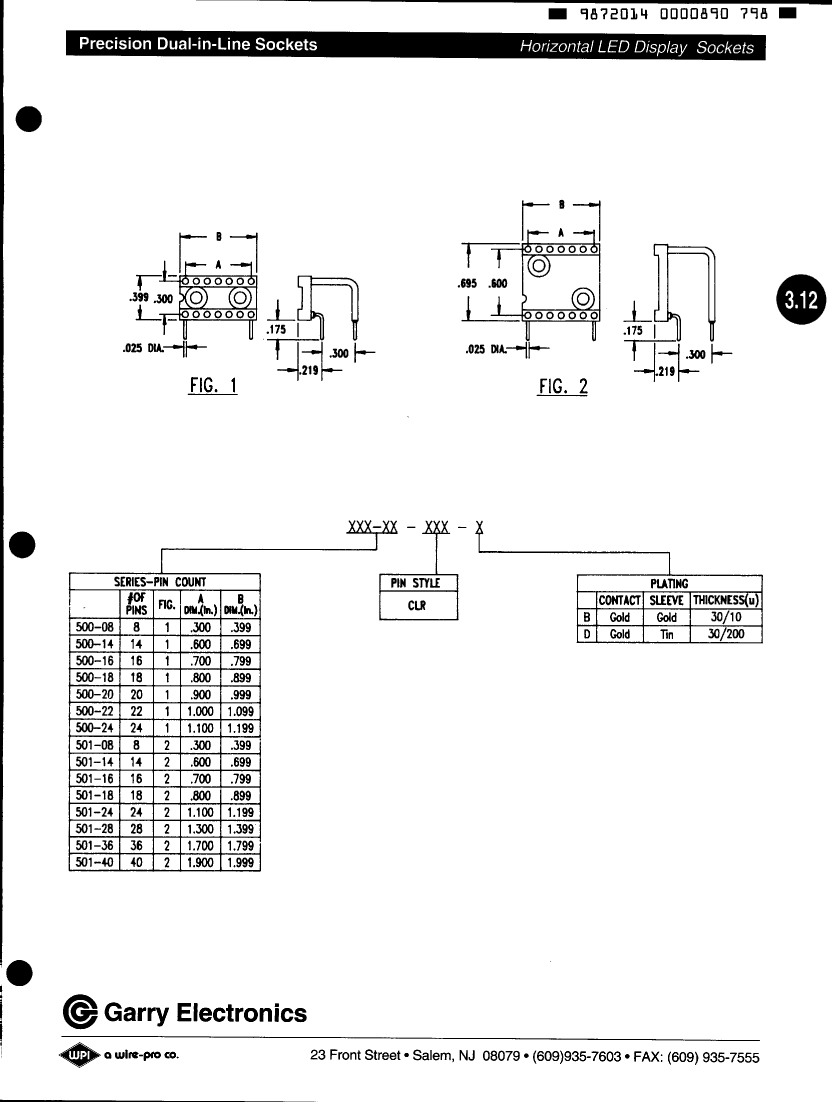

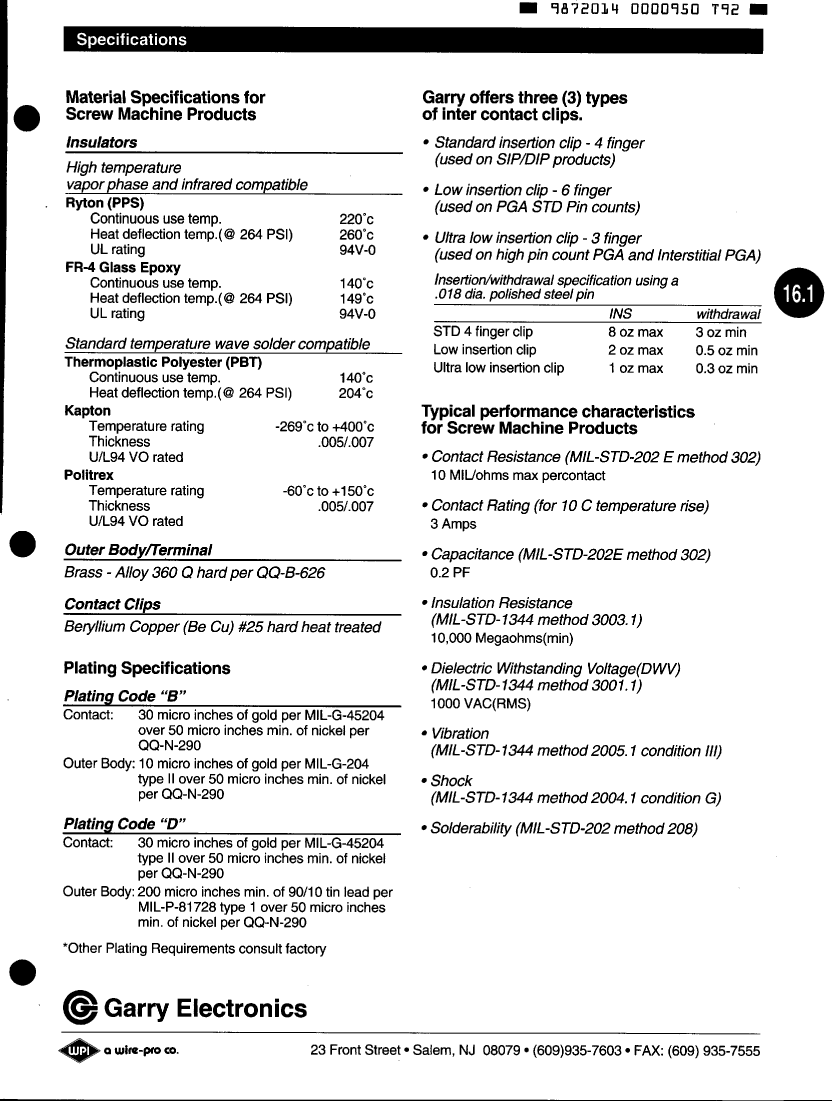

Parameter Name	Attribute value
Reach Compliance Code	compli
body width	0.399 inch
subject depth	0.519 inch
body length	0.699 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact material	BRASS
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP14
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED THERMOPLASTIC
Insulation resistance	10000000000 Ω
Manufacturer's serial number	500
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Number of contacts	14
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

	500-14-CLR-B	500-14-CLR-D
Description	IC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,	IC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,
Reach Compliance Code	compli	compli
body width	0.399 inch	0.399 inch
subject depth	0.519 inch	0.519 inch
body length	0.699 inch	0.699 inch
Contact to complete cooperation	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD
Contact material	BRASS	BRASS
Contact style	RND PIN-SKT	RND PIN-SKT
current rating	3 A	3 A
Device slot type	IC SOCKET	IC SOCKET
Type of equipment used	DIP14	DIP14
Dielectric withstand voltage	1000VAC V	1000VAC V
Shell material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Insulation resistance	10000000000 Ω	10000000000 Ω
Manufacturer's serial number	500	500
Plug contact pitch	0.1 inch	0.1 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE
Number of contacts	14	14
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.3 mm	0.3 mm
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
