CRHP2010AG28M0DKTT datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> CRHP2010AG28M0DKTT

CRHP2010AG28M0DKTT: DescriptionFixed Resistor, Metal Glaze/thick Film, 1W, 28000000ohm, 2000V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 2010, CHIP; CategoryPassive components The resistor; File Size95KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

CRHP2010AG28M0DKTT Overview

Fixed Resistor, Metal Glaze/thick Film, 1W, 28000000ohm, 2000V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 2010, CHIP

CRHP2010AG28M0DKTT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	145061869557
package instruction	CHIP
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Rectangular
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.635 mm
Package length	5.08 mm
Package form	SMT
Package width	2.54 mm
method of packing	TR
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	28000000 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn90Pb10)
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	2000 V

Preview

Download Datasheet

View All

CRHP

www.vishay.com

Vishay Techno

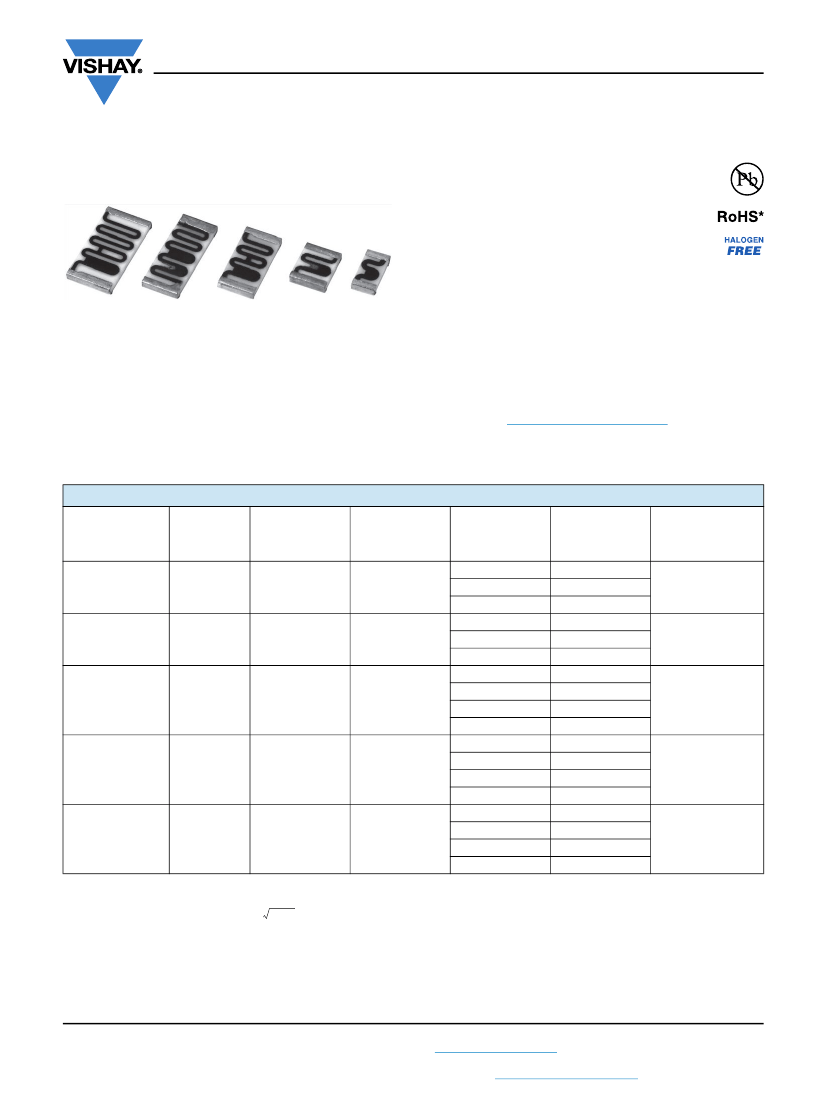

Thick Film Chip Resistors, High Voltage

FEATURES

•

High voltage up to 3000 V

Available

Outstanding stability < 0.5 %

Flow solderable

Available

Automatic placement capability

Tape and reel packaging available

Termination style:

3-sided wraparound termination

Internationally standardized sizes

Termination material: solder-coated nickel barrier or

solder coated non-magnetic terminations standard

Multiple styles, termination materials and configurations,

allow wide design flexibility

Epoxy bondable or wire bondable non-magnetic

terminations available

Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Note

This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts

with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details

STANDARD ELECTRICAL SPECIFICATIONS

GLOBAL

MODEL

CASE SIZE

POWER RATING

70 °C

MAXIMUM

WORKING

VOLTAGE

(1)

1675

RESISTANCE

RANGE

(2)

2M to 100M

CRHP1206

1206

0.50

2M to 1G

1.1G to 8G

4M to 100M

CRHP1210

1210

0.70

1870

4M to 1G

1.1G to 10G

6M to 100M

CRHP2010

2010

1.0

2000

6M to 1G

1.1G to 10G

11G to 35G

10M to 100M

CRHP2510

2510

1.2

2500

10M to 1G

1.1G to 10G

11G to 40G

10M to 100M

CRHP2512

2512

1.5

3000

10M to 1G

1.1G to 10G

11G to 50G

TOLERANCE

(3)

±%

0.5

1, 2, 5, 10, 20

2, 5, 10, 20

0.5

1, 2, 5, 10, 20

2, 5, 10, 20

0.5

1, 2, 5, 10, 20

2, 5, 10, 20

5, 10, 20

0.5

1, 2, 5, 10, 20

2, 5, 10, 20

5, 10, 20

0.5

1, 2, 5, 10, 20

2, 5, 10, 20

5, 10, 20

100

TEMPERATURE

COEFFICIENT

(4)

(-55 °C to +155 °C)

± ppm/°C

Notes

• For non-standard sizes, lower values or higher power rating requirement, contact factory

(1)

Continuous working voltage shall be

or maximum working voltage, whichever is less

(2)

Resistance values below 1 GΩ are calibrated at 100 V , and values of 1 GΩ and above are calibrated at 1000 V . Calibration at other

voltages available upon request

(3)

Contact factory for tighter tolerances

(4)

Reference only: not for all values specified. Consult factory for your size and value

Revision: 19-May-2021

Document Number: 68045

For technical questions, contact:

te1resistors@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 01-Jan-2021

Document Number: 91000
