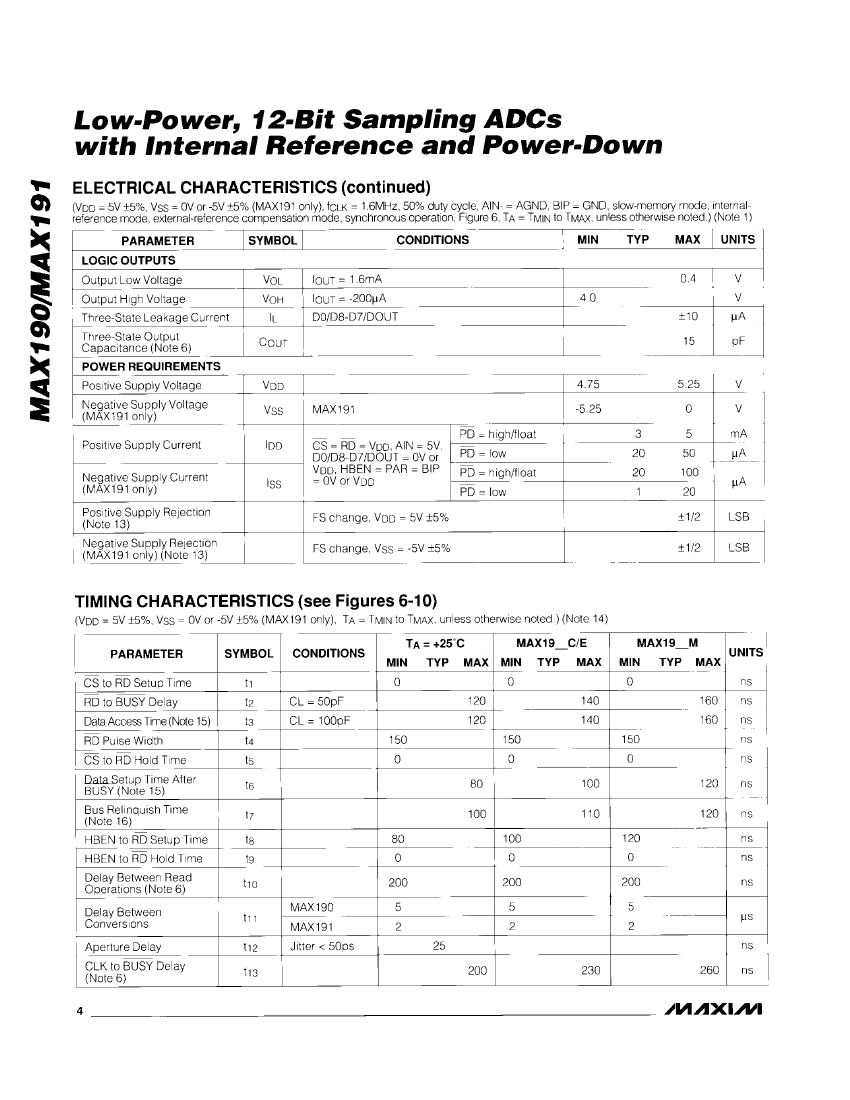

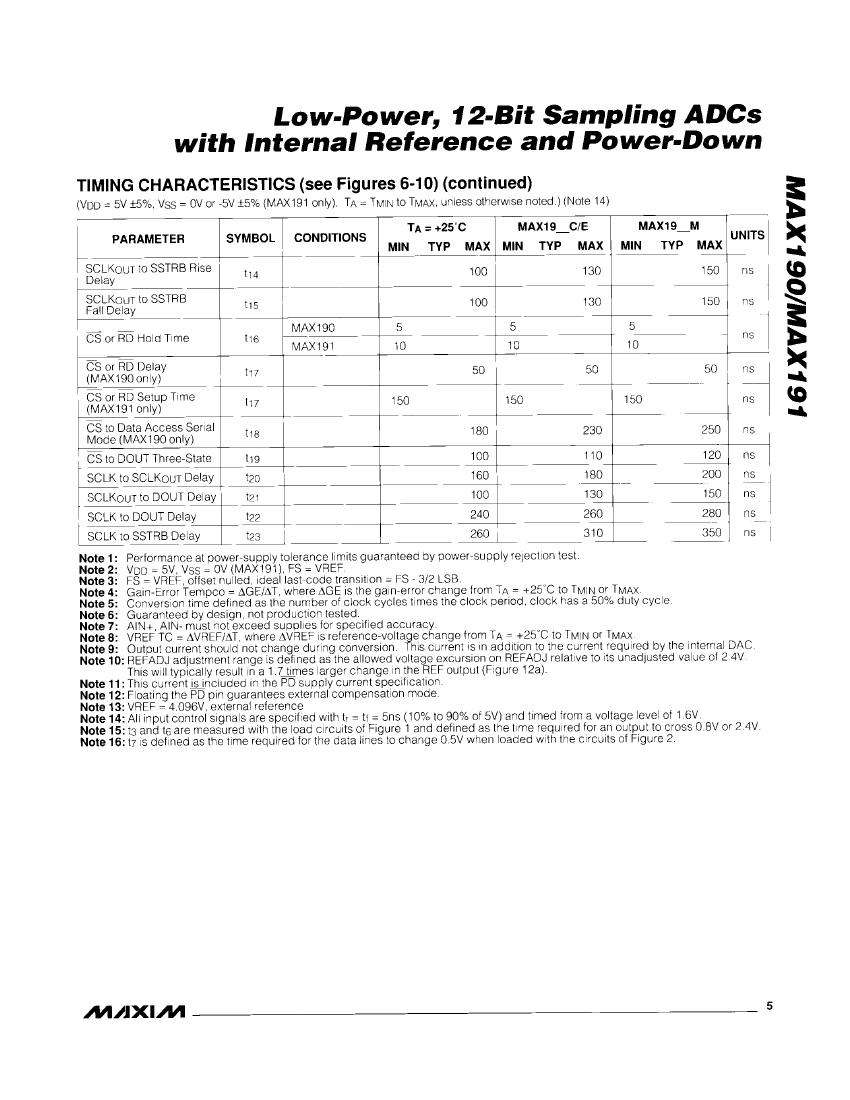

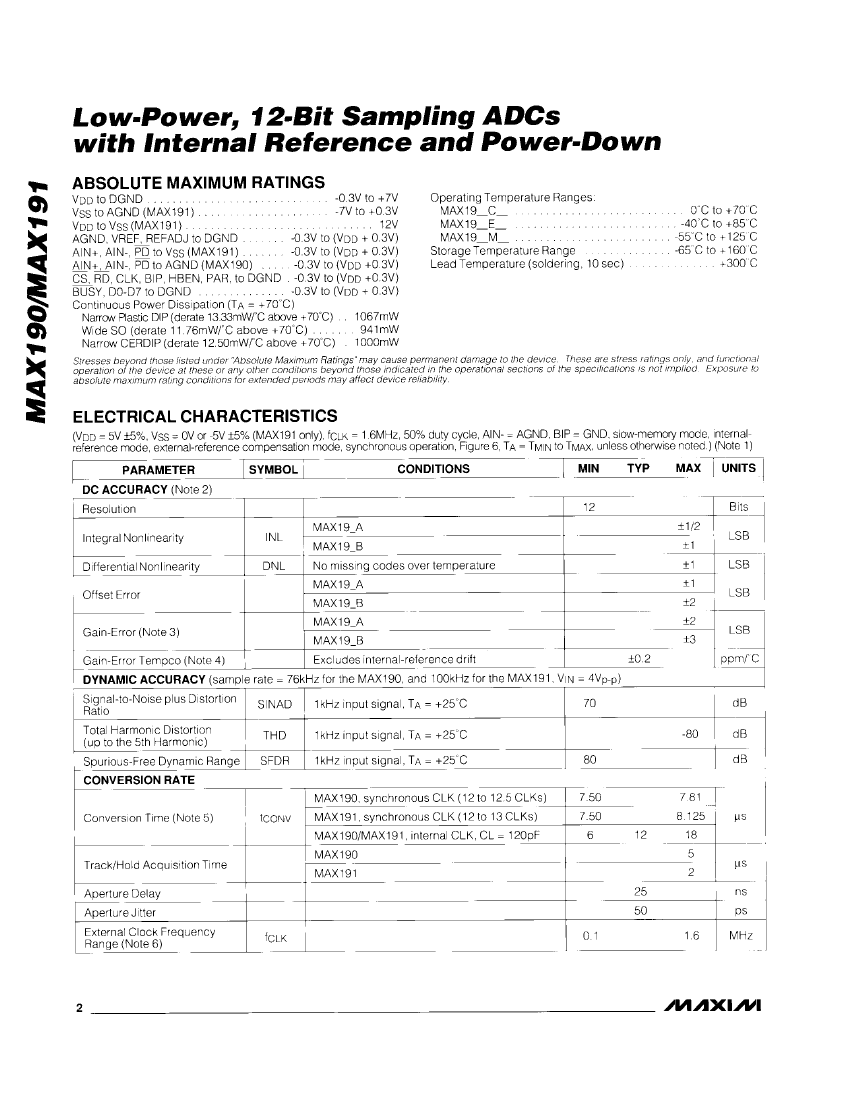

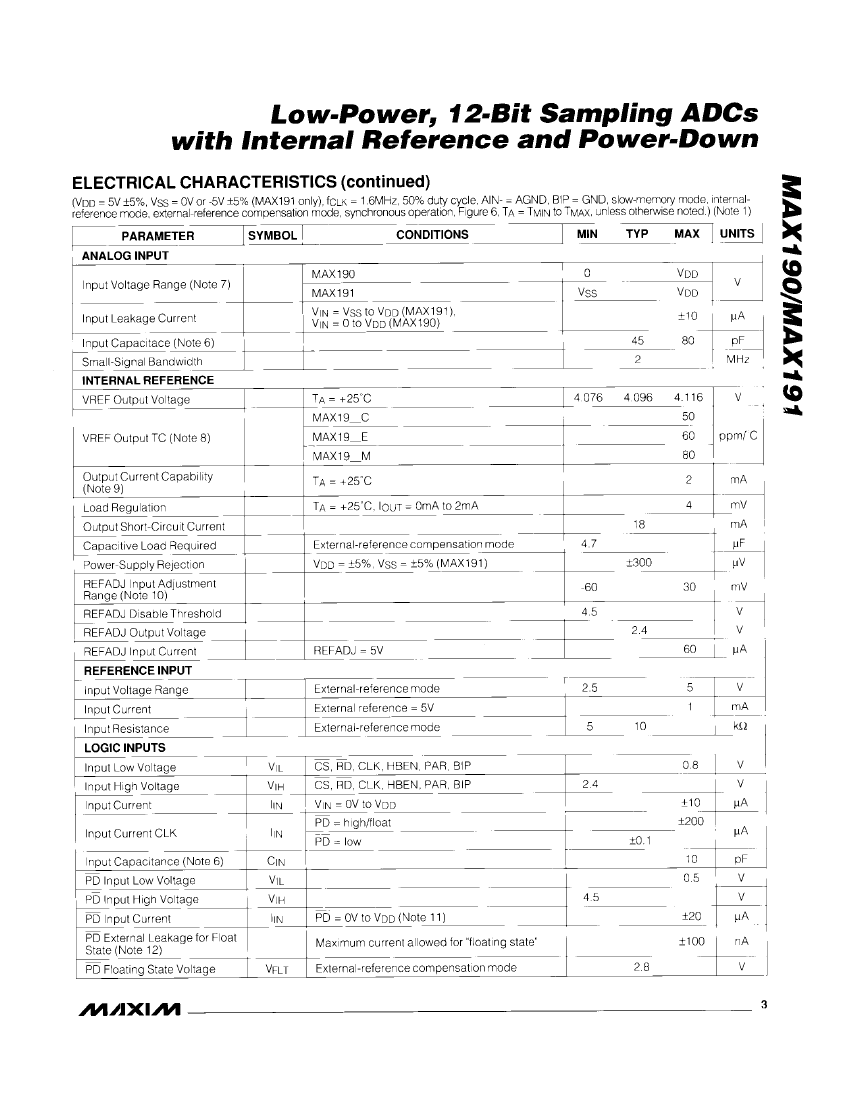

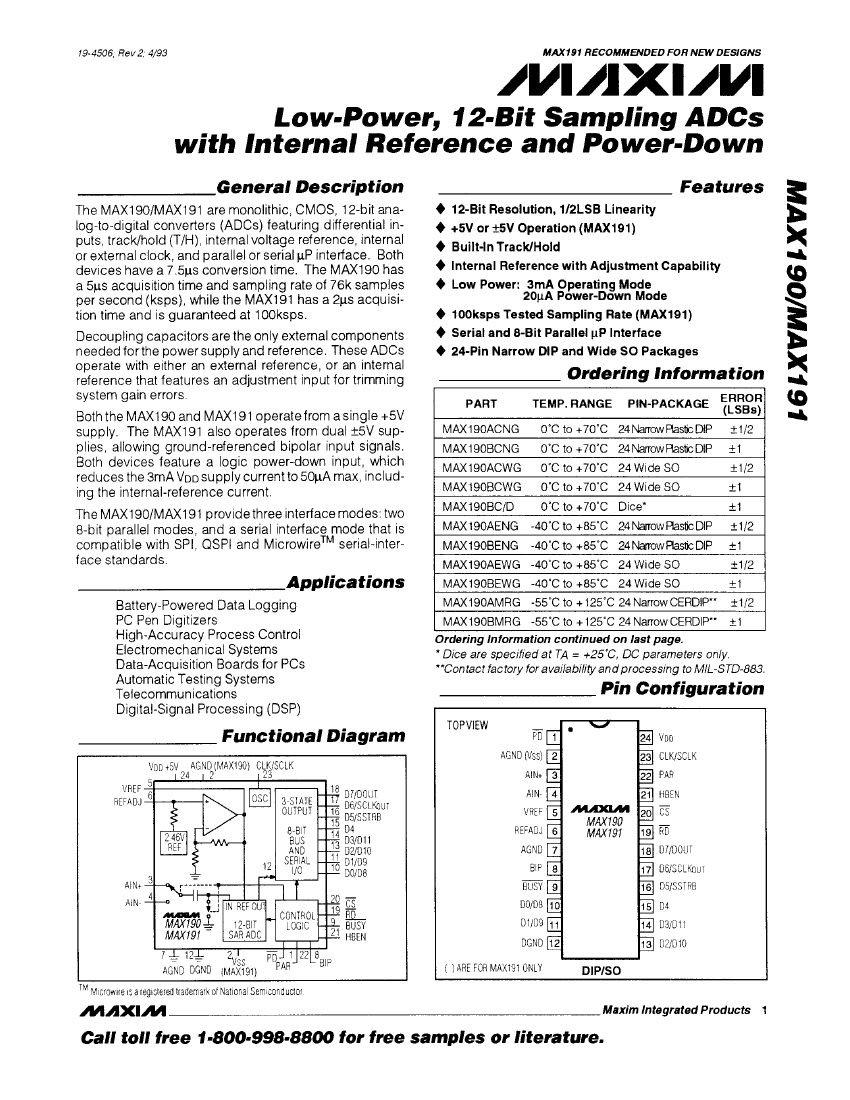

Preview

MAX190BCWG+T: Descriptionanalog to digital converters - adc 12bit 75ksps 5V precision adc; CategoryAnalog mixed-signal IC converter; File Size1010KB，28 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX190BCWG+T Overview

analog to digital converters - adc 12bit 75ksps 5V precision adc

MAX190BCWG+T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP, SOP24,.4
Contacts	24
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	6 weeks
Maximum analog input voltage	7.3 V
Minimum analog input voltage	-0.3 V
Maximum conversion time	12.5 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24
JESD-609 code	e3
length	15.4 mm
Maximum linear error (EL)	0.024%
Humidity sensitivity level	1
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY
Output format	SERIAL, PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Sampling rate	0.133 MHz
Sample and hold/Track and hold	TRACK
Maximum seat height	2.65 mm
Maximum slew rate	5 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.5 mm

Preview

Download Datasheet

View All

MAX190BCWG+T Related Products

	MAX190BCWG+T	MAX190ACNG+	MAX190BENG+	MAX190ACWG+T	MAX190AENG+	MAX190BEWG+
Description	analog to digital converters - adc 12bit 75ksps 5V precision adc	analog to digital converters - adc 12bit 75ksps 5V precision adc	analog to digital converters - adc 12bit 75ksps 5V precision adc	analog to digital converters - adc 12bit 75ksps 5V precision adc	analog to digital converters - adc 12bit 75ksps 5V adc w/track/hold & ref	analog to digital converters - adc 12bit 75ksps 5V precision adc
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	DIP	DIP	SOIC	DIP	SOIC
package instruction	SOP, SOP24,.4	DIP, DIP24,.3	DIP, DIP24,.3	SOIC-24	DIP, DIP24,.3	SOP, SOP24,.4
Contacts	24	24	24	24	24	24
Reach Compliance Code	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum analog input voltage	7.3 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Maximum conversion time	12.5 µs	18 µs	18 µs	18 µs	18 µs	18 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	A/D CONVERTER	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24	R-PDIP-T24	R-PDIP-T24	R-PDSO-G24	R-PDIP-T24	R-PDSO-G24
JESD-609 code	e3	e3	e3	e3	e3	e3
length	15.4 mm	30.545 mm	32.26 mm	15.4 mm	30.545 mm	15.4 mm
Maximum linear error (EL)	0.024%	0.0244%	0.0244%	0.0244%	0.0244%	0.0244%
Number of digits	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	70 °C	70 °C	85 °C	70 °C	85 °C	85 °C
Output bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Output format	SERIAL, PARALLEL, 8 BITS	SERIAL, PARALLEL, 8 BITS	SERIAL, PARALLEL, WORD	SERIAL, PARALLEL, 8 BITS	SERIAL, PARALLEL, 8 BITS	SERIAL, PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP	DIP	SOP
Encapsulate equivalent code	SOP24,.4	DIP24,.3	DIP24,.3	SOP24,.4	DIP24,.3	SOP24,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	NOT SPECIFIED	260	260	260
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Sampling rate	0.133 MHz	0.076 MHz	0.076 MHz	0.076 MHz	0.076 MHz	0.076 MHz
Sample and hold/Track and hold	TRACK	TRACK	TRACK	TRACK	TRACK	TRACK
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30
width	7.5 mm	7.62 mm	7.62 mm	7.5 mm	7.62 mm	7.5 mm
Maker	Maxim	Maxim	-	Maxim	Maxim	-
Factory Lead Time	6 weeks	6 weeks	7 weeks	-	1 week	6 weeks
Humidity sensitivity level	1	1	1	-	1	1
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	4.572 mm	-	2.65 mm	4.572 mm	2.65 mm
Number of analog input channels	-	1	1	1	1	1
