3TC37H02C-45MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 3TC37H02C-45MHZ

3TC37H02C-45MHZ: DescriptionOscillator, 8MHz Min, 45MHz Max, 45MHz Nom; CategoryPassive components oscillator; File Size75KB，2 Pages; ManufacturerPletronics

Download Datasheet Parametric View All

3TC37H02C-45MHZ Overview

Oscillator, 8MHz Min, 45MHz Max, 45MHz Nom

3TC37H02C-45MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	102563595
package instruction	LCC20,.52X.82,200
Reach Compliance Code	unknown
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	20
Maximum operating frequency	45 MHz
Minimum operating frequency	8 MHz
Nominal operating frequency	45 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	METAL
Encapsulate equivalent code	LCC20,.52X.82,200
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	40 mA
Nominal supply voltage	3.3 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

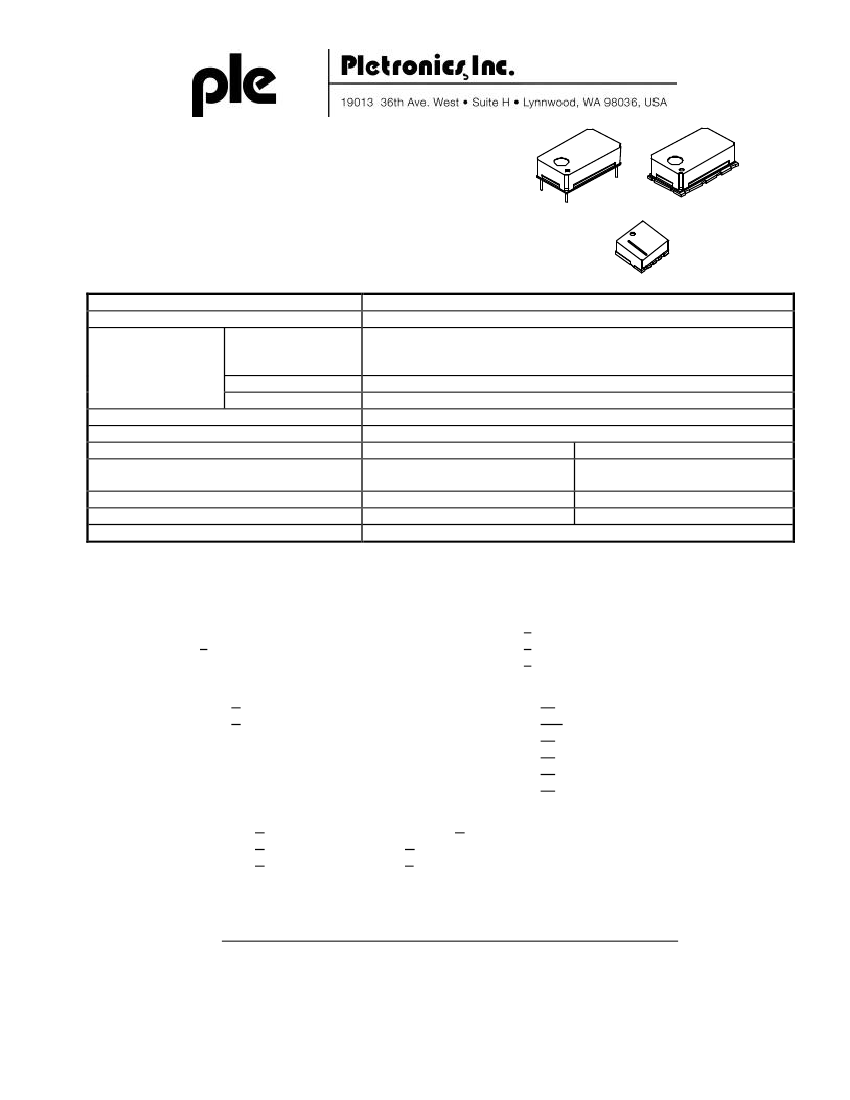

TC3 TCXO SERIES

THRU-HOLE OR SURFACE MOUNT TCXO IN METAL PACKAGE

STANDARD SPECIFICATIONS:

Frequency Range

Operating Temperature Range

vs. Temperature

Frequency Stability

vs. Supply Voltage

Aging

Frequency Adjustment by Trimmer

Input Voltage

Output Logic

Output Voltage Levels

Input Current (Icc) or Current Consumption

Output Load

Packaging

8.00 MHz - 45.000 MHz (Consult factory for specific available frequencies)

Various temperature ranges up to -40 to +85

C available.

1, 2, 2.5, 3, 5, and 10 PPM over the operating temperature range

available. Some frequency stability options such as

1 or 2 PPM may not

be available for certain temperature ranges.

0.5 PPM maximum over 5V

3 PPM first year, 1 PPM per year thereafter at 25

3 PPM maximum

5% Volt standard, but 3.3 V also available for HCMOS output

HCMOS

Clipped Sine Wave (5V)

Logic 0: 0.5 V max.,

1 Vp-p min.

Logic 1: 4.5 V min.

20 - 40 mA max.

2 - 5 mA max.

10 TTL + 15 pF

10k

Ω

/10 Pf

TC36 & 37: 20 parts per tube, TC38: TBD

PART NUMBERING GUIDE:

The Pletronics part number for a TC3 series TCXO consists of the following 6 elements:

1. Model Number (Voltage):

2. Package:

TC3

= 5V

TC36: Thru-Hole, 5.84 mm High

3TC3 = 3.3V

TC37: Surface Mount, 7.31 mm High

TC38: Surface Mount, 3.81 mm High

Logic:

TC36C: Clipped Sine Wave (5V only)

TC36H: HCMOS (5V or 3.3V)

4. Frequency Stability:

TC36C01:

1 PPM

TC36C020:

2 PPM

TC36C02:

2.5 PPM

TC36C03:

3 PPM

TC36C05:

5 PPM

TC36C10:

10 PPM

Operating Temperature Range:

TC36C10A: 0 to +50

TC36C10B: 0 to +70

TC36C10C: -10 to +70

C TC36C10D: -20 to +75

TC36C10E: -30 to +75

C TC36C10F: -40 to +85

Frequency of Operation in MHz

EXAMPLE: TC36C10A-12.800 MHz, 3TC38H020D-10.000 MHz, TC37C020D-9.600 MHz

When customer’s requirements are non-standard, a special engineering part number will be assigned.

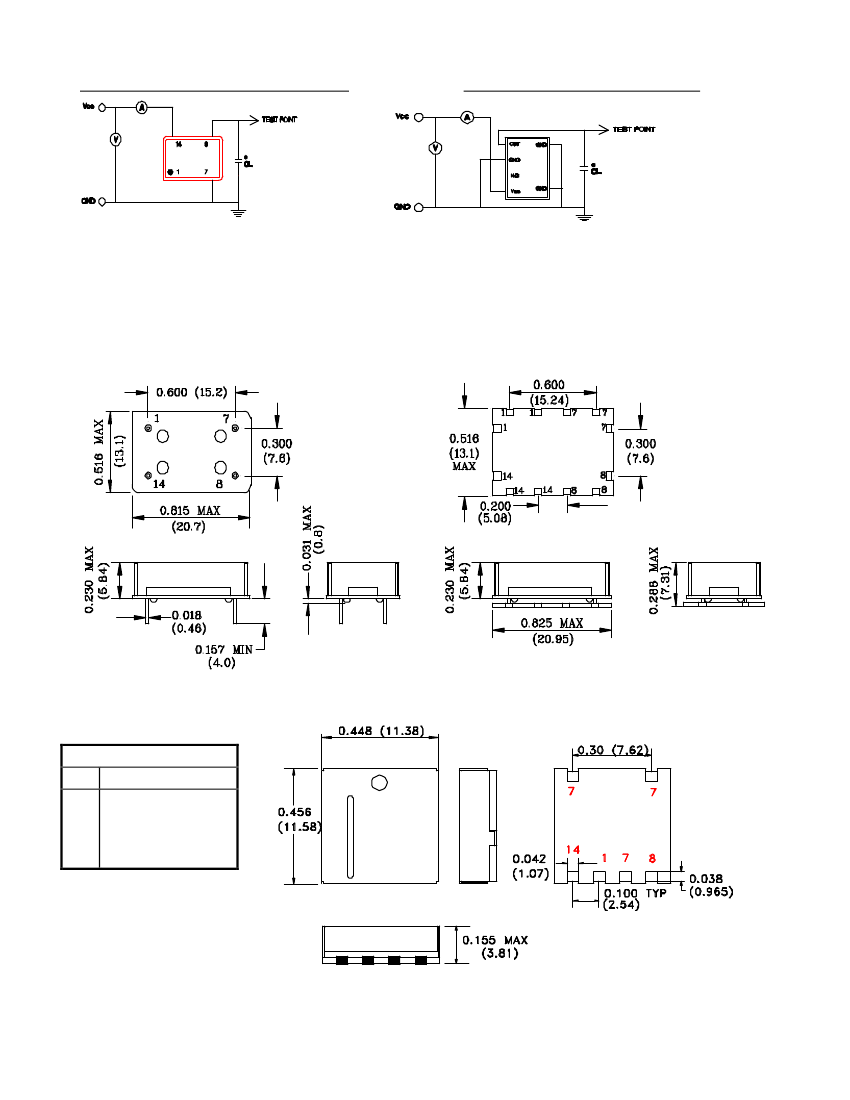

(continued)
