Moisture Sensitivity Level (MSL) – This product is
Hermetically Sealed and not Moisture
Sensitive - MSL = N/A: Not Applicable
Pb
RoHS
Compliant
APPLICATIONS:
• CCD clock for VTR camera
• Computers and peripherals
• Portable electronics
• Mobile communication, PDA
1.6 x 1.2 x 0.7mm
| | | | | | | | | | | | |
| |
•
Ultra miniature package:1.6 x 1.2 x 0.7mm
•
Tri-state function
•
Suitable for high density SMT
•
Suitable for RoHS compliant reflow process
•
Electrical beam sealed package assures extreme accuracy and high reliability
STANDARD SPECIFICATIONS:
Common Key Electrical Specifications
Parameters
Frequency Range
Operating Temperature
Storage Temperature
Overall Frequency Stability*
Supply Voltage (Vdd)
Vdd = 3.3 V
Minimum
1.0
-10
-40
-50
2.97
2.25
1.62
Typical
Supply Current (I
dd
)
into 15pF Load
Vdd = 2.5 V
Vdd = 1.8 V
Output Load
Output Voltage
Tri-state function
Aging
Symmetry @1/2Vdd
Start-up Time
Rise/Fall Time (Tr/Tf)
3.3
2.5
1.8
3.0
4.2
6.0
2.5
3.0
4.0
2.0
2.5
3.5
V
OH
V
OL
0.9*Vdd
"1" (VIH≥0.7*Vdd) : Oscillation
"0" (VIH<0.3*Vdd) : Hi Z
Maximum
80
+60
+85
+50
3.63
2.75
1.98
4.5
6.0
8.5
3.5
4.5
6.0
3.0
3.5
5.0
15
0.1*Vdd
Units
MHz
°C
°C
ppm
V
Notes
See options
See options
Standard
Option “1”
Option “2”
mA
pF
V
1MHz
<
F
<
20 MHz
20 MHz
<
F
<
50 MHz
50 MHz
<
F
<
80 MHz
1MHz
<
F
<
20 MHz
20 MHz
<
F
<
50 MHz
50 MHz
<
F
<
80 MHz
1MHz
<
F
<
20 MHz
20 MHz
<
F
<
50 MHz
50 MHz
<
F
<
80 MHz
CMOS
Pin
1 must be pulled
“high” for oscillation
3.0
60
55
2.0
5.0
ppm
%
ms
ns
@+25°C First year
Standard
Option S
-3.0
40
45
50
50
*Overall frequency stability includes initial frequency tolerance @+25°C and stability over the operating temperature.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE R TIFIED
Revised: 01.25.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
Ultra Miniature SMD Crystal Clock Oscillator
ASCO
PART IDENTIFICATION:
Pb
RoHS
Compliant
1.6 x 1.2 x 0.7mm
| | | | | | | | | | | | |
| |
ASCO
Supply Voltage
Blank: 3.3V±10%
1: 2.5 V±10%
2: 1.8 V±10%
Frequency in MHz
Please
specify the
frequency in MHz.
e.g. 14.31818MHz
-
MHz -
-
-
-
Packaging
Blank: Bulk
T3: 3000pcs/reel
(Standard)
T: 1000pcs/reel
(Special order. Available
upon request)
Operating Temp.
Blank: -10°C ~ +60°C
E: -20°C ~ +70°C
L: -40°C ~ +85°C
Overall Freq. Stability
Blank: ±50ppm
*Y:±10ppm
**J: ±20ppm
K: ±30 ppm
Blank: 40/60% @1/2Vdd
S: 45/55% @1/2Vdd
Symmetry
*Available for -10 to +60°C only
**Available for -10 to +60°C, option E only
Contact Abracon for tighter frequency stability options
OUTLINE DRAWING:
Dimensions: mm
Revised: 01.25.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE R TIFIED
Ultra Miniature SMD Crystal Clock Oscillator
ASCO

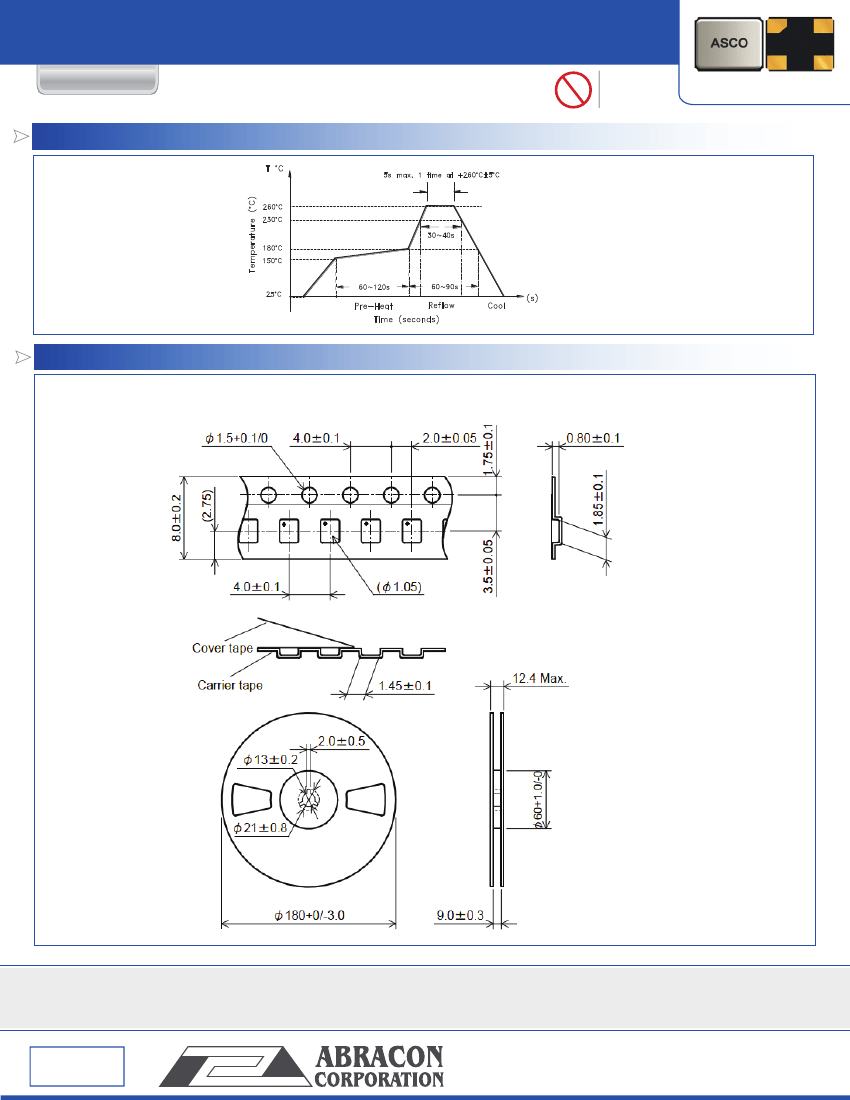

REFLOW PROFILE:
Pb
RoHS
Compliant
1.6 x 1.2 x 0.7mm
| | | | | | | | | | | | |
| |
TAPE & REEL:
T3= 3,000pcs/reel (Standard)
T = 1,000pcs/reel (Special order. Available upon request)
Dimensions: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required.
Please
contact Abracon Corporation for more information.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE R TIFIED
Revised: 01.25.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
