5962R9319302KXC datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 5962R9319302KXC

5962R9319302KXC: DescriptionAnalog Circuit, Hybrid,; CategoryAnalog mixed-signal IC The signal circuit; File Size1MB，14 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com; Related ProductsFound6parts with similar functions to 5962R9319302KXC

Download Datasheet Parametric View All

5962R9319302KXC Overview

Analog Circuit, Hybrid,

5962R9319302KXC Parametric

Parameter Name	Attribute value
Maker	Interpoint （ Crane Aerospace & Electronics ）
Parts packaging code	MODULE
package instruction	, FLANGE MT,1.5X3.0
Contacts	12
Reach Compliance Code	unknow
Maximum input voltage	40 V
Minimum input voltage	16 V
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	4.33 A
Nominal output voltage	15 V
Package body material	METAL
Encapsulate equivalent code	FLANGE MT,1.5X3.0
Certification status	Not Qualified
Filter level	38535V;38534K;883S
technology	HYBRID
Temperature level	MILITARY
total dose	100k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

Crane Aerospace & Electronics Power Solutions

SMFL Single and Dual DC/DC Converters

28 Volt input – 65 Watt

Features

parallel operation with current share, up to 3 units (up

to 185 watts)

• Operating temperature -55° to +125°C

• Qualified to MIL-PRF-38534 Class H and K

• Radiation hardness assurance (RHA) to level R 100 kRad(Si)

• Input voltage range 16 to 40 VDC

• Transient protection 80 V for 50 ms

• Fully isolated, magnetic feedback

• Fixed high frequency switching

• Remote sense and output trim on single output models

• Inhibit function

• Synchronization input and output

• Indefinite short circuit protection

• High power density with up to 85% efficiency

VDc O

utPut

SINgLE

3.3

DuAL

±5

±12

±15

MODELS

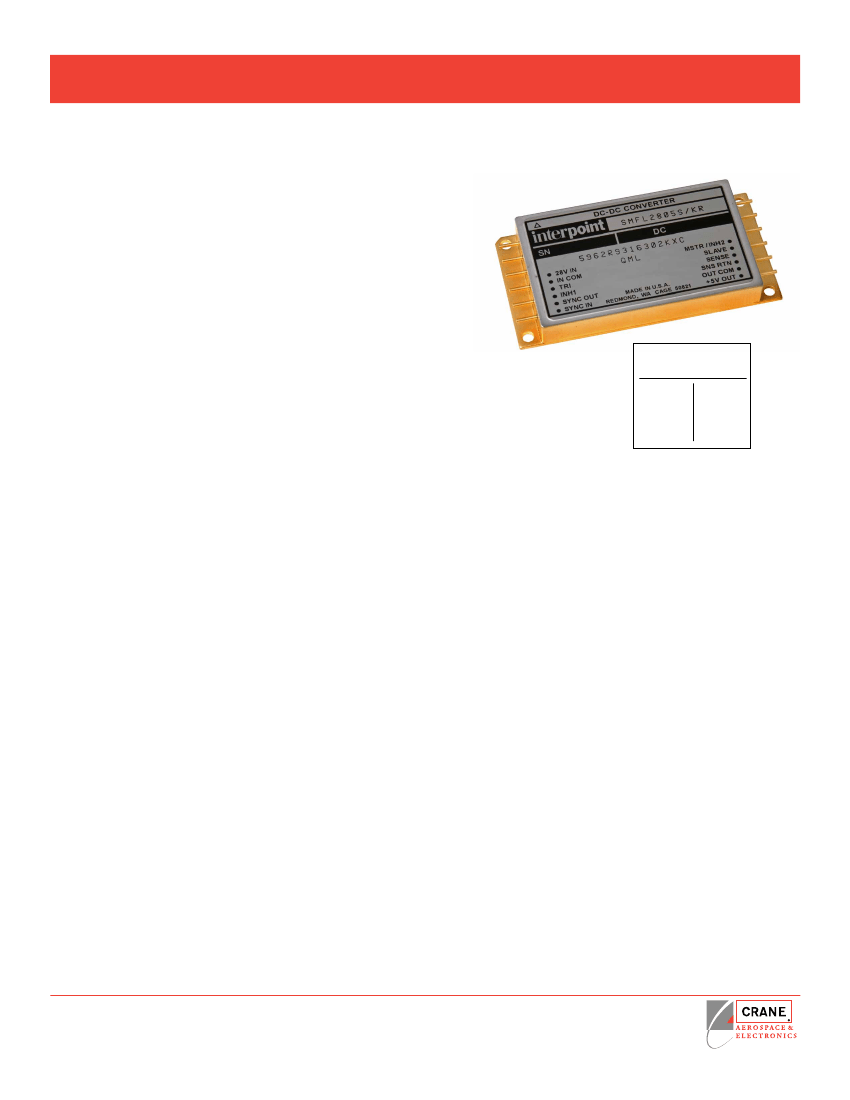

The Interpoint™ SMFL Series™ 28-volt DC/DC converters

are rated up to 65 watts output power over a -55° to +125°C

temperature range with a 28 VDC nominal input. On dual output

models up to 70% of the rated output power can be drawn from

either the positive or negative outputs. Current sharing allows

the units to be paralleled for total power of up to 185 watts. The

welded, hermetically sealed package is only 3.0 x 1.5 x 0.40

inches, giving the series an overall power density of up to 43

watts per cubic inch.

description

mode feedback loop improves transient response in a manner

similar to primary current mode control and allows for ease of

paralleling, but without the cost and complexity.

The constant frequency, pulse-width modulated converters use

a quasi-square wave single-ended forward design. Tight load

regulation is achieved through a wide-bandwidth magnetic feed-

back circuit. The output voltage on single SMFL models can

be trimmed to a specific output voltage by adding an external

resistor (see Figure 1 for resistor values).

creening

SMFL converters, also available on SMD drawings, offer the

following screening options: Space Prototype (O), Class H, or

Class K. Radiation tolerant to Radiation Hardness Assurance

(RHA) levels of “-” (O), “P,” or “R,” per MIL-PRF-38534. Interpoint

model numbers use an “O” in the RHA designator position to

indicate the “-” (dash) Radiation Hardness Assurance level of

MIL-PRF-38534, which is defined as “no RHA”. See Screening

Tables 1 and 2

nhibit

The SMFL Series converters have two inhibit terminals (INH1

and INH2) that can be used to disable power conversion,

resulting in a very low quiescent input current and no generation

of switching noise. An active low (<0.8 volts) is required to inhibit

the converter between INH1 (pin 4) and Input Common (pin

2). An active low (<0.5 volts) is required to inhibit the converter

between INH2 (pin 12) and Output Common (pin 8).

eSign

eatureS

SMFL Series converters are switching regulators that use a

quasi-square wave, single ended forward converter design with a

constant switching frequency of 600 kHz typical.

Isolation between input and output circuits is provided with a

transformer in the forward path and a wide bandwidth magnetic

coupling in the feedback control loop. The SMFL uses a unique

dual loop feedback technique that controls output current with

an inner feedback loop and an output voltage with a cascaded

voltage mode feedback loop. The additional secondary current

Crane Aerospace & Electronics

Power Solutions – Interpoint Products

10301 Willows Rd. NE, Redmond, WA 98052

+1.425.882.3100 • power@crane-eg.com

www.craneae.com/interpoint

ync

Converters may be synced to an external clock (525 to 675 kHz)

or to one another by using the sync in or out pins. The nominal

free-run switching frequency is 600 kHz.

urrent

hare anD

arallel

PeratiOn

Multiple SMFL converters may be used in parallel to drive a

common load (see Figure 2). Only single output models with

SENSE and SNS RTN can be used in the share mode. In this

mode of operation the load current is shared by two or three

The information in this document is a derivative of documents cleared

by the Department of Defense (DoD) Office of Security Review (OSR) for public release.

OSR case numbers 09-S-0996 dated March 13, 2009 and 09-S-1960 dated June 22, 2009.

Page 1 of 14

SMFL Rev AA - 2012.03.19
