MAX407CPA+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> MAX407CPA+

MAX407CPA+: Descriptionoperational amplifiers - Op amps dual 1.2ua max single-supply; CategoryAnalog mixed-signal IC Amplifier circuit; File Size7MB，16 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric View All

MAX407CPA+ Overview

operational amplifiers - Op amps dual 1.2ua max single-supply

MAX407CPA+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	6 weeks
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.00002 µA
Maximum bias current (IIB) at 25C	0.00001 µA
Minimum Common Mode Rejection Ratio	60 dB
Nominal Common Mode Rejection Ratio	60 dB
frequency compensation	YES
Maximum input offset voltage	4000 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e3
length	9.375 mm
low-bias	YES
low-dissonance	NO
micropower	YES
Humidity sensitivity level	1
Negative supply voltage upper limit	-6 V
Nominal Negative Supply Voltage (Vsup)	-2.5 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	+-2.5/+-5/10 V
Certification status	Not Qualified
Maximum seat height	4.572 mm
minimum slew rate	0.003 V/us
Nominal slew rate	5000 V/us
Maximum slew rate	0.003 mA
Supply voltage upper limit	6 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	8 kHz
Minimum voltage gain	100000
width	7.62 mm
Base Number Matches	1

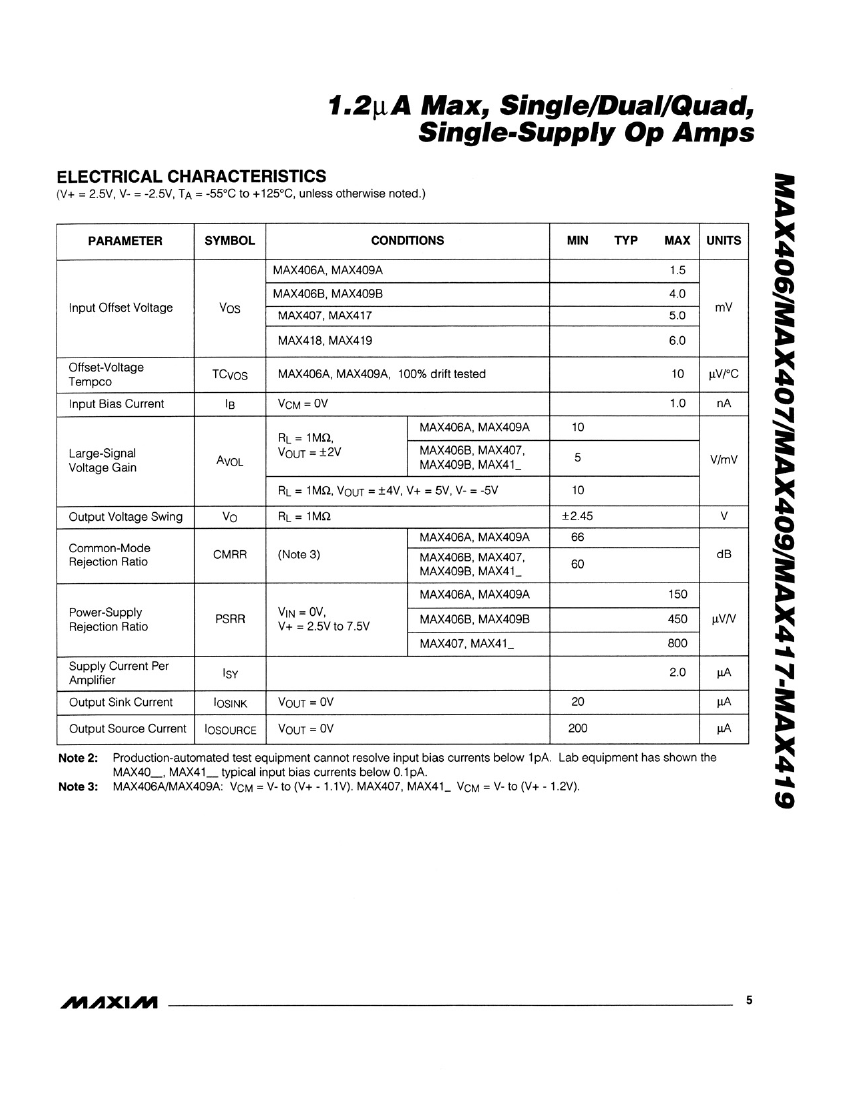

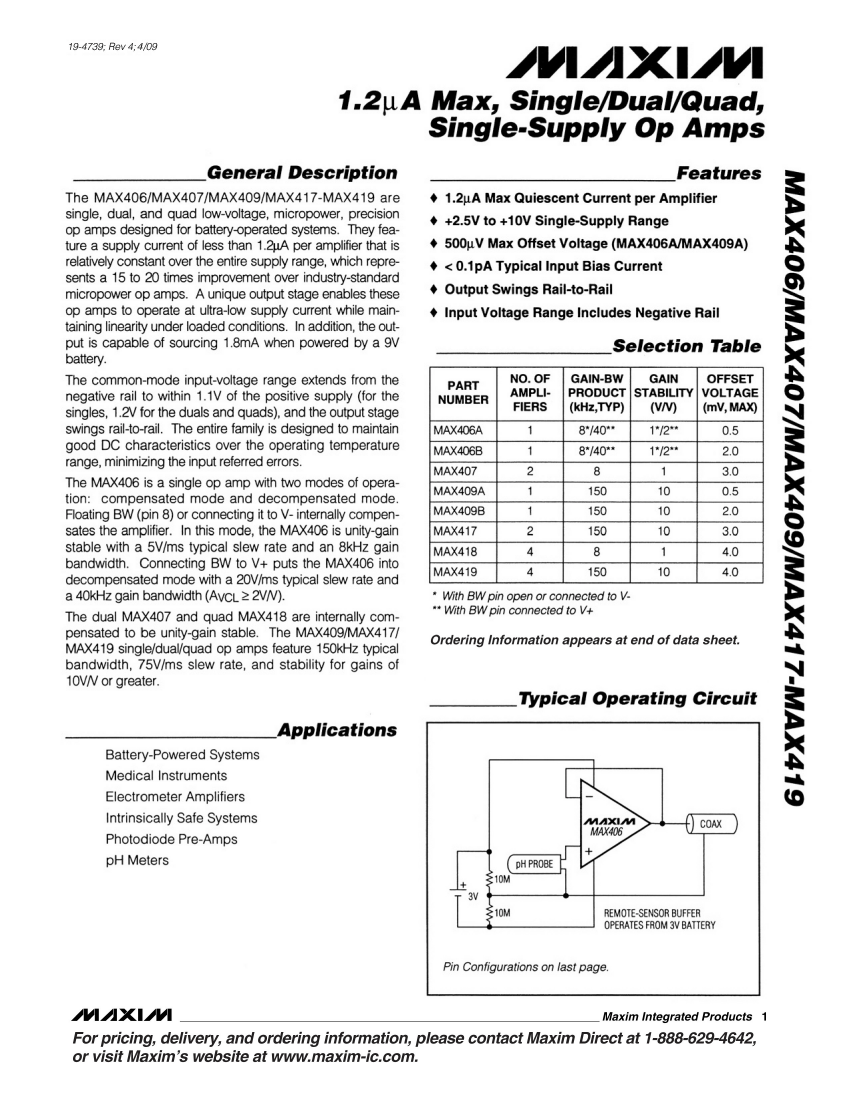

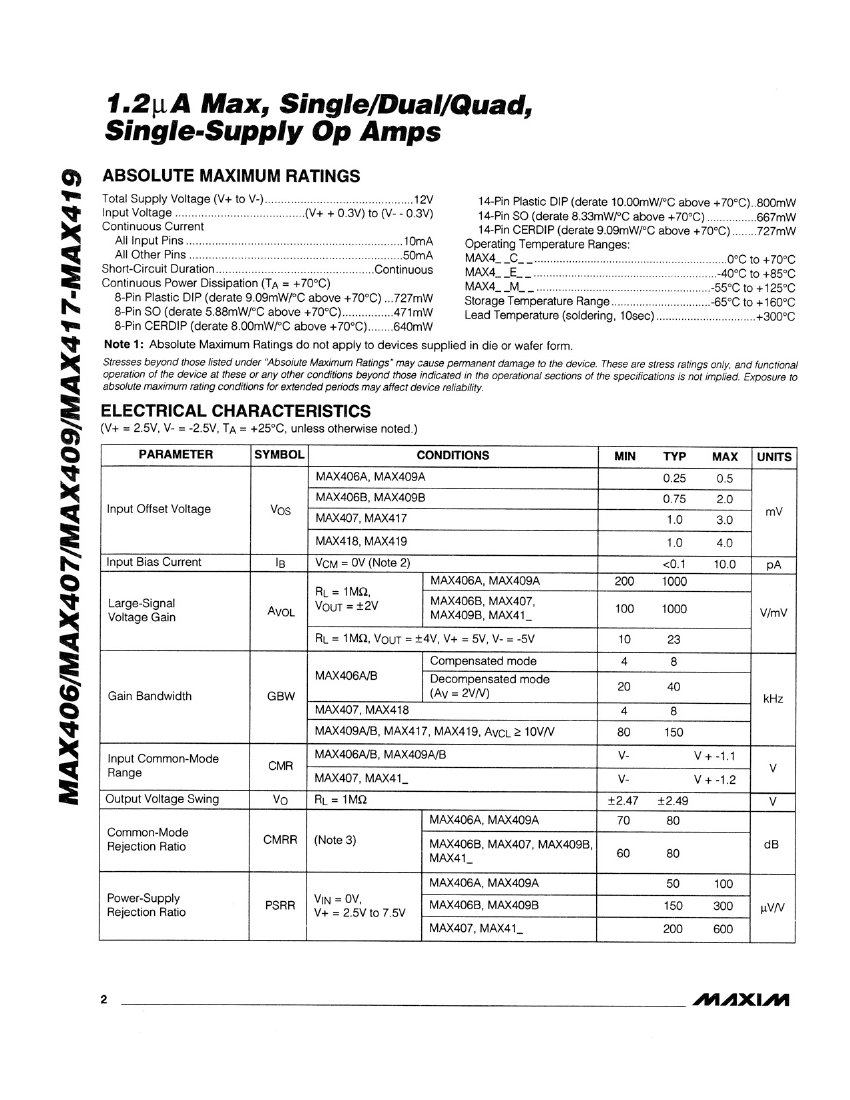

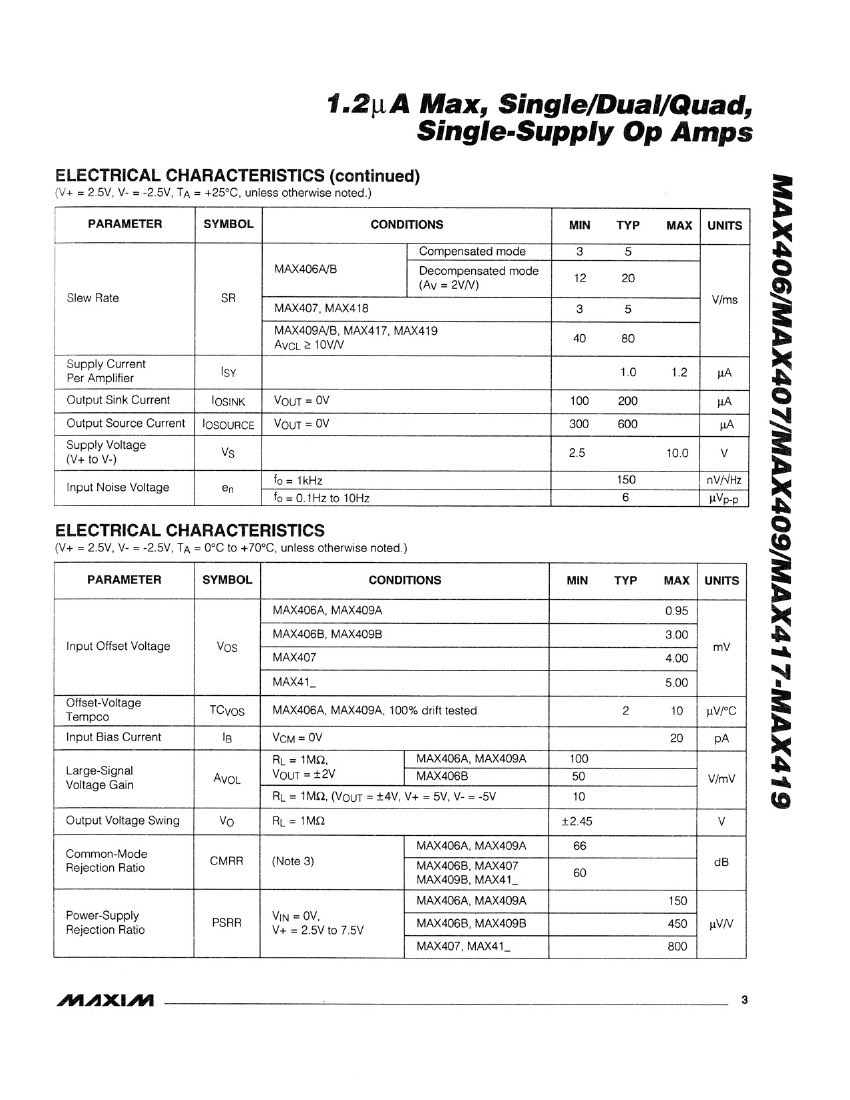

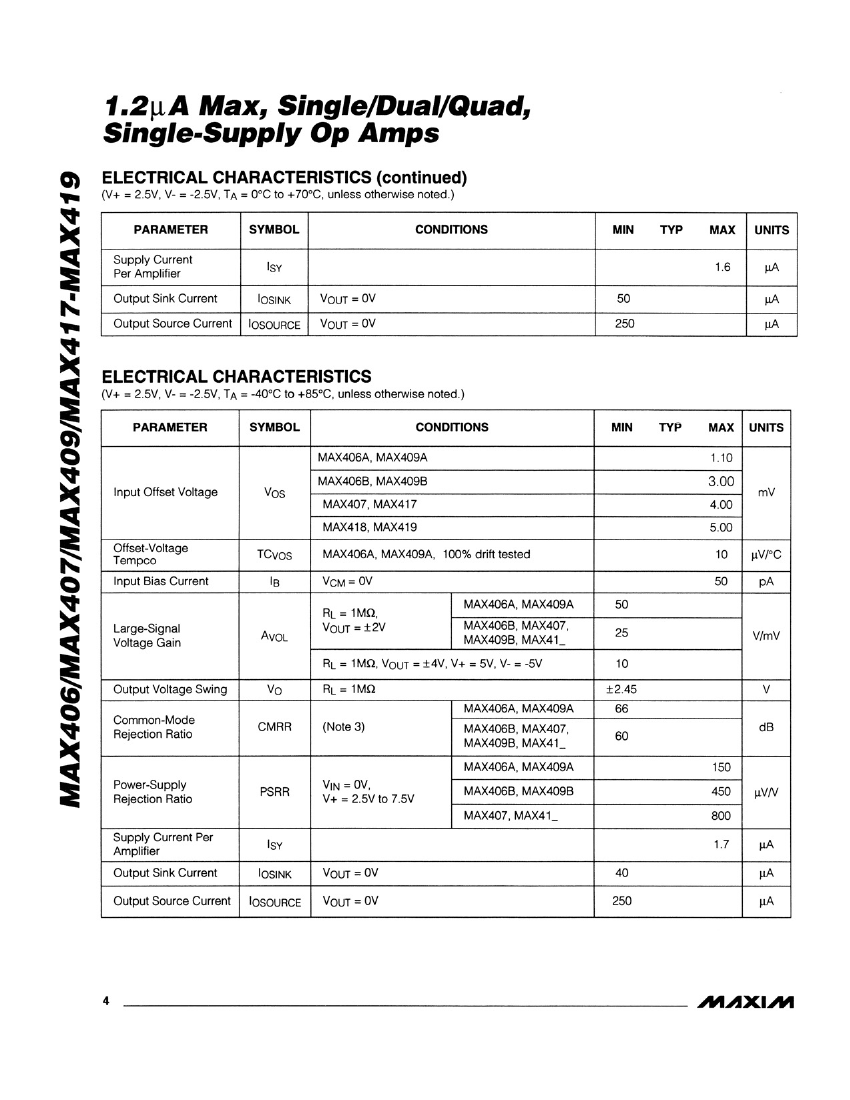

Preview

Download Datasheet

View All
