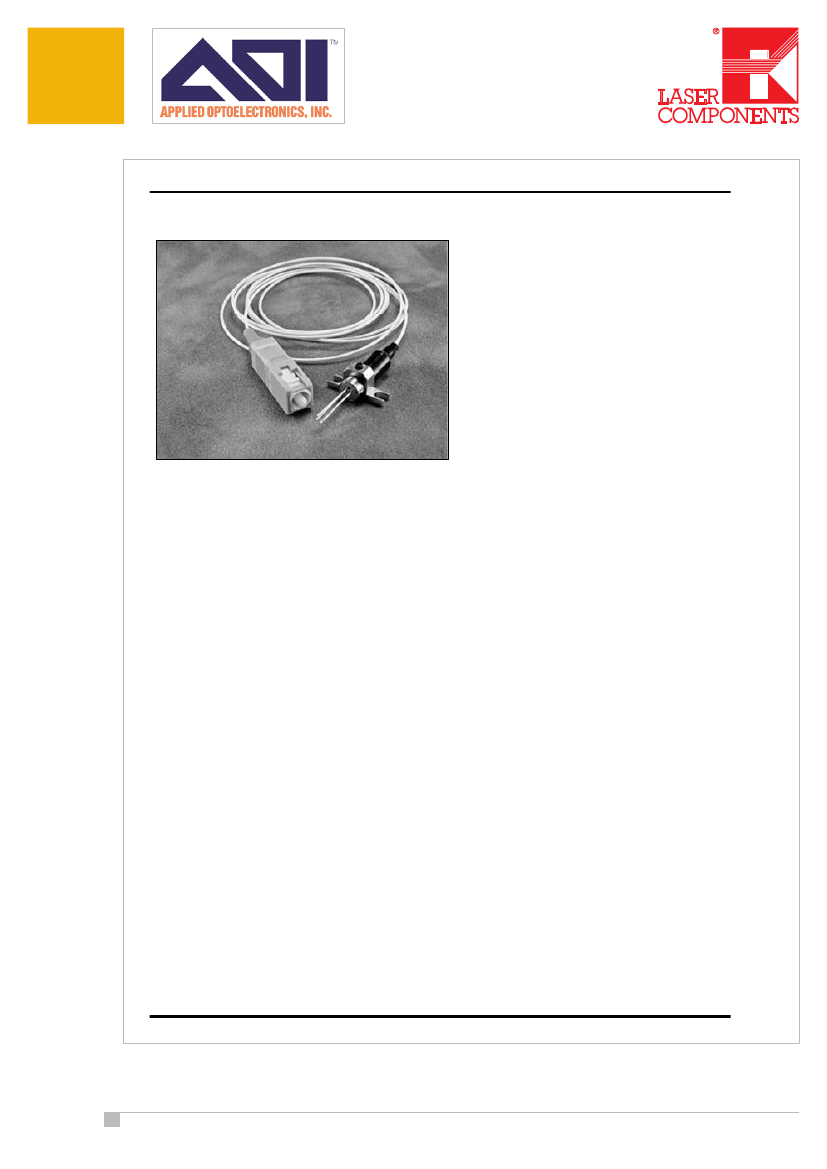

The DFB1xxxC522.5xx series of Multi
Quantum Well (MQW) Distributed Feedback
(DFB) lasers have been designed specifically to
satisfy the requirements of SONET CWDM
transmission. The devices feature high output
power and wide operating temperature range.
Their uncooled, hermetically sealed, coaxial fiber
pigtailed packages are a costeffective means of
providing a highspeed light source for
intermediatereach and longreach applications.
Advanced Multiple Quantum Well
(MQW) Distributed Feedback (DFB)
Laser Design
Highspeed up to 2.5 Gbps
Engineered Specifically for SONET
transmitter applications
LowCost Uncooled Laser Technology

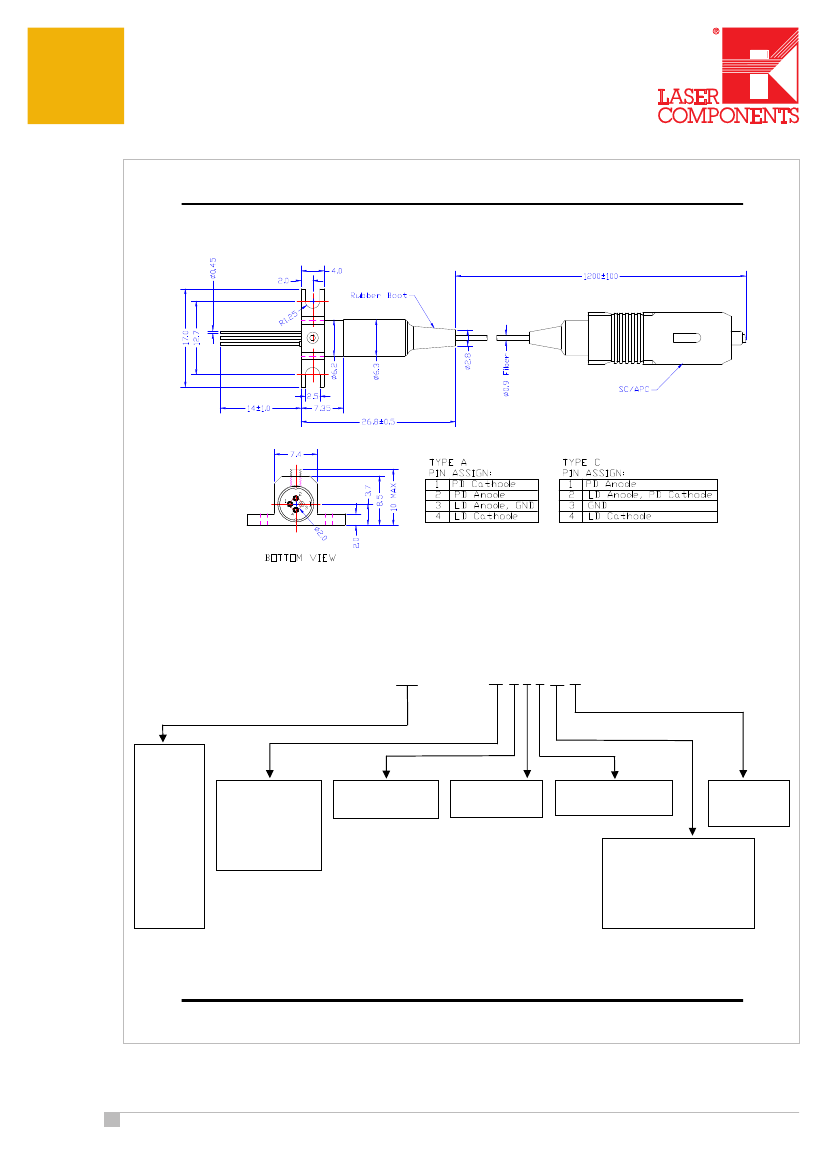

1.2 meter SMF28 Fiber Pigtail
5.6mm TOstyle package
SONET 2.5 Gbps transmitter
Intermediate and longdistance fiber
optic transmitter
01000039 REV 009
© Applied Optoelectronics, Inc. 2006
1
Laser Components GmbH
Germany
Werner-von-Siemens-Str. 15
82140 Olching
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
Laser
Diodes
Operating Case Temperature
Storage Temperature
Laser Forward Current
Laser Reverse Bias
Photodiode Reverse Bias
T
c
T
stg
I
f
V
r
V
rpd
I=I
op
20
40
85
100
120
2
10
°C
°C
mA
V
V
Parameters are over operating temperature range unless otherwise noted.
Operating Temperature
T
20*
85*
°C
Optical Output Power
P
o
2.0
mW
Threshold Current
I
th
14
20
mA
Forward Voltage
V
F
1.2
1.7
V
Modulation Current
I
mod
13
20
33
mA
10
50
Slope Efficiency
SE
50
125
W/mA
30
200
Center Wavelength
λ
c
1270
1610
nm
Center Wavelength
λ
2*
+2*
nm
Accuracy
3*
+3*
10*
+10*
Spectral Width (20 dB)
λ
0.1
1.0
nm
Wavelength temperature
λ /T
0.11
0.12
nm/°C
coefficient
Sidemode Suppression
SMSR
30
40
dB
Ratio
Rise/Fall Times
t
R
, t
F
0.1
ns
Relaxation Oscillation
f
R
4.5
GHz
Frequency
Monitor Current
I
mon
25
375
A/mW
Monitor Dark Current
I
D
200
nA
Optical Isolation***
ISO
30
dB
Relative Intensity Noise
RIN
140**
130**
dB/Hz
Tracking Error
γ
1
1
dB
* See ordering options for available temperature ranges.
** RIN specification applies only if isolator option is ordered.
*** Optical Isolation applies only if isolator option is ordered.
CW
T=25 °C
P
o
=2.0 mW
P
o
=2.0 mW, T=25 °C
P
o
=2.0 mW
CW, P
o
=2.0 mW, T=25 °C
CW, P
o
=2.0 mW
P
o
=2.0 mW, CW
T=25 °C
P
o
=2.0 mW
P
o
=2.0 mW
Ppeak=2.0 mW, 20% to 80%
P
o
=2.0 mW
V
rpd
=5 V
V
rpd
=5 V
CW, 2085 °C
P
o
=2.0 mW
I
mon
=const,
γ=10
log (P
o
/2.0)
[dB]
01000039 REV 009
© Applied Optoelectronics, Inc. 2006
2
Laser Components GmbH
Germany
Werner-von-Siemens-Str. 15
82140 Olching
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
Laser
Diodes

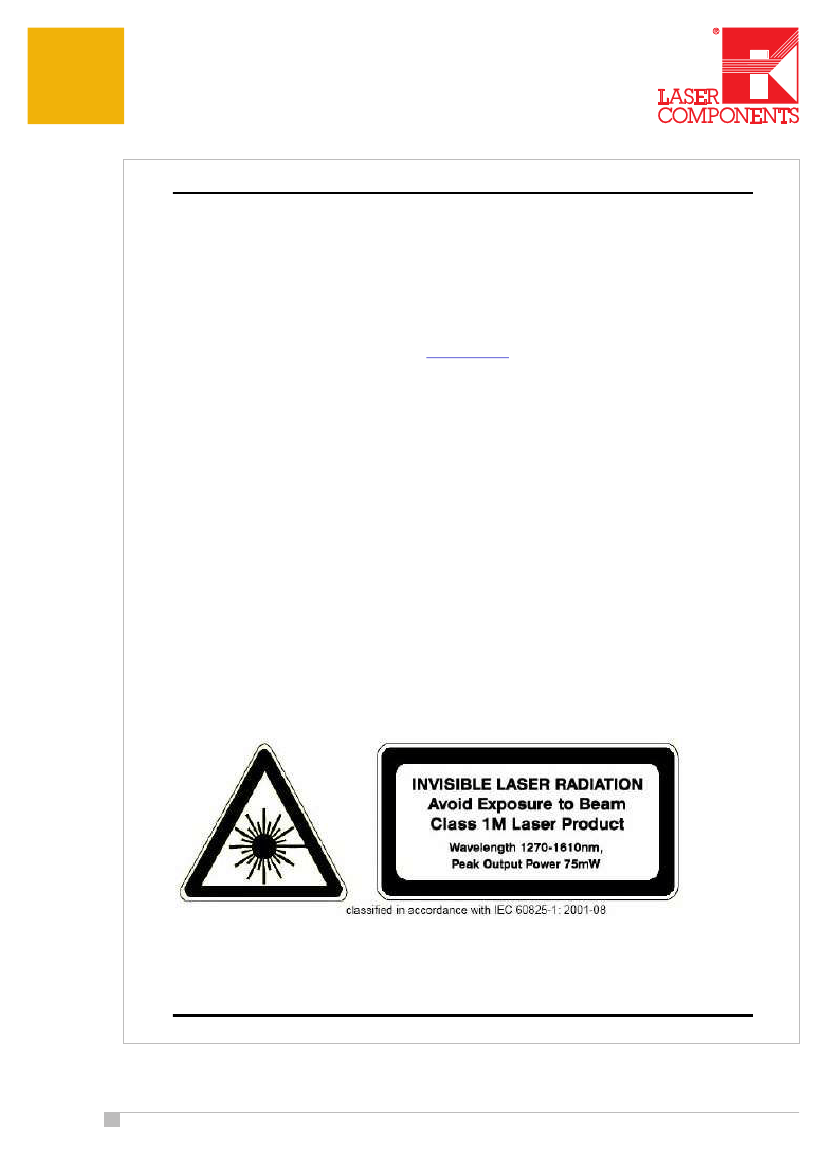

All versions of this laser are Class 1M laser products per IEC
1
/EN
2
608251:200108. Users should observe
safety precautions such as those recommended by ANSI
3
Z136.12000, ANSI Z36.21997 and IEC 60825
1:200108.
The Food and Drug Administration's Center for Devices and Radiological Health (FDA/CDRH) in the USA has decided to harmonize their
requirements with 21 CFR 1040.10 and 1040.11 with the IEC/EN 608251 and IEC/EN 60601222 standards. This process has not yet
happened and in the interim, the CDRH agency has released'Laser
Notice No.50'to
reduce the regulatory burden. This notice allows
IEC/EN classification and labeling of lasers within the USA.
:
laser is safe for all conditions of use except when passed through magnifying optics such as microscopes and telescopes. Class
1M lasers produce largediameter beams, or beams that are divergent. The MPE for a Class 1M laser cannot normally be exceeded unless
focusing or imaging optics are used to narrow the beam. If the beam is refocused, the hazard of Class 1M lasers may be increased and the
product class may be changed. A laser can be classified as Class 1M if the total output power is below (IEC/EN) class 3B but the power that
can pass through the pupil of the eye is within Class 1.
:
moderate power lasers (cw: 5500 mW, pulsed: 10 J/cm
2
or
the diffuse reflection limit, whichever is lower). In general Class
IIIB lasers will not be a fire hazard, nor are they generally capable of producing a hazardous diffuse reflection. Specific controls are
recommended.
This product does not conform to 21 CFR 1040.10 and 1040.11. Consequently, this laser module is only
intended for use as a component by manufacturers of electronic products and equipment.
Wavelength =1270 – 1610 nm
Maximum Power = 75mW
Singlemode fiber pigtail
Fiber Numerical Aperture = 0.14
Labeling is not affixed to the laser module due to size constraints; rather, labeling is placed on the outside of the shipping
box.
This product is not shipped with a power supply.
