ESX222M35 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> ESX222M35

ESX222M35: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 2200uF; CategoryPassive components capacitor; File Size187KB，2 Pages; ManufacturerHitano Enterprise Corp; Environmental Compliance

Download Datasheet Parametric View All

ESX222M35 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 2200uF

ESX222M35 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1205315655
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	18 mm
dielectric materials	ALUMINUM
ESR	22 mΩ
length	25 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	2570 mA
Terminal surface	NOT SPECIFIED
Terminal pitch	7.5 mm

Preview

Download Datasheet

View All

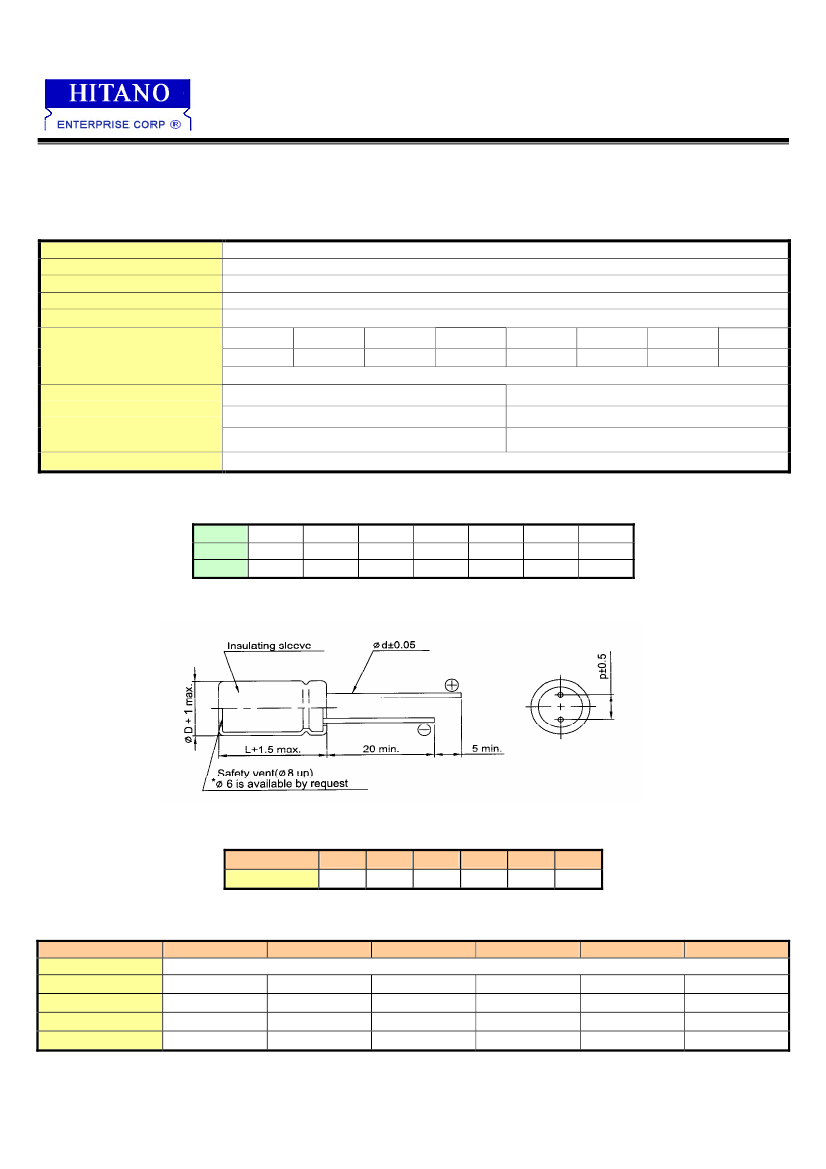

ESX

SERIES

●

ESX series capacitors are low length (max 25mm height) with low impedance for high frequency.

●

Load life 105

℃

, 5000 hours assured. (2000 hours for D≦8mm)

Characteristics

6.3 ~ 63V

0.47 ~4700uF

-55 ~ + 105

℃

I=0.01CV or 3uA, whichever is greater (After 2 minutes)

±20%

at 120Hz , 20

℃

6.3

0.15

0.12

0.11

0.09

0.08

0.06

tanδ

For capacitance > 1000uF, add 0.02 for every 1000uF.(at 20

℃

, 120Hz)

Load life after application of

Leakage current

Less than specified value

the rated voltage with ripple

Capacitance change

Within

±20%

of initial value

current for 5000 hrs at 105

℃

tanδ

Less than 200% of specified value

(2000 hrs for D≦8mm)

Shelf life (at 105

℃

)

After 1000 hrs no load test, leakage current, capacitance and tanδsame as load life value.

Voltage Range

Capacitance Range

Temperature Range

Leakage Current

Capacitance Tolerance

Dissipation Factor

0.05

Diagram of dimensions

Dφ

dφ

2.0

0.5

6.3

2.5

0.5

3.5

0.5

5.0

0.6

5.0

0.6

7.5

0.8

7.5

0.8

Multiplier for R.C. vs Temparature

Temp.(℃)

Multiplier

2.10

1.90

1.65

1.40

1.25

105

1.00

Ripple Current Coefficients

Frequency (Hz)

Cap.(uF) / Hz

Cap.

≦

10＜Cap.≦100

100＜Cap.≦1000

1000＜Cap.

0.47

0.52

0.58

0.63

120

0.59

0.62

0.72

0.78

400

Multiplier

0.76

0.80

0.84

0.87

0.85

0.89

0.90

0.91

0.97

0.98

10K

50K - 100K
