Description
Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT
CategoryThe connector    The connector
File Size89KB，1 Pages
ManufacturerAVX
Environmental Compliance
Download Datasheet Parametric Compare View All

208458160009049 Overview

Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT

208458160009049 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1907305106
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL8
Other featuresSTANDARD: DIN 41612
body width0.618 inch
subject depth0.457 inch
body length3.74 inch
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceYES
Dielectric withstand voltage1000VAC V
Durability500 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.834 N
Insulation resistance5000000000 Ω
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Loaded row nameA,B,C,D,E
PCB row number5
Number of rows loaded5
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyENDS
Rated current (signal)1 A
GuidelineUL, CSA
Terminal length0.472 inch
Terminal pitch2.54 mm
Termination typePRESS FIT
Total number of contacts160
UL Flammability Code94V-0
Evacuation force-minimum value.139 N

Preview

Download Datasheet

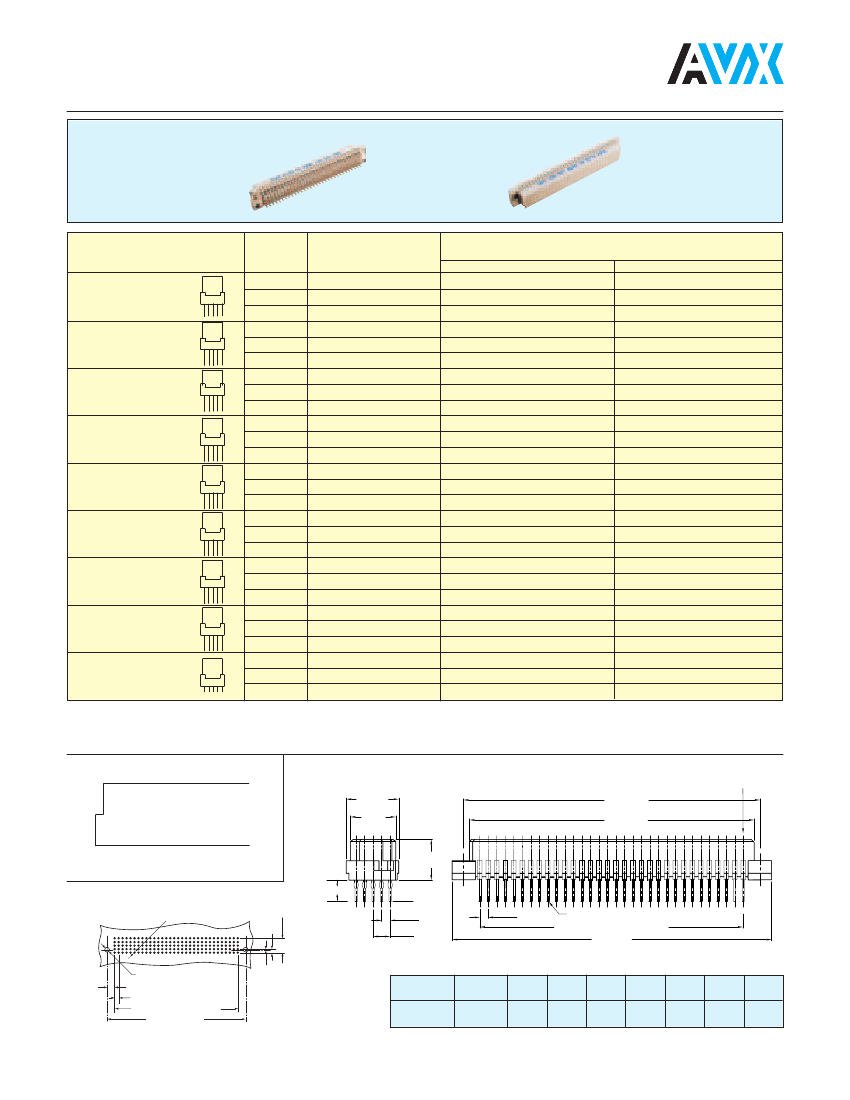

Female Style C Expanded Press-Fit
Series 8458 – 5 rows (5 x 32)
Contact Design
and
Termination Length
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
5.3 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
9.3 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
16.2 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
23.2 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
13.2 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
12.0 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
20.3 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
17.0 mm (Y) Straight
for 1.6 mm PCB's
0.6 x 0.6 mm Post Profile
3.0 mm (Y) Straight
Number of
Contacts
160
Loading Description
a + b + c + d + e fully loaded
Part Number
Performance classes according to DIN 41612
II
I
20 8458 160 001 025
20 8458 160 001 049
160
a + b + c + d + e fully loaded
20 8458 160 002 025
20 8458 160 002 049
160
a + b + c + d + e fully loaded
20 8458 160 003 025
20 8458 160 003 049
160
a + b + c + d + e fully loaded
20 8458 160 004 025
20 8458 160 004 049
160
a + b + c + d + e fully loaded
20 8458 160 005 025
20 8458 160 005 049
160
a + b + c + d + e fully loaded
20 8458 160 009 025
20 8458 160 009 049
160
a + b + c + d + e fully loaded
20 8458 160 010 025
20 8458 160 010 049
160
a + b + c + d + e fully loaded
20 8458 160 012 025
20 8458 160 012 049
160
a + b + c + d + e fully loaded
20 8458 160 031 025
20 8458 160 031 049
NB: Alternative Prefix Variations Available: 21, 22 & 23, please refer to Page 10.
Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.
Installed using Flat Rock method (see page 66)
LOADING DESCRIPTION
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
DIMENSIONS
1
15.7
[0.618] max
13.6
-0.10
[0.535 -
0.004
]
90.0
±0.10
[0.004]
[3.540]
85.0
-0.20 [0.008]
[3.350]
e
d
c
b
a
160 contacts,
rows a + b + c + d + e fully loaded
Y
DRILLED HOLE
ø1.15 +0.00 -0.07 [ø0.045 +0.000 -0.003]
PLATED THRU HOLE
ø1.02 +0.08 -0.05 [ø0.040 +0.003 -0.002]
160 x
11.6
[0.457] max
4 x 2.54 =10.16
[4 x 0.100 = 0.400]
2.54
[0.100]
2.54
[0.100]
5.08
[0.200]
2.54
[0.100]
0.60 [0.024] x 0.60 [0.024]
31 EQ. SP. @ 2.54 [0.100] = 78.74 [3.740]
±0.25 ±0.010
e
d
c
b
a
95.0 [3.740] max
2 x ø2.9 -0.1
[2 x ø0.114 -0.004]
5.65
±0.05
[0.222
±0.002]
2.54 [0.100]
31 x 2.54 = 78.74 [31 x 0.100 = 3.10]
90.0
±0.1
[3.543
±
0.004]
0.30
[0.012]
Unit: millimeters (inches)
No. Contact
Positions
160
Contact
Rows
5 (5 x 32)
A
31
B
78.74
(3.100)
C
D
E
85.00
(3.346)
F
G
95.00 90.00
(3.740) (3.543)
11.00 13.10
(0.433) (0.516)
HOLE PATTERN
78

208458160009049 Related Products

208458160009049 208458160004025 208458160004049 208458160009025 208458160010025 208458160010049 208458160012049 208458160031049 208458160003049 208458160003025
Description Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to conform to
Objectid 1907305106 1907305101 1907305102 1907305105 1907305107 1907305108 1907305110 1546986501 1907305100 1907305099
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
YTEOL 8 8 8 8 8 8 8 8 8 8
Other features STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612
body width 0.618 inch 0.618 inch 0.618 inch 0.618 inch 0.618 inch 0.618 inch 0.618 inch 0.618 inch 0.618 inch 0.618 inch
subject depth 0.457 inch 0.457 inch 0.457 inch 0.457 inch 0.457 inch 0.457 inch 0.457 inch 0.457 inch 0.457 inch 0.457 inch
body length 3.74 inch 3.74 inch 3.74 inch 3.74 inch 3.74 inch 3.74 inch 3.74 inch 3.74 inch 3.74 inch 3.74 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact resistance 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance YES YES YES YES YES YES YES YES YES YES
Dielectric withstand voltage 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V
Durability 500 Cycles 400 Cycles 500 Cycles 400 Cycles 400 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 400 Cycles
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
maximum insertion force .834 N .834 N .834 N .834 N .834 N .834 N .834 N .834 N .834 N .834 N
Insulation resistance 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω
insulator material GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER
MIL compliance NO NO NO NO NO NO NO NO NO NO
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Loaded row name A,B,C,D,E A,B,C,D,E A,B,C,D,E A,B,C,D,E A,B,C,D,E A,B,C,D,E A,B,C,D,E A,B,C,D,E A,B,C,D,E A,B,C,D,E
PCB row number 5 5 5 5 5 5 5 5 5 5
Number of rows loaded 5 5 5 5 5 5 5 5 5 5
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
polarization key ENDS ENDS ENDS ENDS ENDS ENDS ENDS SHRD ENDS ENDS ENDS
Rated current (signal) 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A
Guideline UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA
Terminal length 0.472 inch 0.913 inch 0.913 inch 0.472 inch 0.799 inch 0.799 inch 0.669 inch 0.118 inch 0.638 inch 0.638 inch
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 160 160 160 160 160 160 160 160 160 160
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Evacuation force-minimum value .139 N .139 N .139 N .139 N .139 N .139 N .139 N .139 N .139 N .139 N

Recommended Resources

Transistor undervoltage reset circuit

TV power saving remote control switch circuit

Current-Voltage Conversion Circuit

Programmable multi-purpose controller circuit

Phase signal generator circuit

Reflective lighting delay switch

Why do some components not display ground pins and power pins as shown in the figure?
As shown in the figure, pins 8 and 16 are GND and VCC pins. Why are they not displayed?...
hu柏拉图的永恒 PCB Design
I would be grateful if someone could give me a copy of the PCB rules
Can someone give me a copy of the PCB design rules? Thanks for the export method....
大发明家 PCB Design
Non-magnetic AC/DC Power Supplies
One of the most common challenges when creating industrial power supplies is converting AC voltage power to DC voltage power. Almost all applications require changing AC voltage to DC voltage, from ch...
fish001 Analogue and Mixed Signal
AD9361 RF Agile Transceiver
Software Defined Radio (SDR) combines RF to baseband transceiver PHY and digital processors to provide a reusable and future-proof radio platform. SDR has many advantages, including software configura...
嗡嗡 ADI Reference Circuit
S5PV210 Timer
There are 4 types of timing devices in S5PV210, with different functions and features. 1. PWM timer(1) This is the most commonly used timer. The timer we usually refer to is this one. The timer in a s...
灞波儿奔 Microcontroller MCU
【PCB Design】Fully Automated Schematic Verification
[i=s]This post was last edited by ohahaha on 2018-3-19 15:19[/i] [align=left]Craig Armenti[/align][align=left]PCB Marketing Engineer at Mentor Circuit Board System Division. He has over 25 years of ex...
ohahaha PCB Design
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. RC442-128-333-3900
  2. 94W-NKA12HD-NW9
  3. KSX145-235TG
  4. 85106E2255PW5044
  5. HMTSW-116-09-L-Q-740
  6. VTC1-C3DE-24M5535
  7. SA532307F25NST
  8. 2M667-261-ZNU-S1214-5
  9. BZM55-B3V6
  10. D3961HB-12P-OR-G30
  11. C3030WR-S-11P-GWT-G30
  12. SDNT1005X104F4250FTF

Popular Articles

  1. STMicroelectronics’ STM32Cube.AI Ecosystem Strengthens Support for Efficient Machine Learning
  2. Apple releases new version of iCloud for Windows, adds keychain password management app
  3. The first ISO international standard for automotive information security is officially released: ISO-SAE 21434
  4. LiDAR market expected to reach US$5.7 billion in 2026, ADAS has great growth potential
  5. Cincoze develops new M12 X-type CMI module to optimize the transmission efficiency of rail transit
  6. How to select the drain valve of magnetic flap level gauge?
  7. ITC launched an investigation into Samsung, LG, Lenovo, etc. for alleged infringement of semiconductor-related patents
  8. US Department of Commerce opposes further sanctions on SMIC
  9. Shengzhe Technology cooperates with Graphcore to create an IPU-based urban ESG solution
  10. Operation and use of rock density tester

Technical ResourceMore

  1. led8×8 scrolling display PROTEUS
  2. Design of a sound signal acquisition and measurement instrument
  3. Steps to train embedded software engineers
  4. Changhong PF2917DV color TV IIC bus EEPROM data
  5. Audio coding knowledge and technical parameters
  6. TCL 2101 (24C04) memory data
  7. Fluorescent lamp circuit and power factor improvement
  8. Research on Intelligent Excitation System of Brushless Synchronous Motor
  9. First-Order Circuit Analysis
  10. \"Proteus from Beginner to Mastery 100 Examples\"

ForumMore

  1. I would be grateful if someone could give me a copy of the PCB rules
  2. Non-magnetic AC/DC Power Supplies
  3. AD9361 RF Agile Transceiver
  4. S5PV210 Timer
  5. 【PCB Design】Fully Automated Schematic Verification
  6. Detailed explanation and selection of pull-up resistors and pull-down resistors
  7. FLYBUCK circuit, transformer primary voltage problem
  8. How to solve CAN response errors and how to set CAN identifiers
  9. Tax control machine industry: a promising industry worth paying attention to, with different future prospects for related listed companies
  10. Repost: Elevators 60 years later, the motherland tells you to save energy! !

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1577  1790  1074  224  1389  32  37  22  5  28
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
