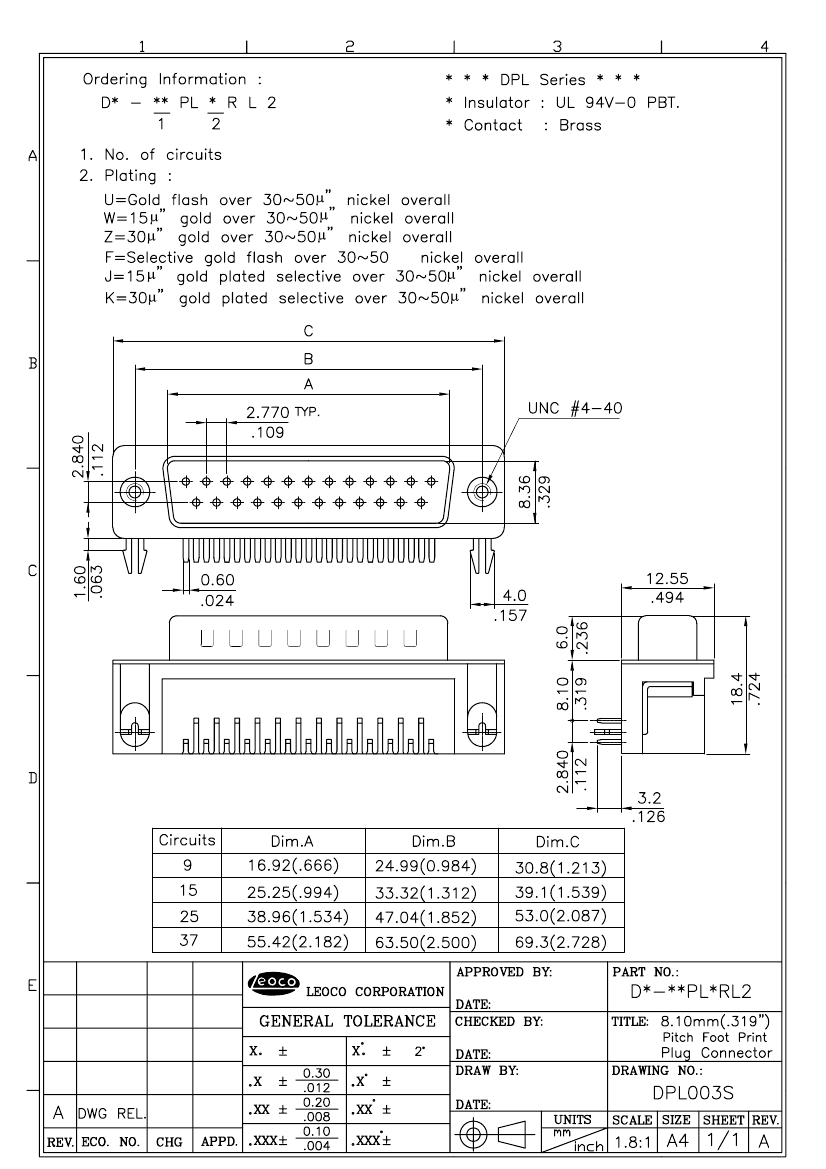

DA-15PLURL2: DescriptionD Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

DA-15PLURL2 Overview

D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Objectid	303581256
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
subject depth	0.488 inch
body length	1.539 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DPL
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	RIVET
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15
