MIL-55310/09-Series Specifications

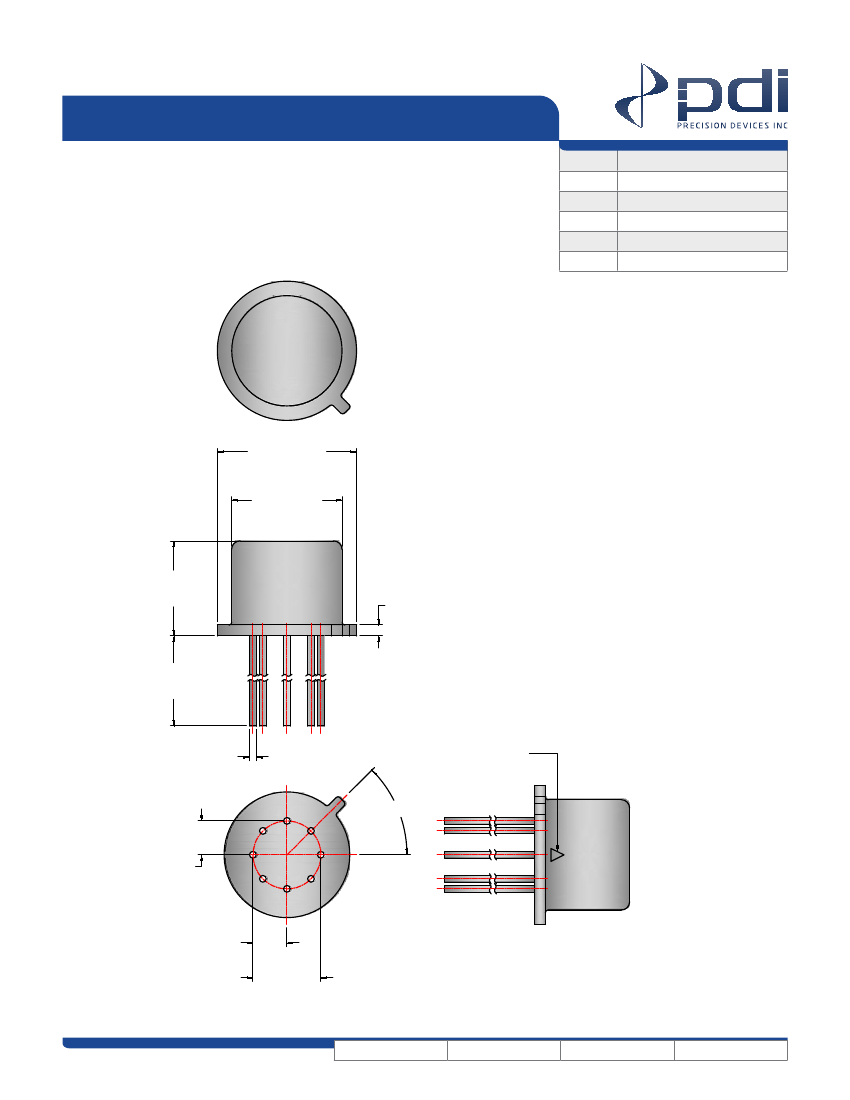

0.410D x 0.300H (in)
PDI
MIL-PRF-55310/09

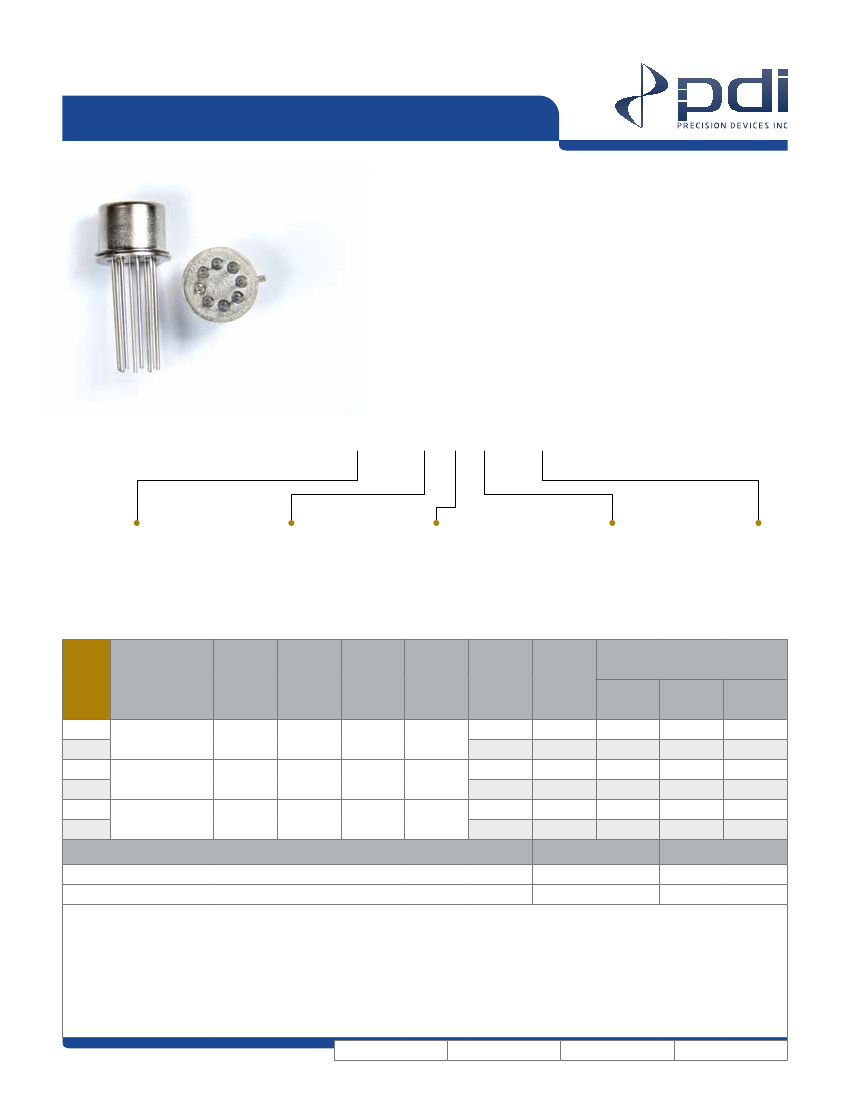

Oscillators are available in both standard and custom
frequencies to provide precision timing in a hermetically sealed package for
military and space applications. PDI provides quick-turn sampling for your
proto-typing needs, mass production capability, and competitive pricing.
ex)
M55310/09—B—01—A—7M000000
MILITARY SLASH SHEET
PRODUCT LEVEL
B
= Hi-Rel
C
= Commercial
S
= Space
DASH NUMBER
See Chart Below
OPERATING TEMPERATURE
A
= -55°C to +125°C
B
= -55°C to +105°C
C
= -20°C to +70°C
XXXXXXXX
Specified
Nominal
Frequency
Dash
No.
01
05
11
15
21
25
Frequency
Range
MHz
0.750000 –
9.000000
9.000000 –
25.000000
25.000000 –
60.000000
Supply
Current
mA Max.
50
30
50
Rise/Fall
Times
nS Max.
15
15
5
Duty
Cycle
@ 1.4 Vdc
45 to 55%
40 to 60%
40 to 60%
Load
TTL Max.
10
10
6
Tolerance
Aging
@ 23°C Per Year
ppm Max.
±15
±25
±15
±25
±15
±25
ppm Max.
±5
±10
±5
±10
±5
±10
Operating Temperature
(A)
±50
±100
±50
±100
±50
±100
(B)
±40
±80
±40
±80
±40
±80
(C)
±25
±50
±25
±50
±25
±50
Aging Per Year (Max.)
Per 30 Days
Per 90 Days
NOTES:
All product supplied in anti-static packaging.
A TTL unit load is defined as: 1.60 mA sink, 0.04 mA source, and 2.00 pF capacitance.
At +70°C ± 2.0°C, intervals not more than every 72 hours for a minimum of 30 days.
The product described in this spec. consist of this specification and MIL-PRF-55310.
Decimal
XXX = ± .005, XX = ± .020
Metric
[XXX = ± .13], [XX = ± .50]
Specifications subject to change without notice, last updated 4/1/1 3.
REV:
NA
SIZE:
A
5 ppm
±0.7 ppm
±1.5 ppm
10 ppm
±1.5 ppm
±3.0 ppm
CAGE:
A
1
of
3
MIL-55310/09-Series
0.410 x 0.300
(in)
Parameter
vs Temperature (Max.)
-20 to +70°C (Type C)
-55 to +105°C (Type B)
-55 to +125°C (Type A)
vs Supply Voltage (Max. for a 10% charge)
vs Aging (@ +70°C ± 2.0°C) (Max.)
Per 30 Days
Per 90 Days
Tolerance (@ +25°C ± 1.0°C) (Max.)
Within 30 Days of Shipment
Temperature Range
Supply Voltage
Output
Logic Levels
Operating
Storage
±10.0 %
High (Min.)
Low (Max.)
Frequency Range
0.750000 to 60.000000 MHz
Per Chart
Per Chart
Per Chart
±2.0
5 Per Year
±0.7
±1.5
Per Chart
Per Chart
-62 to +125
+5.0
TTL
2.4
0.5
10 Per Year
±1.5
±3.0
Units
Frequency Stability
ppm
°C
Vdc
Vdc
Test Inspection
Internal Visual
Stabization bake (prior to seal) 1/
Thermal Shock
Temperature Cycling
Constant Acceleration
Seal (Fine and Gross Leak) 2/
Particle Impact Noise Detection (PIND)
Electrical Test:
Input Current Power
Output Waveform
Output Voltage-Power
As Specified
Burn-In (Load)
See 4.4.1
Product Level
S
Method Condition
MIL-STD-883, method 1011,
Condition C (+150°C) 48 hours min.
MIL-STD-883, method 1011,
Condition A
MIL-STD-883, method 1010
Condition B
MIL-STD-883, method 2001.
Condition A, Y1 only (5000 g’s)
See 4.8.2.2.2
MIL-STD-883, method 2020
Condition B
4.8.5
4.8.20
4.8.21
3.1
+125C, nominal supply voltage and
burn-in load, 240 hours minimum
Nominal and extreme supply voltages,
specified load, +23°C and temperature ex-
tremes, record all test parameters
by serial number
4.8.5
4.8.20
4.8.21
3.1
MIL-STD-883, method 2020
REV:
NA
SIZE:
A
Product Level
B
&
C
Method Condition
See 4.4.1
MIL-STD-883, method 1011,
Condition C (+150°C) 48 hours min.
N/A
MIL-STD-883, method 1010
Condition B
MIL-STD-883, method 2001.
Condition A, Y1 only (5000 g’s)
See 4.8.2.2.2
N/A
N/A
N/A
N/A
3.1
+125C, nominal supply voltage and
burn-in load, 160 hours minimum
Nominal supply voltages, specified
load, +23°C and verify frequency
at the temperature extremes
4.8.5
4.8.20
4.8.21
3.1
N/A
CAGE:
A
Electrical Test:
Input Current Power
Output Waveform
Output Voltage-Power
As Specified
Radiographic 3/
2
of
3
