350-066-0040H

Description
RF SMA Connector, Male, Panel Mount, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size48KB，1 Pages
ManufacturerWinchester Electronics
Download Datasheet Parametric Compare View All

350-066-0040H Overview

RF SMA Connector, Male, Panel Mount, Solder Terminal, Receptacle

350-066-0040H Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresSTANDARD: MIL-C-39012
Body/casing typeRECEPTACLE
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number350
Installation methodSTRAIGHT
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeSOLDER
Base Number Matches1

Preview

Download Datasheet

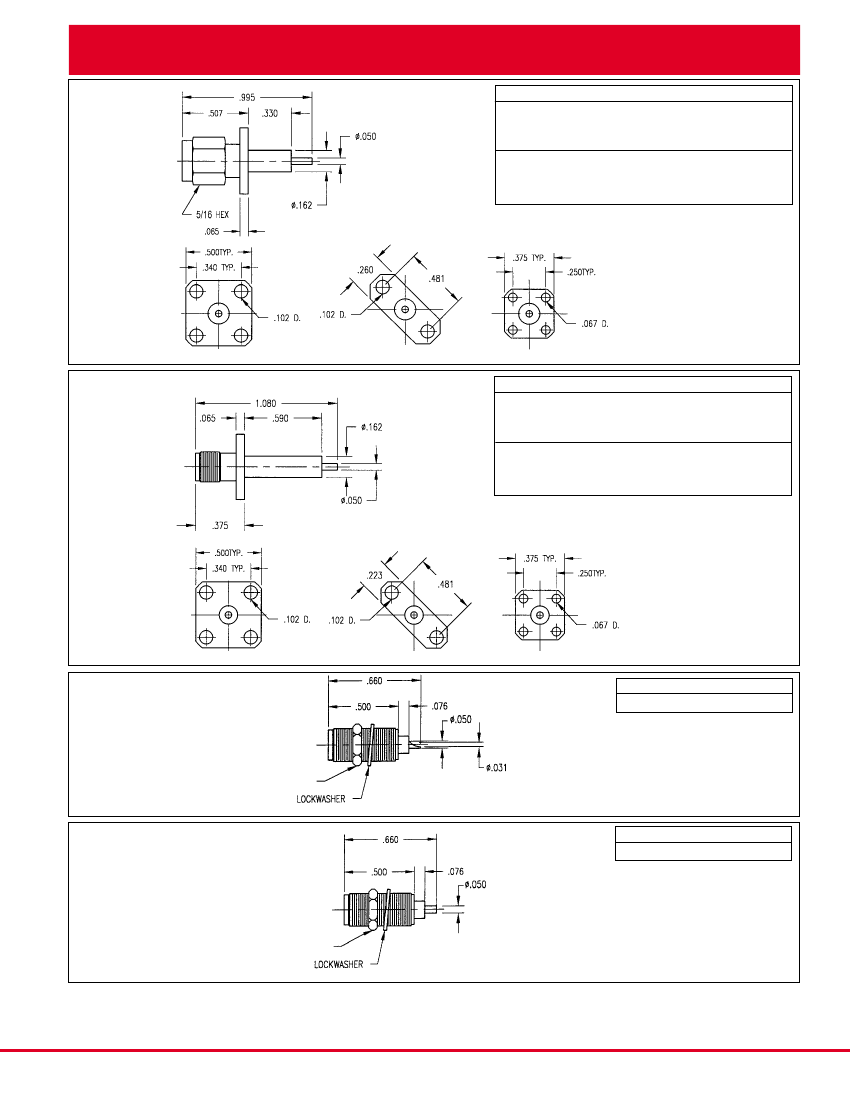

SMA Brass:
Straight
Plug
Flange
Mount
Straight
Contact
Receptacle
Part Number
Mounting Hole
350-065-0040H
No. 065
350-066-0040H
No. 066
350-055-0040H
No. 055
350-065-0041H
No. 065
350-066-0041H
No. 066
350-055-0041H
No. 055
Contact
Figure
captivated
1
captivated
2
captivated
3
non-captivated 1
non-captivated 2
non-captivated 3
Figure 2
• See page 83 for mounting hole layout.
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
Figure 1
Figure 3
Straight
Jack
Flange
Mount
Straight
Contact
Figure 2
Part Number
Mounting Hole
351-065-0040H
No. 065
351-066-0040H
No. 066
351-055-0040H
No. 055
351-065-0041H
No. 065
351-066-0041H
No. 066
351-055-0041H
No. 055
Contact
Figure
captivated
1
captivated
2
captivated
3
non-captivated
1
non-captivated
2
non-captivated
3
• See page 83 for mounting hole layout.
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
Figure 1
Figure 3
Straight Jack
Feed - Thru
Solder Pot
5/16 HEX
Part Number
Mounting Hole
351-074-0000H
No. 074
• See page 83 for mounting hole layout.
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
Straight Jack
Feed - Thru
Straight Terminal
Part Number
Mounting Hole
351-074-0040H
No. 074
• See page 83 for mounting hole layout.
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
5/16 HEX
Note: Dimensions shown in inches.
Winchester/Retconn
400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com
RF/21
