Series 970 PowerTrip™ Connectors and Accessories
Receptacle Connectors

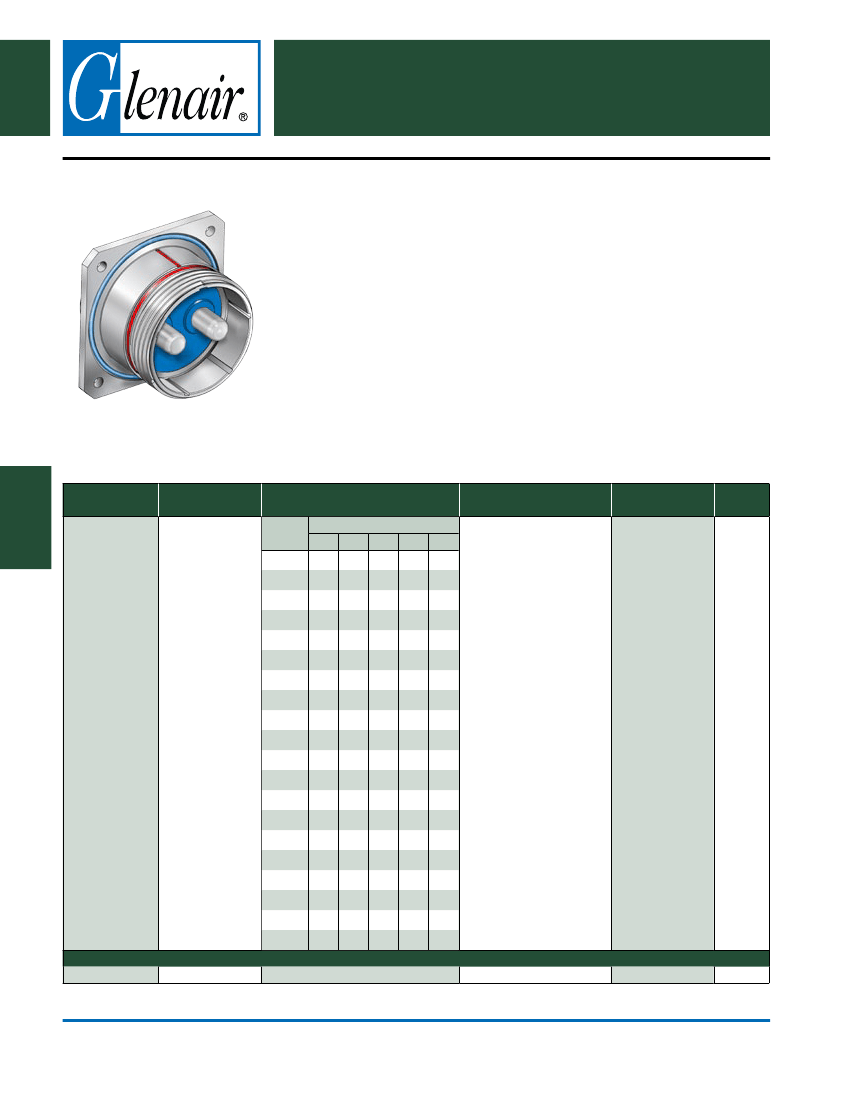

970-013 Low Profile Square Flange Receptacle
970-013 low profile receptacle with o-ring
970-013 receptacles feature an o-ring for panel sealing. Low profile for reduced
clearance inside equipment. Connector mounting flange is enlarged to include the
o-ring. Series 970 PowerTrip™ extreme environment receptacle connectors are intended
for high current applications where size 8 AWG to size 1/0 AWG wires are used. Contacts
snap into connector and can be removed with a plastic tool. These connectors feature
high ampacity LouverBand contacts. Coupling threads are triple-start ACME type. EMI
protected with ground spring and splined backshell interface. Standard contacts are
silver plated high conductivity copper alloy, or choose gold-plated contacts for improved
corrosion protection. Contacts are packaged with connector. red stripe indicates full
mating condition when the plug connector coupling ring fully covers the stripe.
970-013 connectors have a low profile wire separator instead of a thicker watertight
rear grommet. These connectors are splashproof but are not rated for water
immersion or altitude immersion.
Receptacle
Connectors
HoW To oRDER
D
SERIES
SHELL MATL
AND FINISH
Aluminum,
Electroless
Nickel Finish
Low Profile
Square Flange
Panel Mount
Receptacle with
O-ring Panel
Seal
970-013
ME
Contact Size and Qty
Contact
#16 #12 #8
#4 #1/0
Arr.
2
2
2
3
4
2
4
3
3
2
3
5
4
3
5
2
3
4
4
2
3
2
5
3
3
4
5
2
SHELL SIZE - INSERT
ARRANGEMENT
CoNTACT TYPE
AND PLATING
Pin Contacts, Silver
Plating*
Pin Contacts, Gold
Plating
Socket Contacts, Silver
Plating*
Socket Contacts, Gold
Plating
Pin Connector, without
Contacts
Socket Connector,
without Contacts
* Size 12 and 16 contacts
are gold-plated. Size 8, 4
and 1/0 are silver plated.
MoUNTING
HoLE oPTIoN
Thru-Hole
KEY
PoS.
Position
1
P1
N
T
-1
18-2
18-4
20-3
MT
20-4
Aluminum,
Nickel-PTFE
20-5
Finish
20-7
24-2
NF
Aluminum,
24-3
Olive Drab
24-5
Cadmium
24-6
ZR
24-A6
Aluminum,
28-4
Black Zinc-
Nickel Finish
28-9
32-2
Z1
32-3
Passivated
Stainless Steel
32-4
32-5
32-6
36-4
40-5
MT
P2
S1
-2
Clinch Nuts
Installed in
Position
Mounting Holes
2
for Back Panel
Mounting.
-3
Position
3
Position
4
Position
5
Position
6
S2
A
B
-4
-5
-6
970-013
© 2013 Glenair, Inc.
24-5
Sample Part Number
U.S. CAGE Code 06324
P1
N
-1
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
24
E-Mail: sales@glenair.com

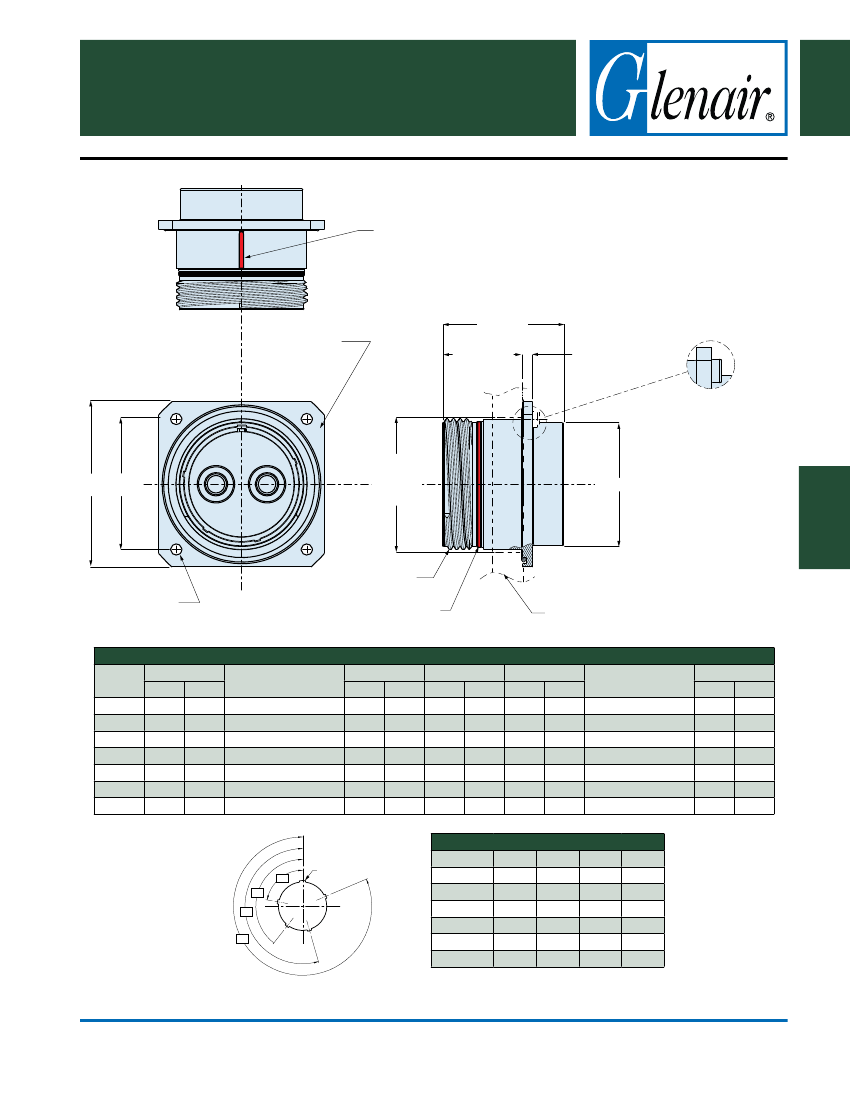

970-013 Low Profile Square Flange Receptacle
970-013 low profile receptacle
RED MASTER KEY
LOCATION STRIPE
POLARIZATION
NUMBER
(LOCATION
OPTIONAL)
1.860
(47.24)
MAX
1.240/1.210
(31.50/30.73)
.160/.130
(4.06/3.30)
MOUNTING HOLE OPTION T
CLINCH NUT, 4 PLCS,
SELF-LOCKING, STAINLESS
STEEL
1
B
A
D
TYP TYP
A
F
MOUNTING
HOLE
CUTOUT
ØC
ØE
B
MATING THREAD
RED FULL MATE
INDICATOR STRIPE
.47 (11.9) MAXIMUM
MOUNTING PANEL
THICKNESS
Shell
Size
18
20
24
28
32
36
40
In.
1.591
1.779
2.029
2.404
2.529
2.654
3.029
A
mm.
B
Mating Thread
In.
.972
1.116
1.300
1.604
1.875
2.093
2.310
C
DIMENSIoNS
mm.
In.
D
mm.
32.39
35.76
40.26
48.39
50.62
52.86
59.61
24.69 1.275
28.35 1.408
33.02 1.585
40.74 1.905
47.63 1.993
53.16 2.081
58.67 2.347
ø E
In.
mm.
.146
.146
.146
.170
.170
.170
.170
3.71
3.71
3.71
4.32
4.32
4.32
4.32
E
Clinch Nut Thd
6-32 UNC-2B
6-32 UNC-2B
6-32 UNC-2B
8-32 UNC-2B
8-32 UNC-2B
8-32 UNC-2B
8-32 UNC-2B
ø F
In.
mm.
1.187
1.374
1.562
1.835
2.093
2.302
2.562
30.15
34.90
39.67
46.61
53.16
58.47
65.07
40.41 1.125-.1P-.3L-TS-2A
45.19 1.250-.1P-.3L-TS-2A
51.54 1.500-.1P-.3L-TS-2A
61.06 1.750-.1P-.3L-TS-2A
64.24 2.000-.1P-.3L-TS-2A
67.41 2.250-.1P-.3L-TS-2A
76.94 2.500-.1P-.3L-TS-2A
A°
B°
C°
D°
MASTER KEY
Position
1
2
3
4
5
6
KEY PoSITIoNS
A0
B0
C0
80
135
49
66
62
79
142
170
169
140
145
153
196
200
200
200
180
197
D0
293
310
244
257
280
272
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
25
E-Mail: sales@glenair.com
Receptacle
Connectors
Series 970 PowerTrip™ Connectors and Accessories
Receptacle Connectors
B
D
