2518061017Y0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 2518061017Y0

2518061017Y0: DescriptionFerrite Chip, 1 Function(s), 0.4A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1806, 2 PIN; CategoryAnalog mixed-signal IC filter; File Size1MB，3 Pages; ManufacturerFair-Rite Products Corp.; Environmental Compliance

Download Datasheet Parametric View All

2518061017Y0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2518061017Y0	-	-	View	Buy Now

2518061017Y0 Overview

Ferrite Chip, 1 Function(s), 0.4A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1806, 2 PIN

2518061017Y0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, EIA STD PACKAGE SIZE 1806, 2 PIN
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD SIGNAL SPEED
shell code	1806
structure	Chip Bead
Maximum DC resistance	0.3 Ω
filter type	FERRITE CHIP
maximum frequency	1000 MHz
minimum frequency	100 MHz
high	1.6 mm
JESD-609 code	e3
length	4.5 mm
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	100 OHM Ω
method of packing	TAPE AND REEL
physical size	L4.5XB1.6XH1.6 (mm)/L0.177XB0.063XH0.063 (inch)
Rated current	0.4 A
Terminal surface	Matte Tin (Sn)
width	1.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

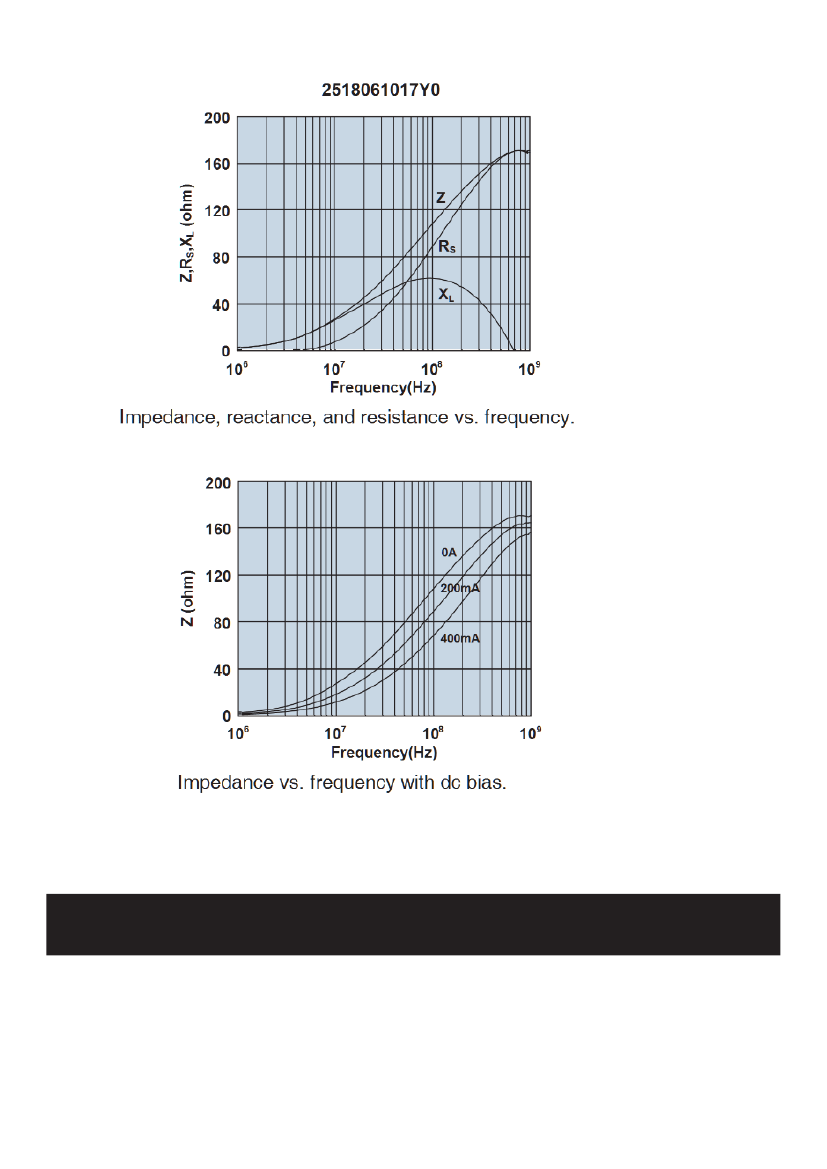

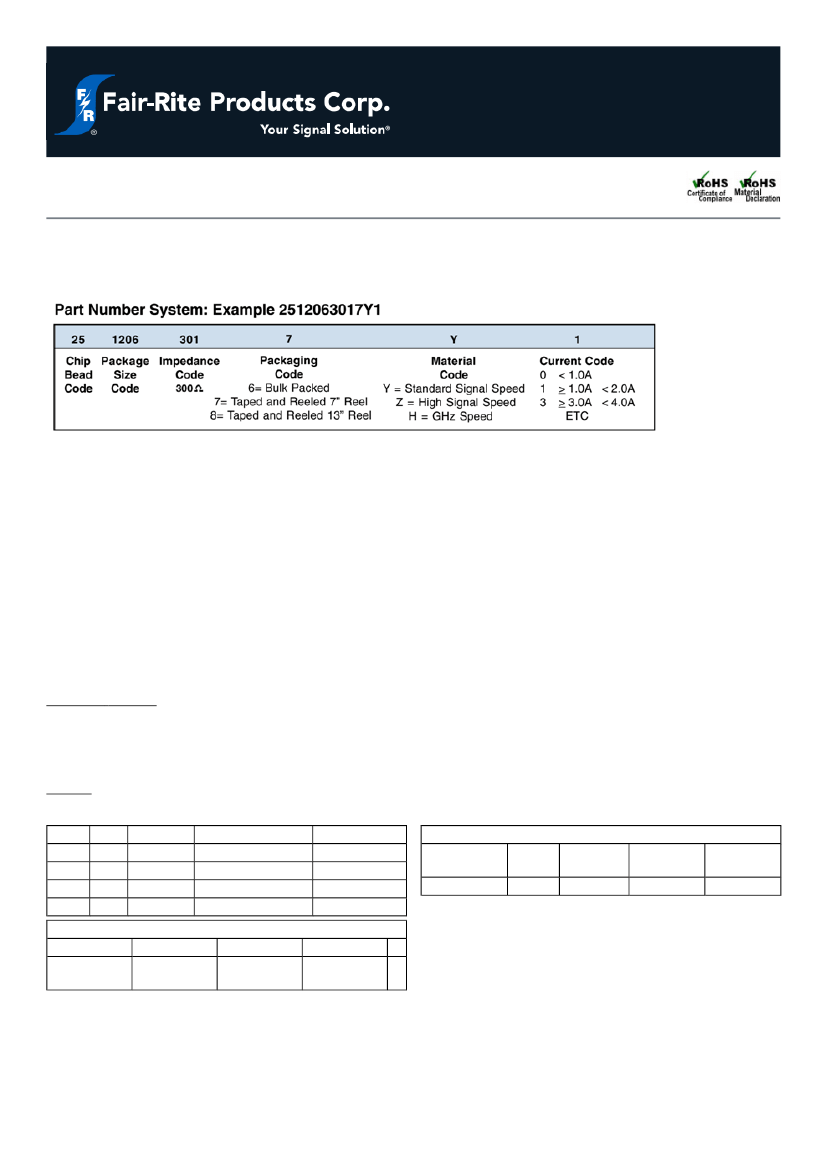

Chip Beads (2518061017Y0)

Part Number: 2518061017Y0

MULTI- LAYER CHIP BEAD

Fair- Rite offers a broad selection of cost effective multi- layer chip beads to suppress conducted EMI signals. Chip beads can be

used in an array of devices such as cellular phones, computers, laptops, pagers, etc. The small package sizes accommodate

automated placements and allow for a dense packaging of circuit boards.

Chip Beads are available in standard, high and GHz signal speeds.

Packaging Options:

- All multi- layer chip beads are supplied taped and reeled, if required bulk packed chip beads can be provided.

The suggested land patterns are in accordance to the latest revision of IPC-7351.

Weight: 0.06 (g)

Package Size: 1806 (4516)

Dim mm mm tol

nominal inch

1.6 ±0.20

0.063

1.6 ±0.20

0.063

4.5 ±0.20

0.177

0.7 ±0.30

0.028

Land Patterns

2.00

3.90

(0.079”)

(0.154”)

1.80

(0.171”)

inch misc.

1.90

(0.075”)

Reel Information

Tape Width Pitch

Parts 7"

Reel

2000

Parts 13"

Reel

10000

Parts 14"

Reel
