D85C22V10-25 datasheet, PDF - EEWORLD Datasheet

D85C22V10-25: DescriptionProgrammable Logic Device, 25ns, PAL-Type, CMOS, CDIP24; CategoryProgrammable logic devices Programmable logic; File Size570KB，10 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric View All

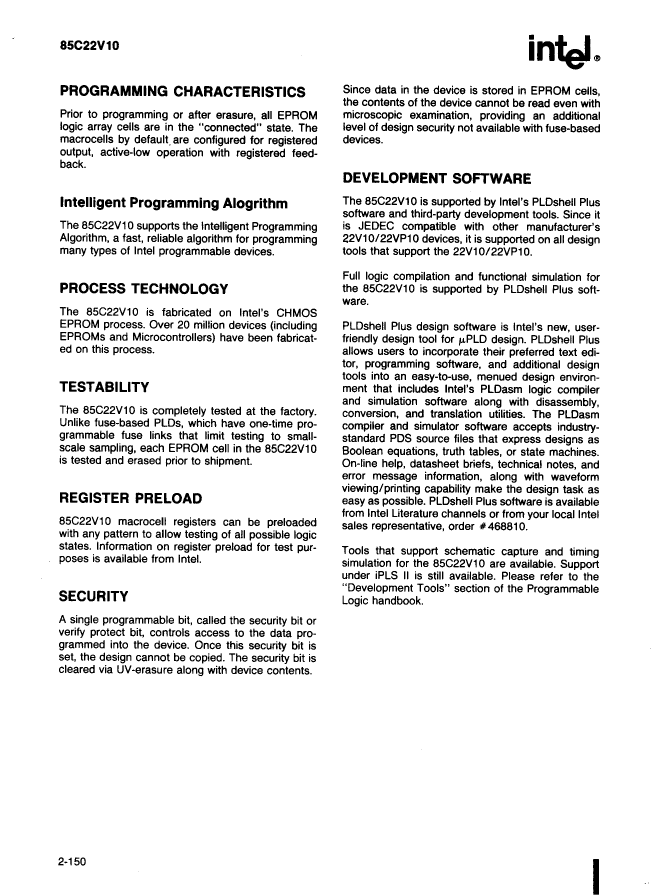

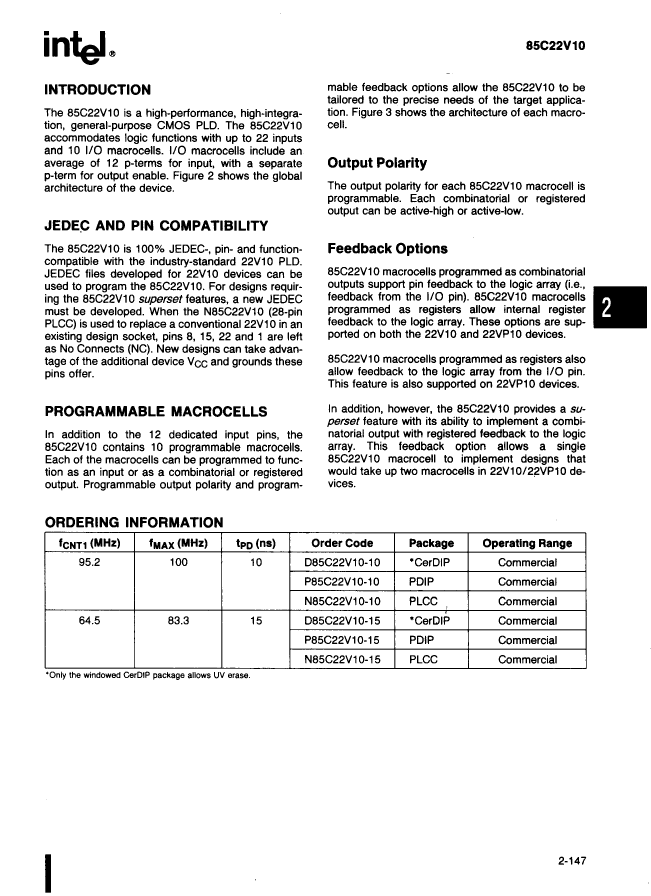

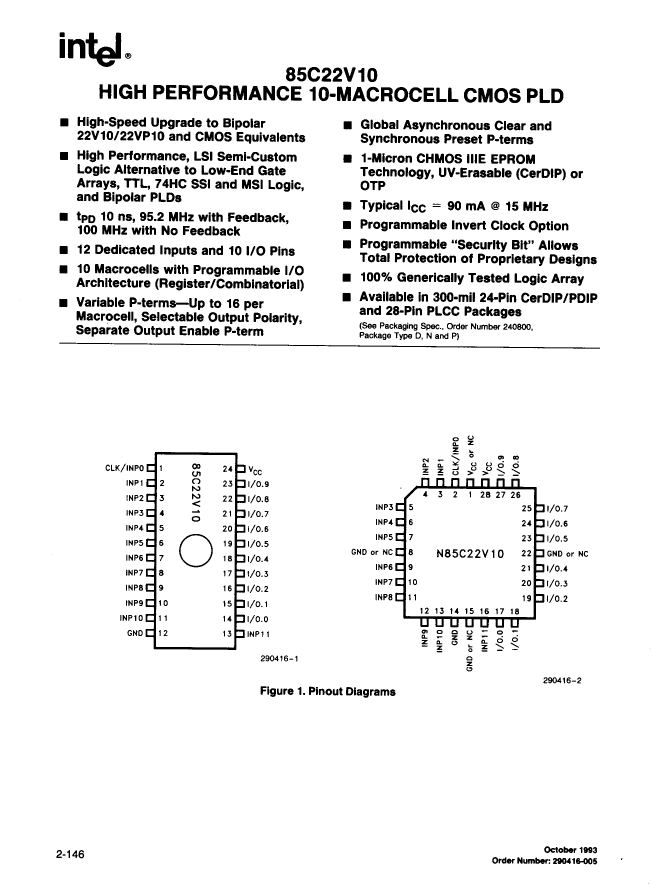

D85C22V10-25 Overview

Programmable Logic Device, 25ns, PAL-Type, CMOS, CDIP24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	100137195
package instruction	DIP, DIP24,.3
Reach Compliance Code	compliant

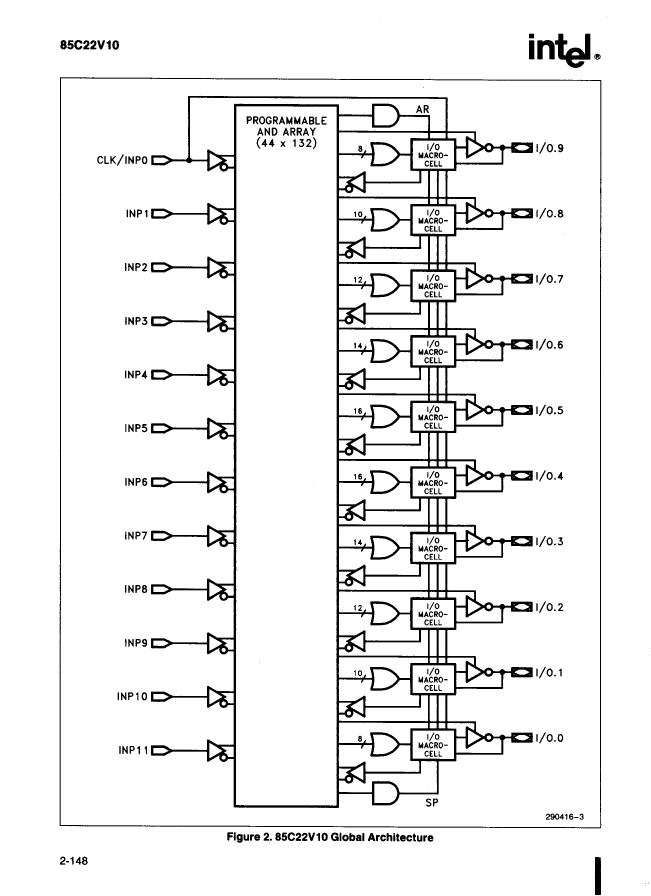

Architecture	PAL-TYPE
maximum clock frequency	35.7 MHz
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Number of entries	22
Number of macro cells	10
Output times	10
Number of product terms	132
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
organize	11 DEDICATED INPUTS, 10 I/O

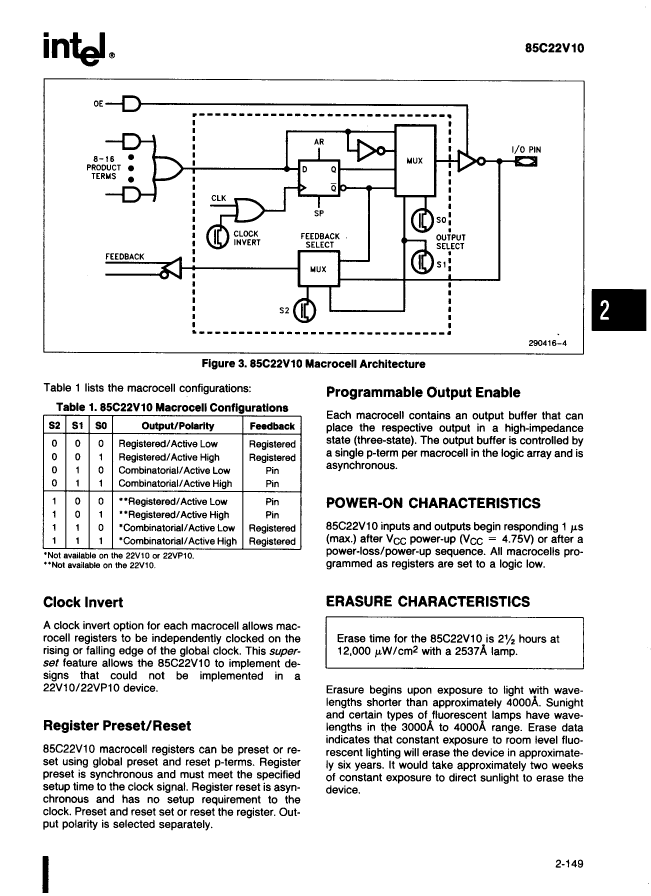

Output function	MACROCELL
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
propagation delay	25 ns
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
