T111B115K075ASC datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T111B115K075ASC

T111B115K075ASC: DescriptionTantalum Capacitor, Non-polarized, Tantalum (dry/solid), 75V, 10% +Tol, 10% -Tol, 1.1uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size634KB，15 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T111B115K075ASC Overview

Tantalum Capacitor, Non-polarized, Tantalum (dry/solid), 75V, 10% +Tol, 10% -Tol, 1.1uF, Through Hole Mount, AXIAL LEADED

T111B115K075ASC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	2117417675
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1.1 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e0
leakage current	0.0008 mA
Manufacturer's serial number	T111
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
polarity	NON-POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	75 V
surface mount	NO
Delta tangent	0.04
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

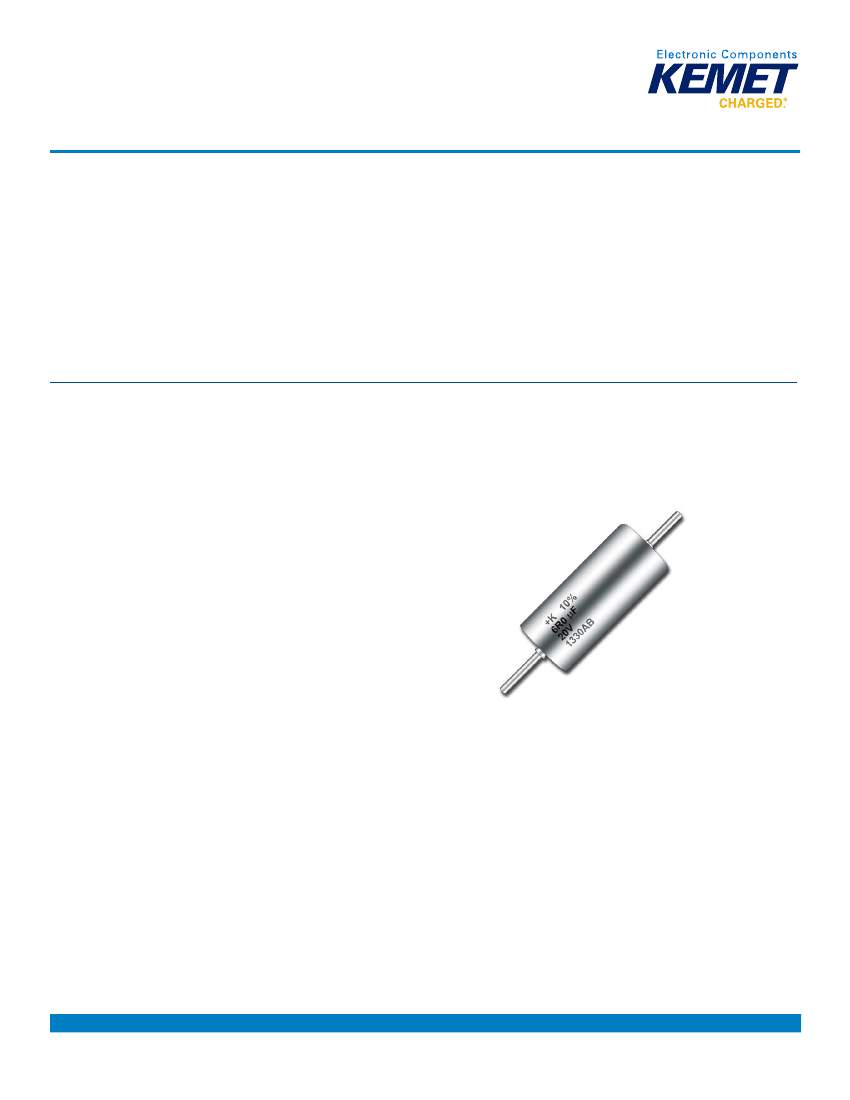

Tantalum Through-Hole Capacitors – Hermetically Sealed

T111 Series Axial MIL–PRF–39003 Non-Polar and

T213 (CSR91)

Overview

The T111/T213 Series is primarily designed for use in tuned

low frequency circuits, phasing low voltage AC motors, servo

systems and other applications where reversal of polarity is a

primary consideration. The T111 unit consists of two polar T110

Series hermetically sealed tantalum capacitors, electrically and

mechanically connected back-to-back and supported by an

outer corrosion-resistant metal sleeve. They exhibit comparable

electrical and performance characteristics of T110 Series.

Available in capacitance values from 0.0023 µF to 160 µF in

±20%, ±10%, and ±5% tolerances, the T111 series is offered in

working voltages of 6 VDC to 100 VDC at +85°C.

Benefits

•

Taped and reeled per EIA Specification RS–296

Marking per MIL–STD–1285

Qualified to MIL–PRF–39003, Style CSR91

Failure rate options: Graded - B, C, D, and G

Exponential - M, P, R, and S*

Capacitance values of 0.0023 μF to 160 μF

Tolerances of ±10% and ±20%

Voltage rating of 6 – 100 VDC

Operating temperature range of -55˚C to +125˚C

Case sizes: A, B, C, D

Applications

Typical applications include use in tuned low frequency circuits,

phasing low voltage AC motors, servo systems and other

applications where reversal of polarity is a primary consideration.

*Failure rates apply to military products only

One world. One KEMET

T2032_T111_AXIAL_T213 • 10/29/2013
