Spec Sheet
Multilayer Ceramic Capacitors (High dielectric type)
LMK105BJ224MV-F
Features
Item Summary
0.22uF±20%, 10V,
X5R, 0402/1005 (EIA/JIS)
Lifecycle Stage
Non-preferred
Standard packaging quantity (minimum)
Taping paper 10000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
0.22 uF ± 20 %
0402/1005
10 V
5%
X5R
-55 to +85 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.0 ±0.05 mm
0.5 ±0.05 mm
0.5 ±0.05 mm
0.25 ±0.10 mm
2018.11.02
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

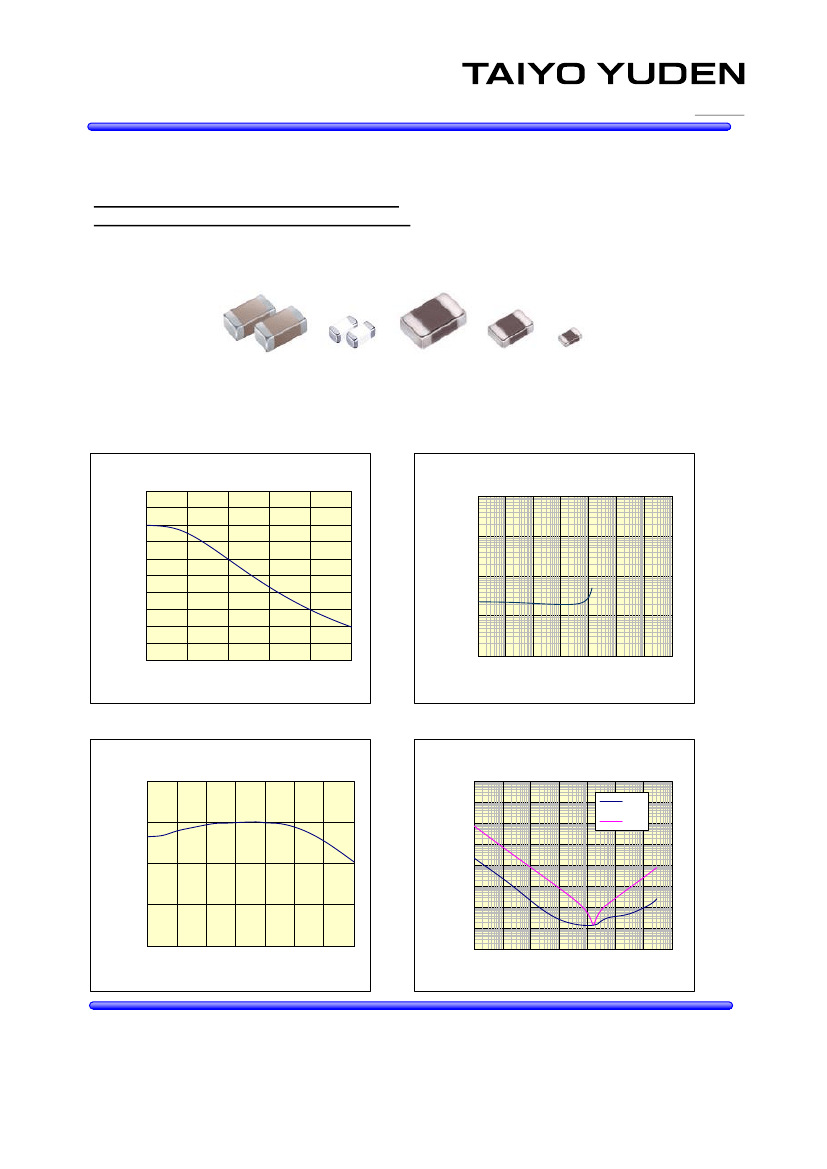

Multi Layer Ceramic Capacitor
○LMK105BJ224MV
10V 1005 X5R 0.22uF +/- 20% t=0.55mmMAX
10V 0402 X5R 0.22uF +/- 20% t=0.022inchMAX
-Electrical Characteristics Data-
18YA09
RoHS compliance product
20
10
0
-10
-20
-30
-40
-50
-60
-70
-80
0
2
LMK105BJ224M V
DC Bias Char.
100
LMK105BJ224M V
Capacitance Freq.
10
Capacitance[uF]
dC/C[%]
1
0.1
4
6
8
DC Bias Voltage[V]
10
0.01
0.001 0.01 0.1
1
10
100 1000 10000
Frequency[MHz]
LMK105BJ224M V
Capacitance Temp.
LMK105BJ224M V
Impedance,ESR Freq.
10
100000
10000
ESR
Z
0
1000
-10
Z,ESR[OHM]
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
dC/C[%]
100
10
1
0.1
0.01
-20
-30
0.001
0.001 0.01 0.1
1
10 100 1000 10000
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
