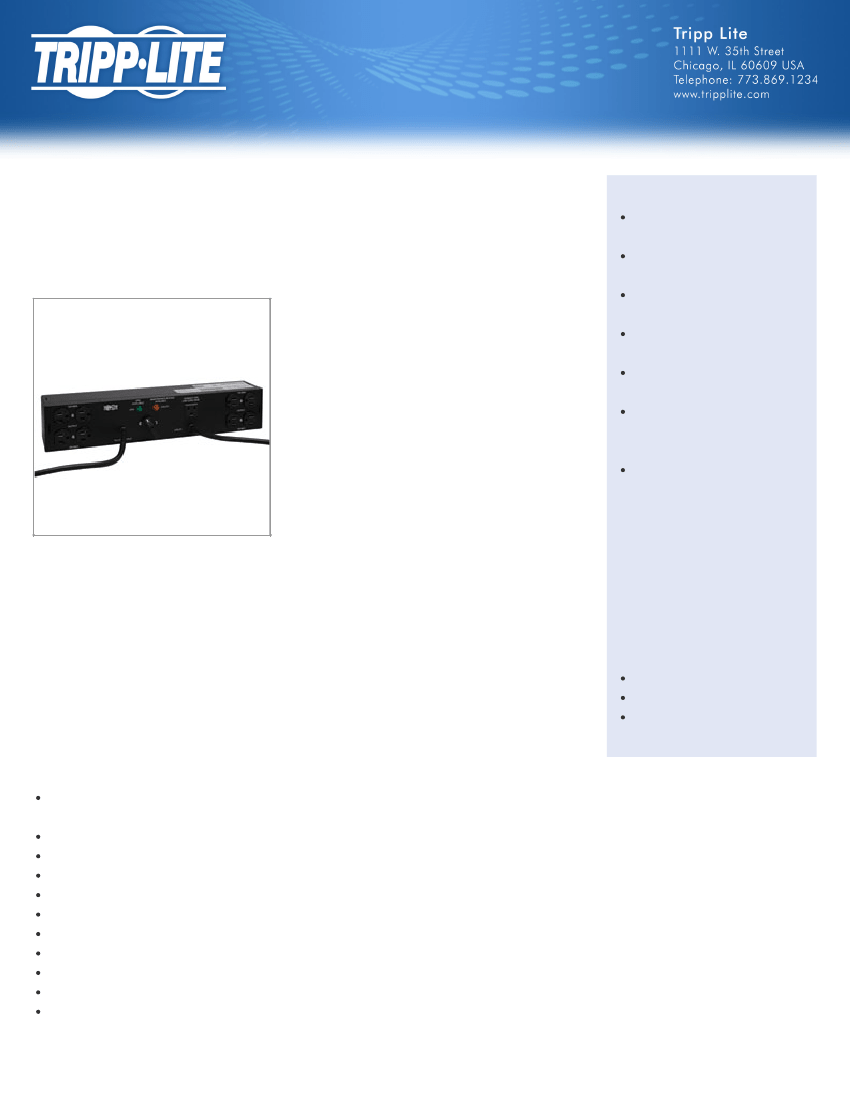

Single-Phase Hot-Swap PDU, 1.4kW 15A 120V, 2U

Horizontal Rackmount, 8 NEMA 5-15R outlets, set of

2 NEMA 5-15P input plugs

MODEL NUMBER:

PDUB15

Highlights

Single phase 15A 120V Hot-swap

PDU

Enables live replacement of a

standard UPS with zero downtime

2U horizontal rackmount

installation

Compatible with any 100-127V

UPS with a 5-15P input plug

Manual transfer switch controls

PDU input power source

Pair of 5-15P input cables

connect to separate Utility and

UPS inputs

8 Built-in 5-15R outlets

Applications

Hot-swap PDUs are ideal to install

along with standard UPS systems to

Description

Tripp Lite’s Hot-swap PDU systems enable live-replacement of standard UPS systems for maintenance with no

interruption of connected server or networking loads. Dual input power cables support PDU connection to

separate Utility and UPS power sources. Manual transfer switch with lighted status indicators controls the source

of power to connected equipment between Utility and UPS. Set the switch to UPS during normal operation and

connected equipment will receive full-time conditioned power from the UPS. Set the switch to Utility to

momentarily power connected equipment from the Utility line cord and bypass the UPS while the UPS system is

removed and replaced with a fresh one. Once the new UPS is up and running with all data and electrical

connections restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS power

to connected equipment.

ensure that connected networking

equipment will see no power

interruption as the UPS is serviced,

replaced or upgraded

Package Includes

Hot-swap PDU System

2U mounting brackets

User manual with warranty

information

Features

Tripp Lite Hot-swap PDU systems support live-replacement of standard UPS systems for maintenance with no interruption of connected server or

networking loads

PDUB15 is universally compatible with any Tripp Lite or other brand of 100-127V UPS rated up to 1500VA or 1440 watts with a NEMA 5-15P input cable

2U horizontal rackmount form factor compatible with 2 or 4 post racks

Supports space saving rear-post mounting in the same rack space as many Tripp Lite Rackmount UPS systems (select installations, see manual)

Pair of attached 5-15P PDU input cables connect to separate Utility and UPS power sources

8 high quality 5-15R outlets support critical networking loads in both Utility and UPS operating modes

One additional 5-15R pass-through outlet supports UPS input power cord

Dual input power cables support PDU connection to separate Utility and UPS power sources

Manual transfer switch with lighted status indicators controls the source of power to connected equipment between Utility and UPS

Set the switch to UPS during normal operation and connected equipment will receive full-time conditioned power from the UPS

Set the switch to Utility to bypass the UPS and provide connected equipment with unfiltered power directly from the Utility line cord while the UPS system

is removed and replaced with a fresh one

1/4
